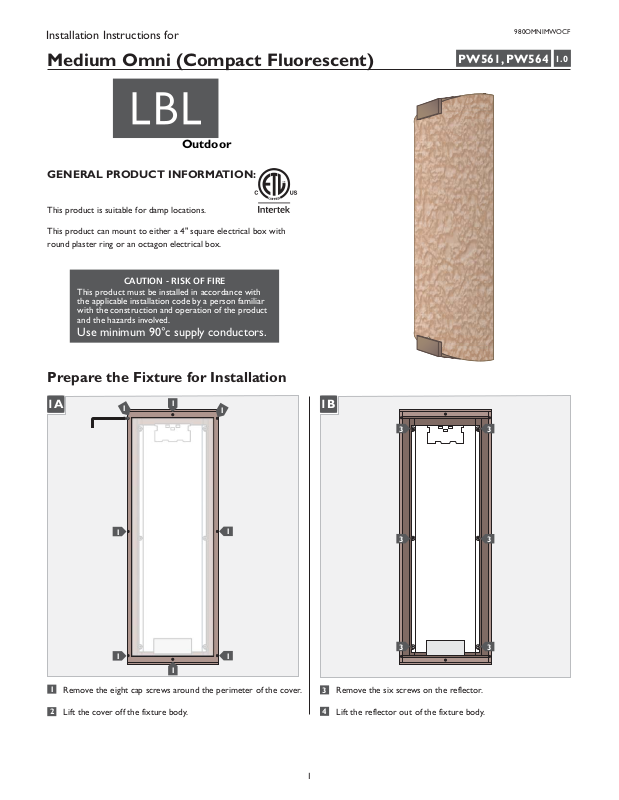

Installation Instructions for
980OMNIMWOCF
Medium Omni (Compact Fluorescent)
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW561, PW564
1.0
Prepare the Fixture for Installation
1
1
1
1
1
1
1
1
1B1A
3 3
3 3
3 3
1
Remove the eight cap screws around the perimeter of the cover.
2
Lift the cover off the fixture body.
3
Remove the six screws on the reflector.
4
Lift the reflector out of the fixture body.
1
Install the Fixture
2A
GROUND
SCREW
CROSSBAR
POWER LINEWIRES
1
Feed the power line wires through the nipple in the crossbar
and screw the crossbar to the electrical box.
2
Connect the crossbar to a suitable ground in accordance with
local electrical codes.
2B
4
2C
5
6
CAULK
5
5
Install the anchor for the lag bolt at the point marked on the
wall.
6
For wet locations: Apply a thick bead of caulk around the
anchor point and the electrical box.
ANCHOR
ANCHOR
3
4
3
Place the housing on the crossbar nipple.
4
Mark the location of the end holes in the housing onto the
wall and remove the housing.
2D
8
RUBBER WASHER
LAG BOLT
7
8
7
Mount the housing to the crossbar nipple with the nut and
lock washer provided.
METAL WASHER
Anchor the housing to the wall with lag bolts through the
8
metal and rubber washers provided.
Do not overtighten the lag bolts.
2
Install the Lamp and Protective Cover
2E
9
10
9
Connect the white wire to the neutral power line wire.
10
Connect the black wire to the hot power line wire.
3A
Use Type Twin TubeT5,
MAX 24 Watt
2G11 Base Compact Fluorescent Lamp.
1
Push the lamp base forward into the socket.
SOCKET
LAMP
2F
11
11
11
11
Reinstall the reflector into the housing and tighten all six
screws to hold it in place.
11
11
11
NOTE:To remove the lamp, push the red button.
3B
2
2 2
2
2
2
2
2
Reinstall all the cap screws around the perimeter of the cover.
2
3
Install the Decorative Shade (Optional)
4A
ALLEN WRENCH
4
SUPPORT ARM
3
DECORATIVE
SHADE
SAVETHESE INSTRUCTIONS!
2
SUPPORT ARM
1
Use the Allen wrench to remove the upper shade support arm.
2
Place the shade into the slot in the lower shade support arm.
3
Line up the slot in the upper shade support arm with the top
of the shade.
4
Use the Allen wrench to attach the shade support arm to the
top of the fixture.
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
4
A Generation Brands Company
