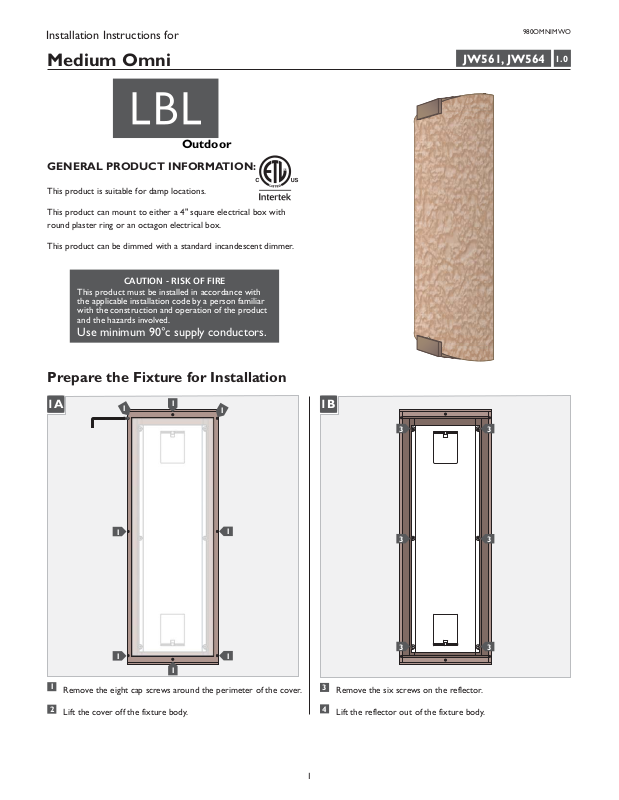

LBL Lighting Omni Medium User Manual
Installation Instructions for
980OMNIMWO
Medium Omni
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
JW561, JW564
1.0
Prepare the Fixture for Installation
1
1
1
1
Remove the eight cap screws around the perimeter of the cover.
1
1
1
1
1
1B1A
3 3
3 3
3 3
3
Remove the six screws on the reflector.
2
Lift the cover off the fixture body.
4
Lift the reflector out of the fixture body.
1
Install the Fixture
2A
GROUND
SCREW
CROSSBAR
POWER LINEWIRES
1
Feed the power line wires through the nipple in the crossbar
and screw the crossbar to the electrical box.
2
Connect the crossbar to a suitable ground in accordance with
local electrical codes.
2B
4
2C
5
6
CAULK
5
5
Install the anchor for the lag bolt at the point marked on the
wall.
6
For wet locations: Apply a thick bead of caulk around the
anchor point and the electrical box.
ANCHOR
ANCHOR
3
4
3
Place the housing on the crossbar nipple.
4
Mark the location of the end holes in the housing onto the
wall and remove the housing.
2D
8
7
8
RUBBER WASHER
LAG BOLT
7
Mount the housing to the crossbar nipple with the nut and
lock washer provided.
METAL WASHER
Anchor the housing to the wall with lag bolts through the
8
metal and rubber washers provided.
Do not overtighten the lag bolts.
2
