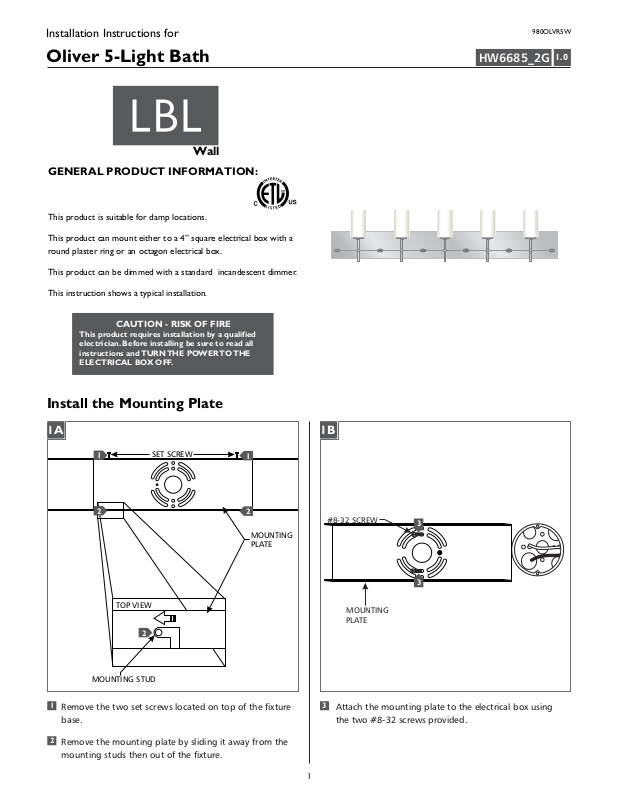

Installation Instructions for
980OLVR5W
Oliver 5-Light Bath
Wall
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
HW6685_2G
1.0
Install the Mounting Plate
1A
1
2
TOP VIEW
MOUNTING STUD
SET SCREW
2
1
2
MOUNTING
PLATE
1B
#8-32 SCREW
MOUNTING
PLATE
3
3
1
Remove the two set screws located on top of the fixture
base.
2
Remove the mounting plate by sliding it away from the
mounting studs then out of the fixture.
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
1
Install the Lamp and Shade
2A
LAMP
SOCKET
Use Volt, type T4, G9 base
MAX 60120 Watt
bi-pin halogen lamp in each socket.
NOTE: Use only your fingers and a soft cloth to
replace the lamp.
2B
GLASS SHADE
SOCKET ASSEMBLY
2
Install the glass shade by pushing it onto the socket
assembly until it is firmly in place.
3
Repeat steps 1 and 2 for all the socket assemblies.
1
With a soft cloth, push the new lamp firmly all the way
into the socket.
NOTE: To replace lamp, reverse section 2.
