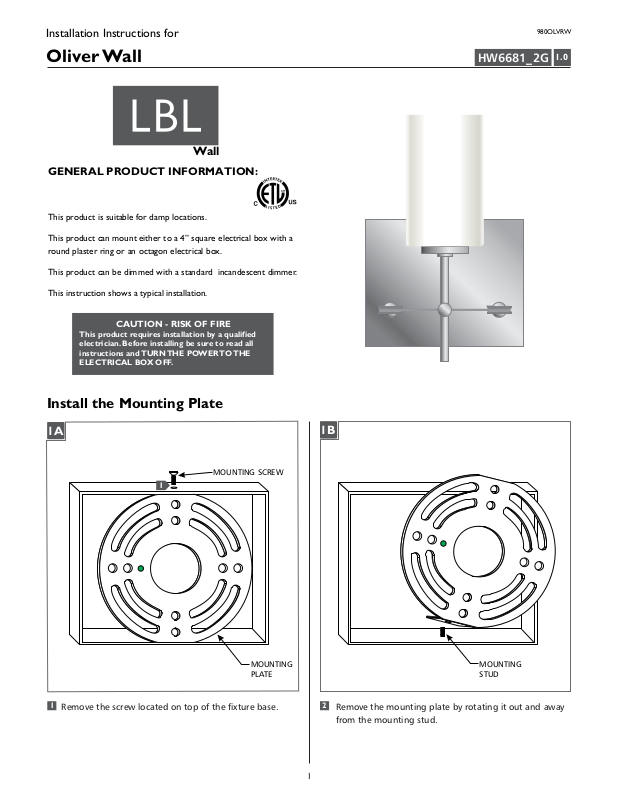

Page 1
Installation Instructions for
980OLVRW
Oliver Wall
Wall
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
HW6681_2G
1.0
Install the Mounting Plate
1A
MOUNTING SCREW
1
MOUNTING
PLATE
1B
MOUNTING
STUD
1 2
Remove the screw located on top of the fixture base.
1
Remove the mounting plate by rotating it out and away
from the mounting stud.
Page 2
1C
2B
GLASS SHADE
#8-32 SCREW
MOUNTING
PLATE
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
3
3
Install the Lamp and Shade
2A
SOCKET ASSEMBLY
2
Install the glass shade by pushing it onto the socket
assembly until it is firmly in place.
NOTE: To replace lamp, reverse section 2.
Install the Fixture
3A
LAMP
SOCKET
Use Volt, type T4, G9 base
MAX 60120 Watt
bi-pin halogen lamp in each socket.
NOTE: Use only your fingers and a soft cloth to
replace the lamp.
1
With a soft cloth, push the new lamp firmly all the way
into the socket.
5
6
1
Connect the mounting plate ground wire to a suitable
ground according to local electrical codes.
2
Connect the white fixture wire to the neutral power line
wire with a wire nut.
3
Connect the black fixture wire to the hot power line
wire with a wire nut.
4
Mount the fixture by sliding it back onto the mounting
plate and reinstalling the screw (reversal of figure 1A
and 1B).
4
2
Page 3
IMPORTANT SAFETY INSTRUCTIONS
Halogen Lamp General Information
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to person:
– Use this fixture indoors only.
– Do not look directly at the lighted lamp.
– Do not remain in light if skin feels warm.
– Risk of fire: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
– Never cover the halogen lamp with anything other than a
Tech Lighting lamp shield and never place flammable
material close to your fixture.
– Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
– Do not touch the fixture shades or lamp shield while the
fixture is on. These surfaces may be HOT.
– A new halogen lamp may smoke slightly when it is used
for the first time. This is perfectly normal; the protective
coating is simply being vaporized.
Two Tips For Prolonging Halogen
Lamp Life
– First avoid touching the lamp with bare hands during
installation. Any contaminant, even the oil from your
hands can deteriorate the lamp. Rubbing alcohol can be
used to remove any contaminant.
– Second, do not run the lamps at full power when you do
not need to. However, if dimming the fixture for an
extended period of time, occasionally bring the light up to
full brightness for a few minutes to complete the halogen
cycle.
3
Page 4
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2012 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
