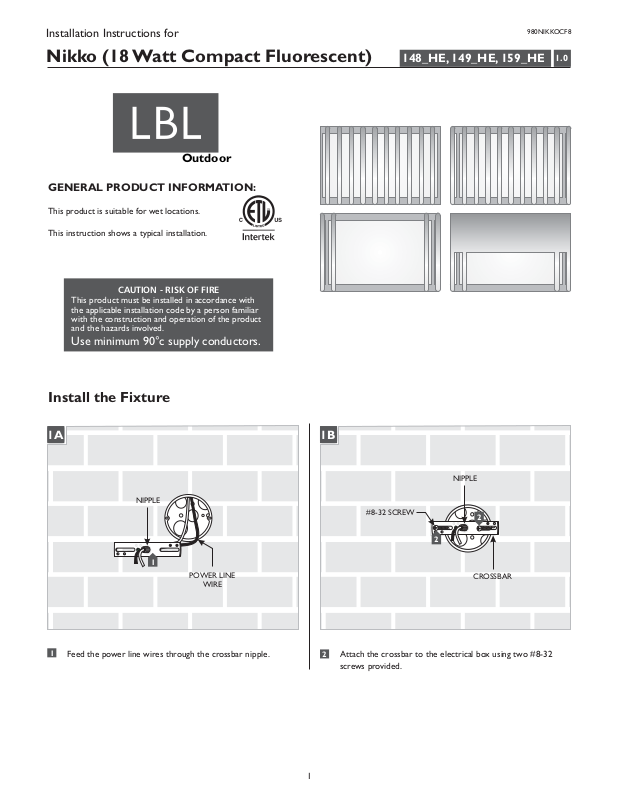

Installation Instructions for
980NIKKOCF8
Nikko (18 Watt Compact Fluorescent)
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
148_HE, 149_HE, 159_HE
1.0
Install the Fixture
NIPPLE
1
POWER LINE
WIRE
1
Feed the power line wires through the crossbar nipple.
1B1A
NIPPLE
#8-32 SCREW
2
2
Attach the crossbar to the electrical box using two #8-32
screws provided.
2
3
CROSSBAR
1
Page 2
1C
3
3
Remove all the screws from the front of the fixture.
Lift the cover off of the fixture.
4
SCREWCOVER
3
7
WASHERNUT NIPPLE
33
7
7
Make sure the fixture base is level, and secure it to the nipple
with a lock washer and nut.
1F
1E
1D
FIXTURE BASE
5
SCREW
5
Remove the screws on the reflector.
6
Lift the reflector out of the fixture base.
REFLECTOR
8
5
8
Connect the hot power line wire to the black ballast wire with
9
a wire nut.
9
Connect the neutral power line wire to the white ballast wire
with a wire nut.
10
Connect the fixture to a suitable ground according to local
electrical codes.
11
Reattach the reflector to the fixture base.
2
Page 3
Install the Lamp and Cover
2A
1
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use Watt type quad tubeMAX 18
G24Q-1 base compact fluorescent lamp.
2B
3
Caulk around the base with waterproof construction sealant.
2C
44
1
Push the lamp base into the socket.
Before continuing, turn on power to the fixture to verify all
2
connections are good.
4
Replace the cover and reattach the screws to secure the cover
to the fixture.
44
3
Page 4
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
4
A Generation Brands Company
