Installation Instructions for
980FSJNTRNP
Neutron
Fusion Jack™
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
HS390_
1.6
Install the Lamp
1A
SOCKET
LAMP
NOTE: To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use MAX 6 Watt, MR16 GX5.3 LED Lamp.
Push the lamp pins completely into the socket holes.
1
WARNING: RISK OF FIRE
Never replace a LED MR16 lamp with a regular MR16
Halogen lamp. A regular MR16 Halogen lamp will melt the
acrylic shade.
1B
SOCKET ASSEMBLY
2
Feed the fixture coaxial cable through the fixture housing. Slide
the fixture housing down the cord and rest it onto the socket
assembly.
COAXIAL CABLE
FIXTURE HOUSING
1
Adjust the Fixture Height
1C
FIXTURE HOUSING
M4 SET SCREW
3
Loosen (DO NOT REMOVE) the three M4 set screws on
2MM ALLEN
WRENCH
LAMP
PROTECTION RING
the fixture housing with the provided 2MM Allen wrench.
4
Insert the lamp protection ring completely against the lamp.
1D
2A
ALLEN WRENCH
SET SCREW
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
1
FIXTURE HOUSING
M4 SET SCREW
GROOVE
GLASS SHADE
5
Push the grooved section of the acrylic shade into the fixture
2 MM ALLEN
WRENCH
housing.
6
Ensure that the groove is aligned with the set screws and
tighten the three M4 set screws with the provided 2MM Allen
wrench; alternate screws before tightening all the way to
ensure that the shade remains centered.
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
NOTE: Do not clean the acrylic shade with alcohol or
alcohol base cleaners which will damage the shade.
2
2D
SURFACE
2G
INNER WIRE
SIGHT HOLE
PLATE
5

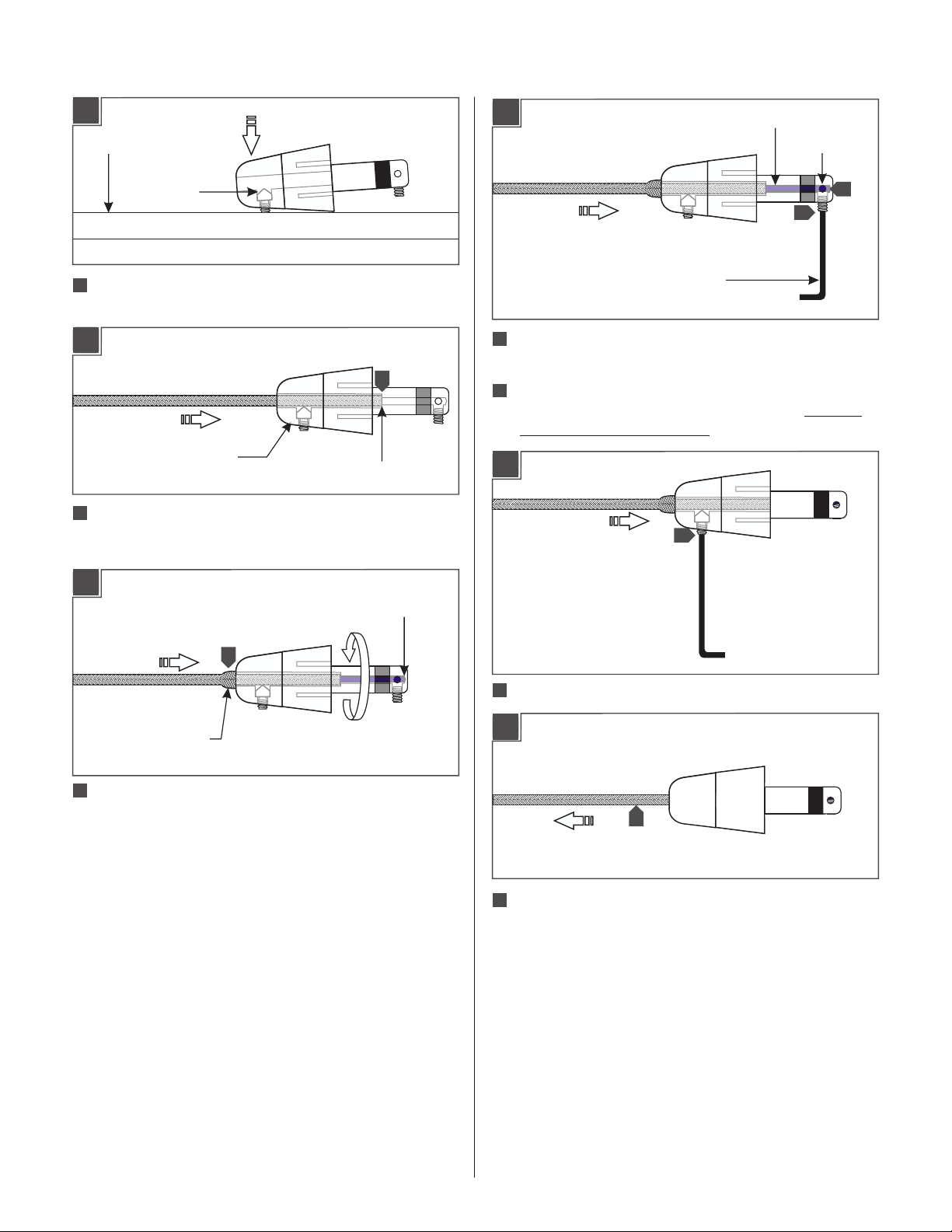

Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
2E
6
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector. The
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
OUTER WRAPPED
WIRE STOPS HERE
INNER WIRE
STOPS HERE
9
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
2H
10
8
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector. The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
10
Firmly tighten the set screw on the conical connector.
2I
11
11
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
3
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
