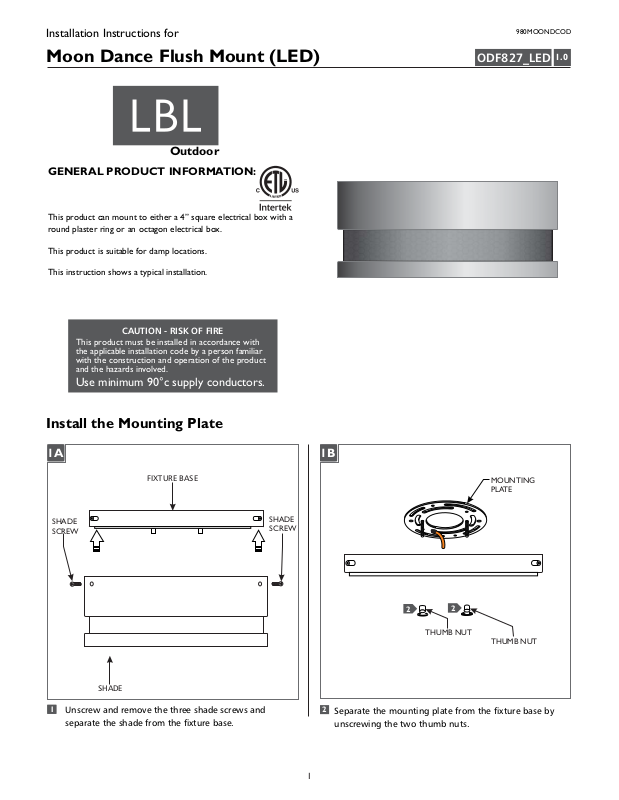

980MOONDCOD
Moon Dance Flush Mount (LED)
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
ODF827_LED
1.0
Install the Mounting Plate
1A
FIXTURE BASE
SHADE
SCREW
SHADE
2
1
Unscrew and remove the three shade screws and
separate the shade from the fixture base.
SHADE
SCREW
1B
MOUNTING
PLATE
2
2
Separate the mounting plate from the fixture base by
unscrewing the two thumb nuts.
2
THUMB NUT
THUMB NUT
1
1C
ELECTRICAL BOX
2B
MOUNTING
PLATE
3
#8-32 SCREW
3
Mount the mounting plate to the electrical box with
#8-32 SCREW
the two #8-32 screws.
Install the Fixture
2A
MOUNTING PLATE
5
3
24
Properly place all wires and wire nut connections into
THUMB NUT
FIXTURE BASE
5
STUD
the electrical box.
25
Mount the fixture onto the threaded studs on the
mounting plate and secure it by tightening the two
cap nuts.
Install the Shade
3A
1
2
1
Connect the mounting plate ground wire to a suitable
3
ground in accordance with local electrical codes.
2
Connect the white driver wire to the neutral power line
wire with a wire nut.
3
Connect the black driver wire to the hot power line wire
with a wire nut.
1 1
2
1
Align the screw holes in the shade with the fixture base
and install the three shade screw by completely
screwing them in.
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
A Generation Brands Company
