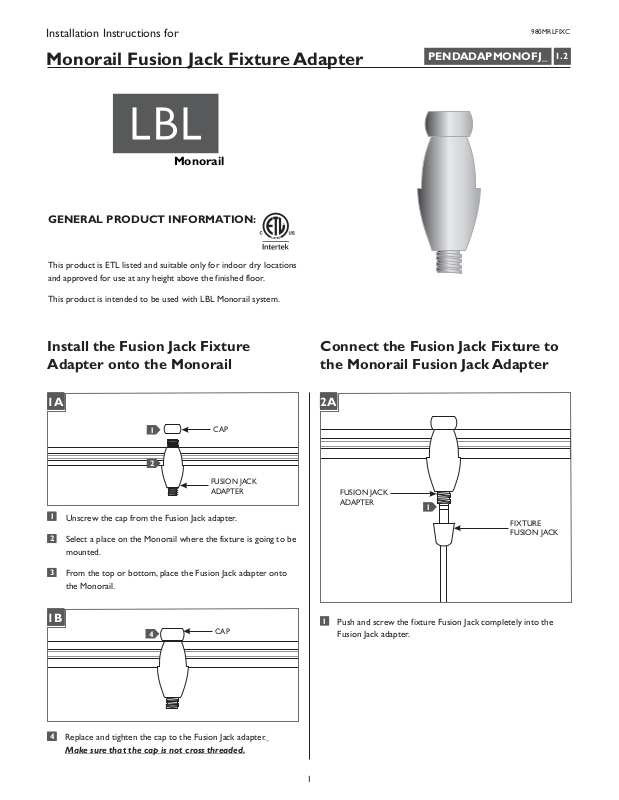

LBL Lighting Monorial fusion Jack Fixture Adapter User Manual
Installation Instructions for
980MRLFIXC
Monorail Fusion Jack Fixture Adapter
Monorail
GP I :ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
This product is intended to be used with LBL Monorail system.
Install the Fusion Jack Fixture
Connect the Fusion Jack Fixture to
PENDADAPMONOFJ_
1.2
Adapter onto the Monorail
1A2A
1A1A
1
2
1
Unscrew the cap from the Fusion Jack adapter.
2
Select a place on the Monorail where the fixture is going to be
mounted.
3
From the top or bottom, place the Fusion Jack adapter onto
the Monorail.
1A2A1A1B
4
CAP
FUSION JACK
ADAPTER
CAP
the Monorail Fusion Jack Adapter
1A2A1A2A
FUSION JACK
ADAPTER
1
Push and screw the fixture Fusion Jack completely into the
Fusion Jack adapter.
1
FIXTURE
FUSION JACK
4
4
Replace and tighten the cap to the Fusion Jack adapter.
Make sure that the cap is not cross threaded.
1
