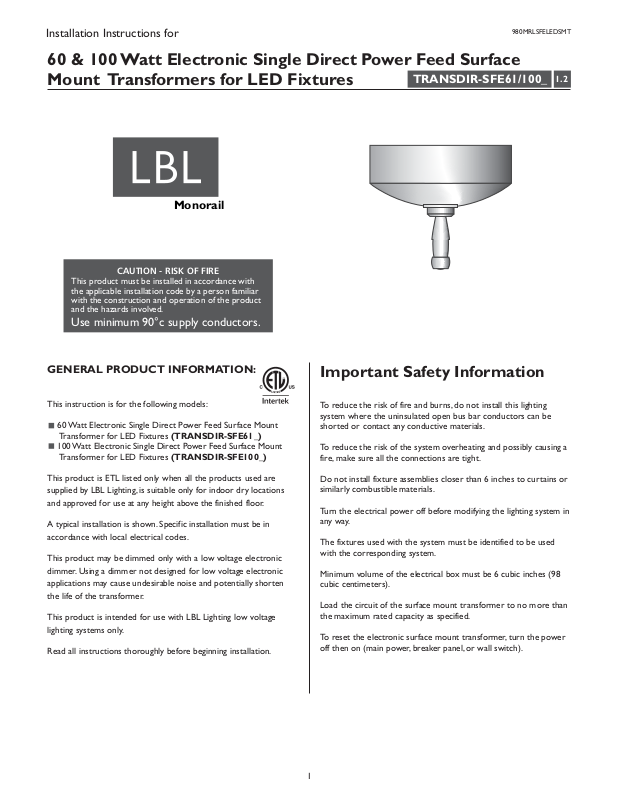

LBL Lighting MO Direct Feed Surf Elec User Manual

Installation Instructions for

60 & 100 Watt Electronic Single Direct Power Feed Surface
Mount Transformers for LED Fixtures

Monorail

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

TRANSDIR-SFE61/100_

980MRLSFELEDSMT

1.2

GP I :ENERAL RODUCT NFORMATION

This instruction is for the following models:

60 Watt Electronic Single Direct Power Feed Surface Mount

Transformer for LED Fixtures (TRANSDIR-SFE61_)

100 Watt Electronic Single Direct Power Feed Surface Mount

Transformer for LED Fixtures (TRANSDIR-SFE100_)

This product is ETL listed only when all the products used are
supplied by LBL Lighting, is suitable only for indoor dry locations
and approved for use at any height above the finished floor.

A typical installation is shown. Specific installation must be in
accordance with local electrical codes.

This product may be dimmed only with a low voltage electronic
dimmer. Using a dimmer not designed for low voltage electronic
applications may cause undesirable noise and potentially shorten
the life of the transformer.

This product is intended for use with LBL Lighting low voltage
lighting systems only.

Read all instructions thoroughly before beginning installation.

Important Safety Information

To reduce the risk of fire and burns, do not install this lighting
system where the uninsulated open bus bar conductors can be
shorted or contact any conductive materials.

To reduce the risk of the system overheating and possibly causing a
fire, make sure all the connections are tight.

Do not install fixture assemblies closer than 6 inches to curtains or
similarly combustible materials.

Turn the electrical power off before modifying the lighting system in
any way.

The fixtures used with the system must be identified to be used
with the corresponding system.

Minimum volume of the electrical box must be 6 cubic inches (98
cubic centimeters).

Load the circuit of the surface mount transformer to no more than
the maximum rated capacity as specified.

To reset the electronic surface mount transformer, turn the power
off then on (main power, breaker panel, or wall switch).

1

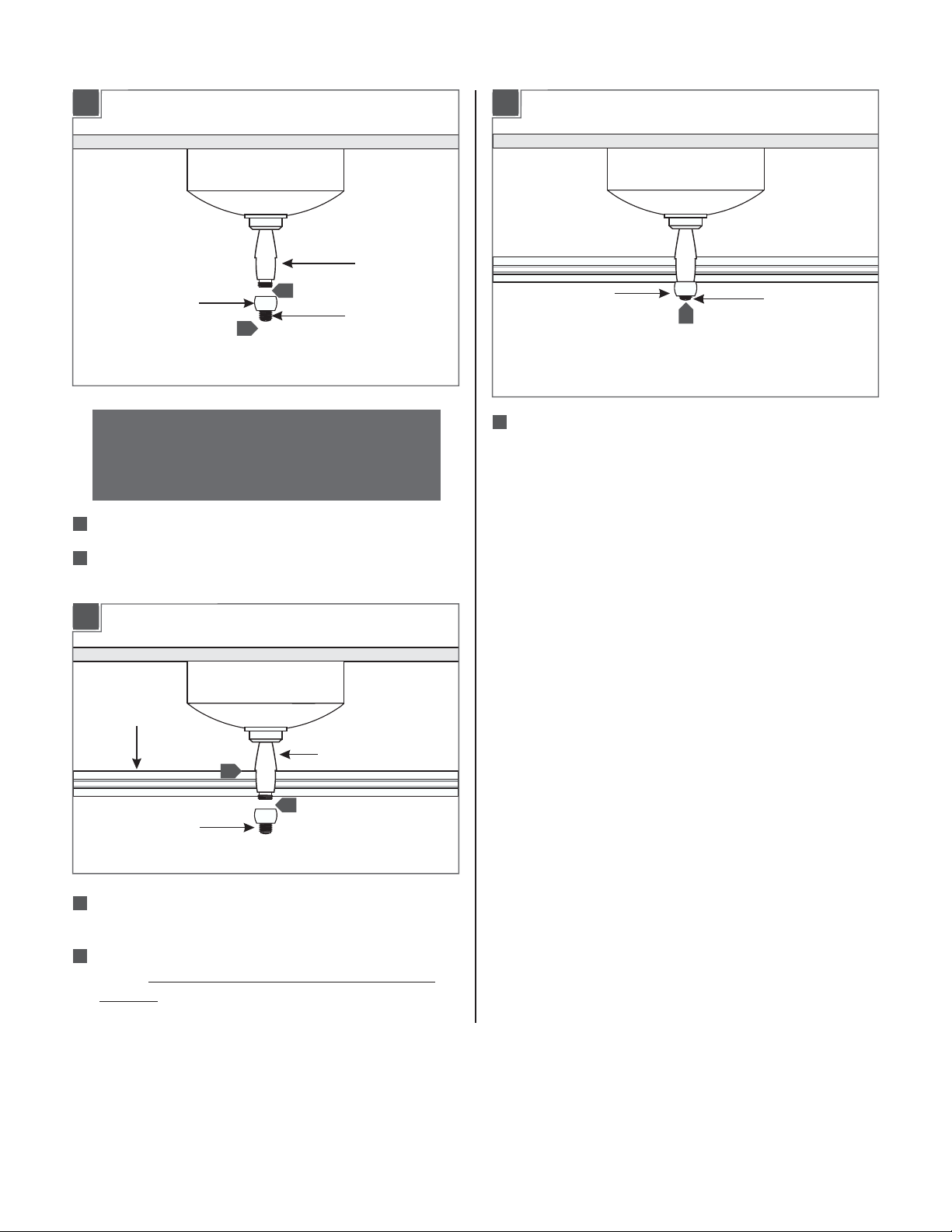

Install the Transformer

1A1A

DOME

COVER

SCREW

1 1

1

Remove the screws on the side of the transformer dome
cover and lift the cover off of the backplate.

1A1B

4

3

2

1A1C

BACKPLATE

5

#8-32 SCREW

5

Mount the backplate to the electrical box with two #8-32
screws.

1A1D

BACKPLATE

CAUTION: Disconnect power to the electrical box!

2

Connect the green transformer wire to a suitable ground in
accordance with local electrical codes.

3

Connect the black transformer wire to the hot power line
wire with a wire nut.

4

Connect the white transformer wire to the neutral power line
wire with a wire nut.

SCREW

6

Reattach the dome cover to the backplate with the screws.

6

6

2
