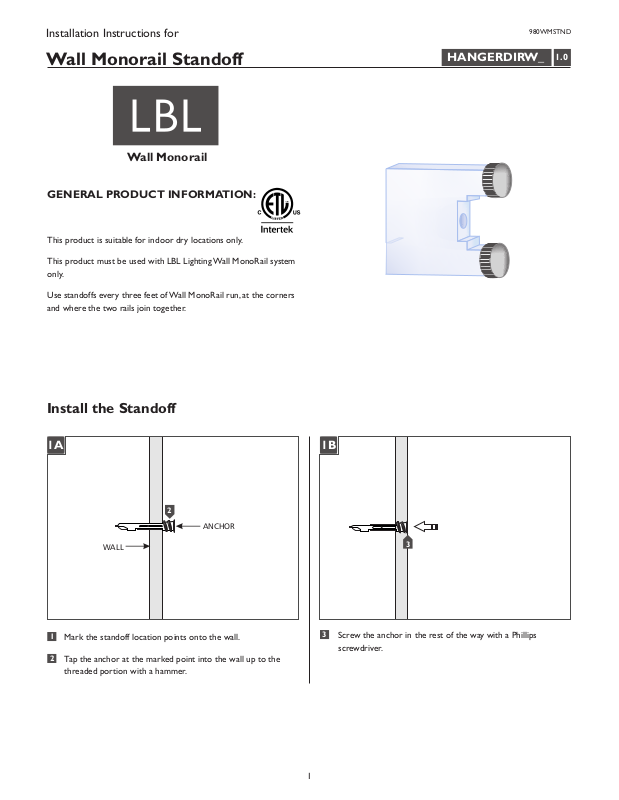

Installation Instructions for

980WMSTND

Wall Monorail Standoff

Wall Monorail

GENERAL PRODUCT INFORMATION:

This product is suitable for indoor dry locations only.

This product must be used with LBL Lighting Wall MonoRail system
only.

Use standoffs every three feet of Wall MonoRail run, at the corners
and where the two rails join together.

HANGERDIRW_

1.0

Install the Standoff

1A

2

ANCHOR

WALL

1

Mark the standoff location points onto the wall.

2

Tap the anchor at the marked point into the wall up to the
threaded portion with a hammer.

1B

3

3

Screw the anchor in the rest of the way with a Phillips
screwdriver.

1

1C

WALL

4

#8 SCREW

ANCHOR

4

Screw the standoff onto the anchor with the #8 screw.

STANDOFF

1D

STANDOFF

THUMB SCREW

5

5

Place the MonoRail into the standoff slot. Use the thumb
screws to secure the MonoRail to the standoffs.

MONORAIL

SAVE THESE INSTRUCTIONS!
