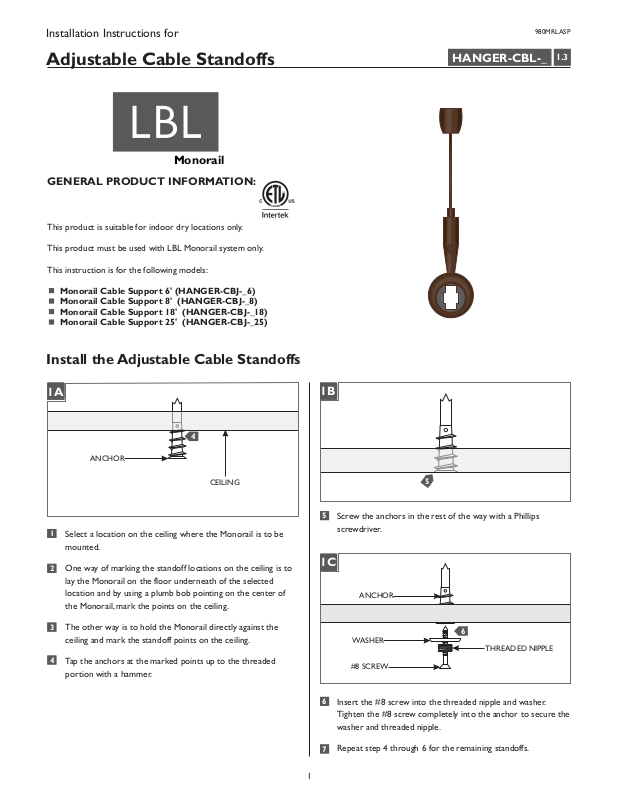

Installation Instructions for
980MRLASP
Adjustable Cable Standoffs
Monorail
GP I :ENERAL RODUCT NFORMATION
This product is suitable for indoor dry locations only.
This product must be used with LBL Monorail system only.
This instruction is for the following models:
Monorail Cable Support 6' (HANGER-CBJ-_6)
Monorail Cable Support 8' (HANGER-CBJ-_8)
Monorail Cable Support 18' (HANGER-CBJ-_18)
Monorail Cable Support 25' (HANGER-CBJ-_25)
HANGER-CBL-_
1.3
Install the Adjustable Cable Standoffs
1A
1A
4
ANCHOR
CEILING
1
Select a location on the ceiling where the Monorail is to be
mounted.
2
One way of marking the standoff locations on the ceiling is to
lay the Monorail on the floor underneath of the selected
location and by using a plumb bob pointing on the center of
the Monorail, mark the points on the ceiling.
3
The other way is to hold the Monorail directly against the
ceiling and mark the standoff points on the ceiling.
4
Tap the anchors at the marked points up to the threaded
portion with a hammer.
1B
1B
5
5
Screw the anchors in the rest of the way with a Phillips
screwdriver.
1B1C
ANCHOR
WASHER
#8 SCREW
6
THREADED NIPPLE
6
Insert the #8 screw into the threaded nipple and washer.
Tighten the #8 screw completely into the anchor to secure the
washer and threaded nipple.
Repeat step 4 through 6 for the remaining standoffs.
7
1
1A
1D
Install the Monorail
1A12A
8
CABLE POST
Screw the cable post completely to the threaded nipple.
8
THREADED NIPPLE
1A1E
AIRCRAFT CABLE
9
9
9
Feed the aircraft cable through the cable grip by pushing the
tab down.
CABLE GRIP TAB
PLASTIC
INSULATOR
1
1.5MM ALLEN
WRENCH
For all standoffs, slightly loosen the two(Do Not Remove)
M3 set screws on the side of the housing with the 1.5MM Allen
wrench to ease inserting the Monorail.
1A2B
PLASTIC INSULATOR
2
MONORAIL
10
Pull the aircraft cable out through the side hole on the post.
Adjust the standoff height by moving the standoff height by
moving the standoff up or down. When desired height is
achieved release the cable grip tab to lock the standoff in place.
11
Repeat steps 8 through 10 for the remaining standoffs.
2
2
Insert the Monorail through the plastic insulator.
2
1A
2C
6
4
M3 SET
SCREW
6
3
3
If necessary (depending on design) rotate the Monorail to the
4
1.5MM ALLEN
WRENCH
desired angle or horizontal position.
4
Tighten the two M3 set screws on housing with the 1.5 MM
Allen wrench to the secure the Monorail in place.
5
If necessary repeat step 10 on page 2 for re-adjusting the
standoff height.
6
After achieving the desired standoff heights, trim off excess
aircraft cable coming out of the cable grip posts.
3
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
