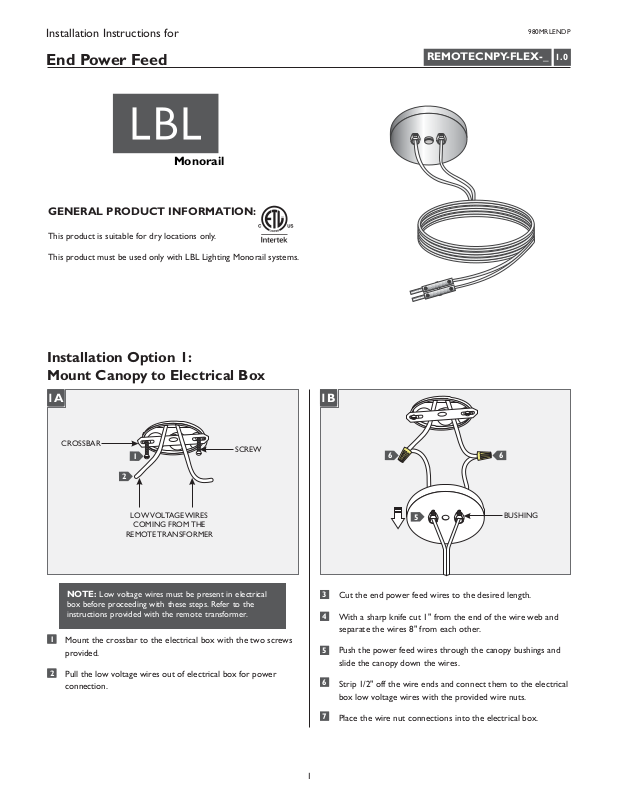

Installation Instructions for
980MRLENDP
End Power Feed
Monorail
GP I :ENERAL RODUCT NFORMATION
This product is suitable for dry locations only.
This product must be used only with LBL Lighting Monorail systems.
REMOTECNPY-FLEX-_
1.0
Installation Option 1:
Mount Canopy to Electrical Box
1A1A
CROSSBAR
1
2
LOWVOLTAGE WIRES
COMING FROMTHE
REMOTETRANSFORMER
NOTE: Low voltage wires must be present in electrical
box before proceeding with these steps. Refer to the
instructions provided with the remote transformer.
1
Mount the crossbar to the electrical box with the two screws
provided.
2
Pull the low voltage wires out of electrical box for power
connection.
SCREW
1A1B
6 6
5
3
Cut the end power feed wires to the desired length.
4
With a sharp knife cut 1" from the end of the wire web and
separate the wires 8" from each other.
5
Push the power feed wires through the canopy bushings and
slide the canopy down the wires.
6
Strip 1/2" off the wire ends and connect them to the electrical
box low voltage wires with the provided wire nuts.
BUSHING
7
Place the wire nut connections into the electrical box.
1
Installation Option 2:
Connect Directly toTransformer
without Canopy
1A1C
8
CAP WITH NIPPLE
Slide the canopy up and secure it to the electrical box by
8
screwing the cap with nipple to the crossbar.
1D
ALLEN
WRENCH
9
PLASTIC SCREW
1A2A
POWER
FEED
WIRES
5
6
COM X1 X2 X3 X4
9
Push the excess power feed wires into the canopy and tighten
the plastic screw with the providedAllen wrench.
Continue to Section 3 to connect to the Monorail.
10
NOTE:The provided power feed canopy is not used
in this procedure.
1
Cut the end power feed wires to the desired length.
2
Feed the end power feed wires into the transformer.
With a sharp knife, cut 1" from the end of the wire web and
3
separate the wires 6" from each other.
4
Strip 1/2" off the wire ends.
5
Connect one end power feed wire to the "COM" terminal.
6
Temporarily connect the other wire to the terminal marked
"X2" (default).After installing the system completely, refer to
the remote transformer instructions for reconnecting this wire
to the proper terminal "X1- X4".
7
Continue to Section 3 to connect to the Monorail.
