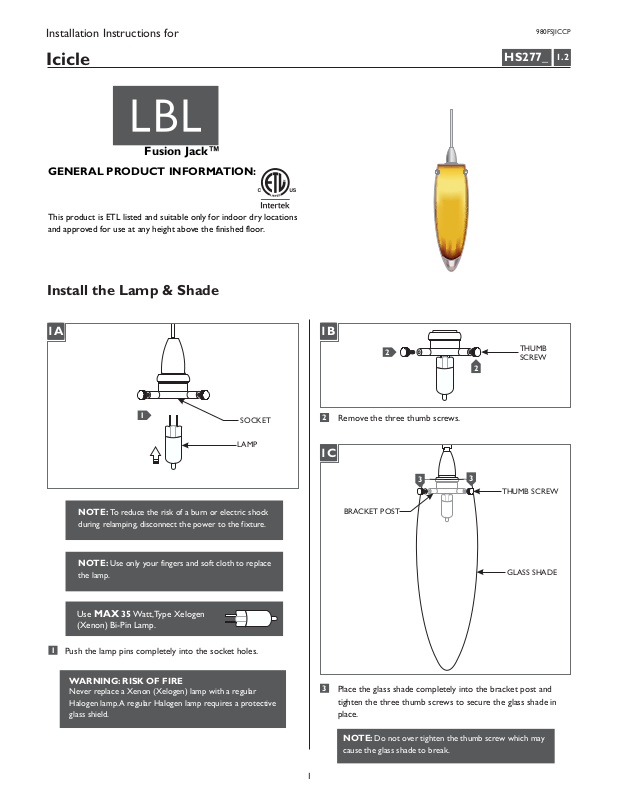

Installation Instructions for
980FSJICCP
Icicle
Fusion Jack™
GP I :ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
Install the Lamp & Shade
1A
1
1B
HS277_
2
2
THUMB
SCREW
1.2
1
NOTE:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
NOTE:Use only your fingers and soft cloth to replace
the lamp.
Use Watt,Type XelogenMAX 35
(Xenon) Bi-Pin Lamp.
1
Push the lamp pins completely into the socket holes.
WARNING: RISK OF FIRE
Never replace a Xenon (Xelogen) lamp with a regular
Halogen lamp.A regular Halogen lamp requires a protective
glass shield.
SOCKET
LAMP
2
Remove the three thumb screws.
1C
BRACKET POST
3
Place the glass shade completely into the bracket post and
tighten the three thumb screws to secure the glass shade in
place.
1
3
3
THUMB SCREW
GLASS SHADE
NOTE:
cause the glass shade to break.
1
Do not over tighten the thumb screw which may
Adjust the Fixture Height
2A
2E
ALLEN WRENCH
SET SCREW
1
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
6
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector.The
OUTER WRAPPED
WIRE STOPS HERE
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
INNER WIRE
STOPS HERE
rotating the connector to ease feeding the inner wire into the
tip of the connector.The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
2D
SURFACE
PLATE
2G
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
9
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
2
