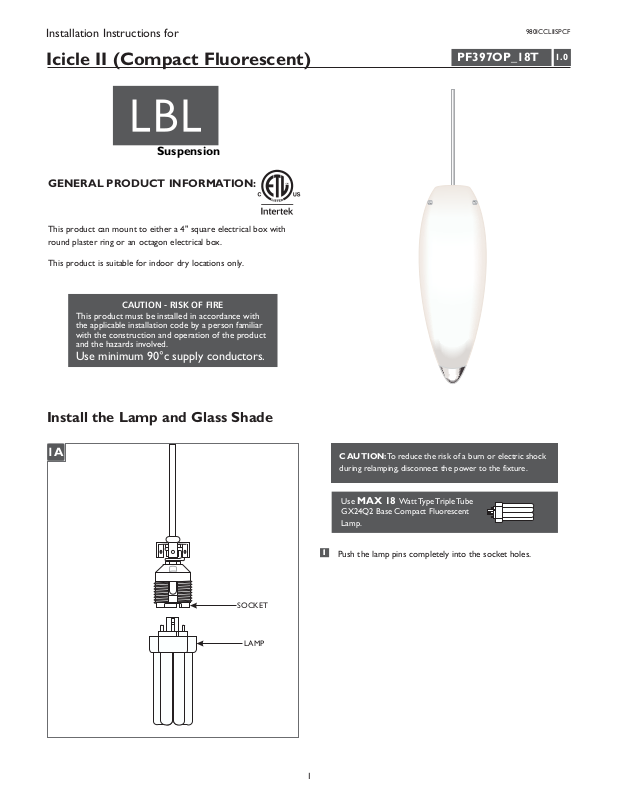

LBL Lighting Icicle II SPCF User Manual

Installation Instructions for

980ICCLIISPCF

Icicle II (Compact Fluorescent)

Suspension

GP I :ENERAL RODUCT NFORMATION

This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.

This product is suitable for indoor dry locations only.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

PF397OP_18T

1.0

Install the Lamp and Glass Shade

1A

SOCKET

LAMP

CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.

Use WattType TripleTubeMAX 18
GX24Q2 Base Compact Fluorescent

Lamp.

11

Push the lamp pins completely into the socket holes.

1

1B

SOCKET BRACKET

3

THUMB SCREW

3

SOCKET

SAVETHESE INSTRUCTIONS!

GLASS SHADE

2

Place the glass shade onto the socket bracket and align the
glass shade holes with socket bracket holes.

3

Tighten the three thumb screws through the glass shade holes
completely into the socket bracket holes to secure the glass
shade in place.

NOTE:Do not over tighten the thumb screws which may

cause the glass shade to break.

Refer to the instructions provided with the canopy to install

4

the fixture.

NOTE:To replace the lamp, remove the thumb screws to

remove the glass shade and lamp, and repeat steps 1
through 3.
