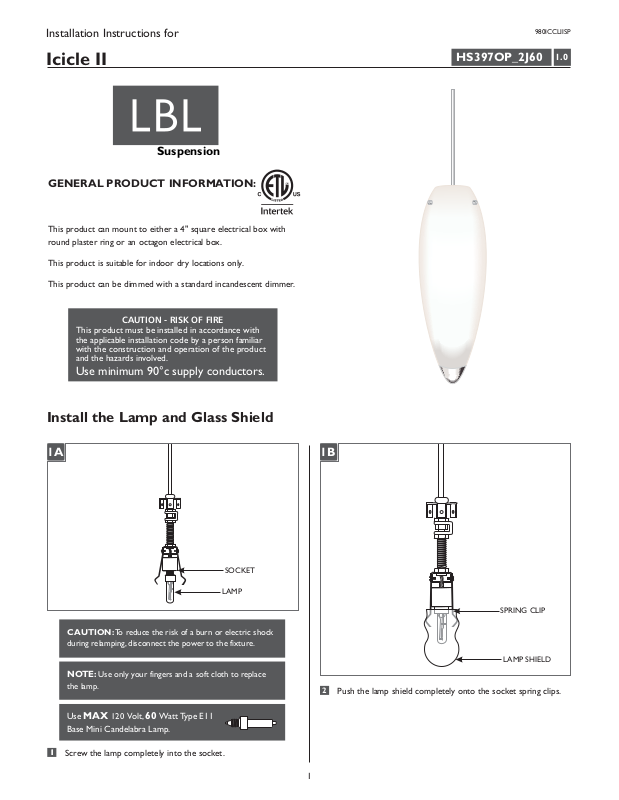

LBL Lighting Icicle II SP User Manual

Installation Instructions for

980ICCLIISP

Icicle II

Suspension

GP I :ENERAL RODUCT NFORMATION

This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.

This product is suitable for indoor dry locations only.

This product can be dimmed with a standard incandescent dimmer.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

HS397OP_2J60

1.0

Install the Lamp and Glass Shield

1A

SOCKET

LAMP

CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.

NOTE:Use only your fingers and a soft cloth to replace

the lamp.

1B

SPRING CLIP

LAMP SHIELD

2

Push the lamp shield completely onto the socket spring clips.

Use Volt, WattType E11MAX 60120
Base Mini Candelabra Lamp.

11

Screw the lamp completely into the socket.

1

IMPORTANT SAFETY INSTRUCTIONS

1C

To reduce the risk of fire, electrical shock, exposure to

excessive UV radiation, or injury to person:

– Use this fixture indoors only.

– Do not look directly at the lighted lamp.

SOCKET BRACKET

4

THUMB SCREW

4

– Do not remain in light if skin feels warm.

– Risk of fire: Use only the type of lamp and maximum wattage

indicated in this instruction manual.

– Never cover the halogen lamp with anything other than a LBL

Lighting lamp shield and never place flammable material close to
your fixture.

– Never turn the fixture on and off by connecting and

disconnecting the halogen lamp.

– Do not touch the fixture shades or lamp shield while the fixture

is on.These surfaces may be HOT.

Halogen Lamp General Information

– A new halogen lamp may smoke slightly when it is used for the

first time.This is perfectly normal; the protective coating is simply

GLASS SHADE

being vaporized.

3

Place the glass shade onto the socket bracket and align the
glass shade holes with socket bracket holes.

4

Tighten the three thumb screws through the glass shade holes
completely into the socket bracket holes to secure the glass
shade in place.

5

Refer to the instructions provided with the canopy to install
the fixture.

TwoTips For Prolonging Halogen
Lamp Life

– First avoid touching the lamp with bare hands during installation.

Any contaminant, even the oil from your hands can deteriorate

the lamp. Rubbing alcohol can be used to remove any
contaminant.

– Second, do not run the lamps at full power when you do not need

to. However, if dimming the fixture for an extended period of
time, occasionally bring the light up to full brightness for a few
minutes to complete the halogen cycle.

SAVETHESE INSTRUCTIONS!
