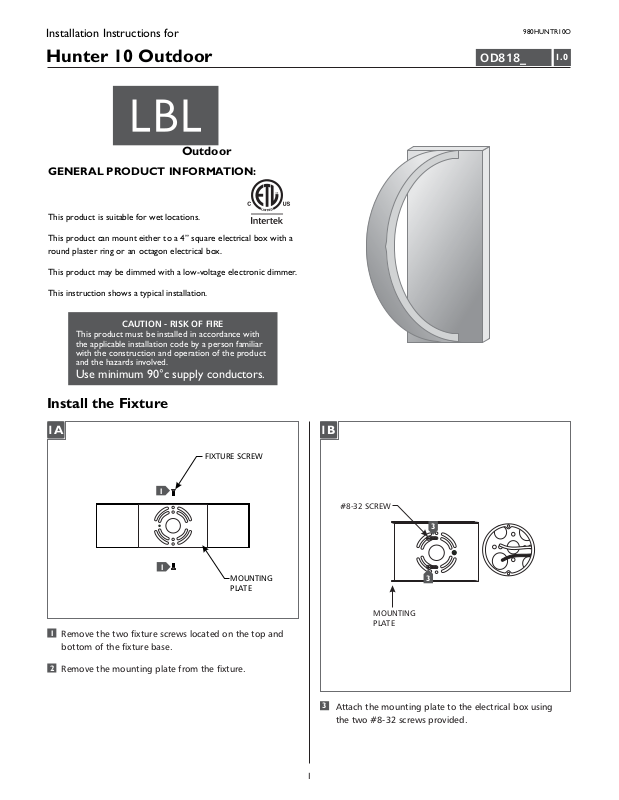

Installation Instructions for

980HUNTR10O

Hunter 10 Outdoor

Outdoor

GP I :ENERAL RODUCT NFORMATION

This product is suitable for wet locations.

This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.

This product may be dimmed with a low-voltage electronic dimmer.

This instruction shows a typical installation.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

OD818_

1.0

Install the Fixture

1A

FIXTURE SCREW

1

1

MOUNTING
PLATE

1

Remove the two fixture screws located on the top and
bottom of the fixture base.

2

Remove the mounting plate from the fixture.

1B

#8-32 SCREW

3

3

MOUNTING
PLATE

3

Attach the mounting plate to the electrical box using
the two #8-32 screws provided.

1

1C

1D

5

4

6

DRIVER

4

Connect the mounting plate ground wire to a suitable
ground in accordance with local electrical codes.

5

Connect the white (blue) driver wire to the neutral
power line wire with a wire nut.

6

Connect the black (brown) driver wire to the hot power
line wire with a wire nut.

7

Properly place the driver, all the wires, and wire nut
connections into the fixture, then mount the fixture by
sliding it back onto the mounting plate and reinstalling
the fixture screws (reversal of figure 1A).

8

For wet locations, caulk around the base with
waterproof construction sealant.

SAVETHESE INSTRUCTIONS!

7400 Linder Ave, Skokie, IL 60077

800.323.3226 - 847.626.6300

www.lbllighting.com

© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
