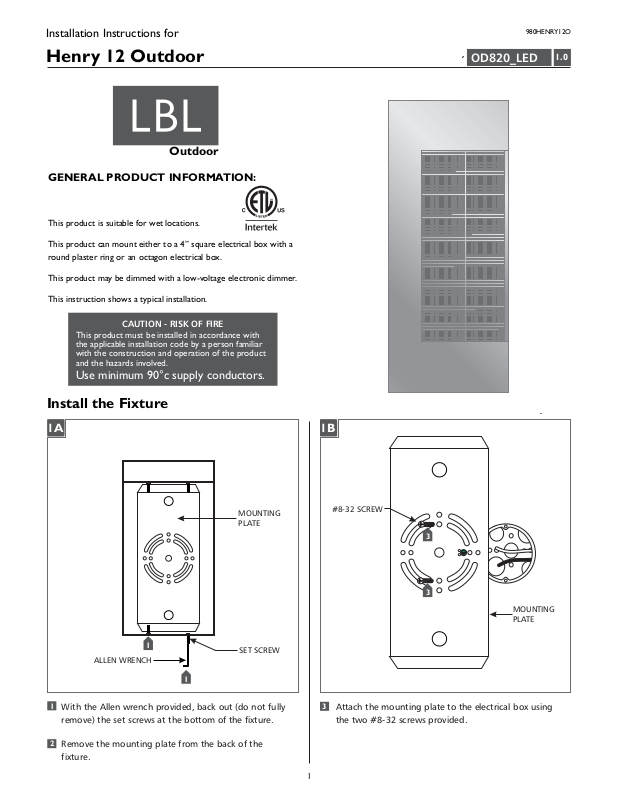

Installation Instructions for
980HENRY12O
Henry 12 Outdoor
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a round plaster ring or an octagon electrical box.
This product may be dimmed with a low-voltage electronic dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Use minimum 90°c supply conductors.
OD820_LED
1.0
Install the Fixture
1A 1B
MOUNTING PLATE
1
ALLEN WRENCH
1
SET SCREW
#8-32 SCREW
3
3
MOUNTING PLATE
1
With the Allen wrench provided, back out (do not fully remove) the set screws at the bottom of the fixture.
2
Remove the mounting plate from the back of the fixture.
3
Attach the mounting plate to the electrical box using the two #8-32 screws provided.
1
1C
1D
SCREW
ANCHOR
ANCHOR
4
Verify that the mounting plate is level before continuing.
5
Line up an anchor tip with the center of a mounting plate hole, and push the anchor into the wall up to the threads.
6
6
Screw the anchors in the rest of the way with a Phillips­head screwdriver.
WASHER
WASHER
SCREW
68
Slide a #8 screw through a washer and screw it into an anchor.
69
Repeat for the other anchor to secure the mounting plate to the wall.
Repeat steps 5-6 for the other anchor.
67
2
