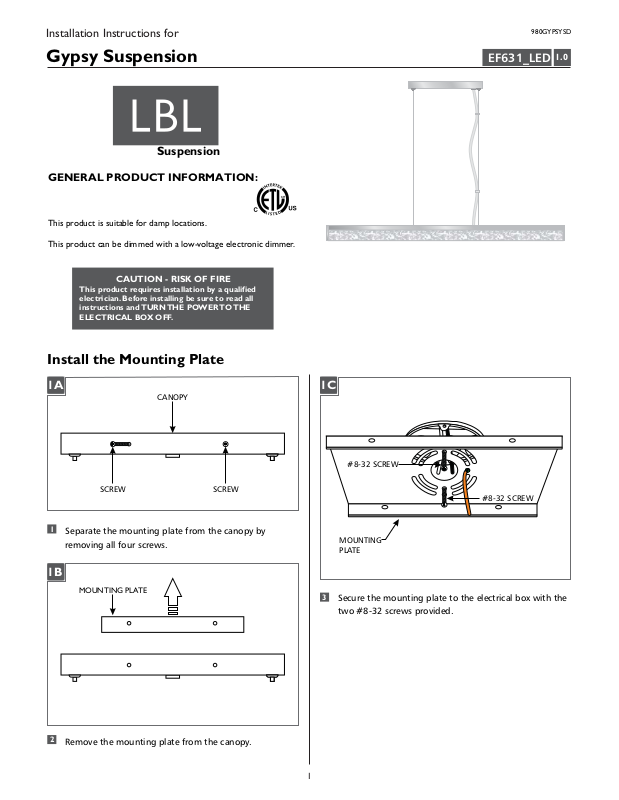

Installation Instructions for
980GYPSYSD
Gypsy Suspension
Suspension
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can be dimmed with a low-voltage electronic dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
EF631_LED
1.0
Install the Mounting Plate
1A 1C
CANOPY
SCREWSCREW
1
Separate the mounting plate from the canopy by
removing all four screws.
1B
MOUNTING PLATE
3
#8-32 SCREW
#8-32 SCREW
MOUNTING
PLATE
Secure the mounting plate to the electrical box with the
two #8-32 screws provided.
2
Remove the mounting plate from the canopy.
1
Install the Fixture
2A
AIRCRAFT
CABLE
CABLE
CLUTCH
2B
5
SET
SCREW
4
3
1
STRAIN
RELIEF
CABLE
CLUTCH
AIRCRAFT
CABLE
7
26
Connect the fixture to a suitable ground in accordance
with local electrical codes.
POWER CORD
27
Connect the black fixture wire to the hot power line wire
with a wire nut.
Connect the white fixture wire to the neutral power line
28
wire with a wire nut.
6
8
NOTE: Make sure to support the fixture while
adjusting the aircraft cables. An assistant is
recommended to complete the remaining steps.
21
Feed the aircraft cables through the cable clutches in
the canopy.
2
2
Evenly pull the aircraft cable up through the canopy to
raise the fixture to the desired length.
Cut off the excess aircraft cable leaving enough for fine
2
3
leveling later.
4
2
If necessary loosen the set screw in the strain relief and
feed the power cord from the fixture into the canopy
port.
NOTE: The power cord does not support the fixture.
For a casual “lazy cord” look, cut the power cord
several inches longer that the drop height of the
fixture.
2C
SCREWSCREW
29
Place all wire and wire nut connections inside the
canopy.
210
Align the canopy holes with the crossbar holes. Secure
the canopy in place by tightening the four screws.
25
Once the desired length is determined, tighten the set
screw, leave 6 inches of the power cord behind the
canopy and cut off the extra cord.
2
2D
CABLE
CLUTCH
211
Adjust the aircraft cables until the fixture is level; feed
1
BAND
CABLE
CLUTCH
BAND
the cable into the cable clutch to raise the fixture and
push in on the cable clutch nipple to release the cable
and lower the fixture.
212
Adjust the bands holding the power cord and aircraft
cable to the desired position.
2
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2012 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
