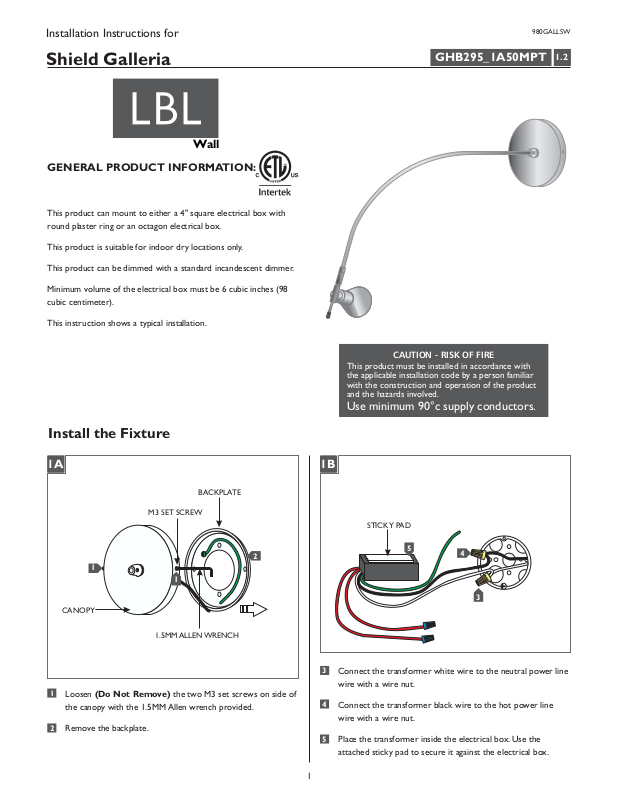

Installation Instructions for
980GALLSW
Shield Galleria
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
Minimum volume of the electrical box must be 6 cubic inches (98
cubic centimeter).
This instruction shows a typical installation.
GHB295_1A50MPT
1.2
Install the Fixture
1A 1B
BACKPLATE
M3 SET SCREW
2
1
1
CANOPY
1.5MM ALLEN WRENCH
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
STICKY PAD
5
4
3
1
Loosen the two M3 set screws on side of(Do Not Remove)
the canopy with the 1.5MM Allen wrench provided.
2
Remove the backplate.
3
Connect the transformer white wire to the neutral power line
wire with a wire nut.
4
Connect the transformer black wire to the hot power line
wire with a wire nut.
5
Place the transformer inside the electrical box. Use the
attached sticky pad to secure it against the electrical box.
1
1C
BACKPLATE
6
Line up two backplate holes with the electrical box holes.
Mount the backplate to the electrical box with the two #8-32
7
#8-32 SCREW
6
7
8
7
ELECTRICAL BOX HOLE
screws provided.
8
In accordance with local electrical codes, make sure that the
backplate and the transformer green wire are grounded.
1D
M4 SET SCREW
1E
M3 SET SCREW
CANOPY
12
12
1.5MM ALLEN WRENCH
12
Place the fixture canopy onto the backplate. Level the fixture
vertically and tighten the two M3 set screws with the 1.5MM
Allen wrench to secure the fixture in place.
FIXTURE ARM
9
BUSHING
2MM ALLEN WRENCH
9
Push the fixture arm with the wire completely into the bushing
10
10
and tighten the M4 set screw with the 2MM Allen wrench.
10
Connect each transformer low voltage wire (red wire) to one
fixture wire with a wire nut.
11
Place all wires and wire nut connections inside the electrical
box.
2
