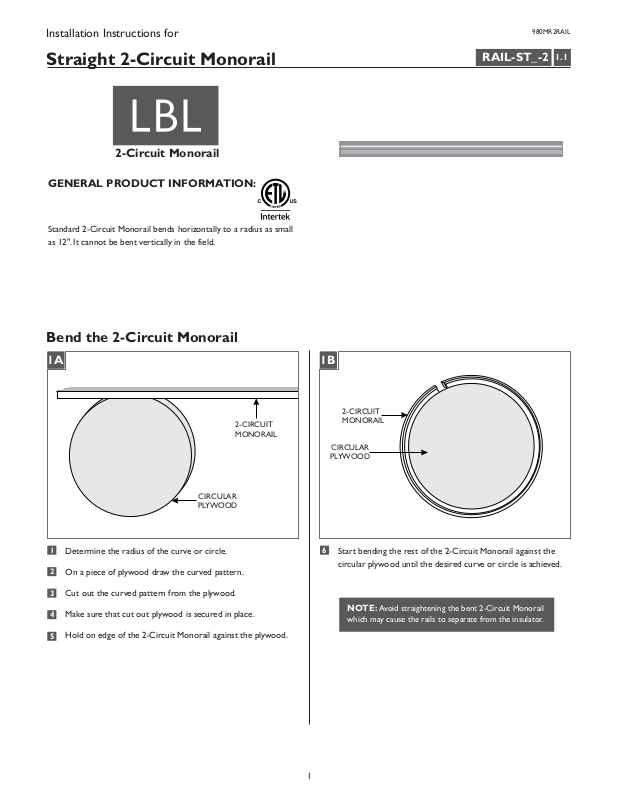

LBL Lighting 2-Circuit MO Rail User Manual
Installation Instructions for
980MR2RAIL
Straight 2-Circuit Monorail
2-Circuit Monorail
GP I :ENERAL RODUCT NFORMATION
Standard 2-Circuit Monorail bends horizontally to a radius as small
as 12". It cannot be bent vertically in the field.
Bend the 2-Circuit Monorail
RAIL-ST_-2
1.1
1A
2-CIRCUIT
MONORAIL
CIRCULAR
PLYWOOD
1
Determine the radius of the curve or circle.
2
On a piece of plywood draw the curved pattern.
3
Cut out the curved pattern from the plywood.
Make sure that cut out plywood is secured in place.
4
Hold on edge of the 2-Circuit Monorail against the plywood.
5
1B
2-CIRCUIT
MONORAIL
CIRCULAR
PLYWOOD
6
Start bending the rest of the 2-Circuit Monorail against the
circular plywood until the desired curve or circle is achieved.
NOTE:Avoid straightening the bent 2-Circuit Monorail
which may cause the rails to separate from the insulator.
1
Connect the 2-Circuit Monorail
Sections
2A
1.5 MM ALLEN
2-CIRCUIT
MONORAIL
2
1
CONDUCTIVE OR ISOLATING JOIN CONNECTORS
1
Push the 2-Circuit Monorail sections completely onto the
conductive or isolating connectors.
2
Tighten the M3 set screws with the 1.5 MM Allen wrench.
Make sure that the set screw connection for conductive
connector is tight to avoid heat build up and corrosion. For the
isolating connector, tighten the M3 set screw firmly to avoid
stripping the thread.
WRENCH
M3 SET SCREW
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
