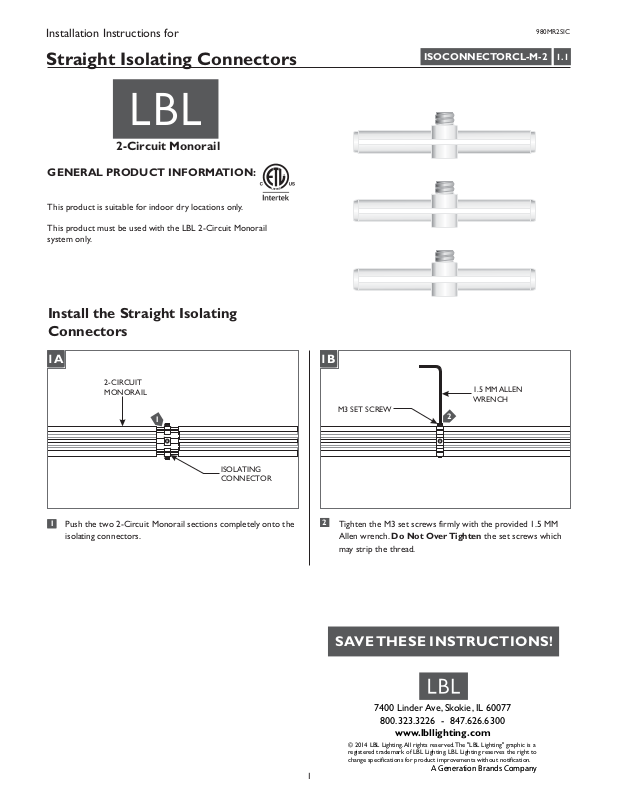

Installation Instructions for

980MR2SIC

Straight Isolating Connectors

2-Circuit Monorail

GP I :ENERAL RODUCT NFORMATION

This product is suitable for indoor dry locations only.

This product must be used with the LBL 2-Circuit Monorail
system only.

Install the Straight Isolating
Connectors

ISOCONNECTORCL-M-2

1.1

1A

1A

2-CIRCUIT
MONORAIL

1

ISOLATING
CONNECTOR

1

Push the two 2-Circuit Monorail sections completely onto the
isolating connectors.

1B

1B

1.5 MM ALLEN
WRENCH

M3 SET SCREW

2

Tighten the M3 set screws firmly with the provided 1.5 MM
Allen wrench. the set screws whichDo Not OverTighten
may strip the thread.

2

SAVETHESE INSTRUCTIONS!
