Installation Instructions for

980MR2SPSMT

Telescoping Rigid Standoff for Surface Mount Transformers

2-Circuit Monorail

GP I :ENERAL RODUCT NFORMATION

This product is suitable for indoor dry locations only.

This product is intended to be used with LBL Surface Mount
Transformers and 2-Circuit Monorail system only.

Install the Rigid Standoffs

HANGERDIRADJ-_1-2

1.0

1A

1A

ANCHOR

CAUTION: This standoff is not applicable with

vaulted ceilings.

1

Select a location on the ceiling where the 2-Circuit Monorail is
to be mounted.

2

One way of marking the standoff locations on the ceiling is to
lay the 2-Circuit Monorail on the floor underneath of the
selected location and by using a plumb bob pointing on the
center of the 2-Circuit Monorail, mark the points on the
ceiling.

3

The other way is to hold the 2-Circuit Monorail directly
against the ceiling and mark the standoff points on the ceiling.

4

Tap the anchors at the marked points up to the threaded
portion with a hammer.

4

CEILING

1B

1B

5

5

Screw the anchors in the rest of the way with a Phillips
screwdriver.

1B1C

ANCHOR

WASHER

#8 SCREW

6

Insert the #8 screw into the threaded nipple and washer.
Tighten the #8 screw completely into the anchor to secure the
washer and threaded nipple.

6

THREADED NIPPLE

7

Repeat step 4 through 6 for the remaining standoffs.

1

Adjust the Standoff Height

1A1D

SUPPORT POST

M4 SET
SCREW

8

Loosen the M4 set screw on the support(Do Not Remove)

8

2 MM ALLEN
WRENCH

post with the provided 2 MM Allen wrench and remove the
support post.

1A1E

1A2A

M3 SET
SCREW

TELESCOPING POST

1.5MM ALLEN
WRENCH

1

Slightly loosen the M3 set screw on the(Do Not Remove)
side of the telescoping post with th 1.5 MM Allen wrench
provided.

2

Adjust standoff height to match the surface mount transformer
height and tighten the M3 set screw with 1.5 MM Allen
wrench.

9

SUPPORT POST

9

Screw the support post completely to the threaded nipple.

THREADED NIPPLE

1A1F

SUPPORT POST

STANDOFF ROD

10

M4 SET SCREW

2 MM ALLEN
WRENCH

3

Repeat steps 1 and 2 for remaining standoffs.

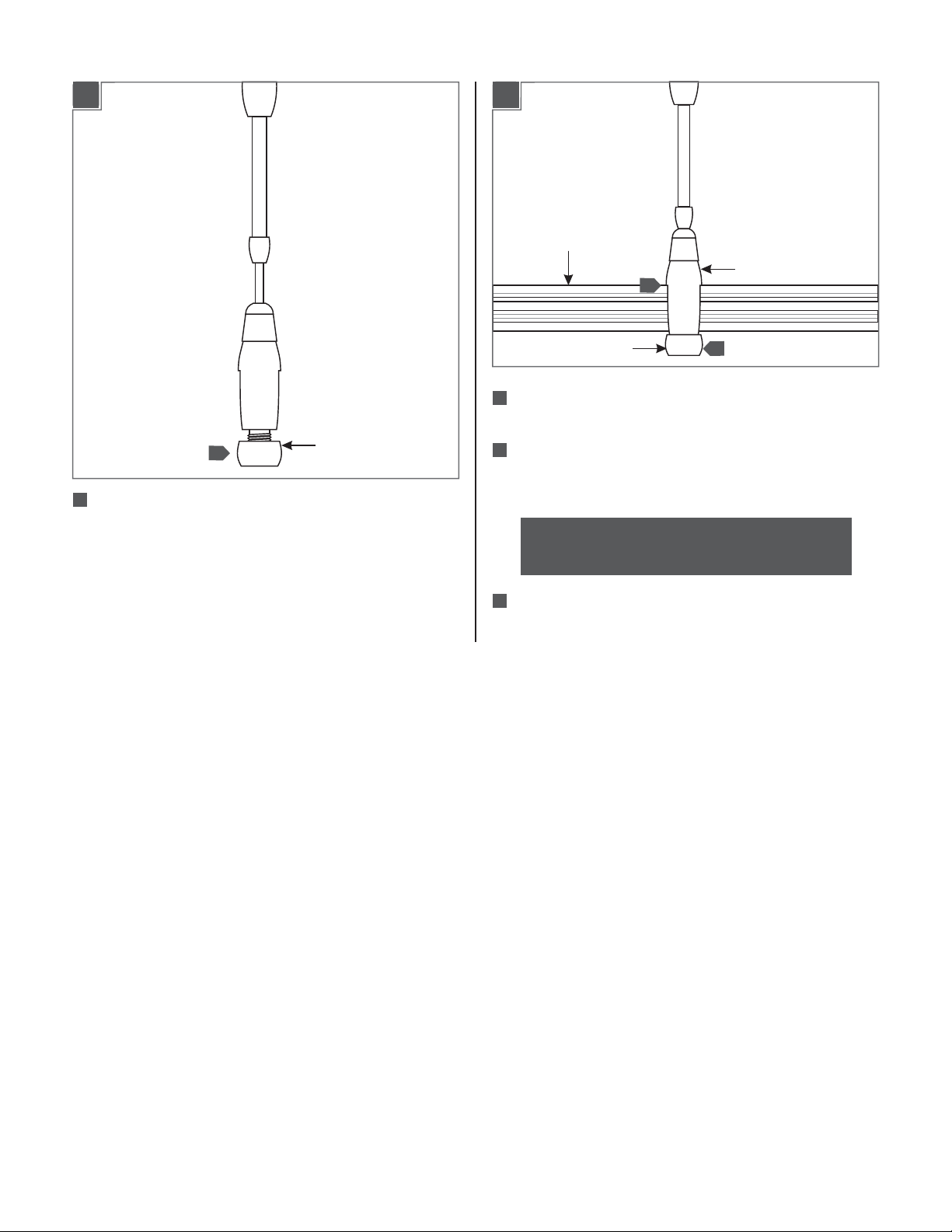

10

Push the standoff rod completely into the support post and
tighten the M4 set screw with the 2 MM Allen wrench.

11

Repeat steps 8 through 10 for the remaining standoffs.

2
