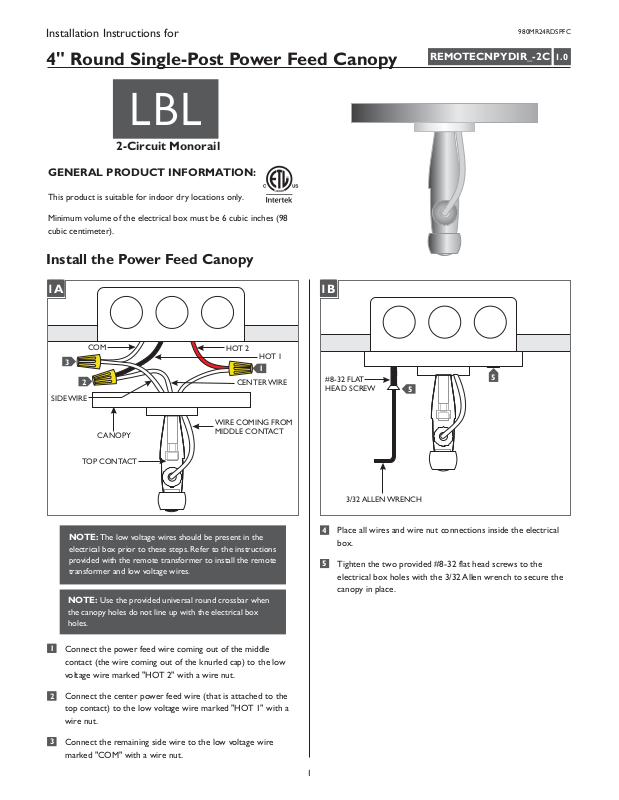

Installation Instructions for
980MR24RDSPFC
4" Round Single-Post Power Feed Canopy
2-Circuit Monorail
GP I :ENERAL RODUCT NFORMATION
This product is suitable for indoor dry locations only.
Minimum volume of the electrical box must be 6 cubic inches (98
cubic centimeter).
Install the Power Feed Canopy
1A
1A
3
SIDE WIRE
2
COM
HOT 2
HOT 1
1
CENTER WIRE
1A1B
#8-32 FLAT
HEAD SCREW
REMOTECNPYDIR_-2C
5
5
1.0
WIRE COMING FROM
CANOPY
TOP CONTACT
NOTE:The low voltage wires should be present in the
electrical box prior to these steps. Refer to the instructions
provided with the remote transformer to install the remote
transformer and low voltage wires.
NOTE: Use the provided universal round crossbar when
the canopy holes do not line up with the electrical box
holes.
1
Connect the power feed wire coming out of the middle
contact (the wire coming out of the knurled cap) to the low
voltage wire marked "HOT 2" with a wire nut.
Connect the center power feed wire (that is attached to the
2
top contact) to the low voltage wire marked "HOT 1" with a
wire nut.
MIDDLE CONTACT
3/32 ALLEN WRENCH
4
Place all wires and wire nut connections inside the electrical
box.
5
Tighten the two provided #8-32 flat head screws to the
electrical box holes with the 3/32 Allen wrench to secure the
canopy in place.
3
Connect the remaining side wire to the low voltage wire
marked "COM" with a wire nut.
1
Install the 2-Circuit Monorail to the
Power Feed Canopy
1A2A
POWER FEED
HOUSING
1
POWER FEED CAP
SCREW
NOTE:The standoffs should be installed to support the
2-Circuit Monorail while connecting 2-Circuit Monorail to
the power feed canopy. Refer to the instructions provided
with the standoffs.
1
Remove the power feed cap from the power feed housing.
MIDDLE
CONTACT
2
1A2C
HOT 1
KNURLED CAP
7
POWER FEED CAP
3
6
Tighten the screw on the power feed cap for proper power
6
SCREW
connection.
7
Tighten the knurled cap for proper power connection.
HOT 2
COM
2
Completely back out the screw on the power feed cap.
3
Loosen the knurled cap on the power(Do Not Remove)
feed housing and pull the middle contact wire slightly out so
that the middle contact is not exposed in power feed housing.
1A2B
2-CIRCUIT MONORAIL
POWER FEED
HOUSING
4
5
POWER FEED CAP
SAVETHESE INSTRUCTIONS!
4
Place a 2-Circuit Monorail section into the standoffs and
power feed housings.
5
Screw the power feed cap completely to the power feed
housing. Make sure that the power feed cap is not cross
threaded.
