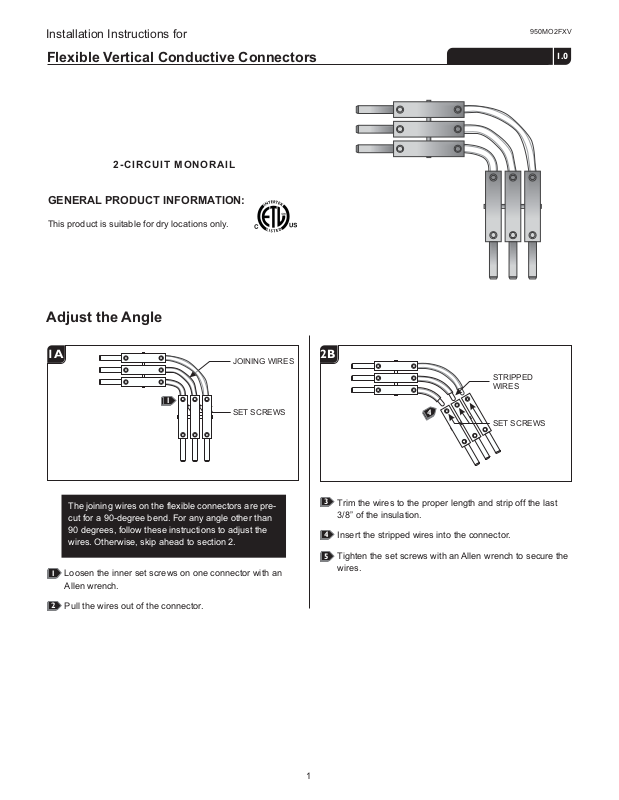

Installation Instructions for

Flexible Vertical Conductive Connectors

2-CIRCUIT MONORAIL

GP I :ENERAL RODUCT NFORMATION

This product is suitable for dry locations only.

Adjust the Angle

950MO2FXV

1.0

1.0

1.0

1A1A 1A2B

1

The joining wires on the flexible connectors are pre­cut for a 90-degree bend. For any angle other than
90 degrees, follow these instructions to adjust the
wires. Otherwise, skip ahead to section 2.

1

Loosen the inner set screws on one connector with an
Allen wrench.

2

Pull the wires out of the connector.

JOINING WIRES

SET SCREWS

3

4

5

STRIPPED
WIRES

4

SET SCREWS

Trim the wires to the proper length and strip off the last
3/8” of the insulation.

Insert the stripped wires into the connector.

Tighten the set screws with an Allen wrench to secure the
wires.

1

Connect the Monorail Sections

1A2A

1

2

SET SCREWS

2

1

1

Push the connectors completely into the MonoRail.

Tighten all six outer set screws with an Allen wrench. To

2

avoid heat build up and corrosion, make sure all set
screw connections are tight.

SAVE THESE INSTRUCTIONS!
