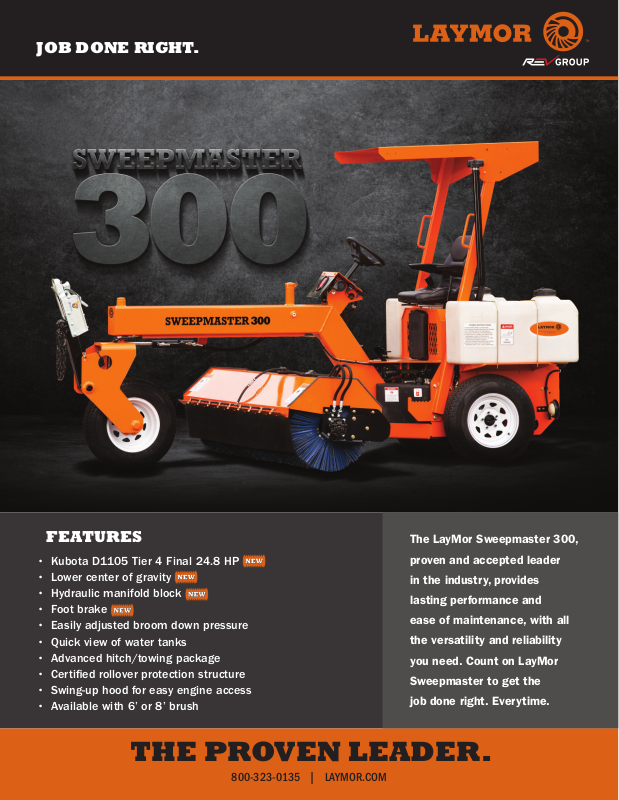

JOB DONE RIGHT.
FEATURES
• Kubota D1105 Tier 4 Final 24.8 HP
• Lower center of gravity
• Hydraulic manifold block
• Foot brake
• Easily adjusted broom down pressure
• Quick view of water tanks
• Advanced hitch/towing package
• Certied rollover protection structure
• Swing-up hood for easy engine access
• Available with 6’ or 8’ brush
THE PROVEN LEADER.
800-323-0135 | LAYMOR.COM
The LayMor Sweepmaster300,
proven and accepted leader
in the industry, provides
lasting performance and
ease of maintenance, with all
the versatility and reliability
you need. Count on LayMor
Sweepmaster to get the
job done right. Everytime.
Page 2
SWEEPMASTER 300
STANDARD EQUIPMENT & OPTIONS
800-323-0135
|
LAYMOR.COM
• 60-gallon sprinkler
system
• Two-post ROPS canopy
• Rear fenders
• Positive neutral start
• Hydraulic power steering
• Hydraulic drum rear
towing brakes
• Mechanical parking
brake
• Gear motor nal drive
• P205 75R14 4-ply
radials
• Steel broom core
• Electric hour meter
TOW PACKAGE
• One-man operation
• No jack required
• Minimal tongue weight
• Reverse alarm
• Hub-engaged warning
system
• Greasable front wheel
spindle
• 9-gallon fuel tank with
mechanical gauge
• Front debris deector
• Warning light package,
engine oil pressure,
water temperature
and alternator
• All-polyethylene brush,
all-steel wire brush or
1/2 poly & 1/2 wire
• Hydraulic sight gauge
• All wheels on the ground
during towing
• Surge brakes
• Engine protection system
• Choice of 2” or 2.31”
ball or 3” pintle hitch
• Cushioned seat with 2”
retractable seat belt and
armrests
• Automotive-style tow
hitch includes surge
brakes, towing lights, and
wiring harness
OPTIONS:
• Strobe light
• Work lights
• Emergency working and
turn signal lights
• Towing lights
• Turn signals
Road Construction
Builder Sites
SPECIFICATIONS
ENGINE Kubota D1105 Tier 4 Final
BROOM SIZE 6.375” I.D. x 24” O.D.
BROOM ANGLE 40° (each way)
STEERING 45° (each way)
SPEED 0 to 7.5 mph
MACHINE WEIGHT 6HC:
TRANSPORT WIDTH 6HC:
TRANSPORT LENGTH 14’ (hitch down)
HEIGHT 7’6”
All specications are in accordance with SAE standards or recommended practices where applicable.
Under our policy of improvement, Mobile Products, Inc. reserves the right to modify specications at any
time without prior notice or obligation. Units shown may include optional equipment. LayMor equipment is
manufactured by Mobile Products, Inc., a wholly owned subsidiary of REV Group, Inc.
3,000 LBS
8HC:
3,100 LBS
6’9” (fully angled)
8HC:
7’10” (fully angled)
01/16
Turf & Athletic Fields
Paved Grounds
& Parking Lots
