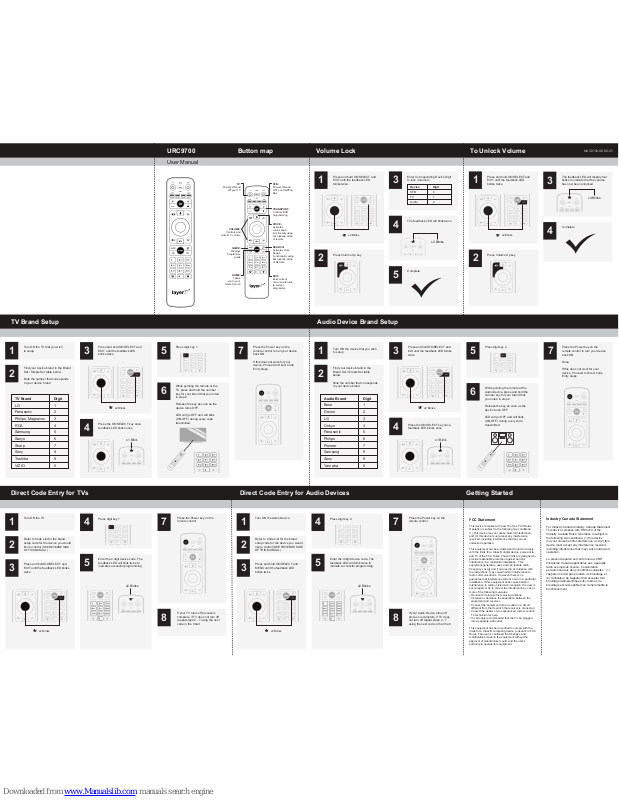

Layer3 TV URC9700 User Manual

Button map

MUG9700-SDDS-05

URC9700 Volume Lock To Unlock Volume

User Manual

x2 Blinks

Audio Device Brand Setup

Turn ON the device that you wish
to setup

Press the OK/SELECT key once,
feedback LED blinks once

1

4

Press and hold OK/SELECT and
Exit until the feedback LED blinks
twice

3

Find your device brand in the
Brand Set / Simple Set table
below.

Note the number that corresponds
to your device brand

2

x2 Blinks

While pointing the remote at the
Audio Device, press and hold the
number key for your brand that
you noted in step 2.

Release the key as soon as the
device turns OFF.

LED will go OFF and will blink
(ON-OFF) during every code
transmitted.

6

Press the Power key on the
remote control to turn your device
back ON.

Done.

If this does not work for your
device, Proceed to Direct Code
Entry steps.

Industry Canada Statement

For Industry Canada Industry Canada Statement
This device complies with RSS-210 of the
Industry Canada Rules. Operation is subject to
the following two conditions: (1) this device
may not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation.

Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.

7

Press digit key 2.

5

TV Brand Setup

Direct Code Entry for Audio Devices Getting StartedDirect Code Entry for TVs

Turn ON the TV that you wish
to setup

Press the OK/SELECT key once,
feedback LED blinks once

1

4

Press and hold OK/SELECT and
EXIT until the feedback LED
blinks twice

3

Find your device brand in the Brand
Set / Simple Set table below.

Note the number that corresponds
to your device brand

2

x1 Blink

x2 Blinks

While pointing the remote at the
TV, press and hold the number
key for your brand that you noted
in step 2.

Release the key as soon as the
device turns OFF.

LED will go OFF and will blink
(ON-OFF) during every code
transmitted.

6

Press the Power key on the
remote control to turn your device
back ON.

If this does not work for your
device, Proceed to Direct Code
Entry steps.

7

Press digit key 1.

5

TV Brand Digit

LG 1

Panasonic 2

Philips, Magnavox 3

RCA 4

Samsung 5

Sanyo 6

Sharp 7

Sony 8

Toshiba 9

VIZIO 0

Audio Brand Digit

Bose 1

Denon 2

LG 3

Onkyo 4

Panasonic 5

Philips 6

Pioneer 7

Samsung 8

Sony 9

Yamaha 0

Press and hold OK/SELECT and
EXIT until the feedback LED
blinks twice.

1

Press Volume Up key

2

Enter Corresponding Device Digit
to lock Volume to

3

The feedback LED will blink twice

4

Complete

5

Turn ON the TV

Enter the 4 digit device code. The
feedback LED will blink twice to
indicate successful programming

1

5

Refer to Code List for the brand
setup code for the device you would
like to control

(SEE REVERSE SIDE

OF THIS MANUAL)

2

Press and hold OK/SELECT and
EXIT until the feedback LED blinks
twice

3

Press the Power key on the
remote control

7

If your TV turns off process is
complete, if TV does not turn off
repeat steps 2 - 7 using the next
code in the Chart

8

Press digit key 1

4

Turn ON the Audio Device

Enter the 4 digit device code. The
feedback LED will blink twice to
indicate successful programming

1

5

Refer to Code List for the brand
setup code for the device you would
like to control (SEE REVERSE SIDE
OF

THIS MANUAL)

2

Press and hold OK/SELECT and
MENU until the feedback LED
blinks twice

3

Press the Power key on the
remote control

7

If your Audio Device turns off
process is complete, if TV does
not turn off repeat steps 2 - 7
using the next code in the Chart

8

Press digit key 2.

4

Device Digit

STB 0

TV 1

Audio 2

x4 Blinks

Press and hold OK/SELECT and
EXIT until the feedback LED
blinks twice.

1

Press Volume Up key

2

The feedback LED will display four
blinks to indicate that the volume
has now been unlocked

3

Complete

4

T

FCC Statement

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and if not used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, the user is
encouraged or try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase or decrease the separation between the
equipment and receiver.

• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected

• Consult the dealer or an experienced remote control/
TV technician for help.

• It is strongly recommended that the TV be plugged
into a separate wall outlet.

This equipment has been verified to comply with the
limits for a Class B computing device, pursuant to FCC
Rules. The user is cautioned that changes and
modifications made to the equipment without the
approval of manufacturer could void the user's
authority to operate this equipment.

TV:

Powers ON and

Off your TV

VOLUME:

Controls and

mutes TV volume

STB:
Powers ON and
OFF your Set Top
Box

TRANSPORT:

Controls DVR
programming

VOICE:

Activates
voice search
functionality using
microphone at top
of remote

SEARCH:
Activates Voice
Search
Functionality using
Microphone at top
of Remote

EXIT:

Exits current
menu and returns
to current
programme

HOME:

Takes

you to your

Home Screen

GUIDE:

Displays

Programme

guide

x2 Blinks

x2 Blinks x2 Blinks

x1 Blink

x2 Blinks

x2 Blinks

x2 Blinks

Code Lists

Audio Brand Code(s)

Aiwa 0158, 0189, 0121, 1641
Alco 1390
AMC 1077
Anam 1609
Apex Digital 1774
Arcam 0189
Audio Solutions 3622
Audioengine 4311
AudioSource 3721
Audiovox 1390
Bose 3706, 3708, 4307, 1933, 1629, 1841, 4024
Boston Acoustics 3698
Bowers & Wilkins 2441, 3943
Carver 0189, 0121
Coby 1389, 2748
Curtis 3942, 1389
Definitive Tech 3645
Denon 2502, 4025, 2134, 2706, 2857, 2516, 1360,
2279, 3347, 3380, 4111
Dynavox 3231
Emotiva 4059, 4101, 3763
Fisher 1801
Gateway 1517
GPX 3214
Haier 3516
Harman/Kardon 3045, 3517, 3756, 2241, 0110, 0189, 3391
Hitachi 1801
iLive 3175
Inkel 4090
Insignia 3951, 1030, 1077, 1751, 1893, 2169, 2175,
2472, 2929,
Integra 1805, 0135
iSymphony 2442
JBL 3535, 3756, 2241, 0110, 3391
Jensen 1389
JVC 3049, 1374, 1871
Kenwood 1570
KLH 1390
Klipsch 3915, 4198, 4200
LG 3217, 2197, 2676, 2284
Linn 189
Magnavox 0189, 1831
Marantz 2138, 0189, 1289
Martin Logan 3526
McIntosh 1289
NAD 0320
NexxTech 1751
Norcent 1389, 1751
Nova 1389
Onkyo 3984, 3992, 1805, 0135, 4041
Optimus 0823
Outlaw Audio 3973
Panasonic 3323, 3409, 3767, 2967, 3055
Philips 2675, 3282, 3962, 2311, 0189, 1266, 1831,
2289, 3227, 3379
Pinnacle Speakers 3728, 3774
Pioneer 0823, 3956, 1935, 1384
Polk Audio 3429, 0189, 1289, 2270
Proficient 3661
Proscan 1254
RCA 0823 ,3969, 2611, 2655, 1609, 1254, 1390,
2041, 2426
Rio 1869
Samsung 2660, 1868, 2137
Sansui 0189
Sanyo 1801
Sharp 3097, 3736, 3929
Sherbourn 3763
Sherwood 4090, 1077, 1517, 2169, 3120
Sherwood Newcstle 2169
Sonic Blue 1869
Sonos 3919
Sony 3903, 3700, 1622, 1759, 0158

SpeakerCraft 3661
Teac 1390
Toshiba 3627, 1788
Venturer 1390
VIZIO 2454
Wards 0158, 0189
Yamaha 2021, 2116, 2061, 2467, 0176, 1331, 2471
Zenith 2197, 1869
ZVOX 2332, 2334, 3913

Gateway 1755, 1756
GE 1447, 0178, 0051, 0451, 0765
GFM 1864
Gibralter 0017
GoldStar 0178
GPX 2693, 3977, 3980
Grundig 0683
Grunpy 0180
Haier 3382, 1749, 1034, 1570, 3204, 4112, 4398
Hallmark 0178
Hannspree 1348
Harvard 0180
Helios 0865
Hello Kitty 0451
Hewlett Packard 1642, 1089
Hidear 3817
Hisense 2183, 3382, 0748, 1314, 1660, 2098, 4398
Hitachi 1643, 3382
Hiteker 3118
Hyundai 3418
iLo 1394, 1286, 1603, 1684, 1990
Initial 1603, 1990
Insignia 2049, 1641, 1564, 1204, 1326, 1385, 1517, 1660,
Inteq 0017
iRIS 2189
iSymphony 3118, 3382, 3094
JCM 2189
Jensen 0761, 1326, 2541, 3204
JVC 1774, 2321, 1570, 1670, 1892
KC 4182
KEC 0180
KLH 0765
Kolin 1240
Konka 1385
KTV 0180
Legend 2397
LG 2731, 0178, 0017, 2867
LodgingStar 3147
LXI 0156, 0178
Magnavox 1867, 1454, 2597, 1755, 0051, 1365, 1944, 1990
Marantz 1454, 1398, 1714
Maxent 1755, 1714, 1757
MB Quart 1868
Megatron 0178
Memorex 1927, 1924, 0178, 0150, 1570, 1670, 1671, 1892,
MGA 0178, 0150
Midland 0017, 0051
Mintek 1603, 1990
Mitsubishi

1250, 0178, 0150, 1797
MTC 0060
Multitech 0180
NAD 0156, 0178
Naxa 3382, 2104, 2735, 3423, 4093
NEC 1398, 1797
NetTV 1755
Nexus 2183
Nikko 0178
Norcent 1589, 0748, 1089, 1365, 1591
Norwood Micro 1286
NuVision 1657, 2158
oCOSMO 3899
Olevia 1610, 1144, 1240
Ölevia 1610, 1144, 1240
Onwa 0180
Optimus 1927, 1924
Optique 2189
Optoma 0887
Orion 1892, 1911, 3540
Panasonic 1480, 1927, 1947, 1924, 0051, 2240
PARK 2104
Penney 0156, 0178, 0060, 0051
Philco 1394
Philips 1867, 1454, 2597, 1394, 1365, 1944, 1990, 2622
Pioneer 1457, 1398, 2240

TV Brands Code(s)

Accurian 1803
Acer 1339, 4143
Advent 0761, 1570
Affinity 3577, 3716, 3717
Akai 1675, 0765, 1385, 1688, 2232
America Action 0180
Anam 0180
AOC 1589, 2087, 1089, 1365, 2014, 2402, 2621, 3707
Aomni 1623
Apex Digital 2397, 0748, 0765, 0890, 1217, 4350
Ario 2397
Astar 1738
Asus 3340
Audiovox 1564, 0451, 0180, 0875, 1276, 1766, 1769, 1803
Auria 2087, 2014
Avol 3118
Bang & Olufsen 1620
BenQ 1032, 1315
Bradford 0180
Broksonic 1892, 1911
Celera 0765
Changhong 0765
Citizen 0060, 1671, 1672
Clarion 0180
Claris 3807
Coby 3478, 1538, 1634, 2306, 2314, 2315, 2326, 2338
Commercial Sol 1447
Contec 0180
Contex 4053
Craig 0180, 3423
Crown 0180
Curtis 3382, 2397, 1314, 1326, 2352, 2559, 2855, 2859
Curtis Mathes 0060, 0451, 1661, 1959
CXC 0180
Cytron 1326
Daewoo 0451, 1661, 0661
Dell 1863
Digital Lifestyles 1765
Digitrex 4207
Disney 1892
Dukane 1398
Dumont 0017
Durabrand 0178, 0180, 1034, 1570
Dynex 2049
Electric Mirror 3166
Electrograph 1755, 1623
Electrohome 1570, 1670, 1672
Electron 2855
Element 3559, 2964, 2183
Emerson 1864, 1394, 3559, 2183, 0178, 0451, 0180, 1661
Emprex 1422, 1765
Envision 1589, 2087, 1365, 2014, 2621
Epson 1122
EQD 2087, 2014
ESA 1944
Favi 3382
Fluid 2964
Fujitsu 0809, 0683, 0853
Funai 1864, 1394, 0180
Futuretech 0180

Planar 1589
Polaroid 1524, 1523, 0765, 1276, 1286, 1314, 1326, 1385
Portland 0451, 1661
Prima 1749, 0761
Prism 0051
Proscan 2746, 1447, 2183, 3382, 4500, 4499, 4494, 4493
Proton 0178
Pulsar 0017
Pyle 2196, 2641
Pyle Home 2196
QuantumFX 2337, 3593
Quasar 1927, 1924, 0051, 3899, 4207
RadioShack 0178, 0180
RCA 2434, 2746, 1447, 2932, 2183, 3382, 0051, 1661
Realistic 0178, 0180
RevolutionHD 1623
Runco 0017, 1398
Sampo 1755
Samsung 2051, 0178, 0060, 0766, 0814, 1959, 3993
Sansui 3559, 1670, 1892, 1911, 3540, 3564, 4053, 4442
Sanyo 1480, 1142, 0088
Sceptre 2337, 1217, 1360, 1599, 2506, 3899
Scotch 0178
Scott 0178, 0180, 1711
Sears 0156, 0178
Seiki 3559, 2964, 3382, 0178, 3560, 3953
Sens 1749
Seura 4303
Sharp 2360, 2402, 4398
Sherwood 3061
Sigmac 3423, 3477
Silo Digital 3477, 3794, 3899, 4182
Solé 1623
Sony 0810, 1685
Soundesign 0178, 0180
Speler 4105
SSS 0180
Starlite 0180
SunBriteTV 1610, 2337
Superscan 0864, 1944
Supersonic 2104, 3204, 3593, 3595
SVA 0748, 0865
Sylvania 1864, 1394, 1314, 1944
Symphonic 1394, 0180, 1944
Syntax 1610, 1144, 1240
Tatung 1756, 1286
TCL 2434, 4398
Technics 0051
Techwood 0051
Teknika 0060, 0180, 0150
TMK 0178
TNCi 017
T

oshiba 1524, 0156, 0060, 1369, 1959
TruTech 1723
Upstar 4182, 4405
US Logic 1286
Venturer 1868
Vidikron 1398
Vidtech 0178
Viewsonic 2049, 1755, 1564, 2087, 0864, 0885, 1365, 1627
Viore 3118, 3382, 1684, 1811, 2104, 2352, 3094
VisionQuest 1738, 3380
Vivitek 1369
VIZIO 1758, 2707, 0864, 1756, 0885
Vuon 3418
Wards 0156, 0178, 0060, 0017, 0051, 0180
Waycon 156
Westinghouse 1712, 3579, 3382, 2397, 0451, 0885, 0890, 1217
White Wstnghse 1661
Wyse 1365
Zenith 2731, 0178, 0017, 1661, 1365, 1911
