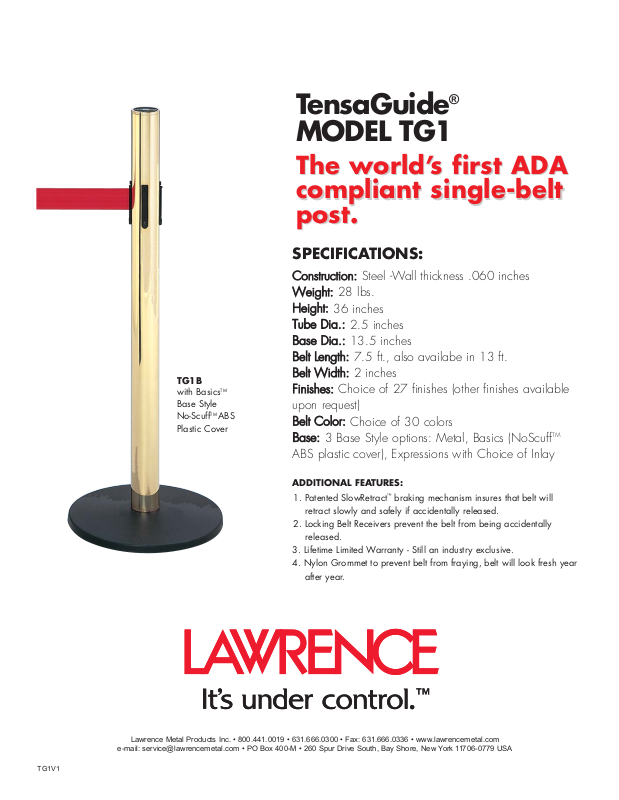

Lawrence TG1 User Manual
Lawrence Metal Products Inc. • 800.441.0019 • 631.666.0300 • Fax: 631.666.0336 • www.lawrencemetal.com
e-mail: service@lawrencemetal.com • PO Box 400-M • 260 Spur Drive South, Bay Shore, New York 11706-0779 USA
TG1V1
SPECIFICATIONS:
CCoonnssttrruuccttiioonn::
Steel -Wall thickness .060 inches
WWeeiigghhtt::
28 lbs.
HHeeiigghhtt::
36 inches
TTuubbee DDiiaa..::
2.5 inches
BBaassee DDiiaa..::
13.5 inches
BBeelltt LLeennggtthh::
7.5 ft., also availabe in 13 ft.
BBeelltt WWiiddtthh::
2 inches
FFiinniisshheess::
Choice of 27 finishes (other finishes available
upon request)
BBeelltt CCoolloorr::
Choice of 30 colors
BBaassee::
3 Base Style options: Metal, Basics (NoScuff
TM
ABS plastic cover), Expressions with Choice of Inlay
ADDITIONAL FEATURES:
1. Patented SlowRetract
™
braking mechanism insures that belt will
retract slowly and safely if accidentally released.
2. Locking Belt Receivers prevent the belt from being accidentally
released.
3. Lifetime Limited Warranty - Still an industry exclusive.
4. Nylon Grommet to prevent belt from fraying, belt will look fresh year
after year.
TensaGuide
®
MODEL TG1
The world’
The world’
s first ADA
s first ADA
compliant single-belt
compliant single-belt
post.
post.
TG1B
with Basics
TM
Base Style
No-Scuff
TM
ABS
Plastic Cover
