Lawrence DL20 User Manual

TOOLS REQUIRED:

• Phillips head screwdriver, Power Drill, Wrench

• Lion’s Head Bracket with accompanying
hardware (tech screw, threaded rod, wood screw,
washer and nut)

• 2 “ Tube railing

• Duralit Brass Polish

• A clean rag (to clean off fingerprints)

INSTRUCTIONS:

Step 1

Insert threaded rod into threaded hole located in
back of the Lion’s Head Bracket.

Step 2

Pre drill hole for 3/8” threaded rod and position
Lion’s Head in place. If threaded rod is exposed
through underside of bar add washer and tighten
nut into place using a wrench.

Step 3

Insert Wood screw into pre-drilled pilot hole
through the front of the bar to complete Lion’s
Head bracket installation.

Step 4

Insert railing through Lion’s bracket and position

Step 5

Insert tech screw into the bottom of Lion’s bracket
to secure railing into position.

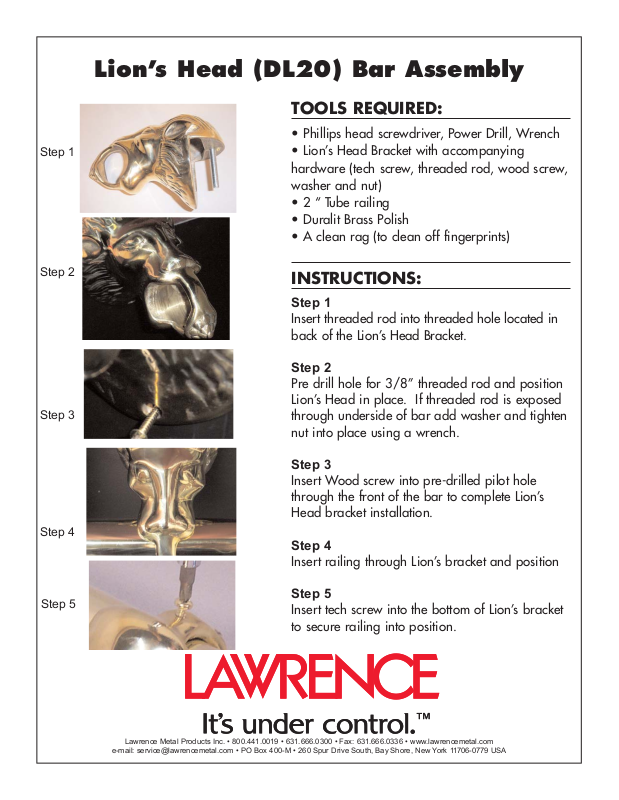

Lion’s Head (DL20) Bar Assembly

Step 1

Step 2

Step 3

Step 4

Lawrence Metal Products Inc. • 800.441.0019 • 631.666.0300 • Fax: [phone] • www.lawrencemetal.com

e-mail: [e-mail] • PO Box 400-M • 260 Spur Drive South, Bay Shore, New York 11706-0779 USA

Step 5
