LawnMaster BL705 Operator's Manual
8 Amp Electric Blower BL705
3084514
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Lisez attentivement toutes les règles de sécurité ainsi que les instructions avant de faire fonctionner cet outil.
Distribué par Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Lea todas las reglas e instrucciones de seguridad cuidadosamente antes de utilizar esta herramienta.
Distribuido por Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
LawnMaster_BL705_V1
EN p. 2
Souffleuse électrique 8 Amp BL705
FR p. 18
Sopladora eléctrica de 8 amperes BL705
ES p. 35
Operators Manual / Manuel d'utilisation / Manual de uso
Parts List
3-4
Specific Safety Rules 5
Symbols 6
Electrical Information 7-8
9

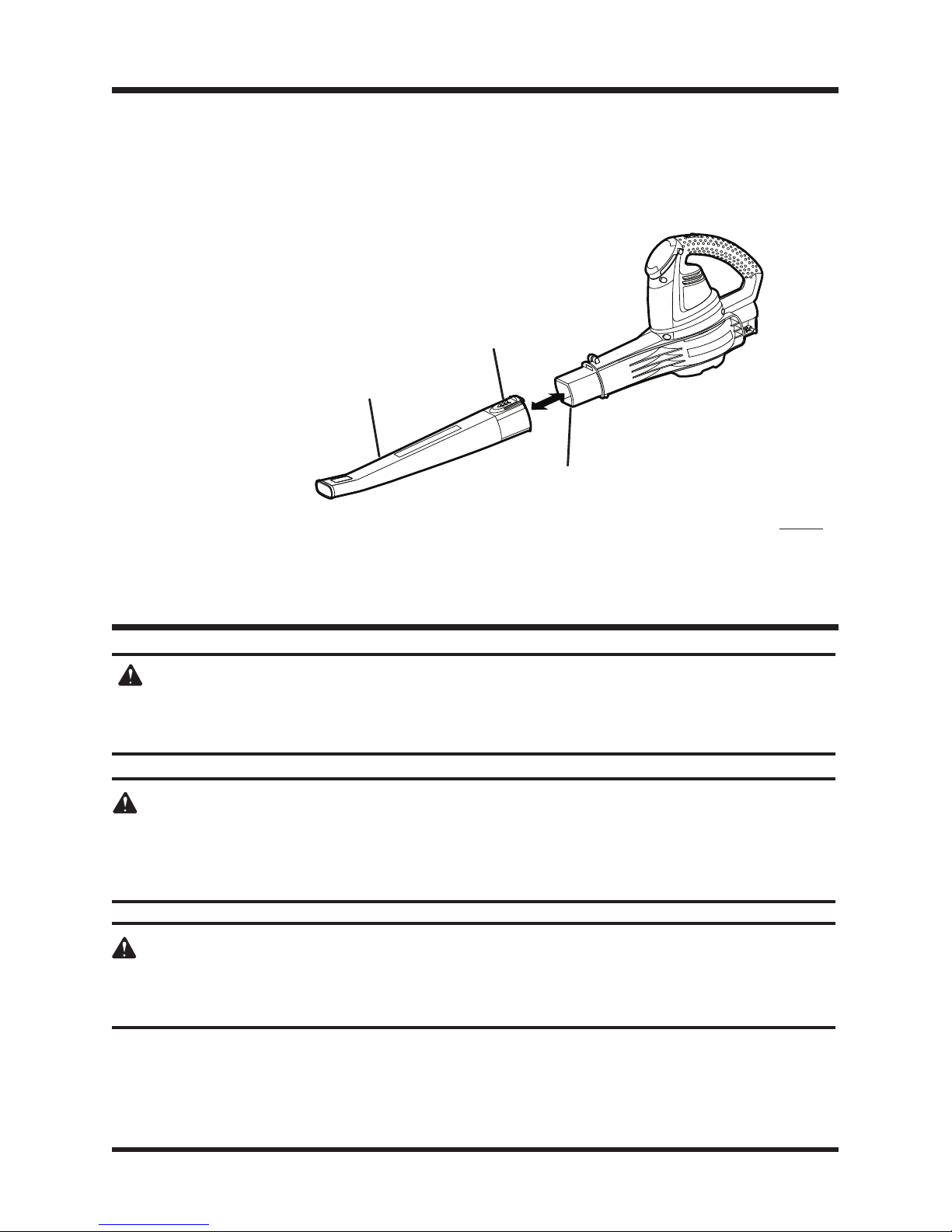

Assembly
Operation
11-13
10-11
Maintenance
14
14
15
CONTENTS
Important Safety Instructions

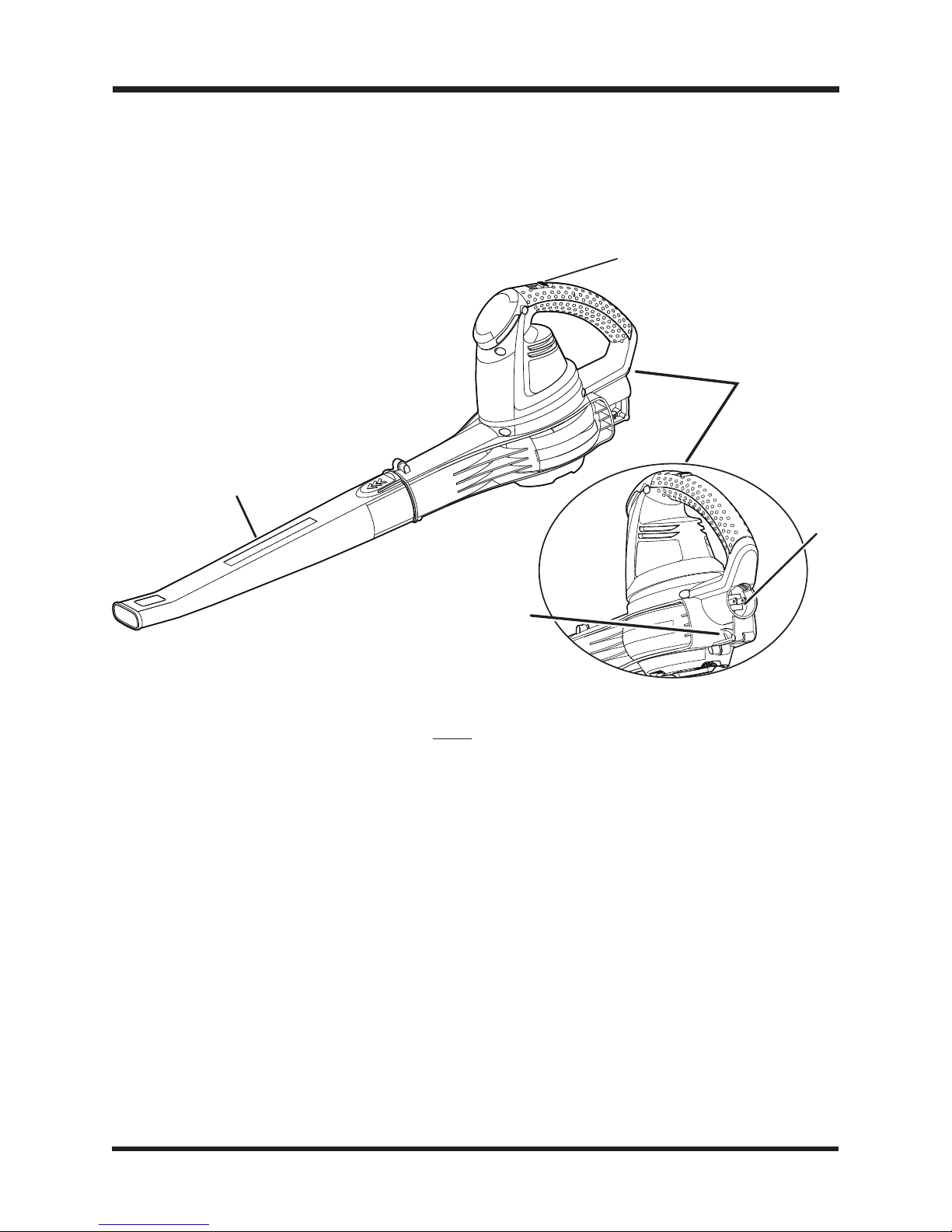

Features
Troubleshooting
Warranty
16
17

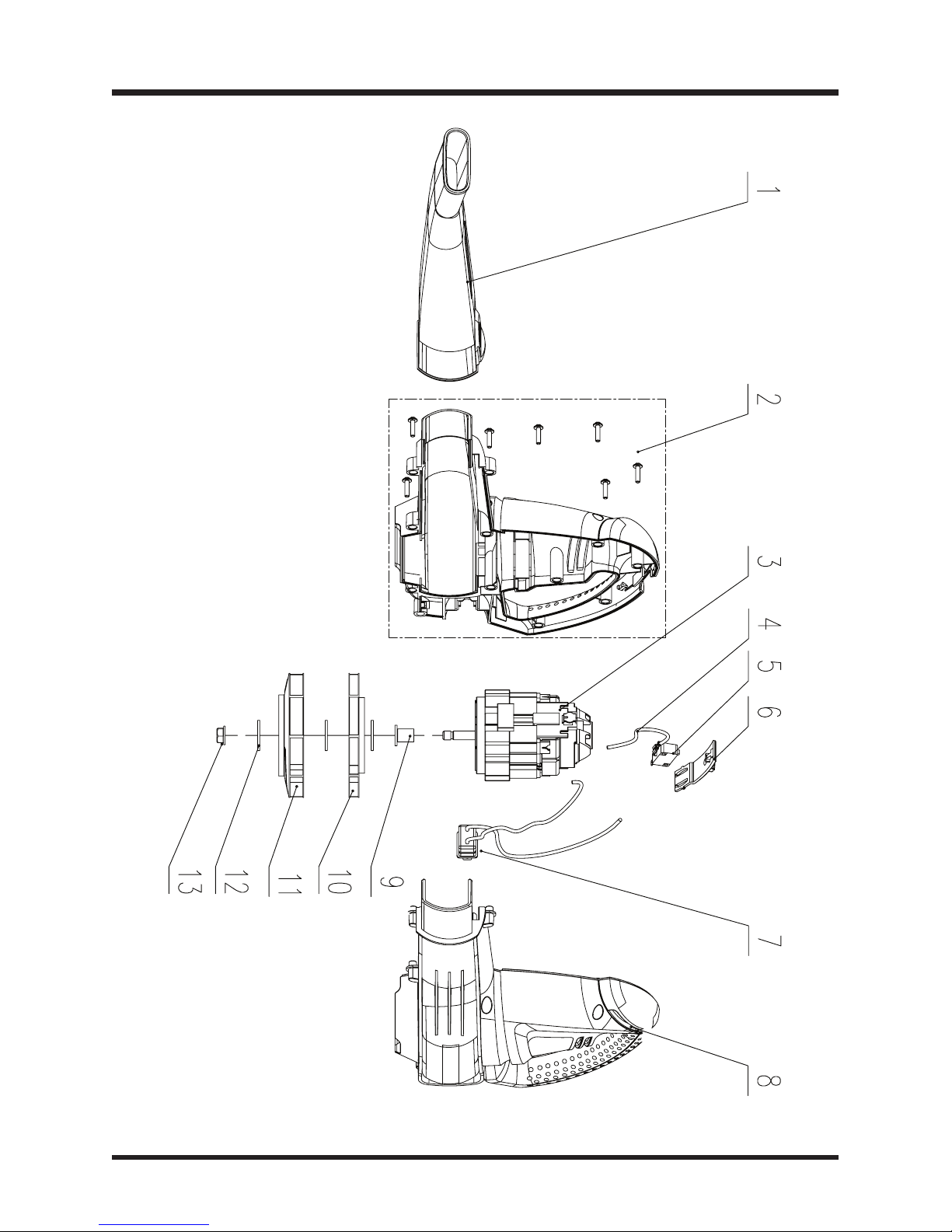

Exploded View
2
8 AMP BLOWER
Voltage
Amp
Max Air Speed
Max Air Volume
Weight
PRODUCT SPECIFICATIONS
4 lbs.( 1.8kg )
160 CFM
160 MPH
8 A
120 V ~ 60Hz
READ THESE INSTRUCTIONS BEFORE USING THIS BLOWER
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury.
WARNING:
IMPORTANT SAFETY INSTRUCTIONS
Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
To reduce the risk of electric shock, this tool has a polarized plug ( one blade is wider than the
other ) and will require the use of a polarized extension cord. The plug will fit into a polarized
extension cord only one way. If the plug does not fit fully into the extension cord, reverse the
plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension
cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet
only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still
does not fi
t,
contact a qualified electrician to install the proper wall outlet. Do not change the
equipment plug, extension cord receptacle, or extension cord plug in any way.
Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.
There is an increased risk of electric shock if your body is grounded.
Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
Do not handle plug or tool with wet hands.
Use outdoor extension cords marked W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A,
SJTW-A, or SJTOW-A. These cords are rated for outdoor use and reduce the risk of electric
shock.
Never allow children to operate the equipment. Never allow adults to operate the equipment
without proper instruction.
Wear eye protection with side shields which is marked to comply with ANSI Z87.1 as well as
hearing protection when operating this product.
Always use face or dust mask if operation is dusty.
Use extra care when cleaning on stairs.
Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing.
Do not expose to rain, store indoors.
Use only as described in this manual. Use only manufacturer’s recommended attachments.
Keep hair, loose clothing, fingers and all body parts away from openings and moving parts.
Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments or jewelry that
could get caught in moving parts of the machine or its motor.
Do not force tool. Use the correct tool for your application. The correct tool will do the job
better and safer at the rate for which it is designed.
Do not operate the equipment while barefoot or when wearing sandals or similar lightweight
footwear. Wear protective footwear that will protect your feet and improve your footing on
slippery surfaces.
3
Do not use on steps, a ladder, roof top, tree, or other unstable support. Stable footing on a
solid surface enables better control of the blower in unexpected situations.
Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance.
Turn off all controls before unplugging.
Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Avoid accidental starting. Be sure the power switch is not on before plugging in. Turn off
power switch before unplugging.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Do not use with damaged plug. If tool is not working as it should or has been dropped,
damaged, left outdoors, or dropped into water, return it to an authorized service center.
Do not leave the tool when plugged in. Unplug from the power outlet when not in use, before
servicing, and before storing the tool. Such preventative safety measures reduce the risk of
starting the tool accidentally.
Keep all bystanders, children, and pets at least 50 ft. away.
Do not operate this unit when you are tired, ill, upset or under the influence of alcohol, drugs,
or medication.
Do not operate in poor lighting.
Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
Do not put any object into openings. Do not use with any opening blocked; keep openings
free of dust, lint, hair, and anything that may reduce air flow.
Check the work area before each use. Remove all objects such as rocks, broken glass, nails,
wire, or string which can be thrown or become entangled in the machine.
Never use blower near fires, fireplaces, hot ashes, barbecue pits, etc., which may cause fire to
spread.
Do not pull or carry by cord, use cord as a handle, close a door on a cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Use only identical manufacturer’s replacement parts and accessories. Use of any other parts
may create a hazard or cause product damage.
In a double insulated appliance, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double insulated appliance, nor should a means for
grounding be added to the appliance. Servicing a double insulated appliance requires extreme
care and knowledge of the system and should be done only by qualified service personnel.
Replacement parts for a double insulated appliance must be identical to the parts they replace.
For household use only.
IMPORTANT SAFETY INSTRUCTIONS
4
Safety Alert
V
A
Hz
W
min
MEANING
DANGER:
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL
SIGNAL
WARNING
CAUTION:
CAUTION:
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME
DESIGNATION/EXPLANATION
Indicates a potential personal injury hazard.
Read The Operator’s Manual
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye and Hearing Protection
Always wear eye protection with side shields marked to comply
with ANSI Z87.1, along with hearing protection.
Wet Conditions Alert
Do not expose to rain or use in damp locations.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
Long Hair
Failure to keep long hair away from the air inlet could result in
personal injury.
Blower Tubes
Do not operate without tubes in place.
Loose Clothing
Failure to keep loose clothing from being drawn into air intake
could result in personal injury.
Volts
Voltage
Amperes
Current
Hertz Frequency (cycles per second)
Watt
Power
Minutes
Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
SYMBOLS
6
DOUBLE INSULATION
Double insulation is a concept in safety in electric power tools, which eliminates the need for the
usual threewire grounded power cord. All exposed metal parts are isolated from the internal metal
motor components with protecting insulation. Double insulated tools do not need to be grounded.
NOTE:
Servicing of a product with double insulation requires extreme care and knowledge
of the system and should be performed only by a qualified service technician. For service,
we suggest you return the tool to your nearest authorized service center for repair. Always
demand that original factory replacement parts be used when servicing.
ELECTRICAL CONNECTION
This product has a precision-built electric motor. It should be connected to a power supply that
is 120 volts, AC only (normal household current), 60 Hz. Do not operate this product on direct
current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If
your product does not operate when plugged into an outlet, double-check the power supply.
GFCI
Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s)
to be used for the product.Receptacles are available having built-in GFCI protection and may be
used for this measure of safety.
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your product
will draw. An undersized cord will cause overheating. The table below shows the correct size to
use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
Ampere Rating
Total Length of Cord in Feet (meters)
More Than Not More Than
Not Recommended
25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)
0 6
6
18 16 16 14
10 18 16 14 12
10 12
12
16 16
16
14
14
12
12
ELECTRICAL INFORMATION
WARNING:
The double insulated system is intended to protect the user from shock resulting from a break in
the tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock.
7
