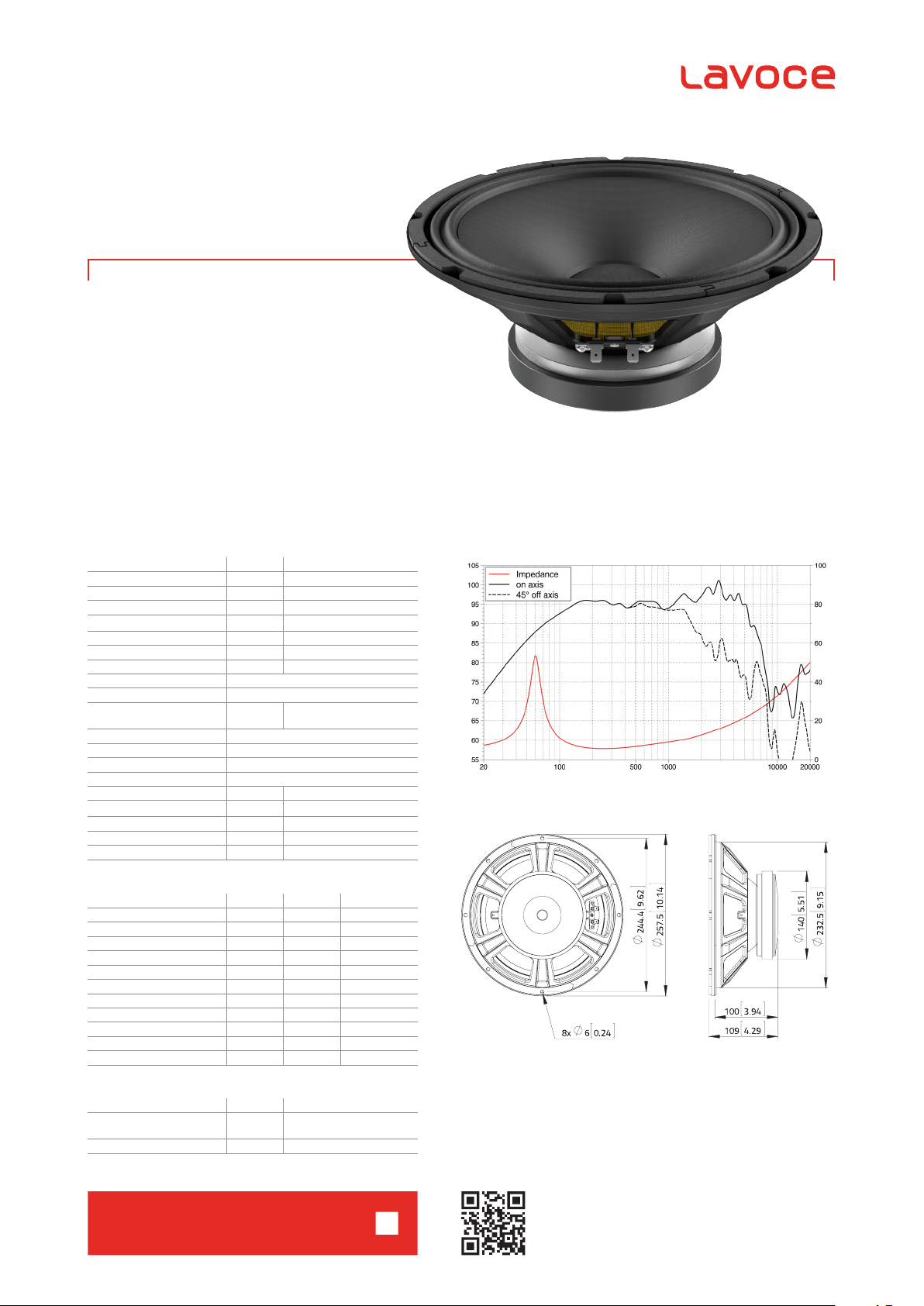

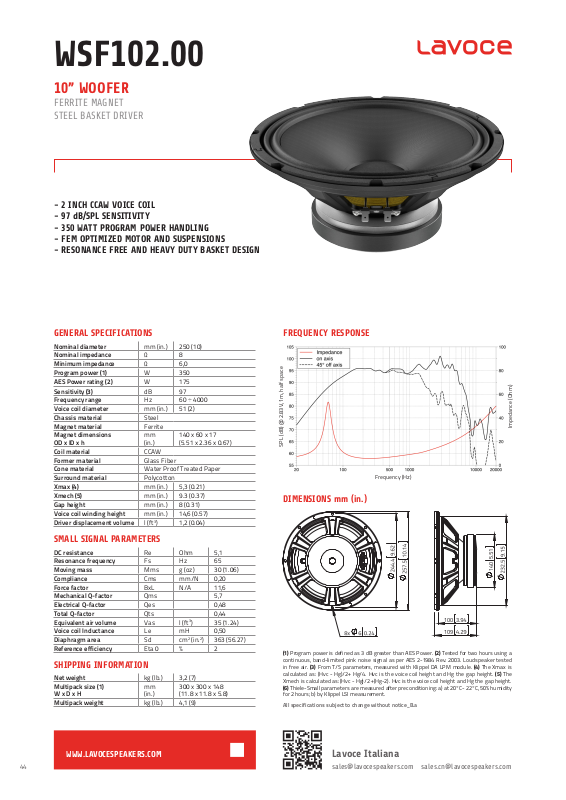

WSF102.00
10” WOOFER
FERRITE MAGNET
STEEL BASKET DRIVER
- 2 INCH CCAW VOICE COIL
- 97 dB/SPL SENSITIVITY
- 350 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
GENERAL SPECIFICATIONS
Nominal diameter mm (in.) 250 (10)
Nominal impedance Ω 8
Minimum impedance Ω 6,0
Program power (1) W 350
AES Power rating (2)
Sensitivity (3) dB 97
Frequency range Hz 60 ÷ 4000
Voice coil diameter mm (in.) 51 (2)
Chassis material Steel
Magnet material Ferrite
Magnet dimensions
OD x ID x h
Coil material CCAW
Former material Glass Fiber
Cone material Water Proof Treated Paper
Surround material Polycotton
Xmax (4) mm (in.) 5,3 (0.21)
Xmech (5)
Gap height mm (in.) 8 (0.31)
Voice coil winding height mm (in.) 14,6 (0.57)
Driver displacement volume l (ft3) 1,2 (0.04)
W 175
mm
(in.)
mm (in.) 9.3 (0.37)
140 x 60 x 17
(5.51 x 2.36 x 0.67)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 5,1
Resonance frequency Fs Hz 65
Moving mass Mms g (oz) 30 (1.06)
Compliance Cms mm/N 0,20
Force factor BxL N/A 11,6
Mechanical Q-factor Qms 5,7
Electrical Q-factor Qes 0,48
Total Q-factor Qts 0,44
Equivalent air volume Vas l (ft3) 35 (1.24)
Voice coil Inductance Le mH 0,50
Diaphragm area Sd cm2 (in.2) 363 (56.27)
Reference efficiency Eta 0 % 2
SHIPPING INFORMATION
Net weight kg (lb.) 3,2 (7)
Multipack size (1)
W x D x H
Multipack weight kg (lb.) 4,1 (9)
mm
(in.)
300 x 300 x 148
(11.8 x 11.8 x 5.8)
FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m, half space
Frequency (Hz)
DIMENSIONS mm (in.)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air. (3) From T/S parameters, measured with Klippel DA LPM module. (4) The Xmax is
calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height. (5) The
Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by Klippel LSI measurement.
All specifications subject to change without notice_B.a
Impedance (Ohm)
WWW.LAVOCESPEAKERS.COM
44
