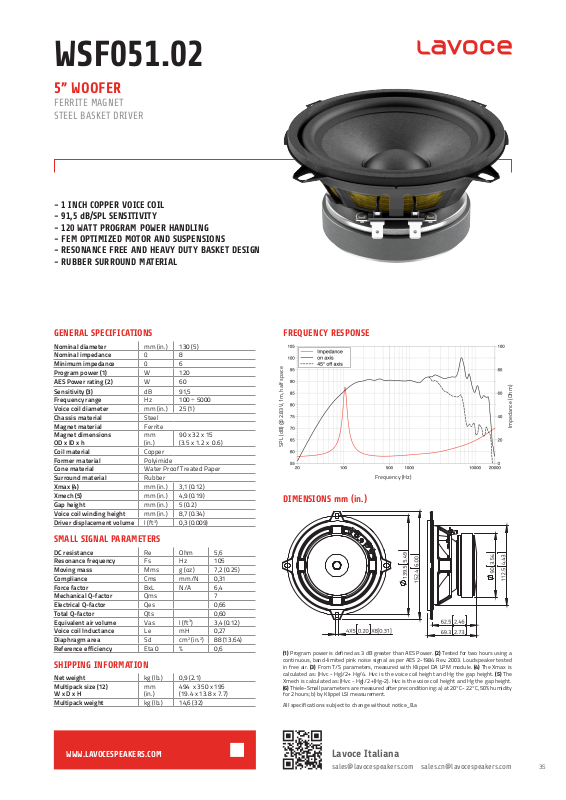

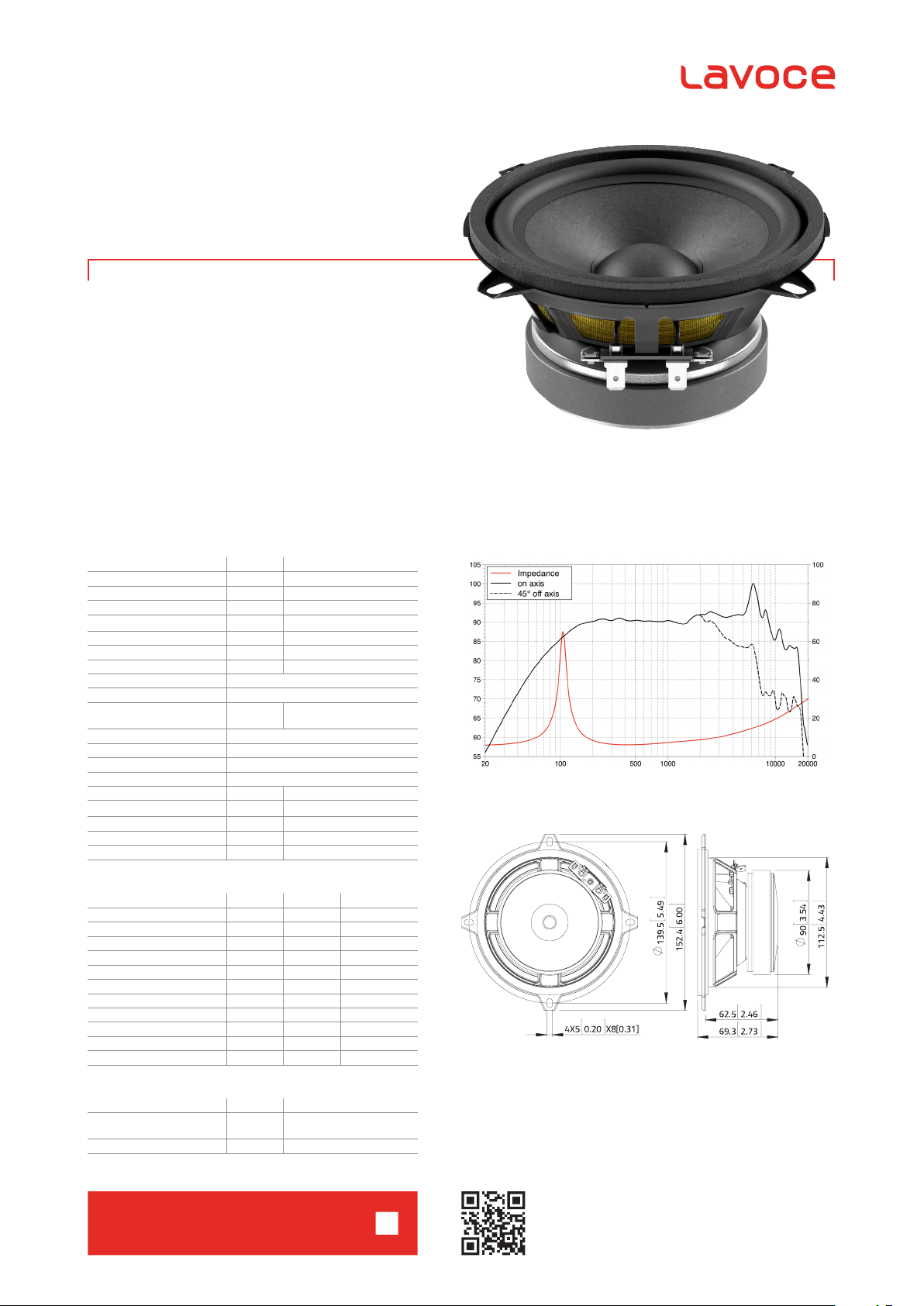

Page 1
WSF051.02
5” WOOFER
FERRITE MAGNET
STEEL BASKET DRIVER
- 1 INCH COPPER VOICE COIL
- 91,5 dB/SPL SENSITIVITY
- 120 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
- RUBBER SURROUND MATERIAL
GENERAL SPECIFICATIONS
Nominal diameter mm (in.) 130 (5)
Nominal impedance Ω 8
Minimum impedance Ω 6
Program power (1) W 120
AES Power rating (2)
Sensitivity (3) dB 91,5
Frequency range Hz 100 ÷ 5000
Voice coil diameter mm (in.) 25 (1)
Chassis material Steel
Magnet material Ferrite
Magnet dimensions
OD x ID x h
Coil material Copper
Former material Polyimide
Cone material Water Proof Treated Paper
Surround material Rubber
Xmax (4) mm (in.) 3,1 (0.12)
Xmech (5)
Gap height mm (in.) 5 (0.2)
Voice coil winding height mm (in.) 8,7 (0.34)
Driver displacement volume l (ft3) 0,3 (0.009)
W 60
mm
(in.)
mm (in.) 4,9 (0.19)
90 x 32 x 15
(3.5 x 1.2 x 0.6)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 5,6
Resonance frequency Fs Hz 105
Moving mass Mms g (oz) 7,2 (0.25)
Compliance Cms mm/N 0,31
Force factor BxL N/A 6,4
Mechanical Q-factor Qms 7
Electrical Q-factor Qes 0,66
Total Q-factor Qts 0,60
Equivalent air volume Vas l (ft3) 3,4 (0.12)
Voice coil Inductance Le mH 0,27
Diaphragm area Sd cm2 (in.2) 88 (13.64)
Reference efficiency Eta 0 % 0,6
SHIPPING INFORMATION
Net weight kg (lb.) 0,9 (2.1)
Multipack size (12)
W x D x H
Multipack weight kg (lb.) 14,6 (32)
mm
(in.)
494 x 350 x 195
(19.4 x 13.8 x 7.7)
FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m, half space
Frequency (Hz)
DIMENSIONS mm (in.)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air. (3) From T/S parameters, measured with Klippel DA LPM module. (4) The Xmax is
calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height. (5) The
Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by Klippel LSI measurement.
All specifications subject to change without notice_B.a
Impedance (Ohm)
WWW.LAVOCESPEAKERS.COM
Lavoce Italiana
35
