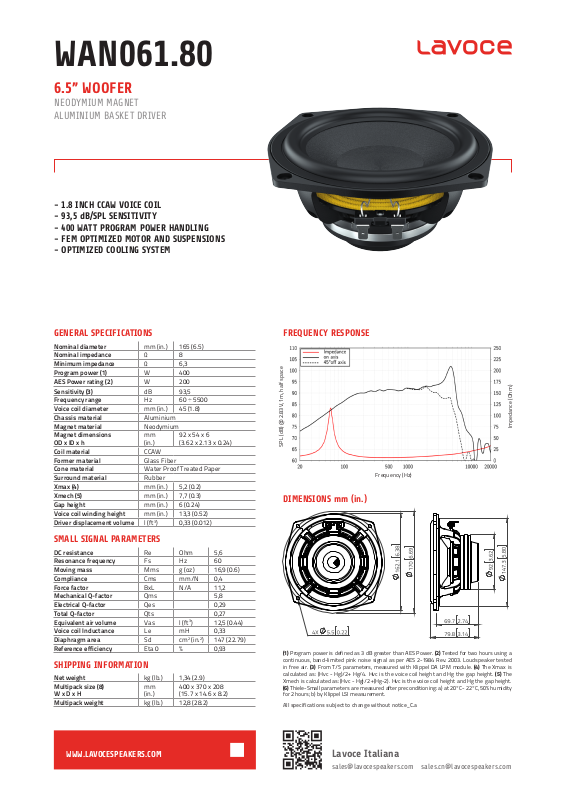

WAN061.80
6.5” WOOFER
NEODYMIUM MAGNET
ALUMINIUM BASKET DRIVER
- 1.8 INCH CCAW VOICE COIL
- 93,5 dB/SPL SENSITIVITY
- 400 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
GENERAL SPECIFICATIONS
Nominal diameter mm (in.) 165 (6.5)
Nominal impedance Ω 8
Minimum impedance Ω 6,3
Program power (1) W 400
AES Power rating (2)
Sensitivity (3) dB 93,5
Frequency range Hz 60 ÷ 5500
Voice coil diameter mm (in.) 45 (1.8)
Chassis material Aluminium
Magnet material Neodymium
Magnet dimensions
OD x ID x h
Coil material CCAW
Former material Glass Fiber
Cone material Water Proof Treated Paper
Surround material Rubber
Xmax (4) mm (in.) 5,2 (0.2)
Xmech (5)
Gap height mm (in.) 6 (0.24)
Voice coil winding height mm (in.) 13,3 (0.52)
Driver displacement volume l (ft3) 0,33 (0.012)
W 200
mm
(in.)
mm (in.) 7,7 (0.3)
92 x 54 x 6
(3.62 x 2.13 x 0.24)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 5,6
Resonance frequency Fs Hz 60
Moving mass Mms g (oz) 16,9 (0.6)
Compliance Cms mm/N 0,4
Force factor BxL N/A 11,2
Mechanical Q-factor Qms 5,8
Electrical Q-factor Qes 0,29
Total Q-factor Qts 0,27
Equivalent air volume Vas l (ft3) 12,5 (0.44)
Voice coil Inductance Le mH 0,33
Diaphragm area Sd cm2 (in.2) 147 (22.79)
Reference efficiency Eta 0 % 0,93
SHIPPING INFORMATION
Net weight kg (lb.) 1,34 (2.9)
Multipack size (8)
W x D x H
Multipack weight kg (lb.) 12,8 (28.2)
mm
(in.)
400 x 370 x 208
(15.7 x 14.6 x 8.2)

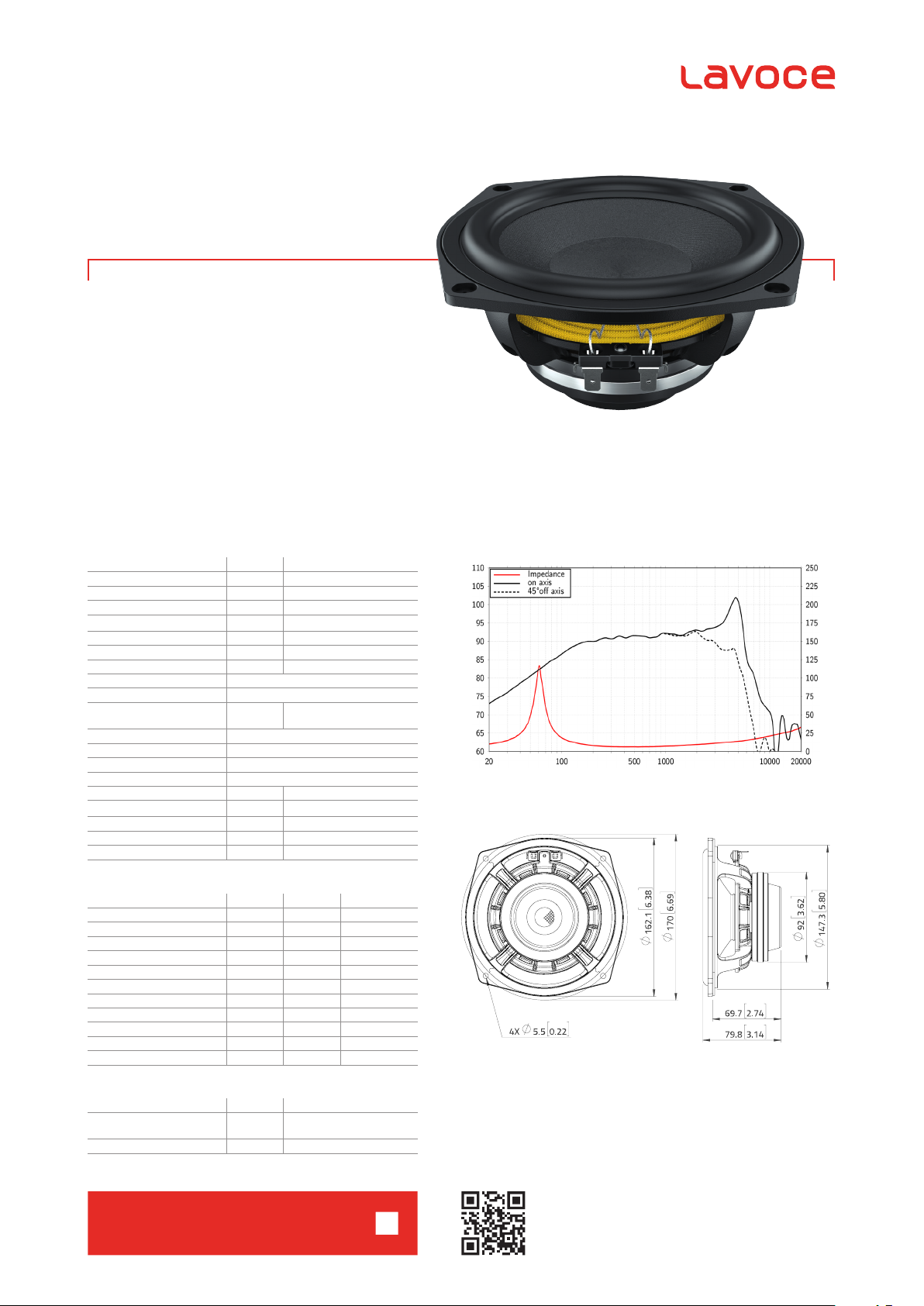

FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m, half space
Frequency (Hz)
DIMENSIONS mm (in.)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air. (3) From T/S parameters, measured with Klippel DA LPM module. (4) The Xmax is
calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height. (5) The
Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by Klippel LSI measurement.
All specifications subject to change without notice_C.a
Impedance (Ohm)
