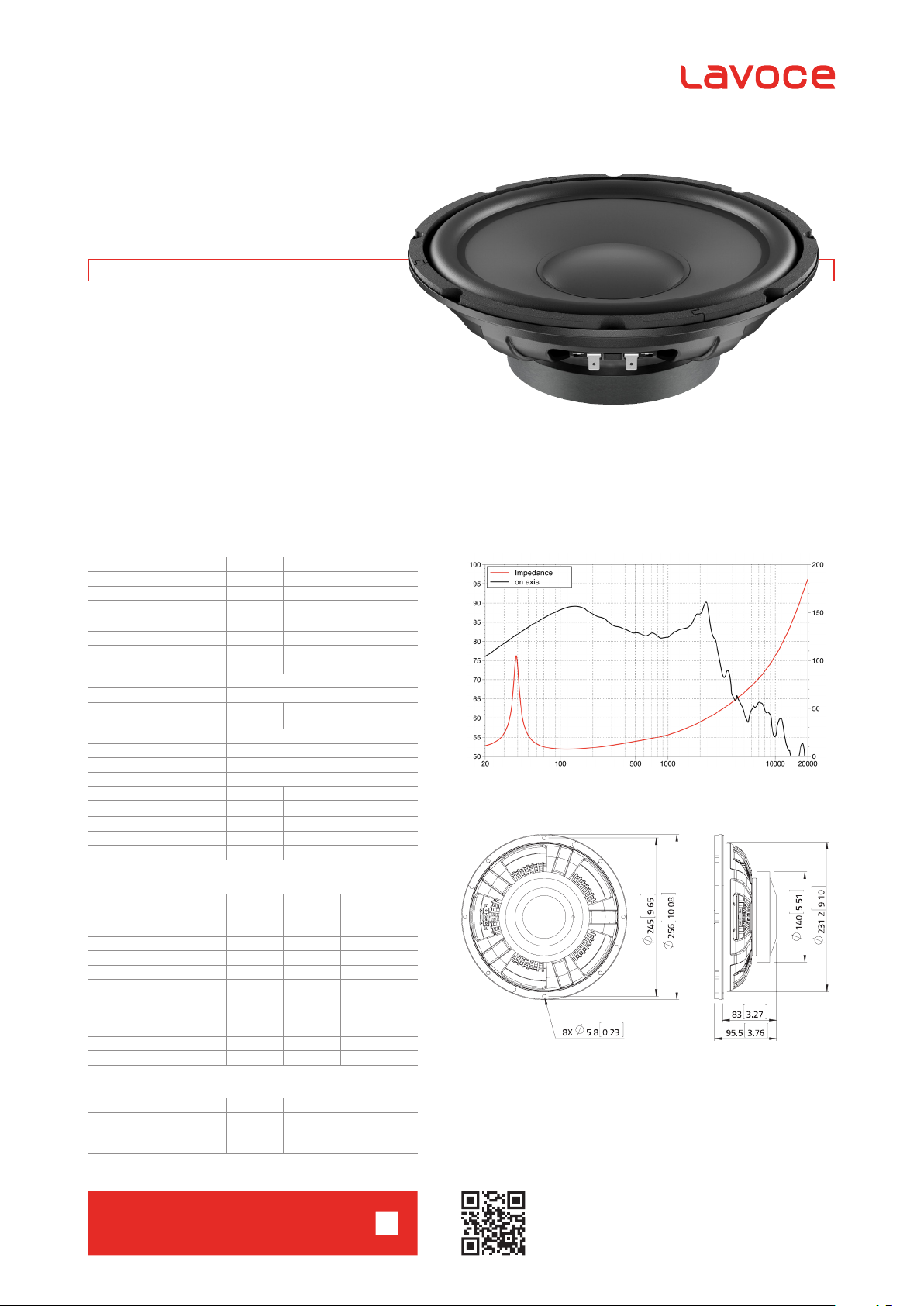

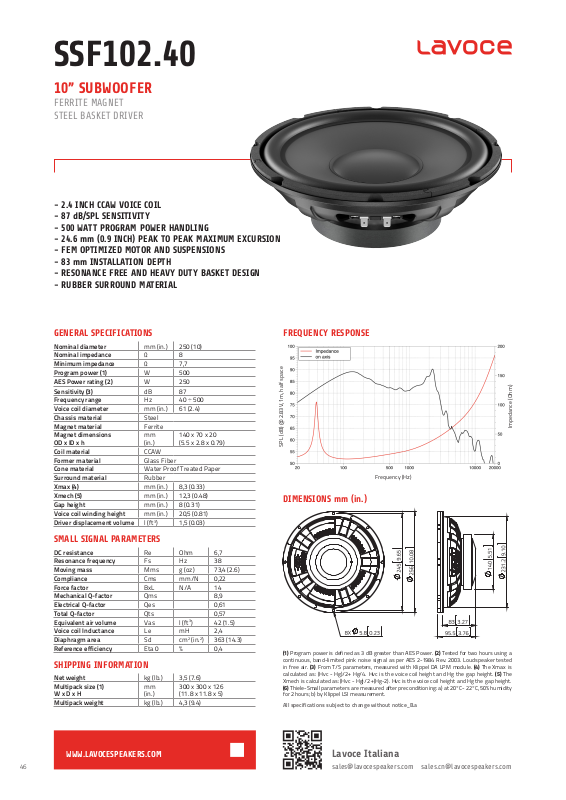

SSF102.40
10” SUBWOOFER
FERRITE MAGNET
STEEL BASKET DRIVER
- 2.4 INCH CCAW VOICE COIL
- 87 dB/SPL SENSITIVITY
- 500 WATT PROGRAM POWER HANDLING
- 24.6 mm (0.9 INCH) PEAK TO PEAK MAXIMUM EXCURSION
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- 83 mm INSTALLATION DEPTH
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
- RUBBER SURROUND MATERIAL
GENERAL SPECIFICATIONS
Nominal diameter mm (in.) 250 (10)
Nominal impedance Ω 8
Minimum impedance Ω 7,7
Program power (1) W 500
AES Power rating (2)
Sensitivity (3) dB 87
Frequency range Hz 40 ÷ 500
Voice coil diameter mm (in.) 61 (2.4)
Chassis material Steel
Magnet material Ferrite
Magnet dimensions
OD x ID x h
Coil material CCAW
Former material Glass Fiber
Cone material Water Proof Treated Paper
Surround material Rubber
Xmax (4) mm (in.) 8,3 (0.33)
Xmech (5)
Gap height mm (in.) 8 (0.31)
Voice coil winding height mm (in.) 20,5 (0.81)
Driver displacement volume l (ft3) 1,5 (0.03)
W 250
mm
(in.)
mm (in.) 12,3 (0.48)
140 x 70 x 20
(5.5 x 2.8 x 0.79)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 6,7
Resonance frequency Fs Hz 38
Moving mass Mms g (oz) 73,4 (2.6)
Compliance Cms mm/N 0,22
Force factor BxL N/A 14
Mechanical Q-factor Qms 8,9
Electrical Q-factor Qes 0,61
Total Q-factor Qts 0,57
Equivalent air volume Vas l (ft3) 42 (1.5)
Voice coil Inductance Le mH 2,4
Diaphragm area Sd cm2 (in.2) 363 (14.3)
Reference efficiency Eta 0 % 0,4
SHIPPING INFORMATION
Net weight kg (lb.) 3,5 (7.6)
Multipack size (1)
W x D x H
Multipack weight kg (lb.) 4,3 (9.4)
mm
(in.)
300 x 300 x 126
(11.8 x 11.8 x 5)
FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m, half space
Frequency (Hz)
DIMENSIONS mm (in.)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air. (3) From T/S parameters, measured with Klippel DA LPM module. (4) The Xmax is
calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height. (5) The
Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by Klippel LSI measurement.
All specifications subject to change without notice_B.a
