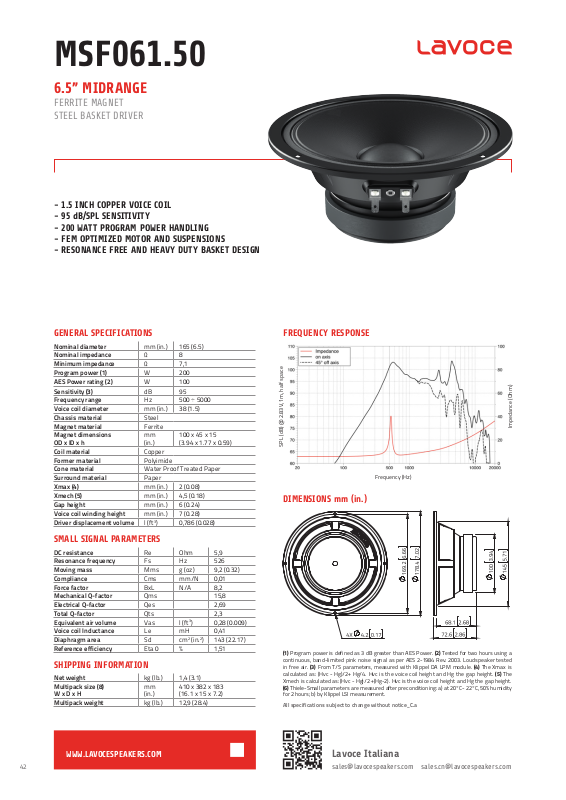

MSF061.50
6.5” MIDRANGE
FERRITE MAGNET
STEEL BASKET DRIVER
- 1.5 INCH COPPER VOICE COIL
- 95 dB/SPL SENSITIVITY
- 200 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
GENERAL SPECIFICATIONS
Nominal diameter mm (in.) 165 (6.5)
Nominal impedance Ω 8
Minimum impedance Ω 7,1
Program power (1) W 200
AES Power rating (2)
Sensitivity (3) dB 95
Frequency range Hz 500 ÷ 5000
Voice coil diameter mm (in.) 38 (1.5)
Chassis material Steel
Magnet material Ferrite
Magnet dimensions
OD x ID x h
Coil material Copper
Former material Polyimide
Cone material Water Proof Treated Paper
Surround material Paper
Xmax (4) mm (in.) 2 (0.08)
Xmech (5)
Gap height mm (in.) 6 (0.24)
Voice coil winding height mm (in.) 7 (0.28)
Driver displacement volume l (ft3) 0,786 (0.028)
W 100
mm
(in.)
mm (in.) 4,5 (0.18)
100 x 45 x 15
(3.94 x 1.77 x 0.59)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 5,9
Resonance frequency Fs Hz 526
Moving mass Mms g (oz) 9,2 (0.32)
Compliance Cms mm/N 0,01
Force factor BxL N/A 8,2
Mechanical Q-factor Qms 15,8
Electrical Q-factor Qes 2,69
Total Q-factor Qts 2,3
Equivalent air volume Vas l (ft3) 0,28 (0.009)
Voice coil Inductance Le mH 0,41
Diaphragm area Sd cm2 (in.2) 143 (22.17)
Reference efficiency Eta 0 % 1,51
SHIPPING INFORMATION
Net weight kg (lb.) 1,4 (3.1)
Multipack size (8)
W x D x H
Multipack weight kg (lb.) 12,9 (28.4)
mm
(in.)
410 x 382 x 183
(16.1 x 15 x 7.2)

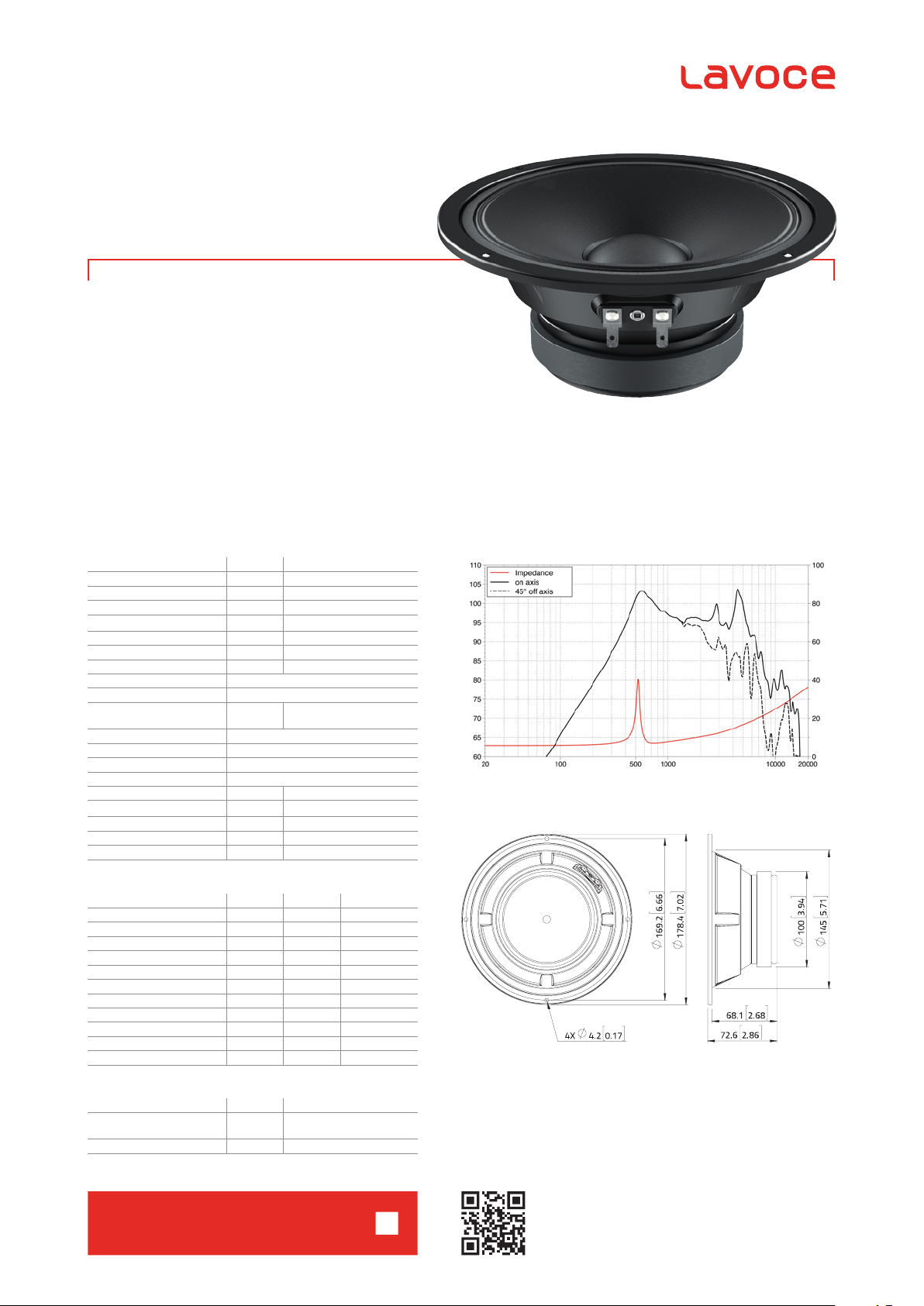

FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m, half space
Frequency (Hz)
DIMENSIONS mm (in.)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air. (3) From T/S parameters, measured with Klippel DA LPM module. (4) The Xmax is
calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height. (5) The
Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by Klippel LSI measurement.
All specifications subject to change without notice_C.a
Impedance (Ohm)
WWW.LAVOCESPEAKERS.COM
42
