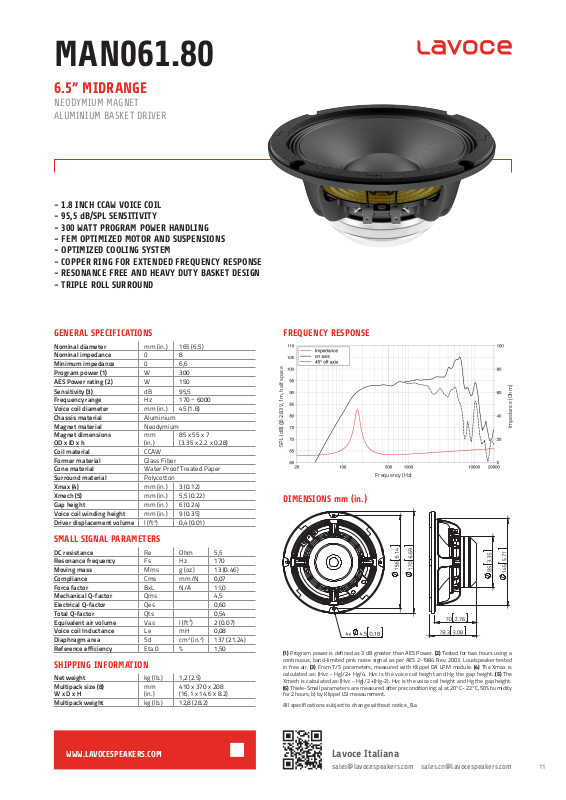

MAN061.80
6.5” MIDRANGE
NEODYMIUM MAGNET
ALUMINIUM BASKET DRIVER
- 1.8 INCH CCAW VOICE COIL
- 95,5 dB/SPL SENSITIVITY
- 300 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- COPPER RING FOR EXTENDED FREQUENCY RESPONSE
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
- TRIPLE ROLL SURROUND
GENERAL SPECIFICATIONS
Nominal diameter mm (in.) 165 (6.5)
Nominal impedance Ω 8
Minimum impedance Ω 6,6
Program power (1) W 300
AES Power rating (2)
Sensitivity (3) dB 95,5
Frequency range Hz 170 ÷ 6000
Voice coil diameter mm (in.) 45 (1.8)
Chassis material Aluminium
Magnet material Neodymium
Magnet dimensions
OD x ID x h
Coil material CCAW
Former material Glass Fiber
Cone material Water Proof Treated Paper
Surround material Polycotton
Xmax (4) mm (in.) 3 (0.12)
Xmech (5)
Gap height mm (in.) 6 (0.24)
Voice coil winding height mm (in.) 9 (0.35)
Driver displacement volume l (ft3) 0,4 (0.01)
W 150
mm
(in.)
mm (in.) 5,5 (0.22)
85 x 55 x 7
(3.35 x 2.2 x 0.28)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 5,5
Resonance frequency Fs Hz 170
Moving mass Mms g (oz) 13 (0.46)
Compliance Cms mm/N 0,07
Force factor BxL N/A 11,0
Mechanical Q-factor Qms 4,5
Electrical Q-factor Qes 0,60
Total Q-factor Qts 0,54
Equivalent air volume Vas l (ft3) 2 (0.07)
Voice coil Inductance Le mH 0,08
Diaphragm area Sd cm2 (in.2) 137 (21.24)
Reference efficiency Eta 0 % 1,50
SHIPPING INFORMATION
Net weight kg (lb.) 1,2 (2.5)
Multipack size (8)
W x D x H
Multipack weight kg (lb.) 12,8 (28.2)
mm
(in.)
410 x 370 x 208
(16.1 x 14.6 x 8.2)

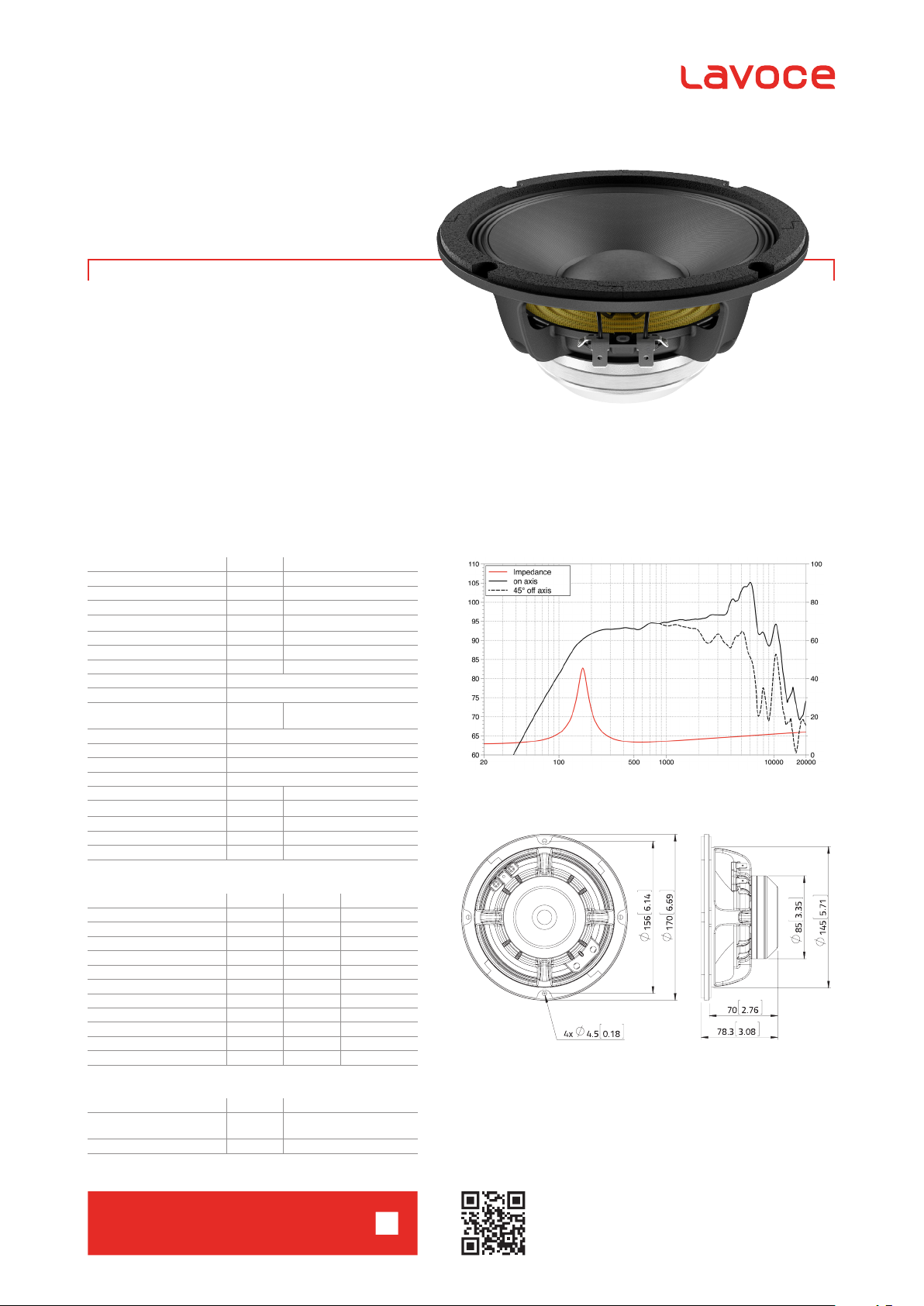

FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m, half space
Frequency (Hz)
DIMENSIONS mm (in.)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air. (3) From T/S parameters, measured with Klippel DA LPM module. (4) The Xmax is
calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height. (5) The
Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by Klippel LSI measurement.
All specifications subject to change without notice_B.a
Impedance (Ohm)
WWW.LAVOCESPEAKERS.COM
Lavoce Italiana
