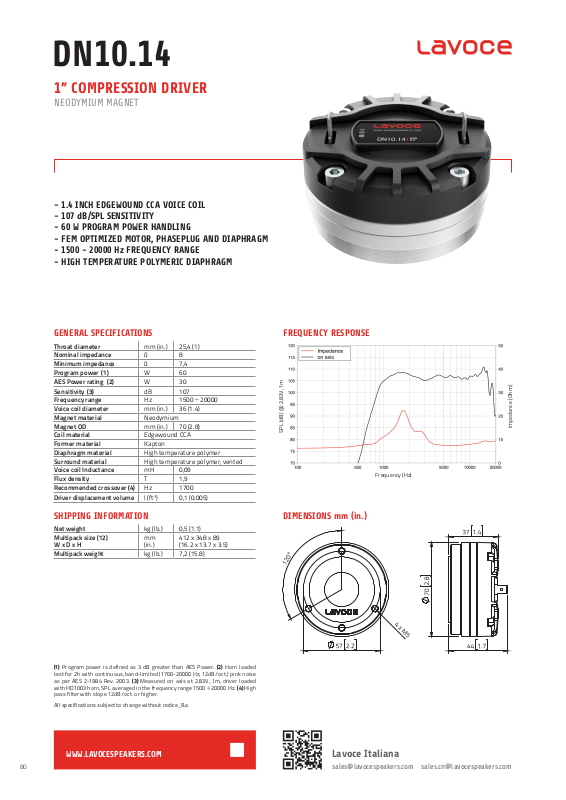

DN10.14
1” COMPRESSION DRIVER
NEODYMIUM MAGNET
- 1.4 INCH EDGEWOUND CCA VOICE COIL
- 107 dB/SPL SENSITIVITY
- 60 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1500 - 20000 Hz FREQUENCY RANGE
- HIGH TEMPERATURE POLYMERIC DIAPHRAGM
GENERAL SPECIFICATIONS
Throat diameter mm (in.) 25,4 (1)
Nominal impedance Ω 8
Minimum impedance Ω 7,4
Program power (1) W 60
AES Power rating (2) W 30
Sensitivity (3) dB 107
Frequency range Hz 1500 ÷ 20000
Voice coil diameter mm (in.) 36 (1.4)
Magnet material Neodymium
Magnet OD mm (in.) 70 (2.8)
Coil material Edgewound CCA
Former material Kapton
Diaphragm material High temperature polymer
Surround material High temperature polymer, vented
Voice coil Inductance mH 0,09
Flux density T 1,9
Recommended crossover (4) Hz 1700
Driver displacement volume
l (ft3) 0,1 (0.005)
SHIPPING INFORMATION
Net weight kg (lb.) 0,5 (1.1)
Multipack size (12)
W x D x H
Multipack weight kg (lb.) 7,2 (15.8)
mm
(in.)
412 x 348 x 89
(16.2 x 13.7 x 3.5)
FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m
DIMENSIONS mm (in.)
Impedance (Ohm)
Frequency (Hz)
(1) Program power is defined as 3 dB greater than AES Power. (2) Horn loaded
test for 2h with continuous, band-limited (1700-20000 Hz, 12dB/oct.) pink noise
as per AES 2-1984 Rev. 2003. (3) Measured on axis at 2.83V, 1m, driver loaded
with HD1003 horn, SPL averaged in the frequency range 1500 ÷ 20000 Hz. (4) High
pass filter with slope 12dB/oct. or higher.
All specifications subject to change without notice_B.a
