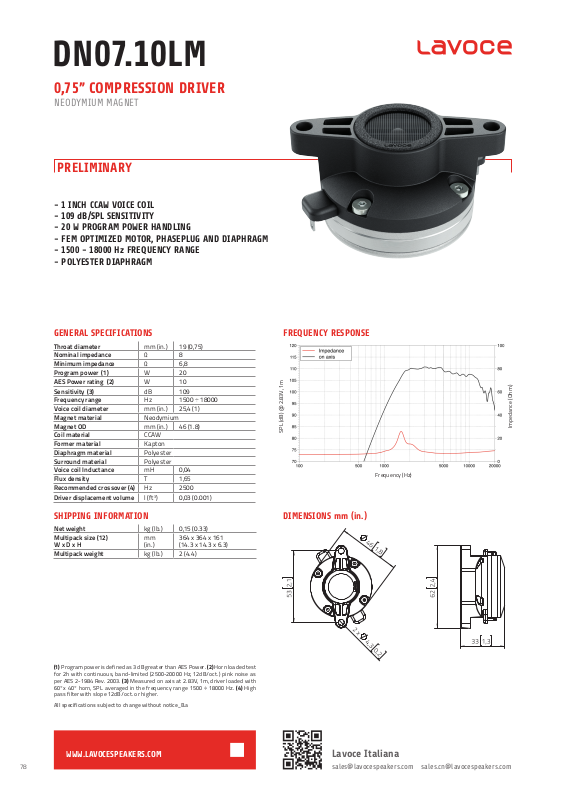

DN07.10LM
0,75” COMPRESSION DRIVER
NEODYMIUM MAGNET
PRELIMINARY
- 1 INCH CCAW VOICE COIL
- 109 dB/SPL SENSITIVITY
- 20 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1500 - 18000 Hz FREQUENCY RANGE
- POLYESTER DIAPHRAGM
GENERAL SPECIFICATIONS
Throat diameter mm (in.) 19 (0,75)
Nominal impedance Ω 8
Minimum impedance Ω 6,8
Program power (1) W 20
AES Power rating (2) W 10
Sensitivity (3) dB 109
Frequency range Hz 1500 ÷ 18000
Voice coil diameter mm (in.) 25,4 (1)
Magnet material Neodymium
Magnet OD mm (in.) 46 (1.8)
Coil material CCAW
Former material Kapton
Diaphragm material Polyester
Surround material Polyester
Voice coil Inductance mH 0,04
Flux density T 1,65
Recommended crossover (4) Hz 2500
Driver displacement volume
l (ft3) 0,03 (0.001)
SHIPPING INFORMATION
Net weight kg (lb.) 0,15 (0.33)
Multipack size (12)
W x D x H
Multipack weight kg (lb.) 2 (4.4)
mm
(in.)
364 x 364 x 161
(14.3 x 14.3 x 6.3)
FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m
DIMENSIONS mm (in.)
Impedance (Ohm)
Frequency (Hz)
(1) Program power is defined as 3 dB greater than AES Power. (2) Horn loaded test
for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as
per AES 2-1984 Rev. 2003. (3) Measured on axis at 2.83V, 1m, driver loaded with
60°x 40° horn, SPL averaged in the frequency range 1500 ÷ 18000 Hz. (4) High
pass filter with slope 12dB/oct. or higher.
All specifications subject to change without notice_B.a
