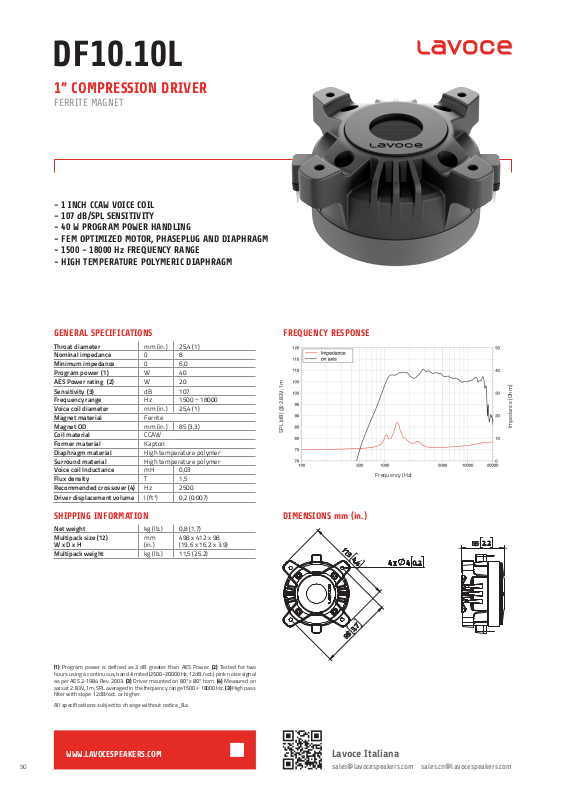

DF10.10L
1” COMPRESSION DRIVER
FERRITE MAGNET
- 1 INCH CCAW VOICE COIL
- 107 dB/SPL SENSITIVITY
- 40 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1500 - 18000 Hz FREQUENCY RANGE
- HIGH TEMPERATURE POLYMERIC DIAPHRAGM
GENERAL SPECIFICATIONS
Throat diameter mm (in.) 25,4 (1)
Nominal impedance Ω 8
Minimum impedance Ω 6,0
Program power (1) W 40
AES Power rating (2) W 20
Sensitivity (3) dB 107
Frequency range Hz 1500 ÷ 18000
Voice coil diameter mm (in.) 25,4 (1)
Magnet material Ferrite
Magnet OD mm (in.) 85 (3,3)
Coil material CCAW
Former material Kapton
Diaphragm material High temperature polymer
Surround material High temperature polymer
Voice coil Inductance mH 0,03
Flux density T 1,5
Recommended crossover (4) Hz 2500
Driver displacement volume
l (ft3) 0,2 (0.007)
SHIPPING INFORMATION
Net weight kg (lb.) 0,8 (1.7)
Multipack size (12)
W x D x H
Multipack weight kg (lb.) 11,5 (25.2)
mm
(in.)
498 x 412 x 98
(19.6 x 16.2 x 3.9)
FREQUENCY RESPONSE
SPL (dB) @ 2.83V, 1m
DIMENSIONS mm (in.)
Impedance (Ohm)
Frequency (Hz)
(1) Program power is defined as 3 dB greater than AES Power. (2) Tested for two
hours using a continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise signal
as per AES 2-1984 Rev. 2003. (3) Driver mounted on 80°x 80° horn. (4) Measured on
axis at 2.83V, 1m, SPL averaged in the frequency range 1500 ÷ 18000 Hz. (3) High pass
filter with slope 12dB/oct. or higher.
All specifications subject to change without notice_B.a
