LaView LV-CBA3213 User Manual

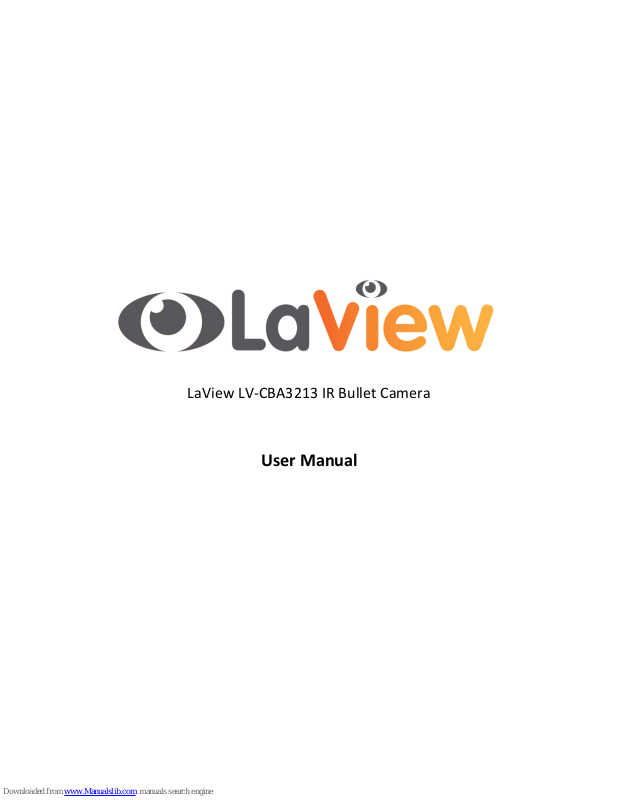

LaView LV-CBA3213 IR Bullet Camera

User Manual

Congratulations on purchasing a LaView product. This manual applies to the LV-CBA3213 IR Bullet

Power Cable

Mounting
Base

Sun Shield

IR LED

Lens

Video Cable

Camera. This manual may vary by model including model number, number of channels, cameras,
configuration, and hard drive capacity.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling

aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for
Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling
aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER
REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS
PRODUCT.

1 Introduction

1.1 Product Features

This series of camera adopts new generation sensor with high sensitivity and advanced circuit design
technology. It features high resolution, low image distortion and low noise features, etc., which makes it
suitable for surveillance system and image processing system.

 High-performance sensor and high resolution brings high-quality image
 IR LED enables the day/night surveillance

 IR cut filter auto switch
 ATW brings high color rendition

 Ingress protection: IP66

1.2 Overview

Figure 1-1 Overview of Camera
