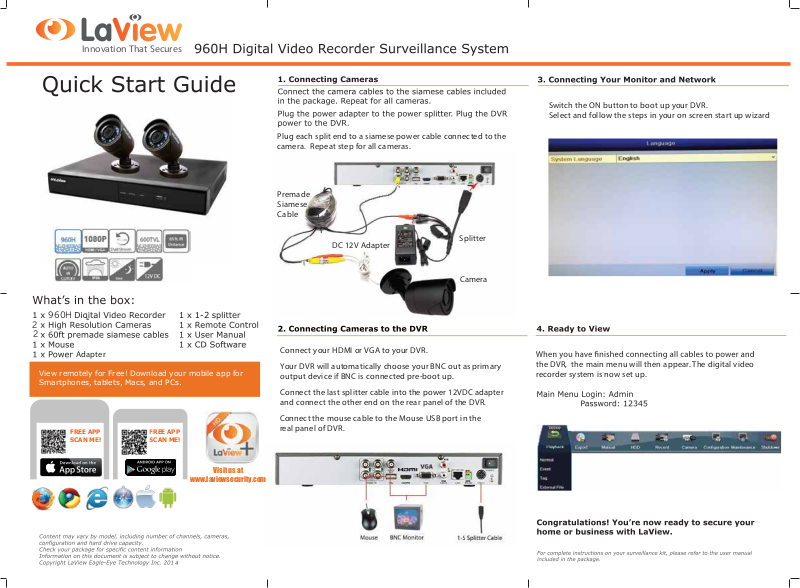

LaView 4 Channel 2 Camera User Manual

Innovation That Secures

Plug each split end to a siamese power cable connected to the camera. Repeat step for all cameras.

Premade Siamese Cable

Switch the ON button to boot up your DVR. Select and follow the steps in your on screen start up wizard

960H

2 2

Adapter

View remotely for Free! Download your mobile app for Smartphones, tablets, Macs, and PCs.

FREE APP SCAN ME!

Visit us at

www.laviewsecurity.com

DC 12V Adapter

Splitter

Camera

Connect your HDMI or VGA to your DVR.

Your DVR will automatically choose your BNC out as primary output device if BNC is connected pre -boot up.

Connect the last splitter cable into the power 12VDC adapter and connect the other end on the rear panel of the DVR.

Connect the mouse cable to the Mouse USB port in the real panel of DVR.

the DVR, the main menu will then appear. The digital video recorder system is now set up.
