LAVAMAT LAVALOGIC 1620 User Information

LAVAMAT

LAVALOGIC 1620

Washing Machine

User information

2

Dear Customer,

Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appli­ance.

The following symbols are used in the text:

1 Safety instructions

Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.

3 Useful tips and hints

2 Environmental information

3

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Switching on the appliance for the first time – setting the language 7

Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control panel with display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Main control features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Programme overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Carrying out a wash programme prior to first use. . . . . . . . . . . . . . . . . . . . . 14

Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Running a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switching on the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Selecting options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TIME SAVING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

DELAY START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SENSITIVE/STAIN/PRE WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Opening the door/Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CURRENT LOAD/DETERGENT display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Interrupting a programme/Adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Washing cycle complete/Removing the washing . . . . . . . . . . . . . . . . . . . . . . 21

Setting extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Saving a programme setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Clearing a stored programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

RINSE+, GENTLE SPIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4

Programme protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Remedying small malfunctions yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

If the wash result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Installation and connection instructions. . . . . . . . . . . . . . . . . 36

Safety information concerning installation . . . . . . . . . . . . . . . . . . . . . . . . 36

Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5

Operating Instructions

1 Safety

Prior to using the appliance for the first time

• Follow the “Installation and connection instructions”.

• If the appliance is delivered in the winter months when there are mi-

nus temperatures: store the washing machine at room temperature
for 24 hours before using for the first time.

Correct use

• The washing machine is only designed for the washing of normal do­mestic laundry at home.

• Additions or modifications to the washing machine are not permit­ted.

• Only use detergents/conditioners that are suitable for use in domestic
washing machines.

• The washing must not contain any flammable solvent. The risk of ex­plosion exists.

• Do not use the washing machine for dry cleaning.

• Dyes/colour removers may only be used in the washing machine, if

the manufacturer of these products expressly permits this. We cannot
accept liability for any damage arising.

Child safety and Infirm Persons

• Keep packaging away from children. There is a risk of suffocation.

• This appliance is not intended for use by people (including children)

with reduced physical, sensory or mental capabilities, or lack of expe­rience and knowledge, unless they have been given supervision or in­struction concerning use of the appliance by a person responsible for
their safety.

• Children often do not recognise the hazards associated with electrical
appliances. Do not allow children to use the washing machine unsu­pervised.

• Make sure that children and pets don’t climb into the drum of the
washing machine. The risk of death exists.

6

General safety

• Repairs to the washing machine may only be carried out by qualified/
authorised service engineers.

• Never use the appliance when the electrical cable is damaged or the
control panel, worktop or plinth area are damaged to such an extent
that the inside of the appliance is openly accessible.

• Switch off the washing machine prior to cleaning it and carrying out
maintenance. In addition, remove the power plug from the power
point or – if the appliance has been hard-wired – switch off the cut­out in the fuse box or completely remove the fuse.

• If operation is stopped, disconnect the appliance from the mains sup­ply and turn off the tap.

• Never remove the power plug from the power point by pulling on the
cable. Always pull the plug.

• Multiway-plugs, connectors and extension cables must not be used.

Resulting overheating may constitute a fire hazard.

• Never wash the washing machine down with a water jet. Danger of
electric shock.

• When using wash programmes with high temperatures the glass in
the door will become hot. Do not touch it!

• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.

• Small animals can nibble on electrical cables and water hoses. This
can constitute a risk of electrocution and water damage. Keep small
animals away from the washing machine.

7

Switching on the appliance for the first time
– setting the language

When switching on the appliance for the first time you should be sure
to set the language in which you want the indicators in the display to
appear.

1. Press the control knob.
The appliance is now

switched on. The languages
that can be chosen will ap­pear in the display. In the
factory the language is pre­set to German.

Important: If the display is not showing any languages, the appliance
has been switched on before. If this happens, please see the section
“Setting extra options: Language”, if you want to change the language
setting.

2. Use the control knob to
highlight the desired lan­guage.

3. Press the SELECT key.
From now on all indicators in

the display will appear in this
language.

4. Press the control knob to
switch off the appliance.

EXTRAS

SPRACHE

¿

§

ANWÄHLEN

ENGLISH§

DEUTSCH)

ZURÜCK

ITALIANO§

FRANÇAIS§

EXTRAS

LANGUAGE

¿

§§

SELECT

ENGLISH!)

DEUTSCH§§

BACK

ITALIANO§§

FRANÇAIS§§

EXTRAS

LANGUAGE

¿

§§

SELECT

ENGLISH!)

DEUTSCH§§

BACK

ITALIANO§§

FRANÇAIS§§

8

Description of the appliance

Control panel with display

Indicators in the display

Drawer for
detergent and
conditioner

Three screw feet
(height adjustable);
rear left:
Automatic foot

Control panel with display

Rating plate
(behind door)

Door

Drain pump cover

LINEN/EASY-C. 60°C

1600 RPM 10:17-12:16

î

START

LINEN/EASY-C.)

60°

ENERGY SAVING

1600

COTTONS

DELICATES

OPTIONS WOOLLENS

Control knob

Buttons

Display

LINEN/EASY-C. 60°C

1600 RPM 10:17-12:16

î

START

LINEN/EASY-C.)

60°

ENERGY SAVING

COTTONS

1600

DELICATES

OPTIONS

WOOLLENS

Navigation

display

Symbol row

shows options
selected and extras

Selection

Programme,

options,

extras

Information panel

shows programme,
temperature and
spin speed

Current time –

end time of selected

programme

9

Main control features

Control knob

Switching the appliance on and off

Press the control knob to
switch the appliance on and
off.

Highlighting

You can highlight the entries
on the right of the display by
turning the control knob.

Cancelling settings

If you would like to cancel settings that have been made by mistake,
switch the appliance off and on again using the control knob. You are
now able to re-set the programme.

Keys

Using the keys you can:
– activate an entry on the

left-hand side of the dis­play, e.g. START

– change the temperature

and the spin speed

– select OPTIONS and EX-

TRAS.

3 You can set one or more options for each programme.

The basic rule: First set the programme, then set the option.

3 The programmes and functions are divided into different levels and

pages. In the navigation display you can see the level and the page you
are currently on (e.g. ì: level 3, page 1 of 2).

WOOLLENS 40°C

1200 RPM 10:17-10:54

î

START

LINEN/EASY-C.

40°

ENERGY SAVING

1200

COTTONS

DELICATES

OPTIONS WOOLLENS )

LINEN/EASY-C. 60°C

1400 RPM 10:17-12:16

î

START

LINEN/EASY-C.)

60°

ENERGY SAVING

1400

COTTONS

DELICATES

OPTIONS WOOLLENS

10

Programme overview

Programme

max. load

(dry washing)

Options Spin speed

TIME SAVING

DELAY START

SENSITIVE

STAIN

PRE WASH

1600/1400

1200/1000/

800/600/400

RINSE HOLD

QUICK

VERY QUICK

LINEN/EASY-CARES
60, 50, 40, 30, 20

7kg

1)

or

3,5kg

1) In the case of excessively large volume washing of a fleecy nature, e.g. terry towelling, flannelette, it may
be that the drum is already full before the maximum load is reached.

•

2)

2) Recommended load for short progammes is 3,5kg; full loading is possible however with somewhat reduced
cleaning results.

•

2)

• • •

3)

3) STAIN can only be selected with wash temperatures of 40°C and above, as stain treatment products are
only effective at higher temperatures.

• • • •

ENERGY SAVING

4)

4) Programme settings for tests in accordance with or support of EN 60 456 and IEC 60 456 are described in
the section “Consumption values”.

7kg

1)

• • • • • • •

COTTONS 95 7kg

1)

•

2)

•

2)

• • • • • • •

DELICATES
40, 30, 20

3,5kg • • •3)• • •

WOOLLENS (Handwash)
40, 30, COLD

2kg • • •

SILK (Handwash) 30 1kg • • •

LINGERIE 40 1kg • • •

40 -60 MIX 7kg

1)

• • • • • • •

EASY IRON
60, 50, 40, 30, 20

1kg • • • •3)• • •

REFRESH 30 3,5kg • • •

FASHION 40 3,5kg • • • • • •

11

Use/Features

Care-

symbols

1)

1) The figures in the care symbols indicate the maximum temperatures.

General programme for coloured and easy-care items made of cotton/linen as
well as for easy-care mixed fibres and synthetics. The wash programme is adjust­ed according to the different fabric types and load sizes. If loading only with
easy-care washing, do not load more than 3,5kg.

I K N
J M

Energy-saving and water-saving programme which washes at 60°C for lightly to
normally soiled whites/coloureds made of cotton/linen.

M O

Programme for normally to heavily soiled whites made of cotton/linen.

O

Gentle programme for delicate fabrics such as bonded fabrics, microfibres, syn­thetics, net curtains (max. load for net curtains 20 to 25m

2

). With RINSE HOLD

also suitable for fabrics with climate membrane, e.g. outdoor clothing.

I K

Particularly delicate programme for machine washable and hand washable wool
or wool mixtures.

Q L H

Specially gentle programme for machine and hand-washable silk. Wash very del­icate items individually.

Q L H

Gentle programme for fine, sensitive fabrics.
IMPORTANT: Place lingerie containing wires in a washing net or bag.

K L

Programme for coloureds, which are labelled for different wash temperatures.
Items, which according to the care symbols are normally to be washed separately
at 40°C or at 60°C, can be washed together in this programme. Achieves the
washing results of a normal 60° programme.

J M

Special programme for easy-care fabrics, which afterwards are to be ironed only
lightly or not at all.

K N

Special programme, approx. 20 minutes long, for quickly washing through slight­ly dirty or new clothes.

J M O
I K N

Gentle special programme for fabrics such as viscose, modal, cupro, lyocell, with
a more gentle machine action than in the Delicates programme and a more in­tensive cleaning action than the Handwash programme.

K L

12

Programme

max. load

(dry washing)

Options Spin speed

TIME SAVING

DELAY START

SENSITIVE

STAIN

PRE WASH

1600/1400

1200/1000/

800/600/400

RINSE HOLD

QUICK

VERY QUICK

SHORT SPIN 3,5kg • •

SPIN 7kg • • •

STARCH 7kg • • • •

DRAIN •

13

Use/Features

Care-

symbols

1)

1) The figures in the care symbols indicate the maximum temperatures.

Drain and short spin after a rinse hold, or separate short spin of handwashed del­icates, woollens, silk.

I K N
Q L

H

Drain and spin, e.g. after a rinse hold, or separate spin for hand-washed cottons/
linens and easy-cares.

J M O

Separate starching, conditioning, stiffening, treating of damp washing.

J M O
I K N

Draining of the water after a rinse hold.

14

Before the first wash

Setting the time

So that the current time and the end of the programme are correctly
displayed, please check the display and set the current time, if neces­sary. (See “Setting extra options: Timer”.)

Carrying out a wash programme prior to first use

Before doing your first wash, run a washing cycle without any washing
in the machine (programme COTTONS 95°, option TIME SAVING/VERY
QUICK, use approx. 1/4 measuring cup of washing powder). This will re­move any residues from the drum and water container which have
been left as a result of the production process.

Preparing and sorting washing

Preparing washing

• Empty the pockets. Remove foreign bodies (e.g. coins, paper clips,
nails, etc.).

• Do up zips, button up covers to prevent damage to washing.

• Remove the runners from net curtains or cover them with a net or a

bag.

• Wash delicate and small items in a net/pillowcase, e. g. net curtains,
tights, small socks, handkerchiefs, bras.

Important: Bras and other items containing wires should NOT be
washed in this washing machine.

Sorting washing

• By colour: Wash white and coloured washing separately. Washing can
run.

• By temperature, type of washing and care symbol.

Important: Do not wash fabrics with the G care symbol (= do not
wash!) in the washing machine.

15

Running a wash cycle

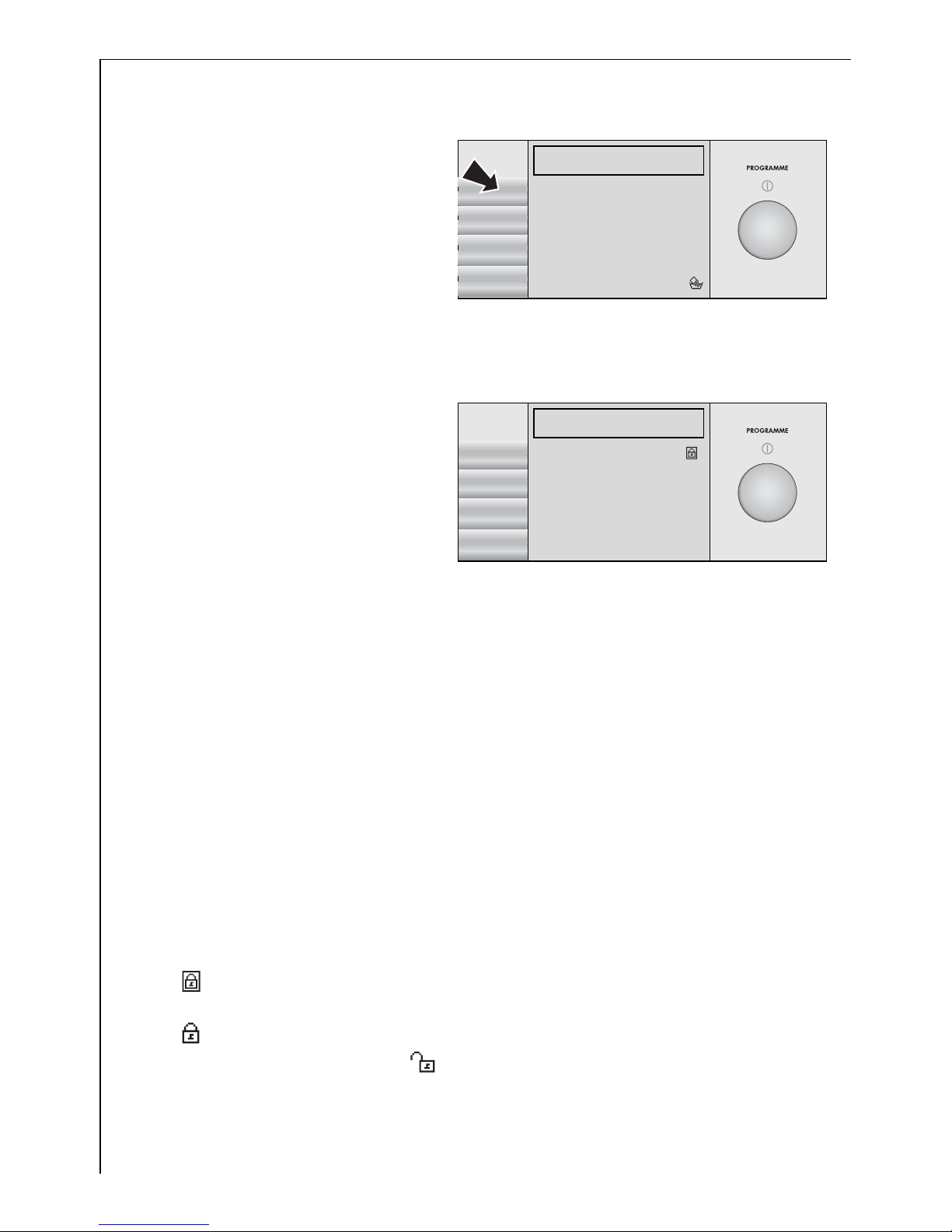

Switching on the appliance

Press the control knob.
The appliance is now
switched on.

3 Before switching the appli-

ance on, make sure that the
drum is empty. If you do not,
the washing will subse­quently not be registered properly by the load sensor.

Setting a programme

5. Highlight the desired pro-

gramme, e.g. DELICATES.

Changing the temperature

6. Press the temperature key

repeatedly, until the desired
temperature appears, e.g.
30°C. Please note: a temper­ature cannot be increased
for fabric type selected. Only
decreased.

Changing the spin speed

7. Press the key for the spin

speed repeatedly until the
desired spin speed appears
e.g. 1000 or the RINSE HOLD.
Please note: the spin speed
cannot be increased for a
fabric type selected. Only de­creased.

DELICATES 40°C

1200 RPM 11:25-12:36

î

START

LINEN/EASY-C.

40°

ENERGY SAVING

COTTONS

1200

DELICATES)

OPTIONS WOOLLENS

DELICATES 30°C

1200 RPM 11:25-12:36

î

START

LINEN/EASY-C.

30°

ENERGY SAVING

COTTONS

1200

DELICATES)

OPTIONS WOOLLENS

DELICATES 30°C

1000 RPM 11:25-12:36

î

START

LINEN/EASY-C.

.

30°

ENERGY SAVING

COTTONS

1000

DELICATES)

OPTIONS WOOLLENS

16

3 RINSE HOLD means: the washing is left to soak in the last rinse water

and is not spun.
If required, set options.

Selecting options

You can select different options on top of the programme that has
been selected. Only options that can be combined with the programme
that has already been selected will be offered.

TIME SAVING

1. Press the OPTIONS key.

2. Use the control knob to highlight TIME SAVING.

3. Press the SELECT key.

4. Use the control knob to

highlight VERY QUICK.

5. Press the SELECT key. The
symbol appears in the

display.

TIME SAVING Shortened wash programme for more lightly soiled

washing.

DELAY START The start of a programme can be delayed in steps

of 30 minutes to a max. of 20 hours.

SENSITIVE Enhanced rinse action through an additional rinse

cycle together with improved fabric care (de­creased drum movement). This is ideal when fre­quent washes are necessary, for example in cases of
highly sensitive skin. An additional rinse cycle can
also be permanently set (see section “Setting extra
options: Rinse+”).

STAIN For heavily soiled or stained washing. In-wash stain

treatments are washed in at the optimum time as
the programme progresses.

PRE WASH A warm pre-wash cycle prior to the main wash cy-

cle, which follows automatically.

DELICATES 30°C

1000 RPM 11:25-12:36

è

TIME SAVING¶¶¶¶

SELECT

NORMAL!¶

BACK

VERY QUICK¶¶)

17

DELAY START

1. Press the OPTIONS key.

2. Use the control knob to highlight DELAY START.

3. Press the SELECT key.

4. Use the control knob to

highlight the time at which
the programme is to end.

5. Press the SELECT key. The

programme end time will
change in the information
panel.

6. Press the START key.

Cancelling DELAY START: Press the START key again.

The wash programme will start immediately.

SENSITIVE/STAIN/PRE WASH

1. Press the OPTIONS key.

2. Use the control knob to

highlight PRE WASH.

3. Press the SELECT key.

The symbol appears in
the display.

DELICATES 30°C

1000 RPM 11:25-14:06

è

END OF PROGRAMME

SELECT

BACK

14:06 H:MIN (

DELICATES 40°C

1000 RPM 11:25-12:36

ç

START

TIME SAVING

SELECT

DELAY START

STAIN

BACK

PRE WASH(

EXTRAS

18

Opening the door/Loading the washing

1. To open the door: carefully pull the handle on the door.

2. Unfold the washing and load it

loosely into the machine. Mix large
and small items.
Important: Do not get any washing
caught between the door and the
rubber seal.

3. Push the door firmly shut.

CURRENT LOAD/DETERGENT display

3 If settings are not undertak-

en for several seconds during
the programme setting proc­ess or when loading with
laundry, the following indi­cators appear on the display
when the machine door is
open:

– the maximum permissible loading for the programme marked,
– the actual loading. This is also displayed by the bars (loads of less

than 0.5kg are not displayed),

– and washing agent measurement, with reference to the volume of

laundry, as recommended by the washing agent manufacturer.

If too much laundry has been loaded into the machine, the following
indicator appears in the display OVERLOADING. Please remove the rele­vant amount of laundry in such cases.

Press any button or turn any knob to undertake more programme
settings.

3 If the laundry is removed again before the programme starts, the CURR.

LOAD display may not change back to 0. If this occurs, please turn the
machine off and switch it back on again after approx. 3 seconds. Reset
the programme and refill machine with laundry.

The CURR. LOAD display goes out if the machine is closed.

DELICATES 30°C

1000 RPM 11:25-12:36

§

##################======]
MAXIMUM LOAD 3,5 KG
CURR. LOAD¶¶¶¶¶ ¶¶2 KG
DETERGENT ¶¶¶¶¶¶¶¶¶ 80 %

19

Adding detergent/conditioner

Important: Only use detergents/conditioners that are suitable for use

in domestic washing machines.
Add detergent/conditioner in accordance with the detergent/condi-

tioner manufacturer’s instructions. Observe instructions on the packag­ing.

The amount of detergent used depends on:

– the washing’s degree of soiling,
– the load size
– the hardness of the tap water.

Water softener should be used from water hardness range 2 (=medi­um). The amount of detergent used can then always be that as for
hardness range 1 (=soft). Your local water company will provide you
with information about water hardness in your area.

The suggested dosage in the display may therefore just be a guideline.

1. Pull out the detergent drawer as far as it will go.

2. Add the detergent/conditioner.

3. Push the detergent drawer in fully.

Washing powder/tablets for the main wash cycle

If you are using water softener and require the right compartment for
detergent for the pre-wash cycle, add the water softener on top of the
detergent for the main wash cycle in the left compartment.

Softener, wash-care products to preserve the shape of garments,
starch

Fill the compartment to no more than the MAX indicator. Add water to
thick liquid concentrates in accordance with the manufacturer’s in­structions before using them. Dissolve powder starches.

If you are using liquid detergent:
Add liquid detergent using the dosage containers provided by the de­tergent manufacturer and place on top of the washing drum.

Stain removal agent/
stain removal tablets

Washing powder/tablets
for the main wash cycle

Softener/
Wash-care products to
preserve the shape of
garments/
Starch

Washing powder/
tablets for the pre-wash
cycle or water softener

20

Starting a programme

1. Check that the water tap is

open.

2. Press the START key. The
wash cycle is started.

Programme progress

While the programme is
running, the display shows
among other things:
– each stage of the pro-

gramme as it progresses,
e.g. MAIN WASH,

– a bar showing the progress

of the programme,

– the expected residual moisture in the washing at the end of the pro-

gramme.

Interrupting a programme/Adding washing

Interrupting a programme

• The wash programme can be temporarily interrupted at any time by

pressing the PAUSE key. It is then re-started by pressing the key
again.

• To cancel a programme before it has finished, switch off the appli-

ance (press the control knob).

Adding washing

The padlock symbol in the display indicates whether washing can still
be added after the programme has started:

1. Press the PAUSE key. The symbol appears in the display.

2. Open the door. Be cautious that any water in the drum may be hot and

there is a risk of scalding.

3. Add washing, close the door again.

4. Press the START key.

It is not possible to add washing (Door is locked because of high
water level or high temperature).

It is possible to add washing.

DELICATES 30°C

1000 RPM 11:25-12:36

î

START

LINEN/EASY-C.

30°

ENERGY SAVING

1000

COTTONS

DELICATES)

OPTIONS WOOLLENS

DELICATES 30°C

1000 RPM 11:25-12:36

§

PAUSE

MAIN WASH

###############=========]

1000

MOISTURE 50 %

21

Washing cycle complete/Removing the washing

At the end of the programme PLEASE TAKE OUT THE CLOTHES appears
in the display. As soon as the

§ symbol appears, the door can be

opened.

1. Open the door using the handle.

2. Remove the washing.

3. Switch off the appliance.

If Rinse Hold has been selected:

1. Press the START key.

The display automatically
changes to the first pro­gramme page. Depending
upon the programme that
has been running either SPIN
or SHORT SPIN is highlight­ed.

If spinning or draining is required:
Use the control knob to
highlight either

– SPIN or
– DRAIN.

2. Reduce the spin speed, if
necessary.

3. Press the START key.
The washing is spun or the water is drained.

3 If OVERDOSING is shown in the display at the end of a wash cycle, too

much detergent was used in the completed wash programme. Please
take note of the dosage instructions provided by the detergent manu­facturer and the amount of washing loaded the next time you wash.

DELICATES 30°C

RINSE HOLD 11:28-11:28

§

START

RINSE HOLD

######################

RINSE H.

SHORT SPIN

1200 RPM 12:28-12:34

ú

START

EASY IRON

REFRESH

1200

FASHION

SHORT SPIN)

OPTIONS SPIN

SPIN

1200 RPM 11:28-11:39

ú

START

FASHION

SHORT SPIN

1200

SPIN)

STARCH

OPTIONS DRAIN

22

Setting extra options

Independent of any programme you can set different basic settings.
These basic settings will permanently remain active until they are dese­lected again.

MEMORY

Saving a programme setting

First set a programme (e.g. LINEN/EASY-CARES, 40°C, 1200 rpm,
with the SENSITIVE option), then save it.

1. Use the control knob to
highlight LINEN/EASY-C.

2. Set the temperature and the
spin speed.

3. Press the OPTIONS key.

MEMORY
1, 2, 3, 4

Frequently used programme settings can be stored.
The stored programme setting can then be selected
like a normal programme. There are a total of four
memory positions available.

RINSE+ Additional rinse cycle, only effective with the pro-

grammes COTTONS, LINEN/EASY-CARES, ENERGY
SAVING, DELICATES, 40°-60°MIX, EASY IRON and
FASHION.

GENTLE SPIN The washing does not cling to the side of the drum as

much and can be taken out more easily. Only effective
with the programmes COTTONS, LINEN/EASY-CARES,
ENERGY SAVING, 40°-60°MIX, STARCH and SPIN.

LANGUAGE To set the language in which the indicators are to ap-

pear in the display.
TIMER To set the current time.
VOLUME You will hear an acoustic signal when you press the

keys. The volume of this signal can be regulated and/

or the signal can be deselected. The volume of the

signal for error messages cannot be altered.

LINEN/EASY-C. 40°C

1200 RPM 10:17-12:16

î

START

LINEN/EASY-C.)

40°

ENERGY SAVING

COTTONS

1200

DELICATES

OPTIONS WOOLLENS

23

4. Highlight the SENSITIVE op­tion.

5. Press the SELECT key.
The symbol will appear in
the display.

6. Press the EXTRAS key.
MEMORY is highlighted:

7. Press the SELECT key.

If MEMORY 1 is highlighted:

8. Press the SAVE key.
The programme setting is
stored as M1: LINEN/EASY-C.

9. Then press the BACK key
3 times.

Clearing a stored programme setting

1. Press the OPTIONS key.

2. Press the EXTRAS key.

MEMORY is highlighted:

3. Press the SELECT key.

4. Use the control knob to

highlight MEMORY 1.

5. Press the CLEAR key.
The stored programme set­ting has now been cleared.

6. Then press the BACK key
3times.

LINEN/EASY-C. 40°C

1200 RPM 10:17-12:16

ç

START

TIME SAVING

SELECT

DELAY START

SENSITIVE)

BACK

STAIN

EXTRAS PRE WASH

EXTRAS

ì

SELECT

MEMORY(

RINSE+

BACK

GENTLE SPIN.

LANGUAGE

MEMORY

LINEN/EASY-C. 40°C 1200

é

SAVE

MEMORY 1(

MEMORY 2

BACK

MEMORY 3
MEMORY 4

EXTRAS

ì

SELECT

MEMORY(

RINSE+

BACK

GENTLE SPIN

LANGUAGE

MEMORY

LINEN/EASY-C. 40°C 1200

é

CLEAR

MEMORY 1!(

MEMORY 2§§

BACK

MEMORY 3§§
MEMORY 4§§

24

RINSE+, GENTLE SPIN

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to

highlight the desired Extra,
e.g. RINSE+.

4. Press the SELECT key.
The symbol appears in the

display.

5. Press the BACK key twice.

LANGUAGE

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to highlight LANGUAGE.

4. Press the SELECT key.

5. Use the control knob to

highlight the desired lan­guage, e.g. ENGLISH.

6. Use the SELECT key to store
the selected language.

7. Press the BACK key 3 times.

TIMER

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to highlight TIMER.

4. Press the SELECT key.

5. Use the control knob to set

the desired time.

6. Press the SELECT key.

7. Press the BACK key 3 times.

EXTRAS

ì

SELECT

MEMORY

BACK

RINSE +)

GENTLE SPIN

LANGUAGE

EXTRAS

LANGUAGE

¿

§

SELECT

ENGLISH)

DEUTSCH§

BACK

ITALIANO§

FRANÇAIS§

EXTRAS

é

TIMER¶¶¶¶ ¶¶¶¶¶¶¶

SELECT

BACK

15:11 H:MIN

)

25

VOLUME

1. Press the OPTIONS key.

2. Press the EXTRAS key.

3. Use the control knob to highlight VOLUME.

4. Press the SELECT key.

5. Use the control knob to

highlight OFF, NORMAL or
LOUD.

6. Press the SELECT key.

7. Press the BACK key 3 times.

Programme protection

In order to protect the selected settings of a programme that is running
from unintentional alterations, the buttons can be locked.

Setting programme protection:

1. Start the programme.

2. Press second and fourth but-

ton at the same time for
about 3 seconds. In the dis­play the symbol appears.
The buttons are locked.

Removing programme protection:

Press second and fourth button again for about 3 seconds.
The buttons are unlocked. The symbol

disappears.

3 The buttons also remain locked after the appliance has been switched

off. Before the next wash, remove programme protection again, so that
a new programme can be set.
If the appliance is unintentionally switched off while a programme is
running, programme protection must first be removed. Then set and
start the programme again.

EXTRAS

VOLUME

é

§

SELECT

OFF§§§

BACK

NORMAL!)

LOUD§§§

DELICATES 30°C

1000 RPM 11:25-12:36

§

MAIN WASH

##======================]

MOISTURE 50 %

26

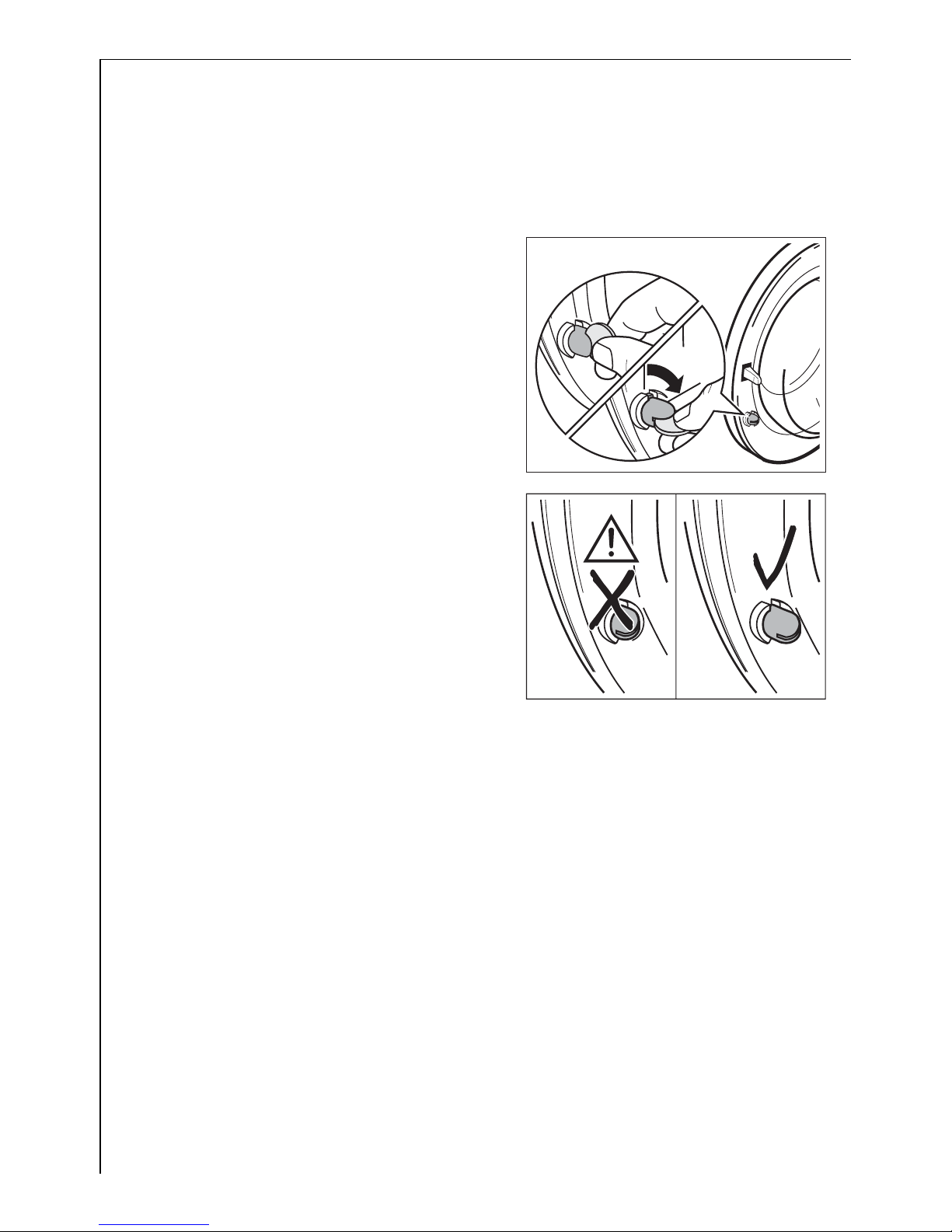

Child safety device

If the child safety device has been activated, the door can no longer be
shut.

Activating the child safety device:

Use a coin to turn the knob (on the
inside of the door) in a clockwise di­rection as far as it will go.

1 Warning! The knob must not be de-

pressed after being set, otherwise
the child safety device is not acti­vated. The knob must stand out as
shown in the illustration.

Deactivating the child safety device:

Turn the knob in an anti-clockwise direction as far as it will go.

Cleaning and maintenance

Important! Do not use furniture care products or aggressive cleaners to

clean the appliance.
Wipe control panel and body with a damp cloth.

Cleaning procedure

If you plan to wash mainly at low temperature, you should run a hot
programme from time to time. This will reduce any deposits and clean
the appliance from the inside.

27

Detergent dispenser drawer

The detergent dispenser drawer should be cleaned regularly.

1. Remove the detergent dispenser drawer by pulling it firmly.

2. Remove the conditioner insert from

the middle compartment.

3. Clean all parts with water.

4. Put the conditioner insert in as far as

it will go, so that it is firmly in place.

5. Clean all parts of the washing ma­chine, especially the nozzles in the
top of the washing-in chamber, with
a brush.

6. Insert the detergent dispenser draw­er in the guide rails and push it in.

Washing drum

Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.

Important! Do not clean the drum with acidic descaling agents, scour­ing agents containing chlorine or iron or steel wool.

1. Remove any rust deposits on the drum with a cleaning agent for stain­less steel.

2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: COTTONS 95°, with the TIME SAVING/VERY
QUICK option, add about 1/4 of a measuring cup of washing powder.

Door and rubber collar

Regularly check whether deposits or foreign bodies are present in the
folds of the rubber collar or on the inside of the glass door.
Clean the glass in the door and the rubber collar regularly.

28

What to do if...

Remedying small malfunctions yourself

If one of the following fault messages is shown in the display during
operation:

– ATTENTION (E41)/PLEASE CLOSE THE DOOR
– ATTENTION ERROR CODE (E11)/PLEASE OPEN THE TAP
– ATTENTION ERROR CODE (E21)/PLEASE CHECK THE WATER DRAIN-

AGE
please refer to the following table.
After you have rectified the error, press the START key.
If ATTENTION/PLEASE CALL YOUR LOCAL SERVICE FORCE together with
an error code (e.g. E..) appears in the display: Switch the appliance off
and then on again. Re-set the programme. Press the START key.
If the error code is displayed again, please contact the Service Force
and inform them of the error code and the PNC no. (see rating plate).

Problem Possible cause Remedy

Washing machine does
not work.

Mains plug not plugged in or
fuse not working.

Connect the plug to a mains
socket.
Check the fuse.

The door is not closed prop­erly.

Close the door properly.
There should be an audible
click.

The START key has not been
pressed.

Press the START key.

The door cannot be
closed.

The child safety device is
engaged.

Release the child safety de­vice.

The programme does
not begin after the
START key has been
pressed.
ATTENTION(E41)/

PLEASE CLOSE THE
DOOR appears in the
display.

The door is not closed prop­erly.

Close the door properly;
there should be an audible
click. Press the START key.

29

The drain pump runs
constantly, even when
the machine is
switched off.
ATTENTION (EF3)/

PLEASE CALL YOUR LO­CAL SERVICE FORCE
appears in the display.

The Aqua Control anti-flood
system has been activated.

Close the water tap, remove
the mains plug from the
socket and inform your local
Service Force Centre.

The washing machine
vibrates when operat­ing or is not stable.

The transit packaging has not
been removed.

Removing the transit pack­aging.

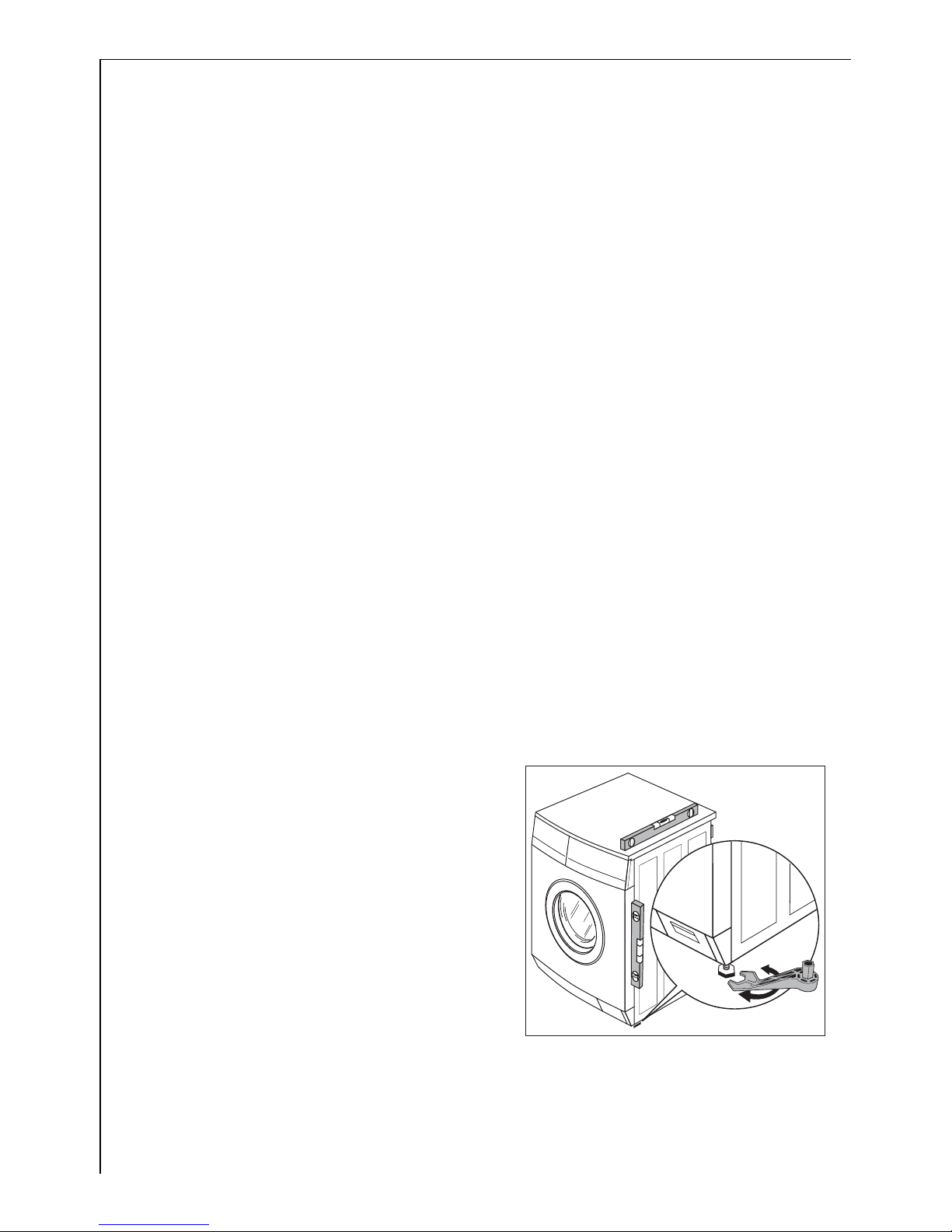

The screw feet not correctly
adjusted.

Adjust the feet as described
in the installation and con­nection instructions.

Washing has not been
spun.

Only a few large items of
washing in the drum.

Always load the drum as full
as possible. Mix large and
small items.

Water is leaking out
from under the
washing machine.

The screw connection on the
inlet hose is leaking.

Screw the inlet hose in
firmly.

The drainage hose is leaking. Replace drain hose.

The drain pump cover is not
closed properly.

Close the cover properly.

Washing was caught in the
door.

Load washing carefully for
the next wash.

Emergency drain hose is
leaking.

Close off emergency drain
hose properly.

Softener was not
washed in.

compart-

ment for conditioners
is filled with water.

The conditioner insert is not
correctly set into the addi­tive compartment or is
blocked.

Clean the detergent dispens­er drawer, insert the condi­tioner insert firmly.

Washing is heavily
creased.

There may have been too
much washing in the ma­chine.

Observe maximum loads.

The door cannot be
opened when the ap­pliance is switched on.
The symbol appears
in the display.

The door is locked for safety
reasons.

Wait until the symbol ap­pears.

Problem Possible cause Remedy

30

The display goes out
while a wash cycle is
running.

Power cut.
For safety reasons, the door
will remain locked for ap­prox. 4 minutes.

The programme will continue
when the power cut is over.

To remove washing:
If water can be seen in the
appliance, before opening
the door, first perform an
emergency drain.

The background illumi­nation of the display
has gone out even
though the appliance is
switched on.

The washing machine is in
stand-by mode.

Press any key.

Water is not entering
the appliance. ATTEN­TION ERROR CODE
(E11)/ PLEASE OPEN
THE WATER TAP ap­pears in the display.

Tap turned off. Turn on the tap.

The filter in the threaded in­let hose fitting is blocked.

Turn off the tap. Unscrew the
hose, take out the filter and
clean it.

Water tap is furred with lime
scale or is faulty.

Check the tap and have it re­paired, if necessary.

The washing has not
been spun thoroughly
and water remains visi­ble in the drum.
ATTENTION ERROR
CODE (E21)/ PLEASE
CHECK THE WATER
DRAINAGE appears in
the display.

Drain hose is kinked. Remove kink.

Maximum pumping height of
1m exceeded.

Please contact your Local
Service Force.

The drain pump is blocked.

Clean the drain pump. Re­move foreign bodies from
the pump housing.

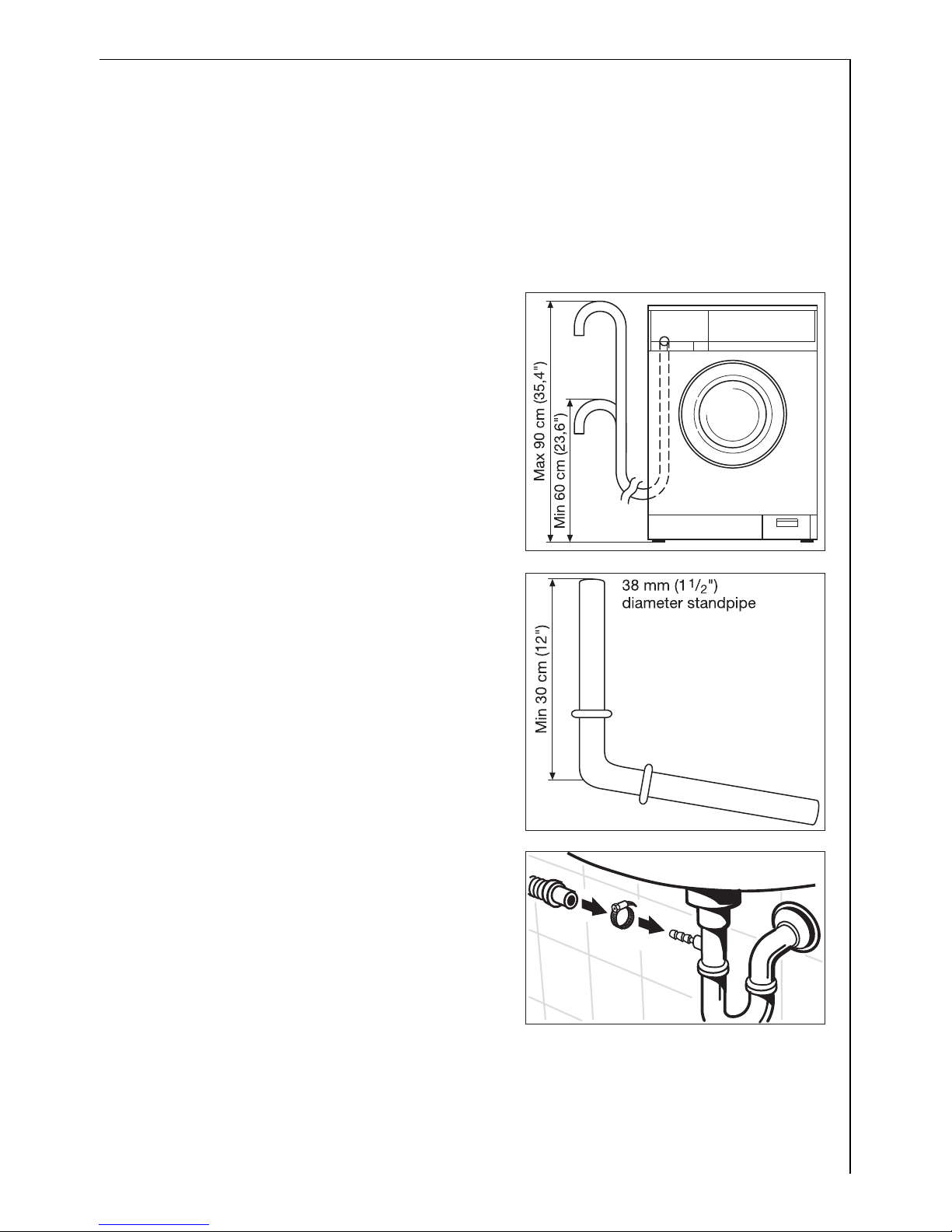

For sink spigot connections:
The sink spigot is blocked.

Clean the sink spigot.

Problem Possible cause Remedy

31

If the wash result is not satisfactory

The washing is grey and there are limescale deposits in the drum

• Too little detergent was used.

• An incorrect detergent was used.

• Individual stains were not pre-treated.

• The programme or temperature was not set properly.

There are grey stains on the washing

• Items that were soiled with ointments, fats or oils were washed using
too little detergent.

• The wash temperature used was too low.

• A common cause is that conditioner – in particular the type in con-

centrated form - has come in contact with the washing. Wash out
such marks as soon as possible and exercise care when using the said
conditioner.

Foam can still be seen following the final rinse

• Modern detergents can cause foam to be created even during the fi­nal rinse. In spite of this, the washing has been sufficiently rinsed.

There are white residues on the washing

• What can be seen here are insoluble substances which modern deter­gents contain. They are not the result of insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out
before washing. Check your choice of detergent. Especially with dark
colours it is advisable to use liquid detergents.

32

Carrying out an emergency drain

1 Warning! Prior to carrying out an emergency drain, switch off the

washing machine and remove the power plug from the power point.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain!

1. Open the plinth flap and remove it.

2. Remove the emergency drain hose.

3. Place a shallow container under-

neath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and pull it out.

4. The water will run out. If it is neces­sary to empty the container more
than once, seal up the emergency
drain hose with the drain plug while
you are doing so.

When the water has all drained away:

5. Insert the plug firmly into the emergency drain hose and turn it in a

clockwise direction until it is firmly in place.

6. Replace the emergency drain hose into the retainer.

7. Insert the plinth flap into place and close it.

33

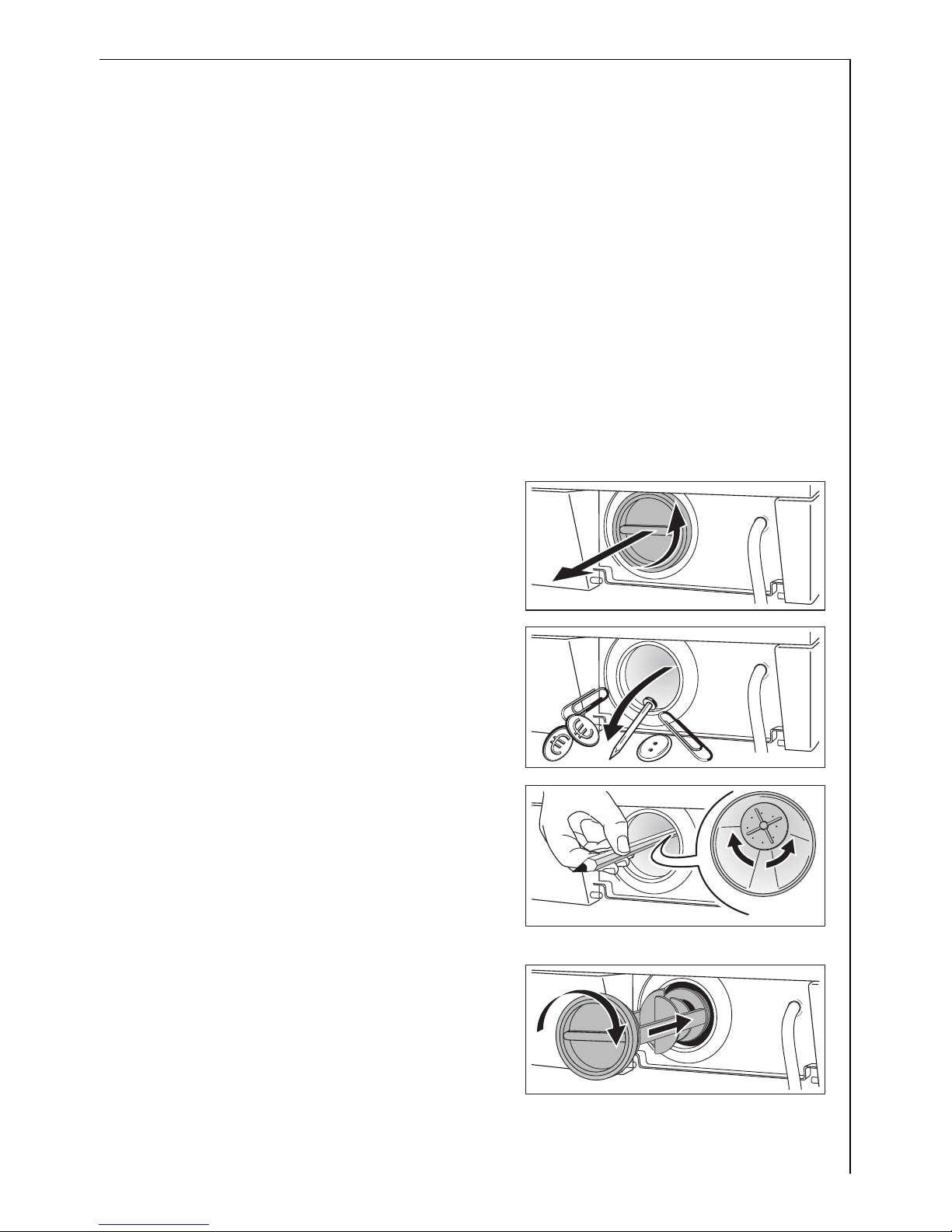

Drain pump

The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e.g. if the pump wheel is blocked.
Before loading the machine, please always ensure that there are no for­eign bodies present in the pockets or in between the items to be
washed. Paper clips, nails, etc. which may find their way into the wash­ing machine along with the washing will remain in the drain pump
housing (foreign body trap that protects the pump wheel).

1 Warning! Before opening the cover of the drain pump, switch off the

washing machine and remove the power plug from the power point.

1. First carry out an emergency drain.

2. Place a cloth on the floor in front of the cover of the drain pump.

Residual water runs out.

3. Unscrew the pump cover in an anti­clockwise direction and remove it.

4. Remove foreign bodies and fluff
from the pump housing and from
the pump wheel.

5. Check whether the pump wheel
right at the back of the pump hous­ing can turn. (If the wheel rotates
with a jerky motion, this is normal.)
If the pumping wheel cannot be
turned, please contact your local
Service Force Centre.

6. Insert the pump cover. Insert the
guides at the sides of the cover into
the guide slots and tighten the cov­er by turning in a clockwise direc­tion.

7. Close off the emergency drain hose
and place it in the retainer.

8. Close the plinth flap.

34

Disposal

2

Packaging material

The packaging materials are environmentally friendly and can be recy­cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at your local waste disposal facilities.

2 Old appliance

The symbol

W on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec­trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor­mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

1 Warning: When your appliance has finished its working life, remove

the plug from the mains socket. Cut off the cable and plug and dispose
of them.
Destroy the door lock. This prevents children from trapping themselves
inside and endangering their lives.

35

Technical data

5

This appliance conforms with the following EU Directives:

– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending

Directive 92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

Consumption values

The consumption values for selected programmes provided in the fol­lowing table were determined under standard conditions. They may
vary when operating in domestic conditions.

Height x Width x Depth 850 x 598 x 640 mm

Depth when door is open 1017 mm

Height adjustment approx. +10/-5mm

Load (depending on programme) Max. 7kg

Area of use Domestic

Drum spin speed see programme overview

Water pressure 0.5-10bar (=5–100N/cm2=0.05–1.0MPa)

Wash programme/
Temperature

Type of

material

Load

in kg

1)

1) The load is determined in accordance with the EN 60456 standard load.

Water

in litres

Energy

in kWh

ENERGY SAVING

2)

2) Note: Programme setting for tests in accordance with or supporting EN 60 456 and

IEC 60 456. Consumption values will vary from the values quoted depending on wa­ter pressure, water hardness, water temperature at filling, room temperature, type
and quantity of washing, detergent used, variations in mains voltage and any options
selected.

Cotton 7 43 1,19

COTTONS 95 Cotton 7 56 2,25

LINEN/EASY-CARES 40
STAIN

2)

Cotton 7 52 0,77

LINEN/EASY-CARES 40 Synthetics 3,5 50 0,55

DELICATES 30 Synthetics 3,5 56 0,45

WOOLLENS 30 Wool 2 46 0,32

36

Installation and connection instructions

1 Safety information concerning

installation

• This washing machine cannot be built-in.

• Before using for the first time, check the appliance for damage sus-

tained while it was being transported. Do not under any circumstanc­es connect an appliance that is damaged to the mains. In the event of
damage to the appliance contact your supplier.

• Be sure to remove all the components of the transport lock before us-

ing the appliance for the first time. Otherwise when spinning damage
may be caused to the appliance or to neighbouring units or furniture.

• Before using the appliance for the first time, splash protection must

be completed. (See “Removing transit packaging”).

• Always plug the mains plug into a correctly installed shockproof

socket.

• Prior to using the appliance for the first time, ensure that the rated

voltage and current on the rating plate match the mains voltage and
current where the appliance is to be installed. The required fuse pro­tection is also to be found on the rating plate.

• If work on the plumbing is required for the proper connection of the

washing machine to the water supply, this must be undertaken by a
competent person.

• If work on the electricity supply system is required for the proper

connection of the washing machine to the electricity supply, this
must be undertaken by a registered electrician.

• Should the appliance power supply cable need to be replaced, this

must be carried out by our Service Force Centre.

• The power supply cable must be easily accessible after installing the

appliance.

• Connect the machine to an earthed socket.

37

Installing the appliance

Transporting the appliance

1 Warning: The washing machine is very heavy. There is a risk of injury.

Exercise care when lifting the appliance.

• Do not lay the washing machine on its front nor on its right side

(as seen from the front). Electrical components may get wet.

• Never transport the appliance without using the transport lock. Only

remove the transport lock when the appliance is in its place of instal­lation. Transporting the appliance without the use of the transport
lock can cause damage to the appliance.

• Never lift the appliance by the door when it is open nor by the plinth.

When moving using a sack trolley:

• Only use the sack trolley on the side of the appliance. The sack trol-

ley’s base plate must not be longer than 24 cm, otherwise parts of the
anti-flood system may be damaged.

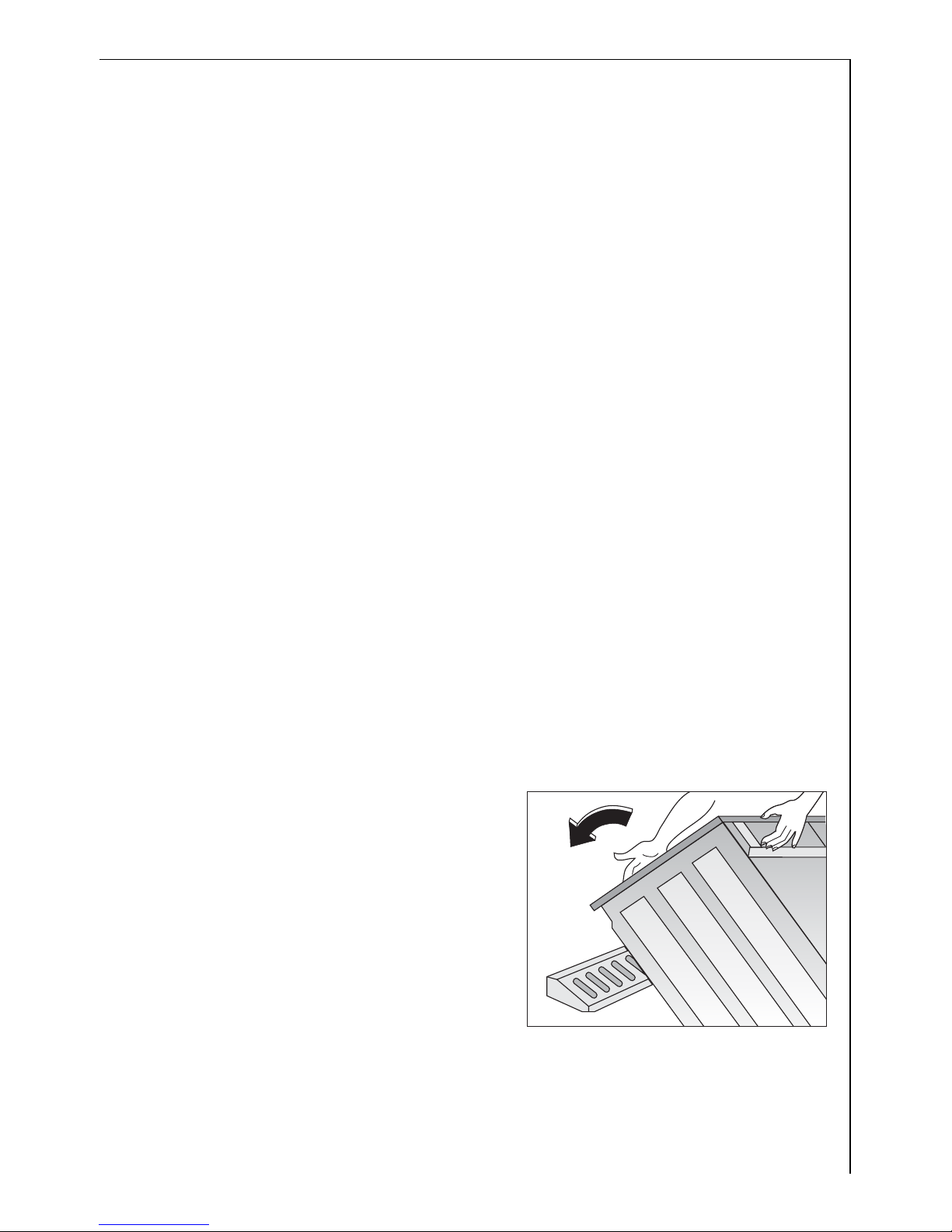

Unpacking

1 The transport safeguard must be removed before putting the appliance

into operation.

Important!
You are advised to keep all the packaging for re-use in case the

machine is to be transported again.

1. After removing all the packaging,

with assistance carefully lay ma­chine on it’s back to remove the pol­ystyrene base from the bottom.

38

2. Remove the power supply cable and
the draining hose from the hose
holders on the rear of the appliance.

3. With a suitable spanner unscrew and
remove the central rear bolt A. Slide
out the relevant plastic spacer.

4. Unscrew and remove the two large
rear bolts B and the six smaller bolts
C.

39

5. Remove the bracket D.

6. Refit the six smaller bolts C.

7. Open the porthole and remove the

polystyrene block fitted with the ad­hesive tape on the door seal.

8. Fill the smaller upper hole and the
two large ones with the correspond­ing plastic plug caps supplied in the
bag containing the instruction
booklet.

Important!

All the different plug caps are sup­plied with the appliance in the plas­tic bag containing the instruction
booklet.

40

Connect the water inlet hose as described under the paragraph “Water
inlet”.

Where to install

Important! The washing machine must not be operated in a room

where there is a danger of frost. There is a risk of frost damage or ad­verse effect on the perfomance of the machine. Frost damage is not
covered under the warranty.

• The surface on which the appliance is to be installed must be firm

and level. Do not install the appliance on carpeted floors or soft floor
coverings.

• The surface on which the appliance is to be installed must be clean

and dry and free from grease, so that the appliance does not slide.

• If the location in which the appliance is to be installed is fitted with

small-format tiles, put a rubber mat (available in the shops) under
the appliance.

Making the appliance level

3 Automatic foot: The rear foot on the left-hand side of your washing

machine is built as a shock absorbing foot, which is why the appliance
gives in the back left-hand corner if put under load. The automatic foot
guarantees that the appliance does not move even at high spin speeds.
Basically the automatic foot does not need to be set.

The four feet of the appliance are
pre-adjusted.
Large degrees of unevenness can be
compensated for by individually ad­justing the height adjustable screw
feet.
Use the special spanner supplied to
do this.

Important! Do not use pieces of
wood, cardboard or such like to lev­el out unevenness in the floor, but
adjust the height adjustable screw
feet instead.

41

Electrical Connection

Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.

1 WARNING – THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.

The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA ap­proved (BS 1362) fuse must be used.

Should the plug need to be replaced
for any reason, proceed as described
below.

The wires in the mains lead are
coloured in accordance with the
following code:

• The wire coloured green and yellow

must be connected to the terminal
marked with the letter “E“ or by the
earth symbol E or coloured green and yellow.

• The wire coloured blue must be connected to the terminal “N“ or

coloured black.

• The wire coloured brown must be connected to the terminal marked

“L“ or coloured red.

• Upon completion there must be no cut, or stray strands of wire

present and the cord clamp must be secure over the outer sheath.

1 WARNING! A cut off plug inserted into a 13 amp socket is a seri-

ous safety (shock) hazard. Ensure that the cut off plug is disposed
of safely.

Green and Yellow: Earth
Blue: Neutral
Brown: Live

42

Permanent Connection

In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.

This appliance complies with the requirements laid out in the EEC Di­rective 76/899.

Voltage 240 V AC: Fuse rating 13amps
See rating plate for further information.
This appliance meets VDE requirements.
Particular regulations of local electricity authorities must be observed.

This appliance conforms to EEC Directive No. 82/499/EWG on radio in­terference.

1 WARNING! Repairs to electrical appliances must only be carried out by

trained personnel. Improper repairs may lead to serious risks for the us­er.

43

Connecting to the water supply

Permitted water pressure

The water pressure must be at least 0.5bar (=5N/cm2=0.05MPa) and
may be a maximum of 10bar (=100N/cm

2

=1MPa).

– If more than 10bar: Connect a pressure reduction valve.
– If less than 0.5bar: Disconnect the appliance end of the inlet hose

from the solenoid inlet valve and remove the flow meter. (In addition
remove the filter using pointed pliers and take out the rubber gasket
behind it.) Re-insert the filter.

Water inlet

Attention!

• An inlet hose is supplied and can be found inside the machine drum.

• Do not use already employed hoses for water connection.

• This appliance must be connected to a cold water supply.

1. Open the porthole and extract the inlet hose.

2. Connect the hose with the angled

connection to the machine.

Important!
Do not place the inlet hose down­wards. Angle the hose to the left
or right depending on the position
of your water tap.

3. Set the hose correctly by loosening

the ring nut. After positioning the
inlet hose, be sure to tighten the
ring nut again to prevent leaks.

44

4. Connect the hose to a tap with a
3/4” thread.
Always use the hose supplied with
the appliance.

Installation should comply with local
water authority and building regula­tions’ requirements.
A minimum water pressure of 0.05
MPa (0.5 bar) is required for safe op­eration of the appliance.
If you cannot make the cold water
connection direct from the rising mains, you may be able to operate
the appliance from your cold water storage system.
There should be a minimum distance of 5.02m (16.5 ft) between the
appliance’s inlet and the bottom of the water storage tank.

Aqua Control

The inlet hose is provided with a wa­ter stop device, which protects
against damage caused by water
leaks in the hose which could devel­op due to natural ageing of the
hose. This fault is shown by a red
sector in the window „A”. Should this
occur, turn the water tap off and re­fer to your Service Centre to replace
the hose.

45

Water Drainage

The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic “U-Piece“ supplied. The standpipe
should have an internal diameter of approximately 38 mm (see dia­gram) thus ensuring there is an air break between the drain hose and
standpipe.

Important! It is essential to lay the drainage hose without kinks.
When discharging into a stand-

pipe ensure that the top of the
curve in the hose end is no more
than 90 cm (35.4’’) and no less
than 60 cm (23.6’’) above floor
level.

The upright standpipe should
have a minimum, length of 30 cm
(12’’) from the bottom of the el­bow to the top of the pipe (see
diagram). Make sure that it is de­signed in such a way that the end
of the drain hose cannot be cov­ered with water.
Longer drain hoses are available
in lengths of 2.7 and 4 metres
from your Service Force Centre.

For drainage into an outlet
spigot: If the outlet spigot has not

been used before, remove any blank­ing plug that may be in place. Push
the drain hose onto the spigot and
secure with a clip if required. Ensure
the drain hose is looped upwards to
prevent waste water from the sink
entering the washing machine.

Important! The end of the drainage hose must not be submerged in the
pumped-out water. Otherwise, the water could be sucked back into the
appliance.

46

Pumping heights of over 1 metre

The washing machine’s drain pump is able to pump water to a height of
1metre, calculated from the surface on which the appliance is installed.

Important! If pumping height is over 1 metre malfunctions and dam­age to the appliance may arise.

For pumping heights over 1metre a conversion kit can be obtained.
Please contact Service Force Centre.

47

Guarantee/Customer Service

European Guarantee

www.electrolux.com

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user
manual, for the period specified in the appliance guarantee or otherwise by law. If you move
from one of these countries to another of the countries listed below the appliance guarantee
will move with you subject to the following qualifications:

•

The appliance guarantee starts from the date you first purchased the appliance which will be
evidenced by production of a valid purchase document issued by the seller of the appliance.

•

The appliance guarantee is for the same period and to the same extent for labour and parts as
exists in your new country of residence for this particular model or range of appliances.

•

The appliance guarantee is personal to the original purchaser of the appliance and cannot be
transferred to another user.

•

The appliance is installed and used in accordance with instructions issued by Electrolux and is
only used within the home, i.e. is not used for commercial purposes.

•

The appliance is installed in accordance with all relevant regulations in force within your new
country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

p t b

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane

Belgique/België/
Belgien

[phone] Bergensesteenweg 719, 1502 Lembeek

Èeská republika [phone] Budìjovická 3, Praha 4, 140 21

Danmark [phone] Sjællandsgade 2, 7000 Fredericia

Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg

Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

France www.electrolux.fr

Great Britain [phone]

Addington Way, Luton, Bedfordshire
LU4 9QQ

Hellas [phone] Limnou Str., 54627 Thessaloniki

Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb

Ireland [phone] Long Mile Road Dublin 12

Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga

48

Lietuva [phone] Ozo 10A, LT 08200 Vilnius

Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

Magyarország [phone]

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Nederland [phone]

Vennootsweg 1, 2404 CG ­Alphen aan den Rijn

Norge [phone] Risløkkvn. 2 , 0508 Oslo

Österreich [phone] Herziggasse 9, 1230 Wien

Polska [phone] ul. Kolejowa 5/7, Warszawa

Portugal [phone]

Quinta da Fonte - Edificio Gonçalves Zarco ­Q 35
2774 - 518 Paço de Arcos

Romania [phone] Str. Garii Progresului 2, S4, 040671 RO

Schweiz/Suisse/
Svizzera

[phone] Industriestrasse 10, CH-5506 Mägenwil

Slovenija [phone]

Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana

Slovensko [phone]

Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebièe SK, Seberíniho 1, 821 03 Bratislava

Suomi www.electrolux.fi

Sverige [phone]

Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm

Türkiye [phone]

Tarlabaþý caddesi no : 35 Taksim
Istanbul

Россия [phone]

129090 Москва, Олимпийский
проспект, 16, БЦ „Олимпик“

p t b

49

50

51

Service and Spare Parts

If the event of your appliance requiring service, or if you wish to pur­chase spare parts, please contact Service Force by telephoning:

Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further informa­tion about Service Force, please visit the website at

www. serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details
under the heading „What to do if...“

When you contact the Service Force Centre you will need to give the
following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating

plate)

5. The purchase date.
Please note that a valid purchase re-

ceipt or guarantee documentation is
required for in-guarantee service
calls.

Customer Care

For general enquiries concerning
your AEG appliance, or for further
information on AEG products please
contact our Customer Care Depart­ment by letter or telephone at the
address below or visit our website at www.aeg.co.uk.

(*) Calls may be recorded for training purposes

0870 5 929 929

Customer Care Department
Major Appliances
AEG Domestic Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)

For Customer Service in the Republic
of Ireland please contact us at the ad-

dress below:
AEG/ Electrolux Group (Ire) Ltd
Long Mile Road/ Dublin 12
Republic of Ireland
Tel: [phone]
Email: [e-mail]

www.electrolux.com

www.aeg-electrolux.co.uk

132 973 340-01-120307-01 Subject to change without notice
