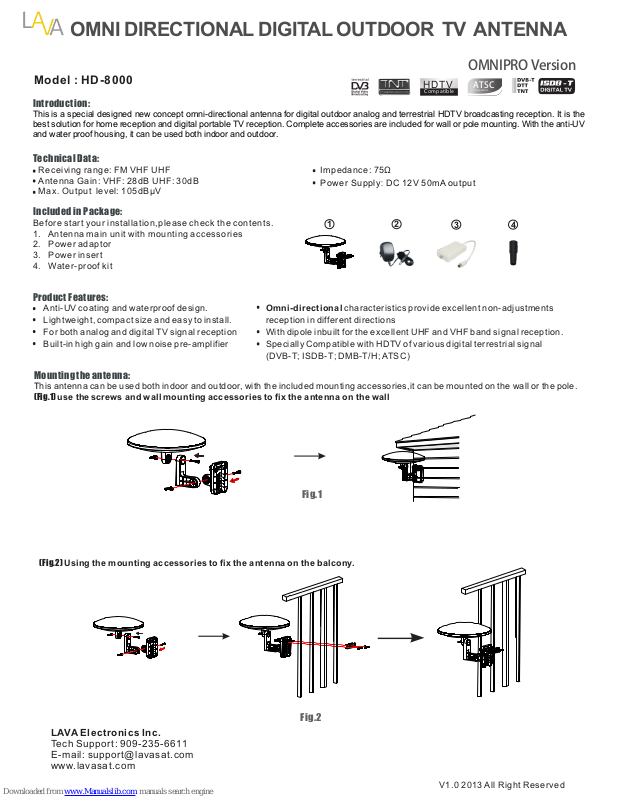

OMNI DIRECTIONAL DIGITAL OUTDOOR TV ANTENNA
Product Features:
Technical Data:
Recei ving rang e: FM V HF UHF
Anten na Gain: VH F: 28 dB UHF: 30d B
Max. Out put l evel : 105 dBµV
Anti-UV coating and waterproof design.
Lightweight, compact size and easy to install.
For both analog and digital TV signal reception
Built-in high gain and low noise pre-amplifier
Omni-directional characteristics provide excellent non-adjustments
reception in different directions
With dipole inbuilt for the excellent UHF and VHF band signal reception.
Specially Compatible with HDTV of various digital terrestrial signal
(DVB-T; ISDB-T; DMB-T/H; ATSC)
Imped ance: 75Ω
Power S upply: DC 1 2V 50 mA outp ut
Introduction:
This is a special designed new concept omni-directional antenna for digital outdoor analog and terrestrial HDTV broadcasting reception. It is the
best solution for home reception and digital portable TV reception. Complete accessories are included for wall or pole mounting. With the anti-UV
and water proof housing, it can be used both indoor and outdoor.
OMNIPRO Version
HDTV
Com pa ti ble
ATSC
Compa tible
Model : HD-8000
Mounting the antenna:
Fig.1
This antenna can be used both indoor and outdoor, with the included mounting accessories,it can be mounted on the wall or the pole.
screws and (Fig.1) use the wall mounting accessories to fix the antenna on the wall
Fig.2
(Fig.2) mounting accessories Using the to fix the antenna on the balcony.
Included in Package:
Befor e start you r ins tallati on,plea se check th e content s.
1. Anten na main uni t wit h moun tin g accesso ries
2. Powe r adaptor
3. Powe r insert
4. Wa ter-pro of kit
1
2
3 4
LAVA Elect ronics Inc.
Tech Suppo rt: 909 -235-6611
E-mail : suppo [email protected]
www.lav asat. com
V1.0 20 13 All Right R ese rved
Page 2
(Fig.5) connect the “F” male connector of the coaxial cable to the “F” female connector of the antenna, and wear the waterproof cap to the end of the connected “F” connector.
(Fig.3) use the pole mounting accessories to fix the antenna on the pole.
(Fig4) Available for mobile use
Fig.3
Fig.4
Ins talla tion 1: D irect ly conn ected t o HDTV(Fig.6)
Ins talla tion 2: C onnec ted Thr ough di gital c onver ter box (Fig. 7)
Ins talla tion: P lease t ake fol lowin g (Fig. 6) and (F ig.7) i nstal latio n instr uctio n for the r efere nce.
Ope ratio n Instr uctio n:
Note:For the best reception,Please check the following
conditions
1. Keep the antenna away from the sources of interference:
keep the antenna away from those big power consumption
de vice s,suc h as air con ditio ner,e l evat or,hai r dryer an d
microwave oven...etc.
2. Place the antenna near windows when use the antenna in
indoor environment.
3. Install the antenna as high as possible: in digital terrestrital
reception,if there are some interceptions between antenna and
transmission tower,it will cause the signal loss temporary. So if
the antenna is installed as possible, those interceptions will be
reduced.
Note: After the antenna mounting and installation is finished, please adjust the antenna in the best position that can get clear TV
picture, then fix the antenna,organize the coaxial cable for neat, tidy and safety,
O
360 OMNI DIRECTION TV SIGNAL reception
Fig .5
F-type connector
linking bolt
Coaxial-cable
Water-proof kit
Wat er -p ro of c ap
AC/DC adapter
TV
Digital converter box
AC/DC adapter
TV
LAVA Ele ctronic s Inc. V1.0 2 013 All Righ t Reserve d
