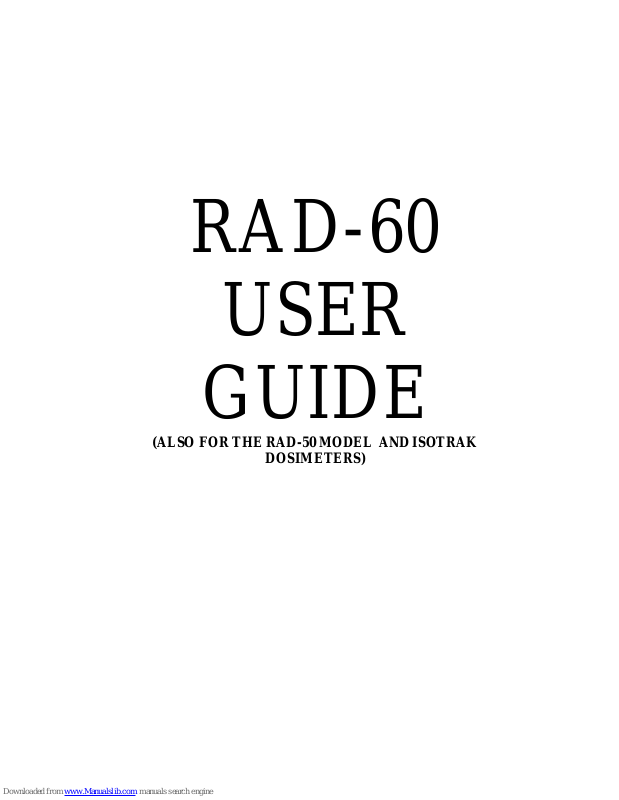

RAD-60

USER

GUIDE

(ALSO FOR THE RAD-50 MODEL AND ISOTRAK

DOSIMETERS)

RAD-60 DOSIMETER USER’S GUIDE

The RAD-60 is a Digital Pocket Alarm Stand Alone Dosimeter designed for use by
people who may be exposed to gamma and X-ray radiation during their work. It
provides programmable dose rate and dose alarms. RAD-60 is microprocessor
controlled and is operated using the display and the push button. The push button
gives a bleep each time it is pressed. To complete an action, release button or press
again (bleep) and hold down until a second bleep is heard. The three digit display
shows dose, dose rate and various messages. The display and sound signal are
used to indicate alarms (dose, dose rate, low battery, defect, dose/dose rate
overflow).

The RAD-60 is ready for use after the battery has been installed. It must be worn in
the chest area such as a chest pocket (pocket clip on the outside) with no metal
objects in the same pocket.

2

RAD-60 Top view

Switch on

Press push button until all segments are displayed.

-The dose/dose rate is displayed within 5 seconds.

Change display (dose/dose rate)

Press push button once.

-Display changes to dose/dose rate for 10 seconds.

Change display mode permanently

(dose/dose rate)

Press push button once.

-Display changes to dose/dose rate.

Press push button until a bleep occurs.

-The display mode is now changed.
