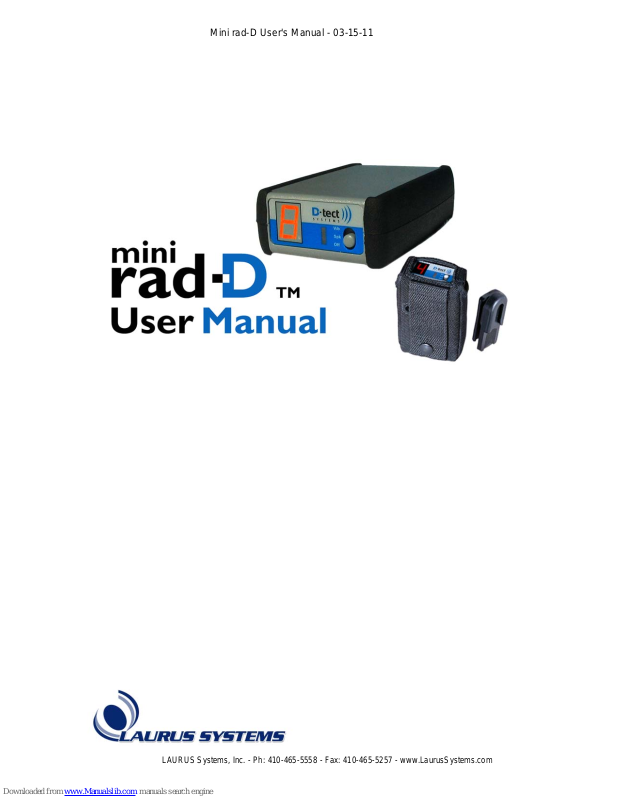

Laurus mini rad-D User Manual

Mini rad-D User's Manual - 03-15-11

LAURUS Systems, Inc. - Ph: 410-465-5558 - Fax: [phone] - www.LaurusSystems.com

Table of Contents

1.0 General Description of Operation……………………………………..…………..…..….….………..3

1.1 Features and Benefits…………………….………………………………..…..…….…….….………...3

2.0 Specifications………………………………………………………………..……….….….…….………3

3.0 Operating Instructions to User……………………………………………..…….…………….……...4

3.1 Alarms…………………………………………………………………………...………………….……...4

3.2 Internal Switch…………………………………………………………….……..…...….……….……….4

4.0 Accessories………………………………………………………………………...…….….……. ………5

5.0 Maintenance………………………………………………………………………….….….….….……….5

5.1 Battery Issues and Maintenance……………………………………………… ..………..…….………5

5.2 Failure Mode……………………………………………………………………..……….….……….……5

5.3 Customer Service and Warranty Assistance…………………………………………………………5

6.0 Warranty………………………………………………………………………………….………………….6

7.0 Dose Rate Equivalent Table………………………………………………….………………………….7

1.0 General Description of Operation

The mini rad-D is a highly portable, rugged, all-weather radiation detector that’s small enough to wear on a belt
yet powerful enough to quickly locate low-level radioactive sources, even in a warehouse full of boxes. Designed
to discreetly monitor any environment without intrusion or disruption of civilian activities, the mini rad-D can be set
to notify the user by vibration or audible alarm whenever gamma radiation exceeds natural background levels.

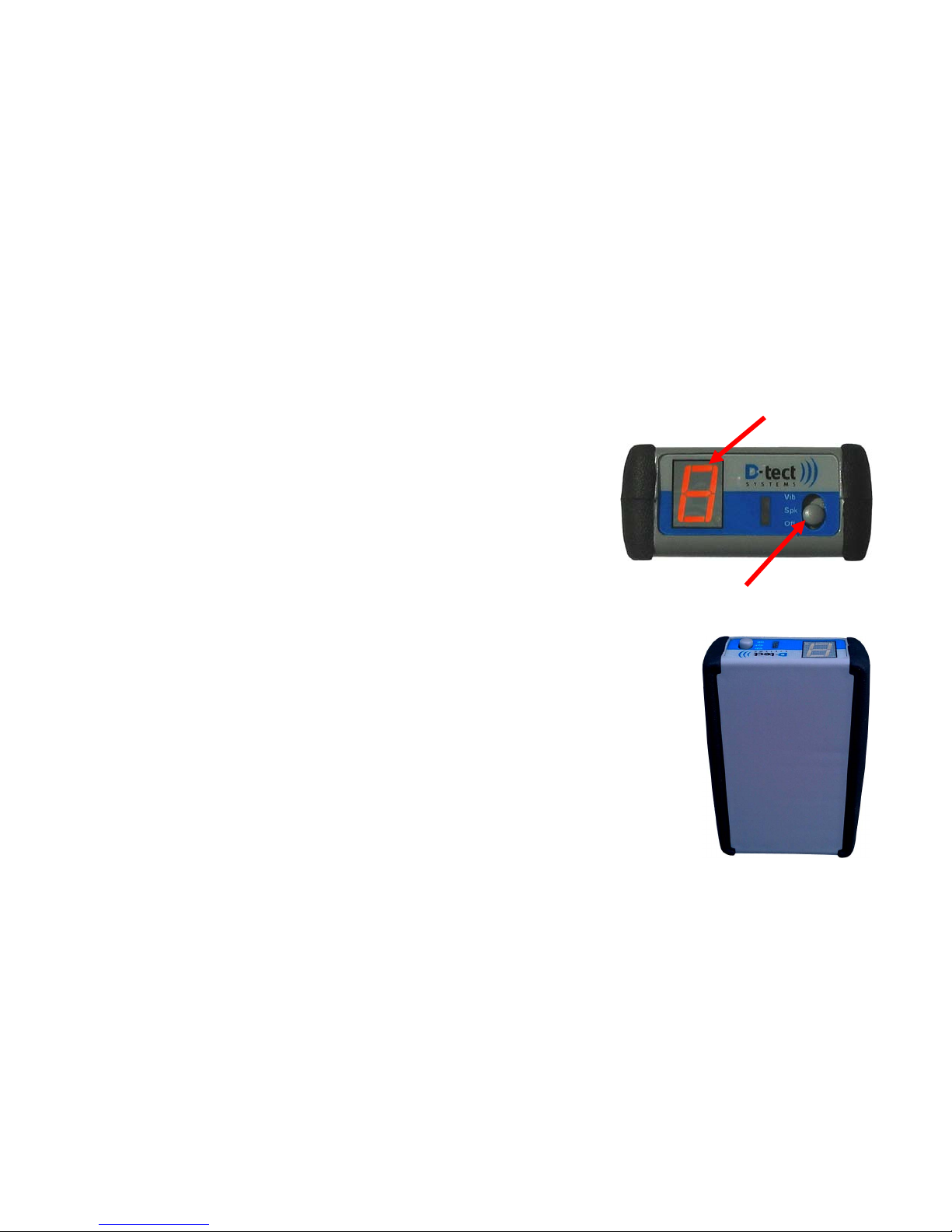

The Mini’s simple operation and highly readable display provide an automatically updated strength indicator in
less than 1 second, allowing a rapid area sweep to identify the exact location of any radiation source.

When activated, the mini rad-D measures the background radiation count for 30 seconds, and then uses that
value to establish a noise floor. Any radiological isotope that comes within range of t he mini rad-D will activate t he
audio or vibration alarm, a nd the mini rad-D display will show a value from "1" to "9" t o indicate the radiation
detected. The audio and vibration alarms increase in repetition rate the closer the mini rad-D is brought to the
radiation source. The source of the radiation (package, vehicle, etc….) can be quickly found by waving the mini
rad-D around and using the alarm as a hot/cold indicator. The range of detection can vary from hundreds of
meters to just a few, depending on how large and powerful the radiation source is and how much material is

between the source and the mini rad-D

1.1 Features and Benefits

• All-temperature, all-weather detector

• Self-powered, with 2 year battery life

• Rugged (can survive a 3 foot drop onto concrete)

• Audible alarm or discreet silent operatio n

• Easy to use; no training required

• Automatic calibration to filter background radiation

• Adaptable for operation near x-ray machines

• Bright display operates in day or night

.

2.0 Specifications

Function: Gamma ray detection
Detector: Cesium Iodide Scintillator
Battery Life: 2+ years @ 48 hrs/week
Batteries: 2 AA Alkaline
Response Time: < 1 second
Notification:

Audio alarm; beeps increase based on radiation strength
Vibration; vibration pulses increase based on radiation strength
Flashing LED; flashes increase based on radiation strength, color changes from orange to red
LED with readout "1" through "9" with "9" highest

Calibration: Automatic when turned on
Calibration: 16-position switch; allows manual
Biasing:` setting for operation in high-radiation environments

(i.e., near X-ray machines)

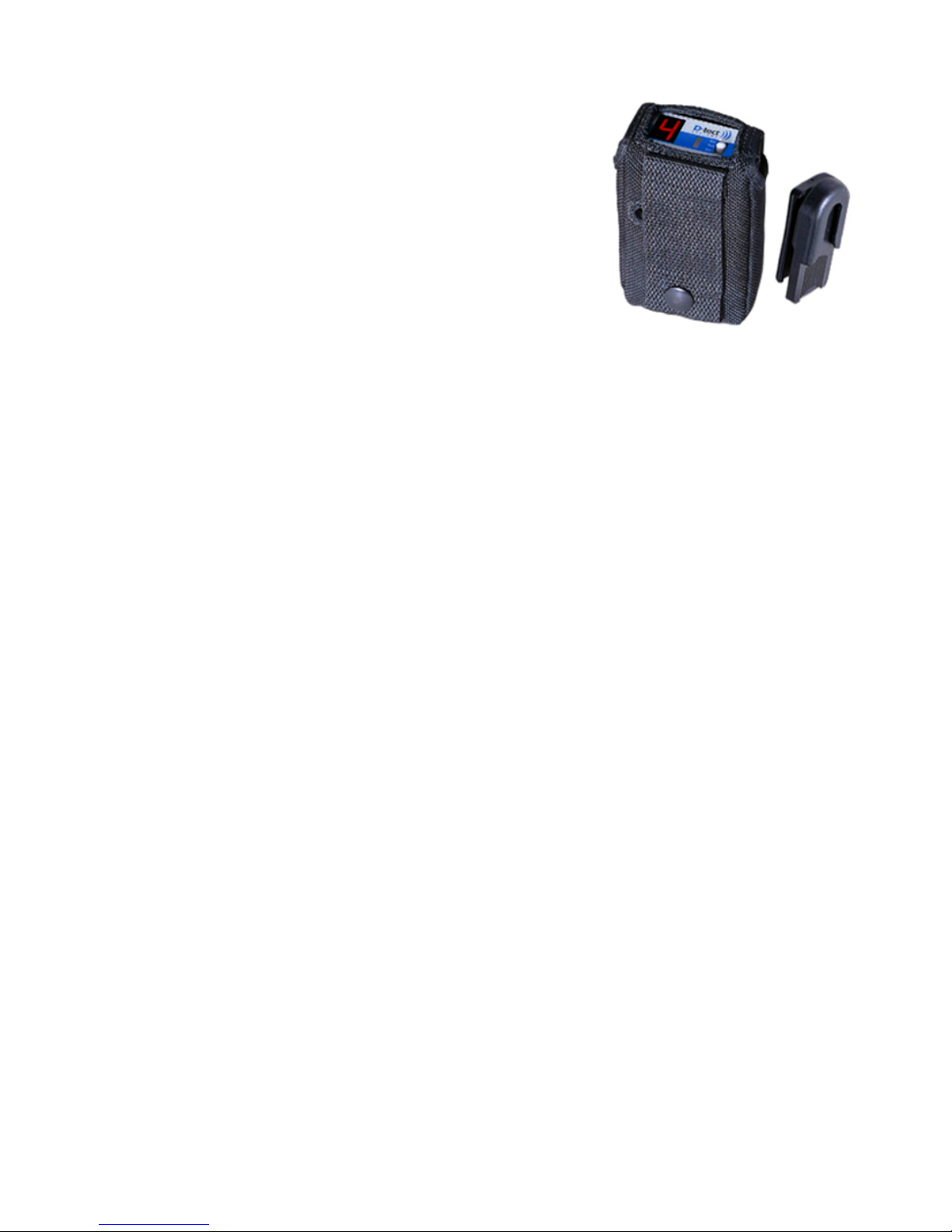

Placement: Belt clip or belt pouch
Size: 3.75" x 2.5" 1.25"
Weight: 6.4 oz w/batteries
Environment: Heavy rain; -10°F to 122°F; Day or night;

In loud or quiet environments; 3 feet drop onto concrete
