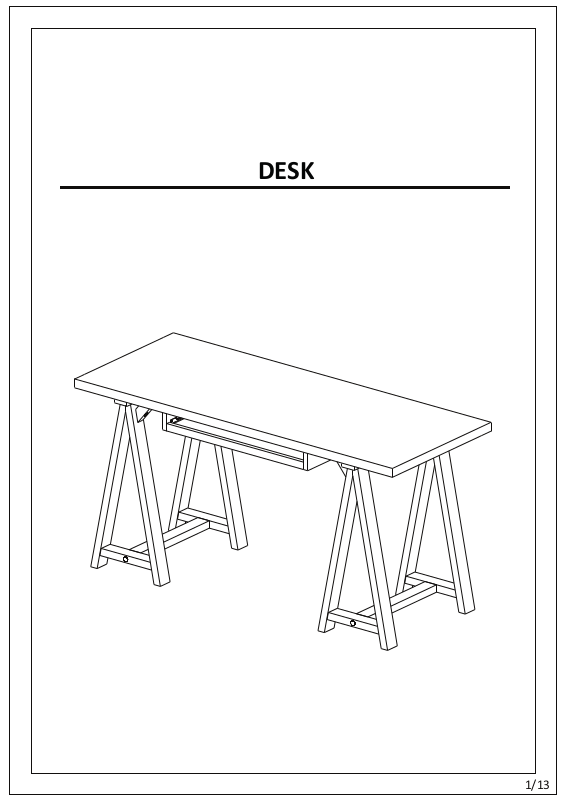

DESK
1/13
Questions, problems, assembly help, missing parts?
No need to return the product, we will gladly help and ship your
replacement parts free of charge
Please call Customer Service
In order to assist you in a timely manner, please have the following information ready:
Model # _______________________ Part Number or Letter_______________________
Purchased at ___________________Date of Purchase ___________________________
If you wish to return the product, please contact the retailer where the
product was purchased.
2/13
IMPORTANT : Please read this manual carefully before beginning
assembly of this product. Keep this manual for future reference.
SAFETY INFORMATION
Identify all the parts and hardware. Do not discard of the packaging until you
have checked that you have all of the parts and hardware required. Hardware
package may have spare parts.
WARNING: This item contains small parts which can be swallowed by
children and pets. Keep children and pets away during assembly. To avoid
danger of suffocation, always keep plastic bags away from children and pets.
We recommend that you assemble this unit on a carpeted floor to avoid
scratches. If using power tools, set the tool to low torque to avoid damage.
May require 2 people for ease of assembly.
3/13
IMPORTANT : Please read this manual carefully before beginning
assembly of this product. Keep this manual for future reference.
CARE and MAINTENANCE
Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative
humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls,
and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally
along different grain directions. As humidity changes, the components of wooden objects are
continually pushing and pulling against each other. This pressure often results in parts of furniture
no longer fitting together closely or becoming distorted or breaking from their own internal
stresses.
The response to relative humidity changes begins with determining the annual average RH for
your particular space. Then try to keep the RH in the space where your furniture is as close to that
average as possible, generally within about 10% up or down. De-humidify in the summer and
humidify in the winter.
Be aware that raising the temperature lowers the humidity and vice versa. Thus, modern heating
systems, which can drive down interior RH in the winter, almost invariably cause problems for
furniture. To counteract their effect, you can either modify the RH by keeping furniture containing
spaces cooler in the winter or most importantly, have a good working humidifier for your home. A
humidistat automatically works to balance the humidity in your home so it is constant. Dry indoor
air can suck enough moisture from its surroundings to do permanent damage to wood, causing it
to crack or split.
Remember, that not all woods are created equal. Two factors that help determine how rapidly a
wood will lose moisture are pore size and surface hardness. A piece made from a dense and hard
wood will dry less rapidly than pieces made from softer woods.
Furniture that is sealed and lacquered will lose moisture more slowly than an unfinished piece
while pieces with veneer finishes are not only stronger, but lose moisture more slowly than other
finishes.
To help protect your wood furniture, take these steps:
• Use a humidifier, preferably one with an automatic control system that can sense the humidity
level and adjust itself accordingly. Don't over-humidify; that can damage wood by causing it to
expand and contract.
• Keep furniture out of direct sunlight, which can cause it to dry out, crack and warp.
• If you can avoid it, don't put furniture near heating vents. If you must, keep the piece 3 to 4
inches away from the wall, giving the heat and air space to circulate.
• Dust with soft dry cloth.
• Do not use liquid or aerosol products.
• To avoid marking, do not place rubber on surface (foot pads, etc.)
• For soil build-up, wipe with damp cloth & dry.
• Do not use abrasive cleaners.
4/13
PRE-ASSEMBLY INFORMATION
PARTS DESCRIPTION
A
TOP
QTY 1
B
C D
LEG B (L&R Same)
QTY 2
LEG C (L&R Same)
QTY 2
E F
LEG UPPER CONNECTOR
QTY 2
G
LEG LOWER CONNECTOR
QTY 2
LEG SUPPORTER
QTY 4
KEYBOARD
QTY 1
NEED HELP? For help with assembly or if you are missing a part,
Please call customer service
5/13
PRE-ASSEMBLY INFORMATION
HARDWARE DESCRIPTION
1
4
ALLEN KEY SCREW
M6 X 50 mm
QTY 8
2 3
ALLEN KEY SCREW
M6 X 35 mm
QTY 8
5
6
ALLEN KEY BOLT
M6 X 40 mm
QTY 14
ALLEN KEY BOLT & CROSS NUT
M6 X 70 mm
QTY 4 SETS
NEED HELP? For help with assembly or if you are missing a part,
Please call customer service
ALLEN KEY
QTY 1
Required -
Phillips screwdriver
Not Included
WOOD BOLT CAP
QTY 4
6/13
COMPONENTS – KEY DIAGRAM
A
B
F
E
C
D
F
E
G
F
F
B
C
D
7/13
ASSEMBLY
STEP 1
4
C
5
4
B
D
1. Align two pre-drilled holes on each Leg B & Leg C with two Dowels on each side of
Leg Lower Connector D .
2. Leg Lower Connector DInsert Cross Nuts 4 into pre-drilled holes in with the slot
facing out. Use a flathead Screwdriver to turn it to align with the Bolts 4 . Repeat on
the opposite side.
3. Use Allen Key 5 to tighten Bolts. Do not over-tighten.
Repeat Step 1-3 for second set of legs.
8/13
ASSEMBLY
STEP 2
1
5
E
1. Attach Leg Upper Connector E to Leg B and Leg C using four Allen Key Screws 1 .
2. Use Allen Key 5 to tighten screws. Do not over-tighten.
3. Repeat for the second Leg Upper Connector E .
9/13
ASSEMBLY
STEP 3
A
3
3
1. Attach Top A to Leg Upper Connector E using seven Allen Key Bolts 3 .
5
3
2. Use Allen Key 5 to tighten screws. Do not over-tighten.
3. Repeat on the opposite side.
10/13
ASSEMBLY
STEP 4
2
5
2
F
1. Attach Leg Supporter F to corner in between Legs and Top A at specified location
using two Allen Key Screws 2 .
2. Use Allen Key 5 to tighten screws. Do not over-tighten.
3. Repeat on the opposite legs.
11/13
ASSEMBLY
STEP 5
G
6
1. Insert four Wood Bolt Caps 6 into exposed bolt holes on Leg B and Leg C .
2. Insert Keyboard G into glides on assembled desk.
12/13
WARRANTY
Thank you for purchasing a product. These products have been made to
demanding, high-quality standards and are guaranteed for domestic use
against manufacturing faults for a period of 12 months from the date of
purchase. This warranty does not affect your statutory rights.
In case of any malfunction of your product (failure, missing parts, etc.)
please contact us
We reserve the right to repair or replace the defective product, at its
discretion.
This product is guaranteed for 12 months if used for normal purposes. Any
warranty is invalid if the product has been overloaded or subject to
neglect, improper use or an attempted repair by other than an authorized
agent. Heavy-duty or daily professional/commercial usage are not
guaranteed.
Due to continuous product improvement, we reserve the right to change
the product specifications without prior notice.
