Twin Metal Bed
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
NOTES:
* Ensure all parts and components are present before beginning assembly.
* Assemble on a soft, smooth surface to prevent damage to product finish.
* Assembly and handling may require two people.
* Estimated assembly time is 45 - 60 minutes.
* DO NOT use power tools.
* CAUTION: Adult assembly required.
* Phillips head screw driver is not included.
CARE AND CLEANING
Dust this item regularly with a soft, lint-free cloth to prevent soil build up. Do not soak or
wash in hot water. Wipe with a soft, damp cloth if necessary. Do not use abrasives, cleansers
or polish.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
Warrants its product to be free from defects in material and workmanship and agrees to remedy
any such defect. This warranty covers 1 year from the date of original purchase. This warranty
is valid only upon presentation of proof of purchase. This is solely limited to the repair or
replacement of defective furniture components and no assembly labor is included. This
warranty does not apply to any product which has been improperly assembled, subjected to
misuse or abuse or which has been altered or repaired in any way. This warranty gives you
specific legal rights and you may also have other rights which vary from State to State.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
1 2 3
4 5 6
7
8
9
10
Ø1/4" X 9/16"
Ø1/4" X 1-9/16"
Ø1/4" X 1-3/4"
Ø1/4" X 1-15/16"
Ø1/2" X 1/16"
Ø10 mm X 2 mm
10 mm X 6 mm
14 PCS
4 PCS
Ø10 mm X 35 mm
12 PCS
6 PCS
6 PCS
1 PC
1 PC
NUT
THREADED PIN
ALLEN WRENCH
ALLEN KEY
8 PCS
BOLT
FLAT WASHER
SPRING WASHER
6 PCS
10 PCS
HARDWARE LIST
BOLT
BOLT
BOLT
Twin Metal Bed
A B C
D E F
G H I
J K L
M

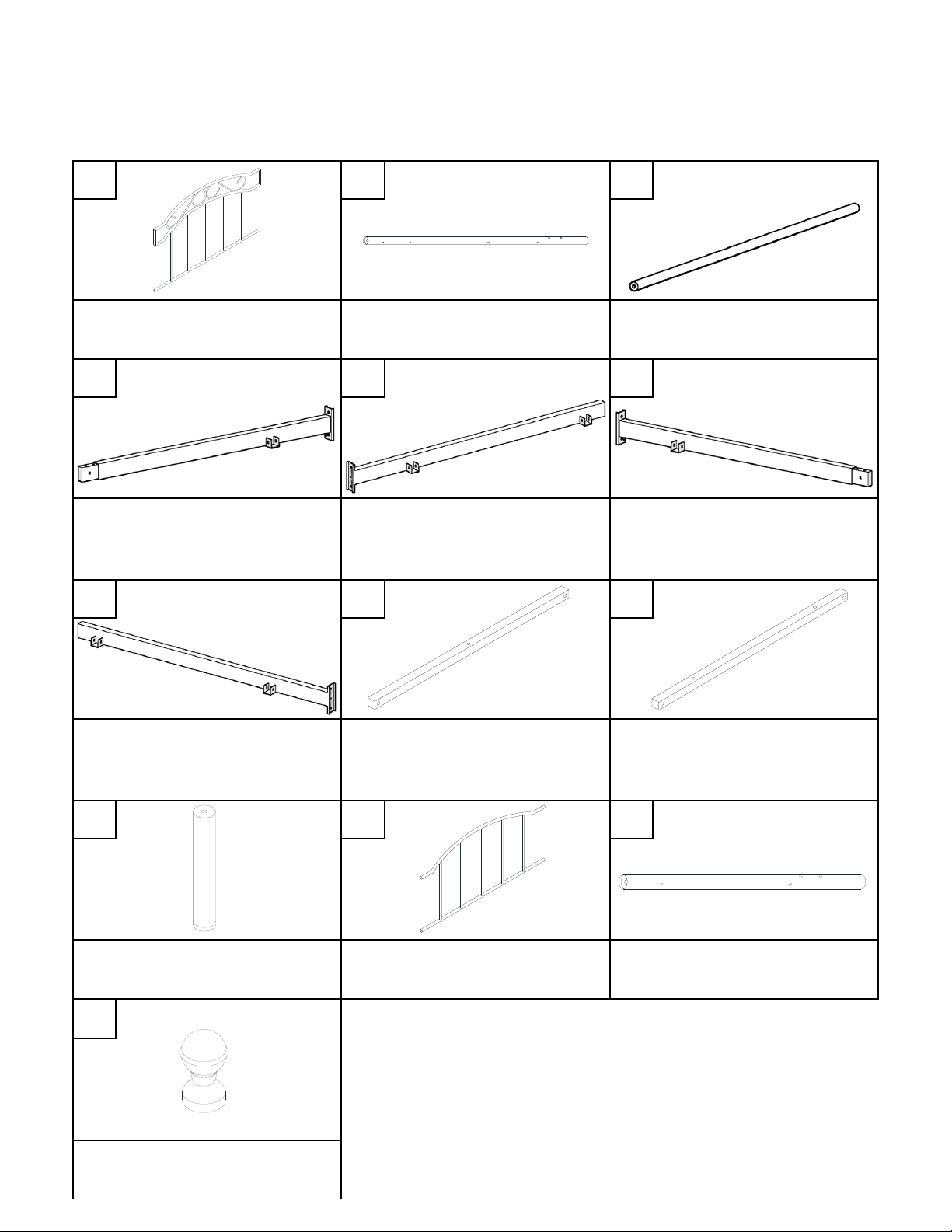

PARTS LIST
HEADBOARD
HEADBOARD POST
BOTTOM CROSS BAR
Twin Metal Bed
1 PC
LEFT SIDE RAIL
(WITH 1 BRACKET)
LEFT SIDE RAIL
(WITH 2 BRACKETS)
RIGHT SIDE RAIL
(WITH 1 BRACKET)
1 PC
2 PCS
1 PC
1 PC
1 PC
RIGHT SIDE RAIL
(WITH 2 BRACKETS)
SLAT
(WITH 1 HOLE)
SLAT
(WITH 2 HOLES)
1 PC
2 PCS
1 PC
SUPPORT LEG
FOOTBOARD
FOOTBOARD POST
4 PCS
4 PCS
1 PC
2 PCS
FINIAL
Twin Metal Bed
STEP 1
Attach the headboard (A) and bottom cross bar (C) to headboard posts (B) with bolts (4). Use
Allen Key (10) to tighten the bolts.
NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the
following steps.
4
STEP 2
Twin Metal Bed
Attach the footboard posts (L) to the footboard (K) with the bolts (4). Use Allen Key (10) to
tighten the bolts.
NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the
following steps.
4
Twin Metal Bed
1
5
6
STEP 3
Attach the left side rails (D & E) with the bolts (1), flat washers (5) and spring washers (6).
Use Allen Key (10) to tighten the bolts.
STEP 4
Attach the right side rails (F & G) with the bolts (1), flat washers (5) and spring washers (6).
Use Allen Key (10) to tighten the bolts.
1
5
6
Twin Metal Bed
Twin Metal Bed
3
7
A
B
B
L
L
K
E
G
D
F
STEP 5
Attach the assembled left and right side rail to the headboard and footboard with bolts (3) and
nuts (7). Use Allen Key (10) and Allen wrench (9) to tighten the bolts and nuts.
NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the
following steps.
STEP 6
Attach the support legs (J) to the slats (H & I) with bolts (2). Use Allen Key (10) to tighten
the bolts.
NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the
following steps.
2
Twin Metal Bed
Twin Metal Bed
2
7
D
E
F
G
H
I
H
STEP 7
Attach the assembled slats (H & I) to the left and right side rails with bolts (2) and nuts (7). Use
Allen Key (10) and Allen wrench (9) to tighten the bolts and nuts.
Note: Tighten all the bolts previously installed.

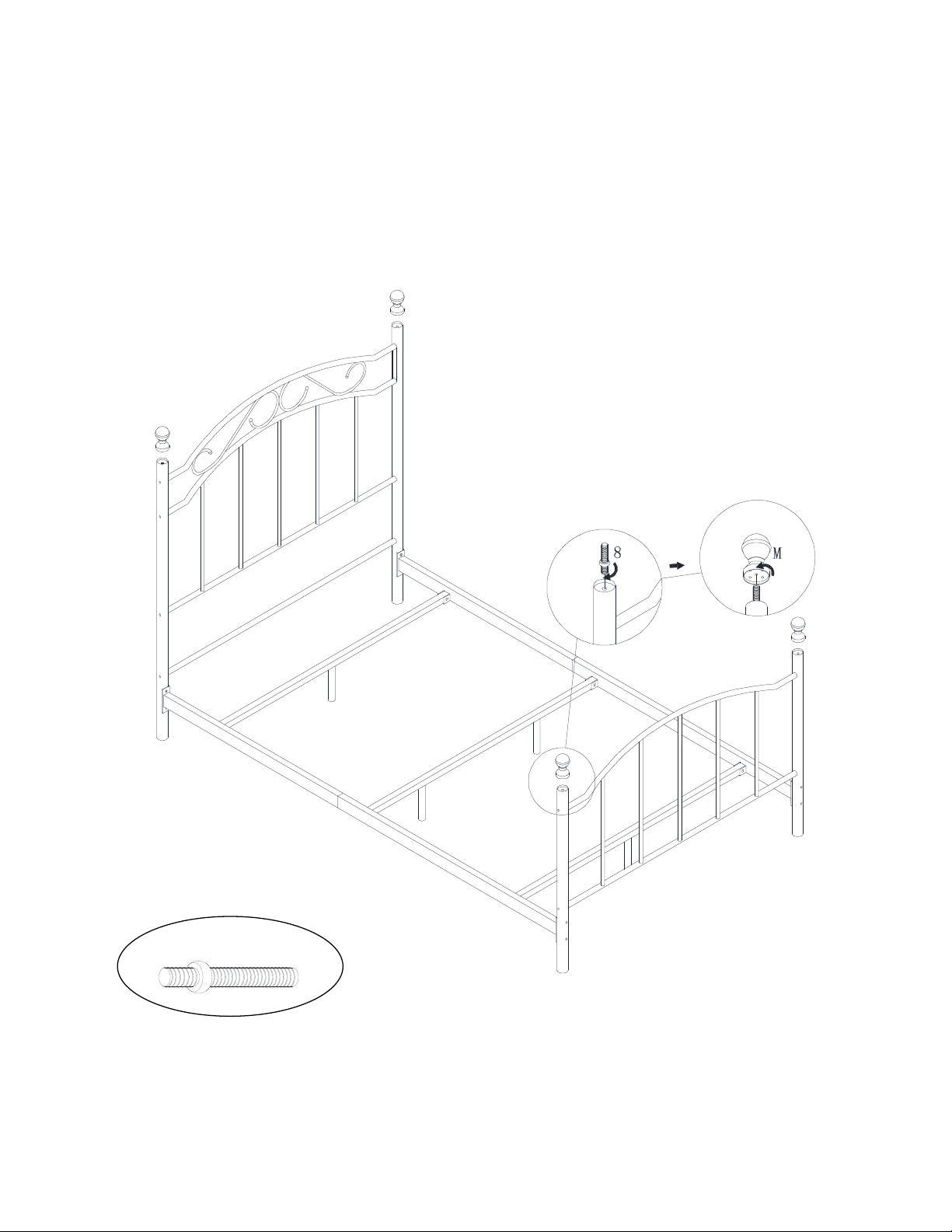

Insert the threaded pins (8) into the holes of headboard posts (B) and footboard posts ( L) .
Attach finials (M) to the posts (B & L) by rotating clockwise.
STEP 8
8
B
B
L
L
M
M
M
M
D
E
F
G
Twin Metal Bed
That's it ! You've finished assembling your twin bed.
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
Twin Metal Bed
Never allow children to play
or jump on the bed.
Dust this item regularly with a
soft, lint-free cloth to prevent
soil build up. Do not soak or
wash in hot water. Wipe with a
soft, damp cloth if necessary.
Do not use abrasives, cleansers
or polish.
Recommended
Maximu Weight =
225 lbs
