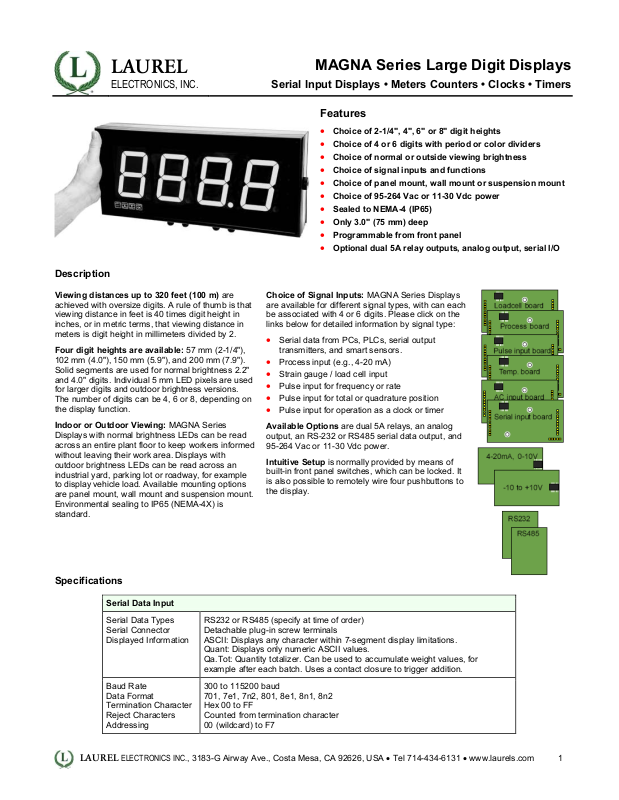

Laurel Electronics MAGNA User Manual

LAUREL

ELECTRONICS, INC.

Description

Viewing distances up to 320 feet (100 m) are

achieved with oversize digits. A rule of thumb is that
viewing distance in feet is 40 times digit height in
inches, or in metric terms, that viewing distance in
meters is digit height in millimeters divided by 2.

Four digit heights are available: 57 mm (2-1/4"),
102 mm (4.0"), 150 mm (5.9"), and 200 mm (7.9").
Solid segments are used for normal brightness 2.2"
and 4.0" digits. Individual 5 mm LED pixels are used
for larger digits and outdoor brightness versions.
The number of digits can be 4, 6 or 8, depending on
the display function.

Indoor or Outdoor Viewing: MAGNA Series
Displays with normal brightness LEDs can be read
across an entire plant floor to keep workers informed
without leaving their work area. Displays with
outdoor brightness LEDs can be read across an
industrial yard, parking lot or roadway, for example
to display vehicle load. Available mounting options
are panel mount, wall mount and suspension mount.
Environmental sealing to IP65 (NEMA-4X) is
standard.

MAGNA Series Large Digit Displays

Serial Input Displays • Meters Counters • Clocks • Timers

Features

•

Choice of 2-1/4", 4", 6" or 8" digit heights

•

Choice of 4 or 6 digits with period or color dividers

•

Choice of normal or outside viewing brightness

•

Choice of signal inputs and functions

•

Choice of panel mount, wall mount or suspension mount

•

Choice of 95-264 Vac or 11-30 Vdc power

•

Sealed to NEMA-4 (IP65)

•

Only 3.0" (75 mm) deep

•

Programmable from front panel

•

Optional dual 5A relay outputs, analog output, serial I/O

Choice of Signal Inputs: MAGNA Series Displays

are available for different signal types, with can each
be associated with 4 or 6 digits. Please click on the
links below for detailed information by signal type:

•

Serial data from PCs, PLCs, serial output
transmitters, and smart sensors.

•

Process input (e.g., 4-20 mA)

•

Strain gauge / load cell input

•

Pulse input for frequency or rate

•

Pulse input for total or quadrature position

•

Pulse input for operation as a clock or timer

Available Options are dual 5A relays, an analog
output, an RS-232 or RS485 serial data output, and
95-264 Vac or 11-30 Vdc power.

Intuitive Setup is normally provided by means of
built-in front panel switches, which can be locked. It
is also possible to remotely wire four pushbuttons to
the display.

Specifications

LAUREL

Serial Data Input

Serial Data Types
Serial Connector
Displayed Information

Baud Rate
Data Format
Termination Character
Reject Characters
Addressing

ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA • Tel [phone] • www.laurels.com 1

RS232 or RS485 (specify at time of order)
Detachable plug-in screw terminals
ASCII: Displays any character within 7-segment display limitations.
Quant: Displays only numeric ASCII values.
Qa.Tot: Quantity totalizer. Can be used to accumulate weight values, for
example after each batch. Uses a contact closure to trigger addition.

300 to 115200 baud
701, 7e1, 7n2, 801, 8e1, 8n1, 8n2
Hex 00 to FF
Counted from termination character
00 (wildcard) to F7

Process Signal Input

A/D Converter
Current Signal Types
Voltage Signal Types
Accuracy
Tempco, Scale
Tempco, Offset
Excitation

Strain Gauge / Load Cell Input

A/D Converter
Signal Gain
Accuracy
Tempco, Scale
Tempco, Offset
Excitation Output

Pulse Input for Frequency, Rate, Total

Number of Inputs
Signal Types

Debounce
Timing Reference

Pulse Input for Clock Operation

Time Reference
Clock Format

Display

Number of Digits
Digit Height
Digit Color
Brightness
Numeric Format
Clock Format

User Controls

Scaling
Filtering
Rounding
Linearization

Logic Inputs

Font Panel Controls
Logic Functions

Logic Levels

Power

AC Power (standard)
DC Power (option)
Max Consumption

Analog Output Option

Output Levels

Resolution
Accuracy
Stability
Output Isolation
Scaling
Special Features

20-bit resolution
0-10 mA, 0-20 mA, 4-20 mA with 33Ω input resistance.
0-5V, 1-5V, 0-10V with 1 MΩ input resistance.
± 0.05% of range.
± 25 ppm/°C
± 30 ppm/°C
24 Vdc up to 40 mA, or ratiometric 0-10V for slide-wire

20-bit resolution
Suitable for 0.5 mV / V to 4 mV / V load cells
± 0.05% of range.
± 25 ppm/°C
± 30 ppm/°C
Isolated 10V up to 120 mA to power up to four 350Ω load cells in parallel

4
Configurable for contact closures, NPN or PNP proximity switches, 5V logic
pulses, 24V pulses, quadrature
Programmable to eliminate false counting from contact bounce.
Temperature-controlled quartz crystal.

Precision, temperature-compensated quartz crystal.
HH:MM or HH:MM:SS

4 or 6
57 mm (2-1/4"), 102 mm (4.0"), 150 mm (5.9"), or 200 mm (7.9")
Red
Variable

8.8.8.8. or 8.8.8.8.8.8. (standard)
HH:MM or HH:MM:SS (optional, specify at time of order)

Digital direct or theoretical scaling with scale & offset.
Digital filtering, time constants adjustable from 0 to 25 sec.
Selectable last-digit rounding of 1, 2, 5, 10, 20, 50 units.
Up to 10 points, direct or theoretical calibration.

Calibration, Tare, Reset, Max/Min, Alarms
Three logic inputs, individually configurable for Hold, Reset, Tare, Peak / Valley,
Net/Gross, Memory Address.
Normally open, NPN or contact closure input to activate.
5V open circuit, 1 mA switched current.

100-240 Vac
11-30 Vdc
30 VA

0-20/4-20 mA into 0 to 500Ω, 0.4 µA resolution.
0-10V into loads > 600Ω, 0.2 mV resolution.

-10 to+10V into loads > 600Ω, 0.4 mV resolution.
16 bits

0.1% of range
50 ppm/°C
Isolated from input and power
Digitally scalable
Can be set to operate from net or gross value.

LAUREL

ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA • Tel [phone] • www.laurels.com 2

Alarm Output Option

Relay Type
Special Features

Serial Data Output Option

Output Types
Special Features

Environmental

Storage Temperature
Operating Temperature
Sealing
Mounting

Approvals

Types Produced to IPC 610 Class 2 Standard

2 Alarms rated 5A, 250VAC, SPDT
Adjustable hysteresis
In-flight compensation facility.
Energize or de-energize on trip.
Adjustable timers to set energize and de-energize delays. Can also be set to
pulse for applications needing less than 100% duty cycle.
In-band and out-of-band alarm function.
Manual and automatic in-flight compensation.
Can be set to operate from net or gross value.

RS232 or RS485, addressable, on demand or continuous output.
Can include time and date with RTC option fitted.
Can be set to operate from net or gross value.

-20°C to +70°C
0C to 50°C, non-condensing
IP65 standard, all-round
Wall mount, suspension mount, panel mount

UL ISO9001:2008 QA

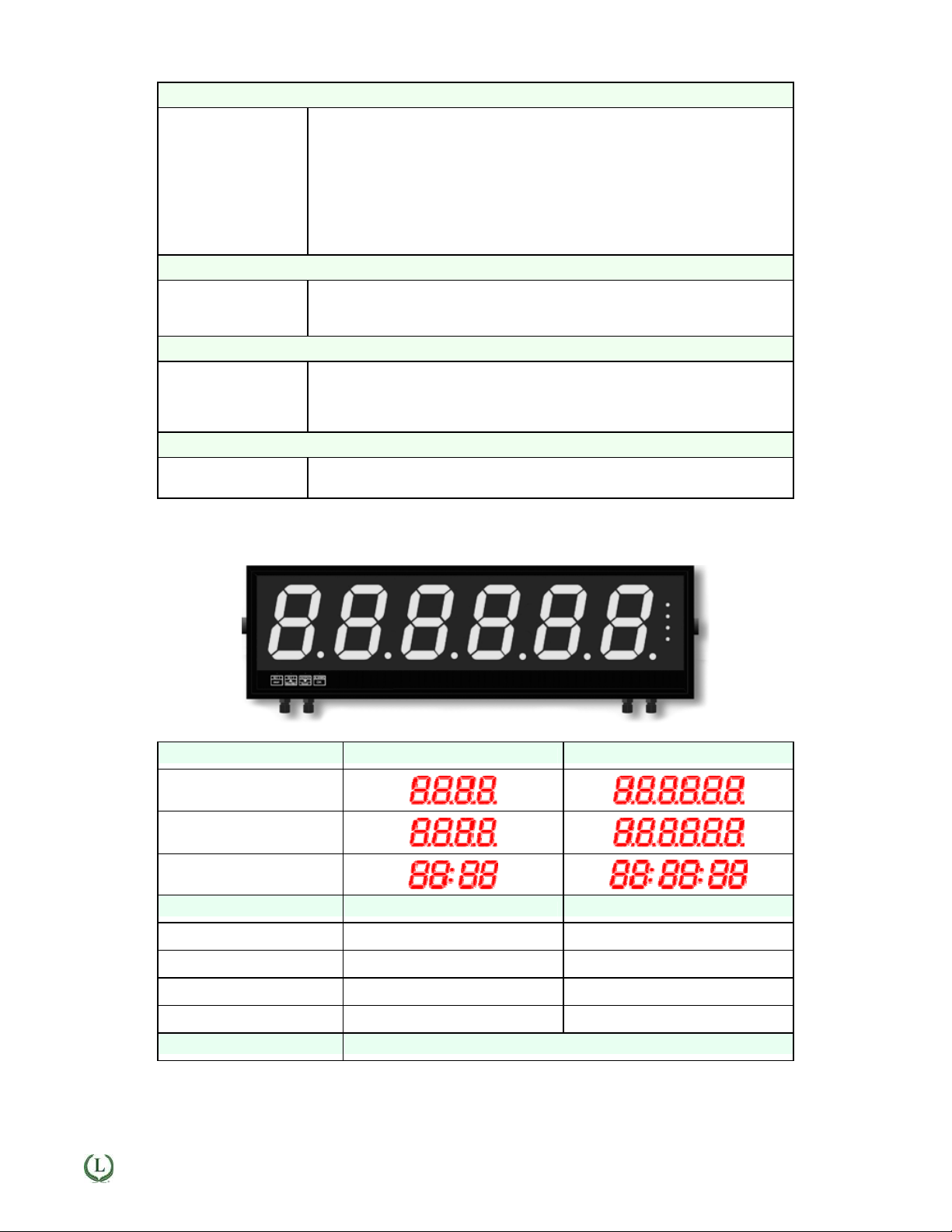

Number of Digits & Case Dimensions

Signal Type 4 Digits 6 Digits

Serial Data Input

Process, Strain, Frequency,
Total, Quadrature

Clock / Timer

Case width x height 4 Digits 6 Digits

57 mm (2.2") digits 279 x 155 mm (11.0" x 6.1") 376 x 155 mm (14.8" x 6.1")

102 mm (4.0") digits 434 x 196 mm (16.7" x 7.7") 616 x 196 mm (24.3" x 7.7")

150 mm (5.9") digits 514 x 247 mm (20.2" x 9.8") 744 x 248 mm (29.3" x 9.8")

200 mm (7.9") digits 664 x 298 mm (26.1" x 11.7") 984 x 298 mm (38.7" x 11.7")

Case depth 75 mm (3.0")

LAUREL

ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA • Tel [phone] • www.laurels.com 3

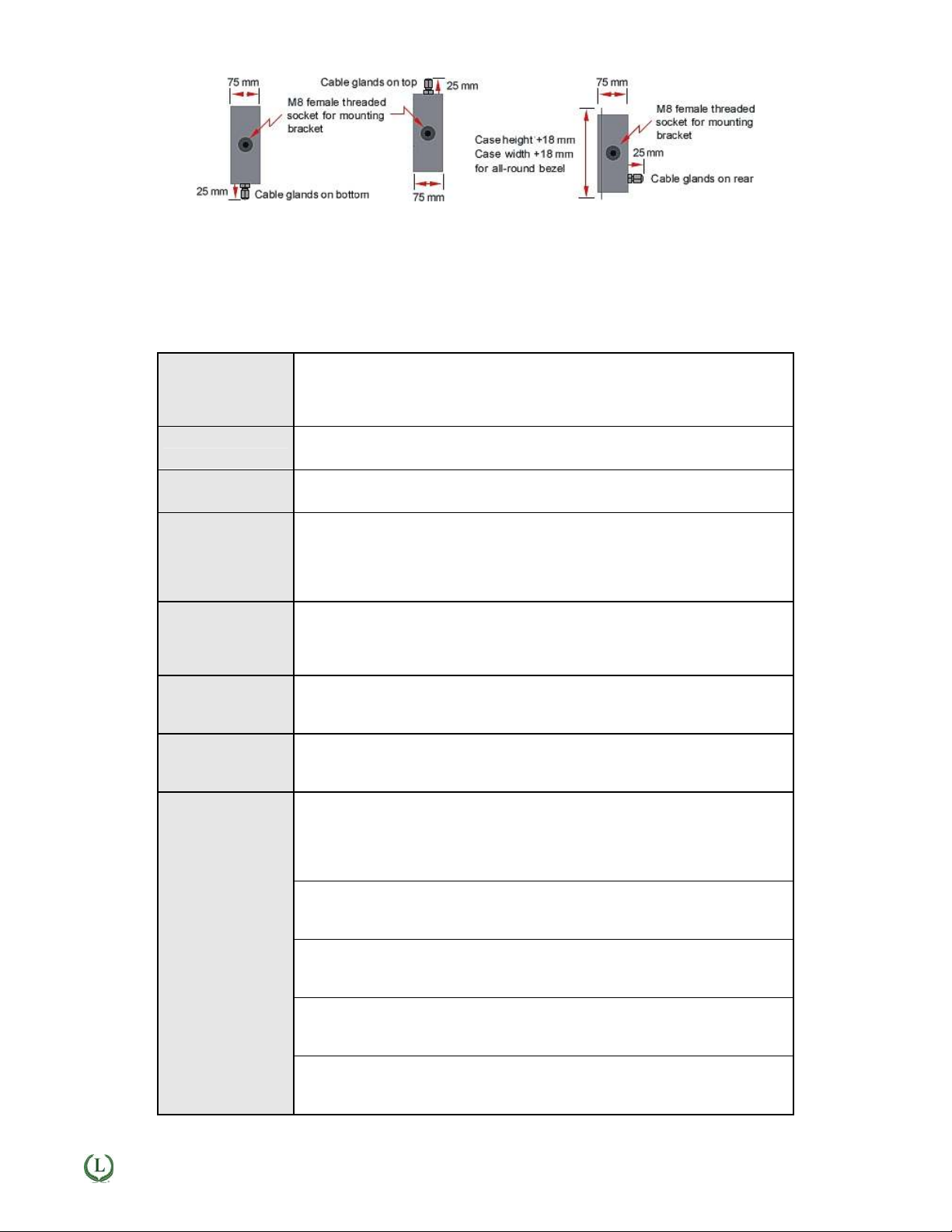

Notes: Models with 57 mm (2.2") digits, 4 digits and 4 relays require the larger 6-digit case.

For panel mount versions, add 18 mm (0.7") to case width and height for the bezel and
25 mm (1.0") for cable glands in back of the case.

Ordering Guide

Create a model a model number in this format: M2000002SER24

Base Model M2 2-¼" (57 mm) digit height

Display Brightness 0 Normal Indoor brightness

Power 0 95-265 Vac

Setpoint Output 0 None

Analog Output 0 None

Digital Output 0 None

Mounting 1 Black case, panel mount

Input Type

M4 4" (102 mm) digit height
M6 6" (150 mm) digit height
M8 8" (200 mm) digit height

1 Daylight viewing brightness

1 11-30 Vdc

1 Two 5A @ 250Vac relays (6 digit)
2 Four 5A @ 250Vac relays (6 digit)
3 Two 5A @ 250Vac relays (4 digit, requires 6-digit case)
4 Four 5A @ 250Vac relays (4 digit, requires 6-digit case)

1 4-20 mA
2 0-10V
3 -10 to +10V

1 RS232
2 RS485

2 Black case, wall mount
3 Black case, suspension mount

R232 Serial ASCII Input
SER24 RS232, 4 digits
SER26 RS232, 6 digits
SER44 RS485, 4 digits
SER46 RS485, 6 digits

LAUREL

Clock/Timer Input
CLK4 4 digits, HH:MM
CLK6 6 digits, HH:MM:SS

Process Signal Input (4-20 mA, 0-5V, etc.)
P4 4 digits, 4-20 mA
P6 6 digits, 4-20 mA

Strain Gauge Input
WM4 4 digits, 0.5 mV/V to 4 mV/V
WM6 6 digits, 0.5 mV/V to 4mV/V

Frequency, Rate, Total, Quadrature Input
FR4 4 digit display
FR6 6 digit display
