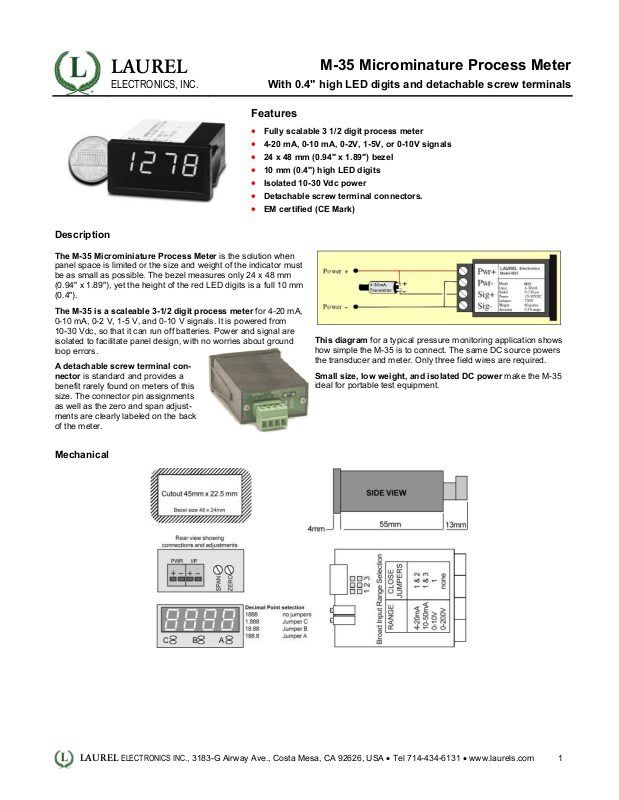

Page 1
LAUREL
ELECTRONICS, INC.
With 0.4" high LED digits and detachable screw terminals
Features
•
Fully scalable 3 1/2 digit process meter
•
4-20 mA, 0-10 mA, 0-2V, 1-5V, or 0-10V signals
•
24 x 48 mm (0.94" x 1.89") bezel
•
10 mm (0.4") high LED digits
•
Isolated 10-30 Vdc power
•
Detachable screw terminal connectors.
•
EM certified (CE Mark)
Description
The M-35 Microminiature Process Meter is the solution when
panel space is limited or the size and weight of the indicator must
be as small as possible. The bezel measures only 24 x 48 mm
(0.94" x 1.89"), yet the height of the red LED digits is a full 10 mm
(0.4").
The M-35 is a scaleable 3-1/2 digit process meter for 4-20 mA,
0-10 mA, 0-2 V, 1-5 V, and 0-10 V signals. It is powered from
10-30 Vdc, so that it can run off batteries. Power and signal are
isolated to facilitate panel design, with no worries about ground
loop errors.
A detachable screw terminal connector is standard and provides a
benefit rarely found on meters of this
size. The connector pin assignments
as well as the zero and span adjustments are clearly labeled on the back
of the meter.
M-35 Microminature Process Meter
This diagram for a typical pressure monitoring application shows
how simple the M-35 is to connect. The same DC source powers
the transducer and meter. Only three field wires are required.
Small size, low weight, and isolated DC power make the M-35
ideal for portable test equipment.
Mechanical
LAUREL
ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA • Tel 714-434-6131 • www.laurels.com 1
Page 2
Specifications
Signal
Signal types
Signal polarity
Scaling method
A/D conversion
Accuracy
Display
Number of digits
Display range
Display type
Digit height
Decimal point selection
Electrical
Signal isolation
Power to meter
Mechanical
Bezel dimensions
Panel cutout
Depth behind panel
Electrical connections
Weight
Environmental
Operating temperature
Storage temperature
4-20 mA, 0-10 mA, 0-2 V, 1-5 V, 0-10 V
Bipolar, single-ended.
Zero & span potentiometers
Dual slope integration
0.2% of range
3 1/2
±1999
Red LED
10 mm (0.39")
Plug-in jumpers behind front panel
750 Vac
10-30 Vdc, 0.6 W
24 x 48 mm (0.94" x 1.89"), H x W
22.5 x 45 mm (0.89" x 1.77"), H x W
67 mm (2.64") including connector
Four screw terminals, detachable connector
60 g (2 oz)
-20°C to 60°C (-4°F to 140°F)
-40°C to 80°C (-40°F to 176°F)
Ordering:
Order Model M-35
