Laurel Electronics LAUREATE SERIES DPM User Manual

Download

LAUREATE SERIES

DPM OWNERS MANUAL

LAUREL Electronics Inc.

3183-G Airway Ave, Costa Mesa, CA USA 92626 Tel: (714) 434-6131 Fax: (714) 434-3766 Website: www.laurels.com

ORDERING GUIDE

L ....Laureate series meter with

screw terminal connectors.

Display Color

1 ............... DPM with green LED

2 ................... DPM with red LED

3 ...... Extended DPM/green LED

4 ......... Extended DPM/red LED

Note: Extended versions add rate

of change and linearization of non-linear input signal capabilities. Not available for thermocouple or RTD inputs

Power

0 ...........................85 to 264Vac,

90 to 370Vdc

1 ..............................9 to 37 Vdc,

8 to 28 Vac

Setpoint Output

0 ........................................ None

1 ...................... Dual 10 A relays

2 ..................... Solid state relays

Analog Output

0 ........................................ None

1 .............................. 0 to 20 mA,

0 to 10 Vdc

Digital Interface

0 ........................................ None

1 .....................................RS-232

2 .....................................RS-485

3 ......................................... BCD

Input Type

DC Volts

DCV1................ 200.00 mV

DCV2................... 2.0000 V

DCV3................... 20.000 V

DCV4................... 200.00 V

DCV5..................... 660.0 V

DC Amperes

DCA1................ 2.0000 mA

DCA2................ 20.000 mA

DCA3................ 200.00 mA

DCA4..................... 5.000 A

100 Ohm Platinum RTD’s

P385C ......... -202 to 850°C

P385F.........-331 to 1562°F

P392C ......... -202 to 850°C

P392F.........-331 to 1562°F

Thermocouples

JC................ -210 to 760°C

JF ...............-347 to 1400°F

KC ............. -244 to 1372°C

KF ..............-408 to 2501°F

TC ............... -257 to 400°C

TF.................-430 to 752°F

EC ............. -240 to 1000°C

EF...............-400 to 1830°F

NC ............. -244 to 1372°C

NF ..............-408 to 2501°F

SC ............... -46 to 1768°C

SF.................-51 to 3214°F

RC ............... -45 to 1768°C

RF ................-49 to 3213°F

Process Signals

(4 to 20 mA, 0 to 5 V, etc.)

P... 4 to 20 mA=0 to 100.00

P1............. Custom Scaling

Specify minimum input signal and displayed reading and maximum input signal and displayed reading.

Strain Gauges, Potentiometers (4-wire ratio)

SG . 0 to 200mV=0 to 100.00

SG1 ............ Custom Scaling

Specify minimum input signal and displayed reading and maximum input signal and displayed reading. Full scale input 200mV to 20V. 10 Vdc excitation.

RMS Volts

RMV1 ................. 200.00 mV

RMV2 .................... 2.0000 V

RMV3 .................... 20.000 V

RMV4 .................... 200.00 V

RMV5 ...................... 660.0 V

RMS Amperes

RMA1 ................. 2.0000 mA

RMA2 ................. 20.000 mA

RMA3 ................. 200.00 mA

RMA4 ...................... 5.000 A

Load Cells (6-wire ratio)

WM1..... -99,999 to +99,999.

Specify minimum input signal and displayed reading and maximum input signal and displayed reading. Full scale input 20 mV to 500 mV. 10 Vdc excitation.

CONTENTS

1. INTRODUCTION ....................................................................................................... 2

2. RECEIVING AND UNPACKING ................................................................................ 3

3. SAFETY CONSIDERATIONS ................................................................................... 3

4. CONNECTOR WIRING INFORMATION................................................................... 4

5. MECHANICAL ASSEMBLY....................................................................................... 6

6. PANEL MOUNTING .................................................................................................. 7

7. CONNECTORS ......................................................................................................... 7

8. FRONT PANEL SETUP KEYS.................................................................................. 8

9. SETTING MENU LOCKOUTS................................................................................... 9

10. SETUP MENU ......................................................................................................... 10

11. DC VOLTS & AMPS ................................................................................................ 20

12. PROCESS SIGNAL INPUTS................................................................................... 22

13. THERMOCOUPLES................................................................................................ 24

14. PT100 RTD'S .......................................................................................................... 26

15. STRAIN GAUGES AND POTENTIOMETERS ........................................................ 28

16. TRUE RMS VOLTS & AMPS .................................................................................. 30

17. LOAD CELLS AND MICROVOLTMETER .............................................................. 32

18. DUAL ALARM OUTPUTS ....................................................................................... 34

19. ANALOG OUTPUT.................................................................................................. 36

20. RS-232 AND RS-485 INTERFACE ........................................................................ 37

21. PARALLEL BCD OUTPUT ...................................................................................... 39

22. 10 AND 24 VDC EXCITATION OUTPUTS.............................................................. 40

23. DIGITAL CONTROL INPUTS.................................................................................. 41

24. CALIBRATION......................................................................................................... 42

25. SPECIFICATIONS................................................................................................... 42

-1-

1. INTRODUCTION

This series of panel instruments is a versatile, cost effective solution to a wide variety of monitoring and control applications. These instruments are easily set to produce an accurate display of temperature, pressure, flow, weight, voltage or current. Front panel push-button or RS-232/RS-485 setup allows the user to customize the unit for a specific application. Digital scaling of zero and span provides direct readout in engineering units. Concurrent Slope ( Pat 5,262,780) is a new method of analog-to-digital conversion that provides 60 conversions per second ( 50 for 50 Hz operation ) while integrating over a full cycle of the line for maximum noise rejection. Self calibration cycles reduce the average reading rate to 56 per second ( 47 for 50 Hz ). This fast read rate provides an accurate display of peak signal input and quick response in control applications. The adaptive auto filter automatically supplies a time constant compatible with the signal noise level. This ensures stable displayed readings and outputs while responding rapidly to changes of the input signal that exceed a selected threshold value. Selective security lockout of the front panel setup protects against accidental changes to the meter. The instrument uses a lightweight, high-efficiency switching power supply operating from AC or DC voltages. The meter can be powered worldwide without changes to the supply. An optional low voltage supply operates on 9 to 37 Vdc from batteries or 8 to 28 Vac from sources such as 400 Hz aircraft power. Both supplies have isolated 5, 10, and 24 Vdc excitation outputs to power transducers. The NEMA 4 (IP65) 1/8 DIN case is made of high impact, 94V-0 UL-rated plastic. Mounting is from the front of the panel and requires less than 110 mm behind the panel. All wiring is by removable plugs conforming to IEC950 safety standards. All output options are isolated from meter and power ground by 250 Vac minimum.

The extended DPM is capable of linearizing a nonlinear input signal such as a thermistor, gallons of liquid in a irregularly shaped tank, or altitude. Up to 240 points may be linearized by a computer program that stores the parameters via RS232 into permanent nonvolatile memory. The meter is also capable of measuring rate of change. The level of a tank is measured and the difference between readings determines the flow rate in or out of the tank.

The dual setpoints have two form C ( 10 A @ 250 Vac ) relays or solid state relay outputs for alarm and control capabilities. Either setpoint may be latching or nonlatching and separately configured to be energized above or below the setpoint, as deviation alarms, or in a fail-safe mode. Additionally, outputs may also be selected to operate from the filtered signal to reduce relay chatter or from the unfiltered signal for fast response. Snubber circuits, programmable relay switching time delay and selectable hysteresis extend relay contact life.

Isolation of the 4 to 20 mA and 0 to +10 V analog outputs eliminates ground loop problems. The output may be scaled by front panel push-buttons or RS-232/RS-485. For thermocouples and RTD’s, the output is linearized. The 4 to 20 mA output will drive up to an 600 Ohm load with 12 V compliance

The meter offers RS232 or RS485 bidirectional communications or parallel, 3-state BCD output to interface with computers, PLC’s or other digital devices. IBM PC compatible software is available for programming the unit by the RS232 and RS-485 interfaces.

-2-

2. RECEIVING AND UNPACKING

Your meter was carefully tested and inspected prior to shipment. Should the meter be damaged in shipment, notify the freight carrier immediately. In the event the meter is not configured as ordered or the unit is inoperable, return the unit to the place of purchase for repair or replacement. Please include a detailed description of the problem.

3. SAFETY CONSIDERATIONS

Warning : The use of this equipment in a manner other than specified may impair the

protection of the device and subject the user to a hazard. Visually inspect the unit for signs of damage. If the unit is damaged, do not attempt to

operate. This unit must be powered with AC ( mains ) from 85 to 264 Vac (90 to 370 Vdc) with the high

voltage power supply option or 8 to 28 Vac (9 to 37 Vdc) with the low voltage power supply option. Verify that the proper power option is installed for the power to be used.

This meter has no AC ( mains ) switch; it will be in operation as soon as power is connected. Caution: The 85 to 264 Vac (90 to 370 Vdc) mains connector (J1 Pins 1-3) is color coded

Light Blue to differentiate it from other input and output connectors. The 8 to 28 Vac (9 to 37 Vdc) mains connector is not color coded because these voltages are not considered hazardous.

Do not make signal wiring changes or connections when power is applied to the instrument. Make signal connections before power is applied and, if reconnection is required, disconnect the AC ( mains ) power before such wiring is attempted.

To prevent electrical or fire hazard, do not expose the instrument to excessive moisture. Do not operate the instrument in the presence of flammable gases or fumes; such an

environment constitutes a definite safety hazard. This meter is designed to be mounted in a metal panel.

Verify the panel cutout dimensions and mount according to instructions.

-3-

4. CONNECTOR WIRING INFORMATION

4.1 CONNECTOR LOCATION

The connectors are the screw terminals that plug into the mating jack mounted on the printed circuit board. P3 is either a 6 conductor phone plug for RS-232 and RS-485 or a 30 pin, mass termination, edge connector for parallel BCD.

4.2 J1 - POWER AND DIGITAL CONTROLS

AC HI (+DC HI)

AC LO (DC RET)

EARTH GROUND

DIGITAL INPUT B (+5V OUT)*

DIGITAL INPUT A*

DIGITAL GROUND

1 2 3

4 5 6

*Note: Non-isolated digital control inputs A and B are menu selectable for Tare,

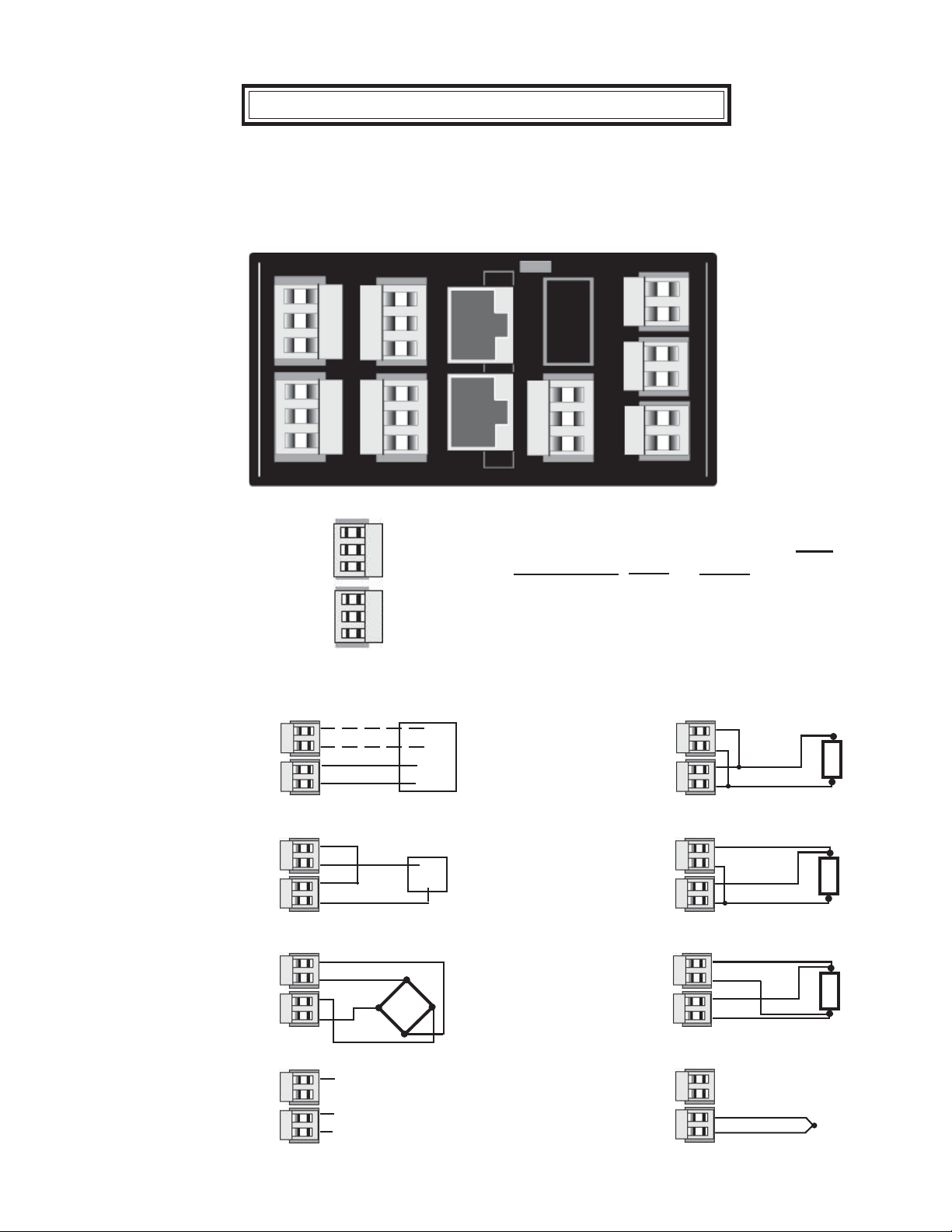

4.3 J5 - SIGNAL INPUT

DC & PROCESS

-EXCITATION

+EXCITATION

- SIGNAL INPUT +SIGNAL INPUT

1 2 3 4

Signal Source

out

Peak Display, Hold, or Reset and external control of decimal points.

Digital Input B selected - Jumper "h" +5V Output selected - Jumper "g"

RTD ( 2-WIRE )

- EXCITATION

+ EXCITATION

- SIGNAL INPUT +SIGNAL INPUT

2 3 4

2 WIRE PROCESS TRANSMITTER

-24V EXCITATION

+24V EXCITATION

- SIGNAL INPUT +SIGNAL INPUT

STRAIN GAUGE RTD (4-WIRE)

-10VEXCITATION

+10V EXCITATION

-SIGNAL

+SIGNAL

AC (TRUE RMS)

SIGNAL HIGH

SIGNAL LOW

SIGNAL HIGH

Signal Source

2 3 4

20 ,200, 660V INPUTS AC NEUTRAL

.2, 2V, CURRENT INPUTS

- EXCITATION

+ EXCITATION

- SIGNAL INPUT +SIGNAL INPUT

- EXCITATION

+ EXCITATION

- SIGNAL INPUT +SIGNAL INPUT

RTD ( 3-WIRE )

2 3 4

1 2 3 4

THERMOCOUPLE

2 3 4

-4-

4.3 J5 - SIGNAL INPUT ( CONTINUED )

LOAD CELL METER

-10 V EXCITATION

-SENSE

-SIGNAL

+SIGNAL

+10 V EXCITATION

+SENSE

1 2 3 4 5 6

4.5 J 2 - DUAL SETPOINT CONTROLLER

4.4 J4 - ANALOG OUTPUT

0 TO 20 MA OUTPUT

0 TO 10 VDC OUTPUT

ISOLATED GROUND

1 2 3

RELAY OUTPUTS

ALARM 1 - N/O CONTACT ALARM 1 - N/C CONTACT ALARM 1 - COMMON

ALARM 2 - N/O CONTACT ALARM 2 - N/C CONTACT ALARM 2 - COMMON

SOLID STATE RELAY OUTPUTS

Switching DC 125Vdc @240 ma max.

ALARM 1 - SOURCE 1 ALARM 1 - SOURCE 2

ALARM 1 - DRAIN

ALARM 2 - SOURCE 1 ALARM 2 - SOURCE 2

ALARM 2 - DRAIN

1 2 3

4 5 6

1 2 3

4 5 6

4.6 J3 DIGITAL INTERFACE

RS - 232 INTERFACE - J3A

N/C

ISO GROUND

RTS

N/C

RS - 485 INTERFACE - J3A & J3B

6 5 4 3 2 1

+ DC + DC

- DC

+ DC + DC

- DC

COMPUTER

GROUND TRANSMIT RECEIVE RTS

SOLID STATE RELAY OUTPUTS

Switching AC 125Vac @120 ma max.

ALARM 1 - SOURCE 1 ALARM 1 - SOURCE 2

ALARM 1 - DRAIN ALARM 2 - SOURCE 1 ALARM 2 - SOURCE 2

ALARM 2 - DRAIN

BCD OUTPUT

7 100 400

10K

40K 100K 400K

+ POL

BCD HOLD

ISOLATED GND

1K 4K

9 11 13 15 17 19 21 23 25 27 29

1 2 3 4 5 6

200

800

20K

80K

200K

800K

DATA READY

BCD ENABLE

ISO 5 / 15VDC

AC AC

ISO GROUND

BRX ARX

ATX

BTX

ISO GROUND

FULL DUPLEX

6 5 4 3 2 1

COMPUTER

GROUND TRANSMIT + TRANSMIT RECEIVE RECEIVE + GROUND

ISO GROUND

ATX/ARX

BTX/BRX

ISO GROUND

-5-

HALF DUPLEX

6 5 4 3 2 1

COMPUTER

GROUND

TX/RX TX/RX + GROUND

5. MECHANICAL ASSEMBLY

5.1 REMOVING THE REAR PANEL

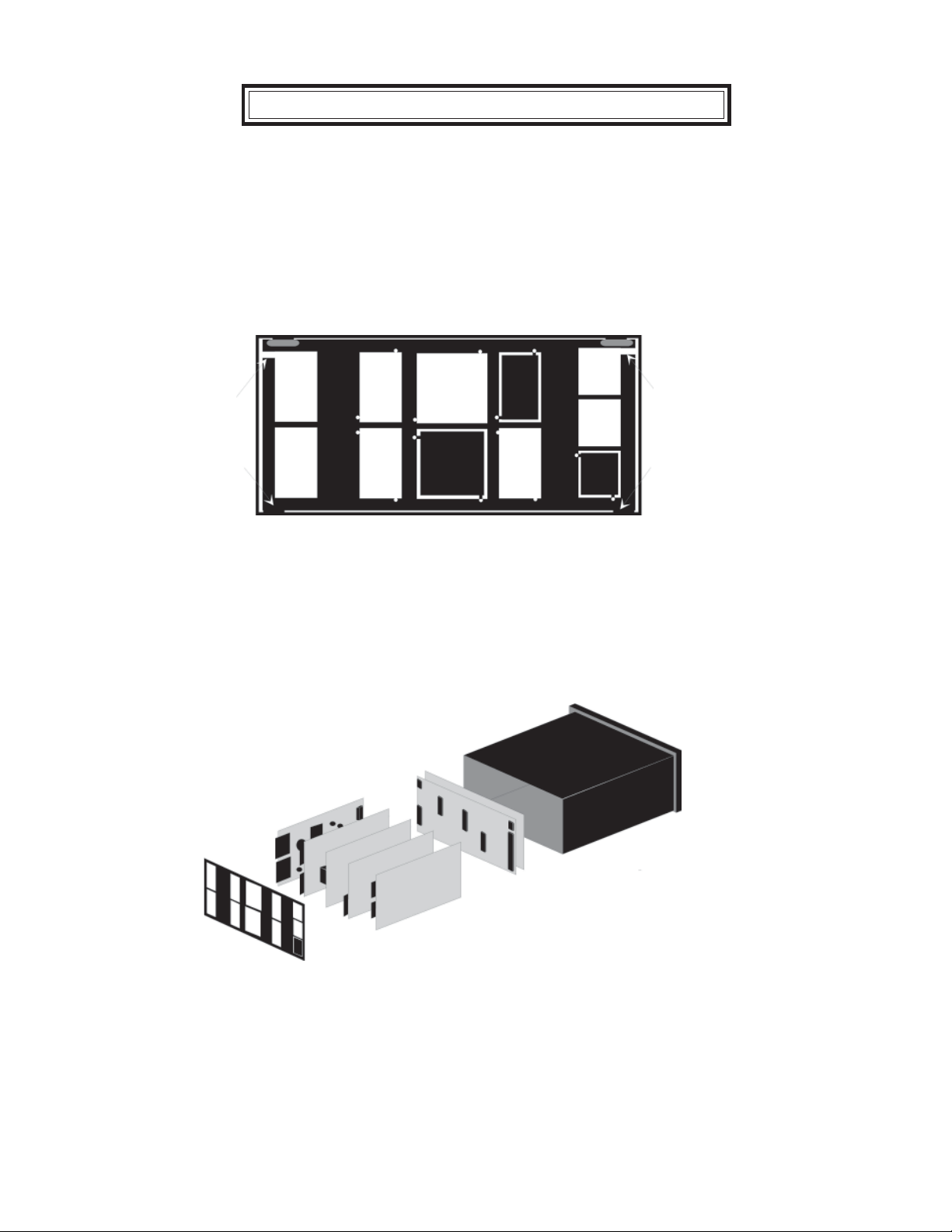

To remove the rear panel, first remove any connectors that are installed. Press down on both rear panel retaining tab releases(see Fig. 5.1) and pull the top of the rear panel away from the case. The bottom of the rear panel will now lift out.

Retaining Tab and Release

Retaining Tab Retaining Tab

Figure 5.1

5.2 Removing the meter from the case

After removing the rear panel, the meter can be taken out of the case by carefully grasping the power supply board and signal conditioner board at the connectors and sliding the unit out the back of the case. See Figure 5.2.

Retaining Tab and Release

Figure 5.2

5.3 REASSEMBLING THE METER

Reverse the preceding procedures to reinstall the meter in the case. After the meter is in the case, insert the bottom tabs on the rear panel into the case first. Care must be taken to ensure the printed circuit boards are properly aligned by the board retaining pins on the inside of the rear panel.

-6-

6. PANEL MOUNTING

Ensure the O-ring is in place. Turn the two mounting screws counterclockwise until the space between the mounting pawl and the bezel is greater than the panel thickness. Insert the meter in the panel cutout. Turn the mounting screws clockwise until the meter is securely mounted in the panel. Do not overtighten the mounting screws.

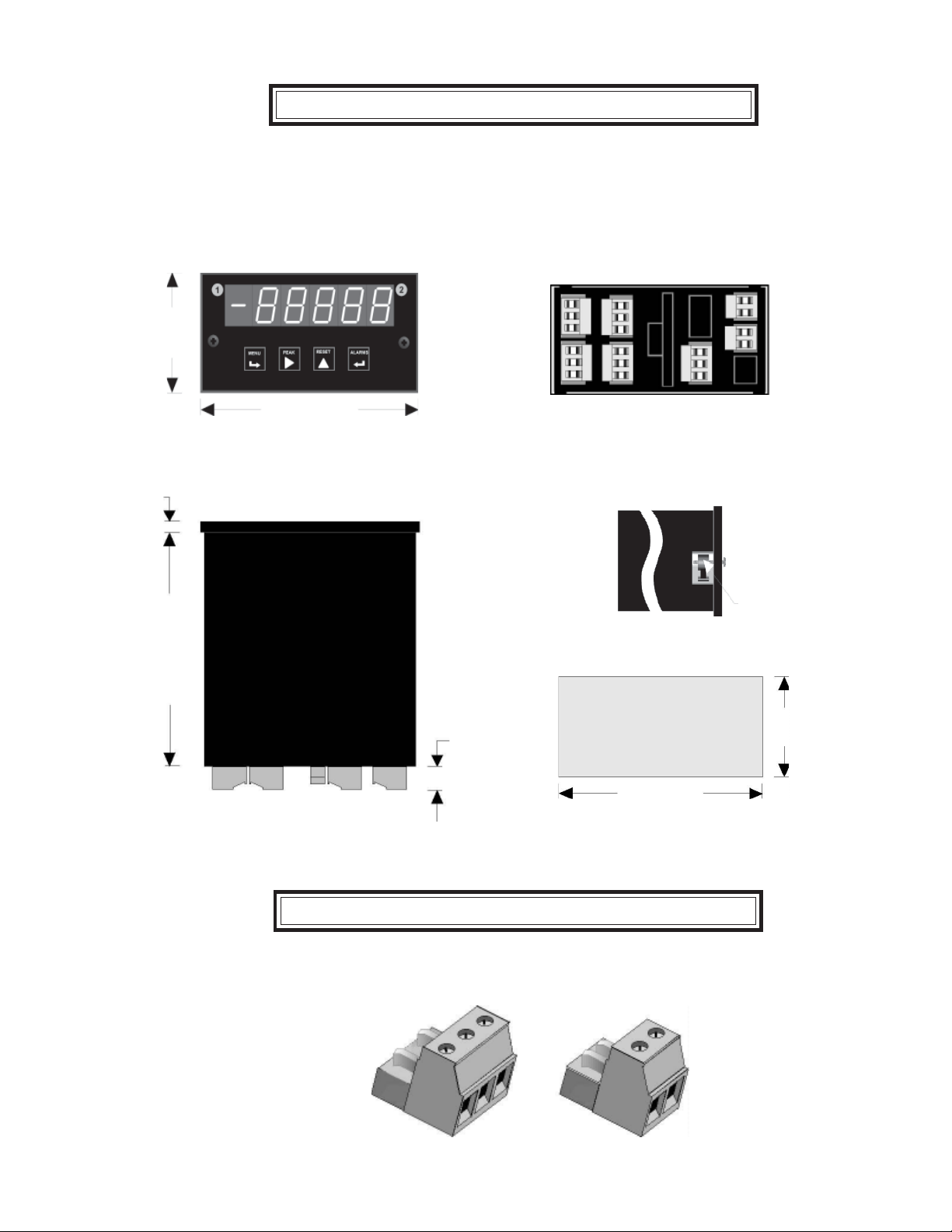

48mm

(1.89in)

5mm

(0.197in)

102mm (4.02in)

96mm

(3.78in)

FRONT VIEW

TOP VIEW

J1 J2 J3 J4 J5

10mm

(0.394in)

J1 J2 J3 J4 J5

REAR VIEW

SIDE VIEW

Mounting Pawl

PANEL CUTOUT

45 +0.6/-0.0mm

(1.772 +.024/-0.0in)

92 +0.8/-0.0mm

(3.622 +.032/-0.0in)

7. CONNECTORS

The meter uses UL/VDE rated screw terminal connections that plug into the mating PC jack.

-7-

8. FRONT PANEL SETUP KEYS

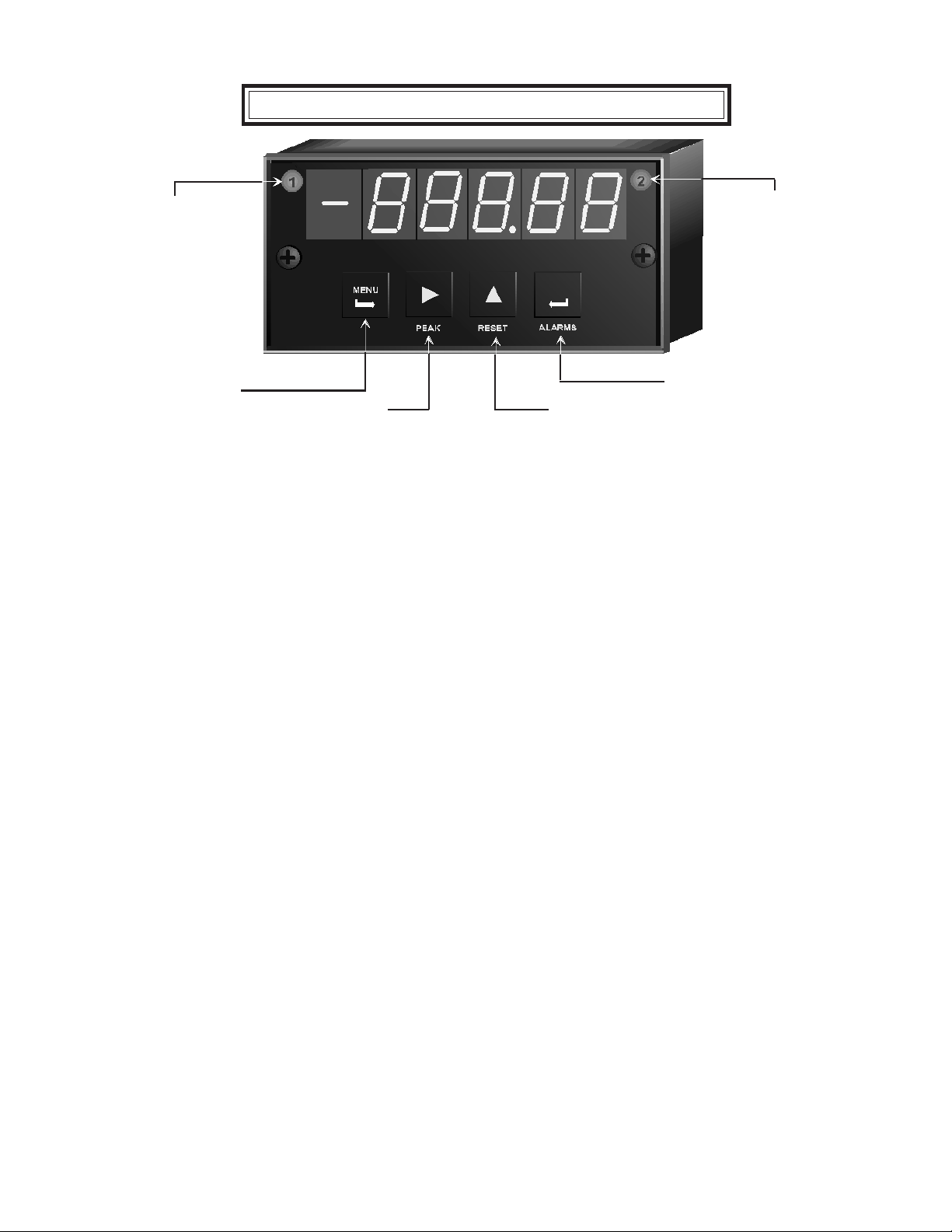

ALARM 1 STATUS INDICATOR

MENU KEY

PEAK DISPLAY KEY ( DIGIT SELECT )

Figure 8.1

RESET KEY ( VALUE SELECT )

ALARM 2 STATUS INDICATOR

ALARM KEY (REVERSE MENU)

MENU KEY

The menu key steps through the various meter parameters that may be selected. These menu items may be “locked out” from front panel selection by software and hardware.

PEAK DISPLAY KEY (DIGIT SELECT)

In the Operating Mode, pressing the Peak Display Key causes the peak value of the input signal to be displayed. Pressing the key again returns the display to the present value. In the Menu Mode , the Digit Select Key (Peak Display Key) is used to select input type and decimal point or to select one of the five display digits for programming. In the main menu, pressing the Digit Select Key causes the value or code that is stored for that menu item to be displayed and the left hand digit flashes. Each time the key is pressed, the next digit to the right will flash. The value of the flashing digit may be changed using the Value Select Key. In the Alarm Mode, pressing the Digit Select Key causes the most significant digit of the displayed setpoint value to flash. Digits are then selected the same as in the Menu Mode.

RESET KEY (VALUE SELECT)

In the Operating Mode, holding the Reset Key depressed and pressing any other key causes a reset to occur. The Menu Key resets all meter functions, the Alarm Key resets any alarm conditions and the Peak Display Key resets the peak value to present value. In the Menu Mode or Alarm Mode, the Value Select Key ( Reset Key) sets the value of the flashing digit. Each time the key is pressed, the value increases by one. Holding the key down causes the digit to automatically step through the numbers.

ALARM KEY (REVERSE MENU)

In the Operating Mode, pressing the Alarm Key displays the setpoint of Alarm 1 and then Alarm 2. These values may be changed using the Digit Select Key and the Value Select Key. In the Menu Mode, pressing the Alarm Key steps the display backward through the menu.

-8-

9. SETTING MENU LOCKOUTS

For security and ease of operation, any or all program menu items may be disabled. Each function to be disabled is set to "1" in the menu items, " Loc 1"," Loc 2" or "Loc 3". These lockout menu items may in turn be "locked-out" by installing an internal hardware shorting jumper. With the jumper installed, the operator has access only to enabled menu items.

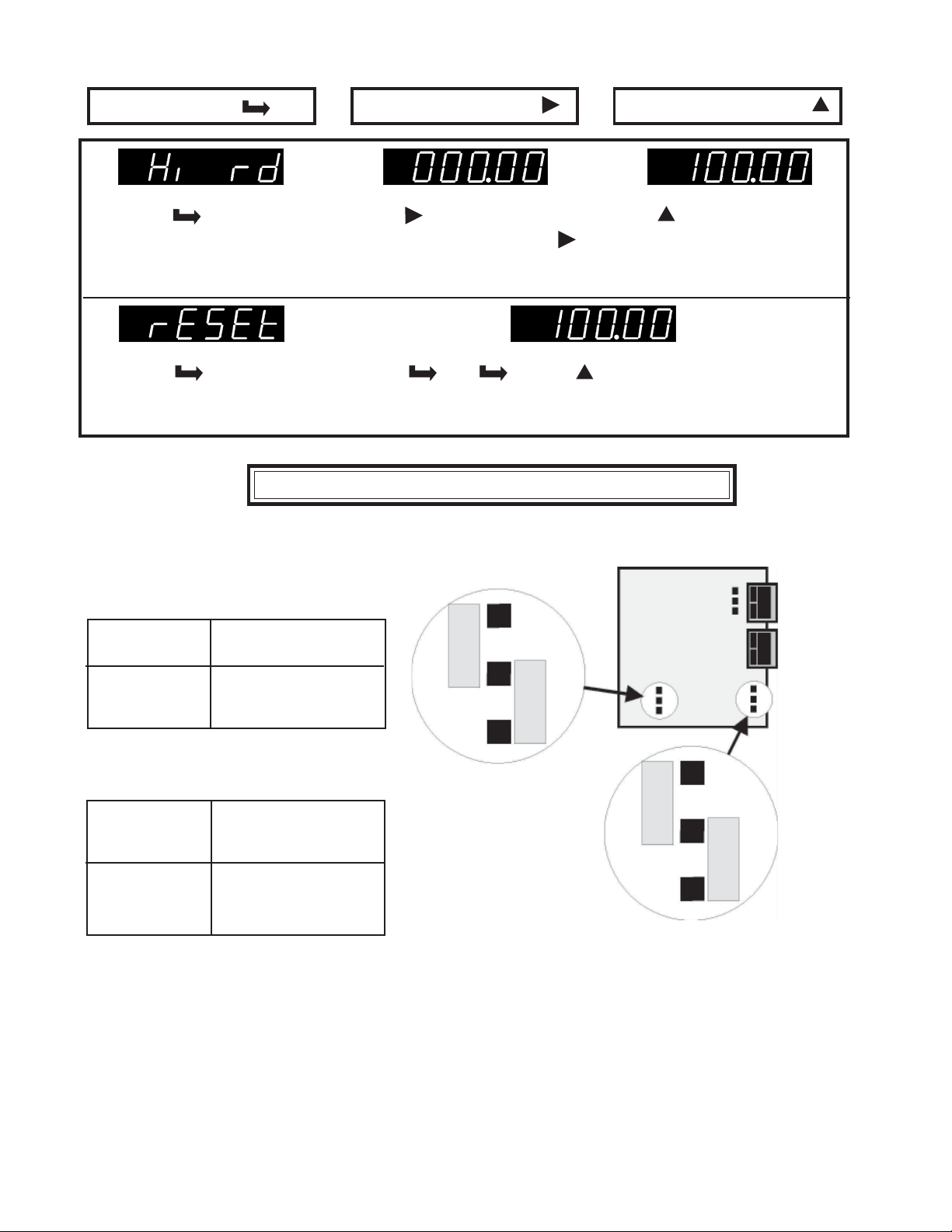

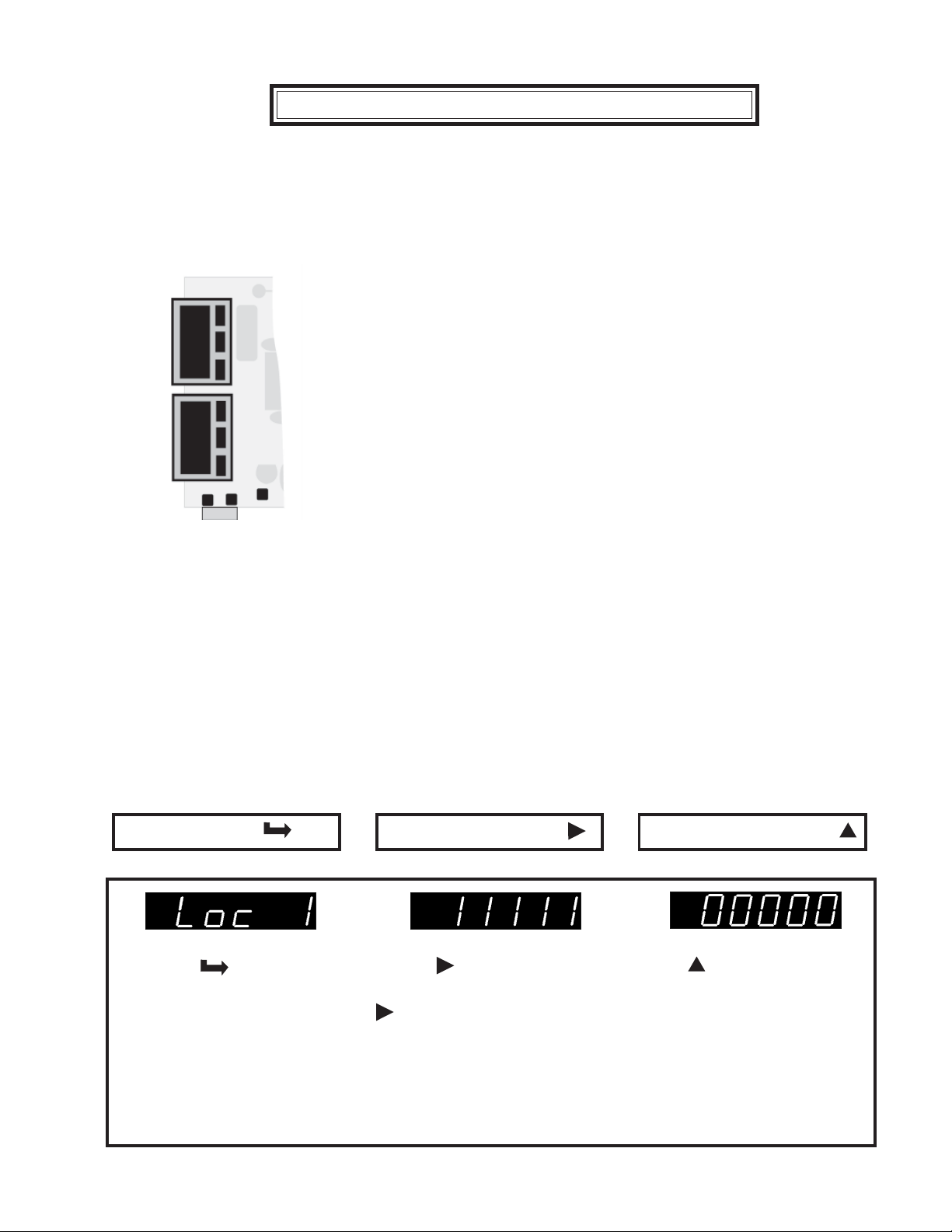

9.1 SETTING HARDWARE LOCKOUT JUMPER Lockout Jumper

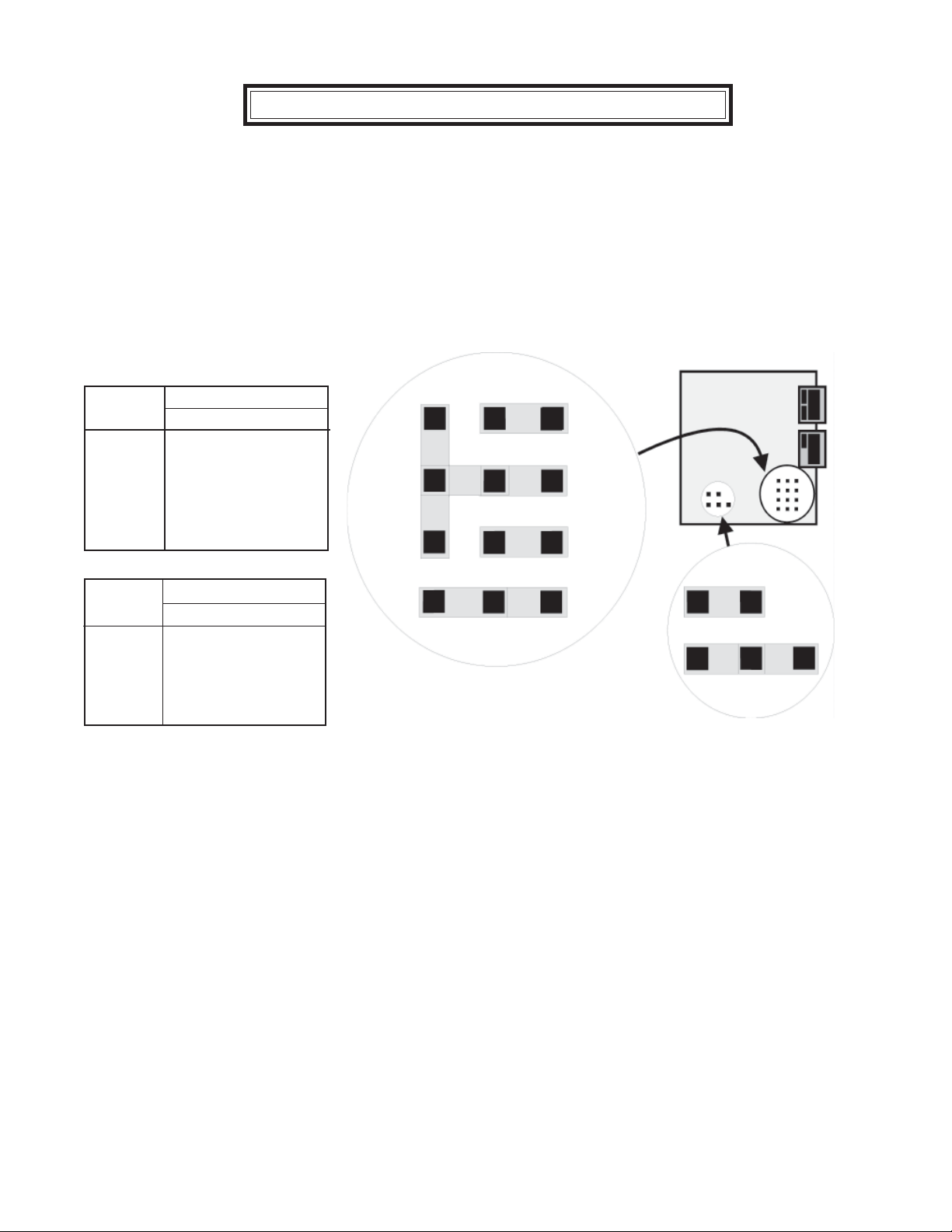

To access the jumper, remove the rear panel per Section 5.1. Remove jumper "a" located on the lower portion of the power supply board next to the input connectors (see figure at left) to enable the software lockouts. Replace the jumper to disable software lockouts.

Jumper Removed - Loc 1,2 and 3 are displayed as menu items

Power Supply Board

Figure 9.1

and allow other menu items to be locked out or enabled. Jumper Installed - Loc1, 2 and 3 are not displayed on program menu

9.2 SETTING SOFTWARE LOCKOUTS

When setting up the meter, it may be necessary to enable some of the menu items. Any digit set to "1" in Loc 1, Loc 2 or Loc 3 indicates that item is locked out. By setting the digit to "0", the item will appear in the menu. Be sure to reset the lockout bit to "1" after selection if you do not want the value changed by the operator. Note: The hardware lockout jumper must be removed to access Loc 1, 2 and 3 (see section

9.1)

MENU KEY

Press the key until Loc 1 is displayed.

DIGIT SELECT KEY VALUE SELECT KEY

1 2 3 4 5

Press to display status and select left digit. Press

again to select another digit. Selected digit will flash. "1" indicates the menu item is disabled. "0" indicates the item is enabled.

Press to select "0" or "1" for flashing digit 1 - Input type selection 2 - Meter setup, configuration & decimal pt. 3 - Filter selection 4 -Scale or Lo, Hi Input 5 - Offset or Lo, Hi Reading

-9-

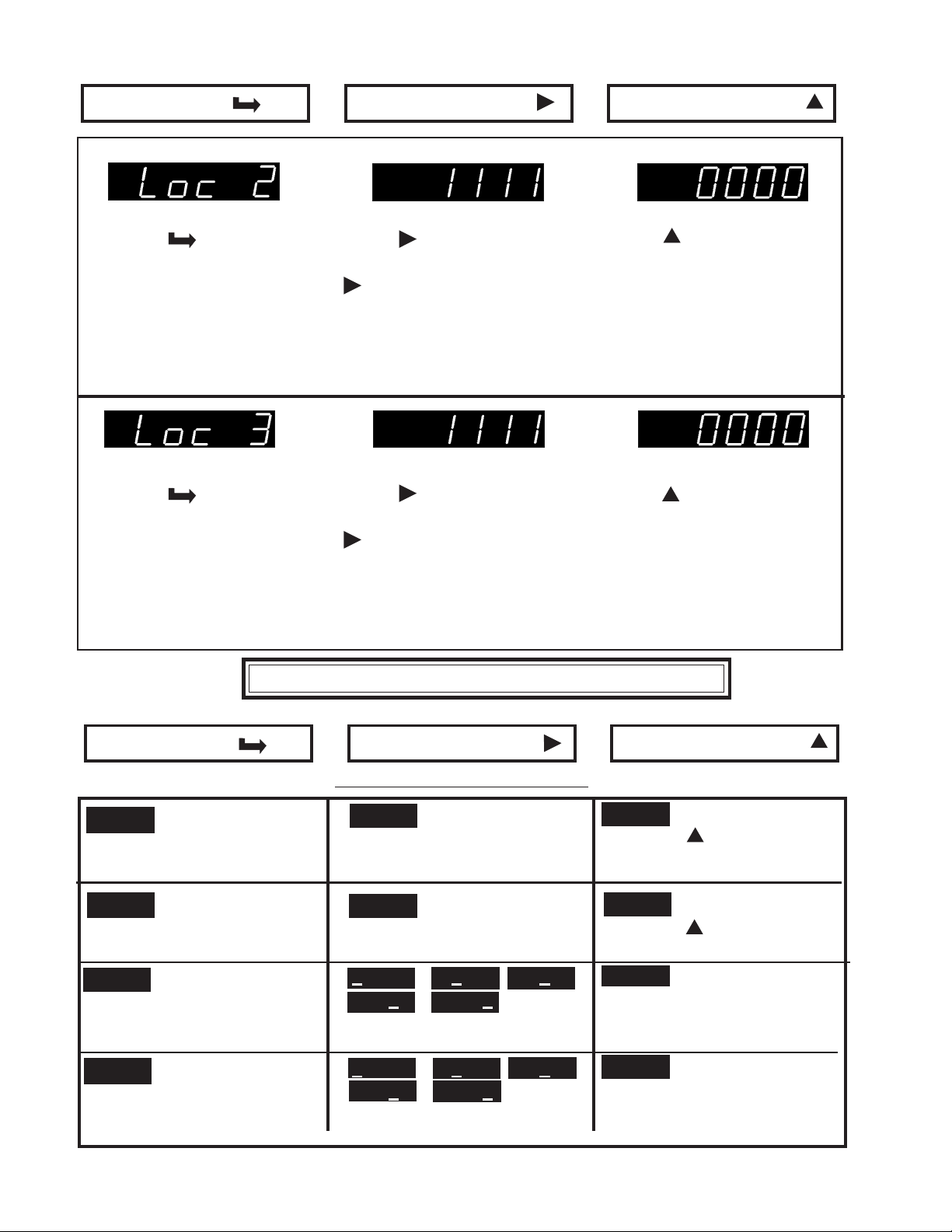

MENU KEY

Press the 2 is displayed.

key until Loc

DIGIT SELECT KEY VALUE SELECT KEY

2 3 4 5

Press and select left digit. Press

again to select another digit. Selected digit will flash. "1" indicates the menu item is disabled. "0" indicates the item is enabled.

to display status

Press to select "0" or "1" for flashing digit 2 - Alarm Setup 3 - Alarm setpoint value programming 4 - Analog output scaling 5 - Serial interface setup

2 3 4 5

Press the key until Loc 3 is displayed. Lockout 3 controls the operation of the front panel push-buttons when the meter is in the normal mode of operation.

Press to display status and select left digit. Press

again to select another digit. Selected digit will flash. "1" indicates the menu item is disabled. "0" indicates the item is enabled.

10. SETUP MENU

MENU KEY

Lo in

Low signal input value (not available for tC & rtd)

Hi In

High Signal Input Value

Lo rd

Set Low Displayed Reading for Low Signal Input

Hi rd

Set High Displayed Reading for High Signal Input

DIGIT SELECT KEY

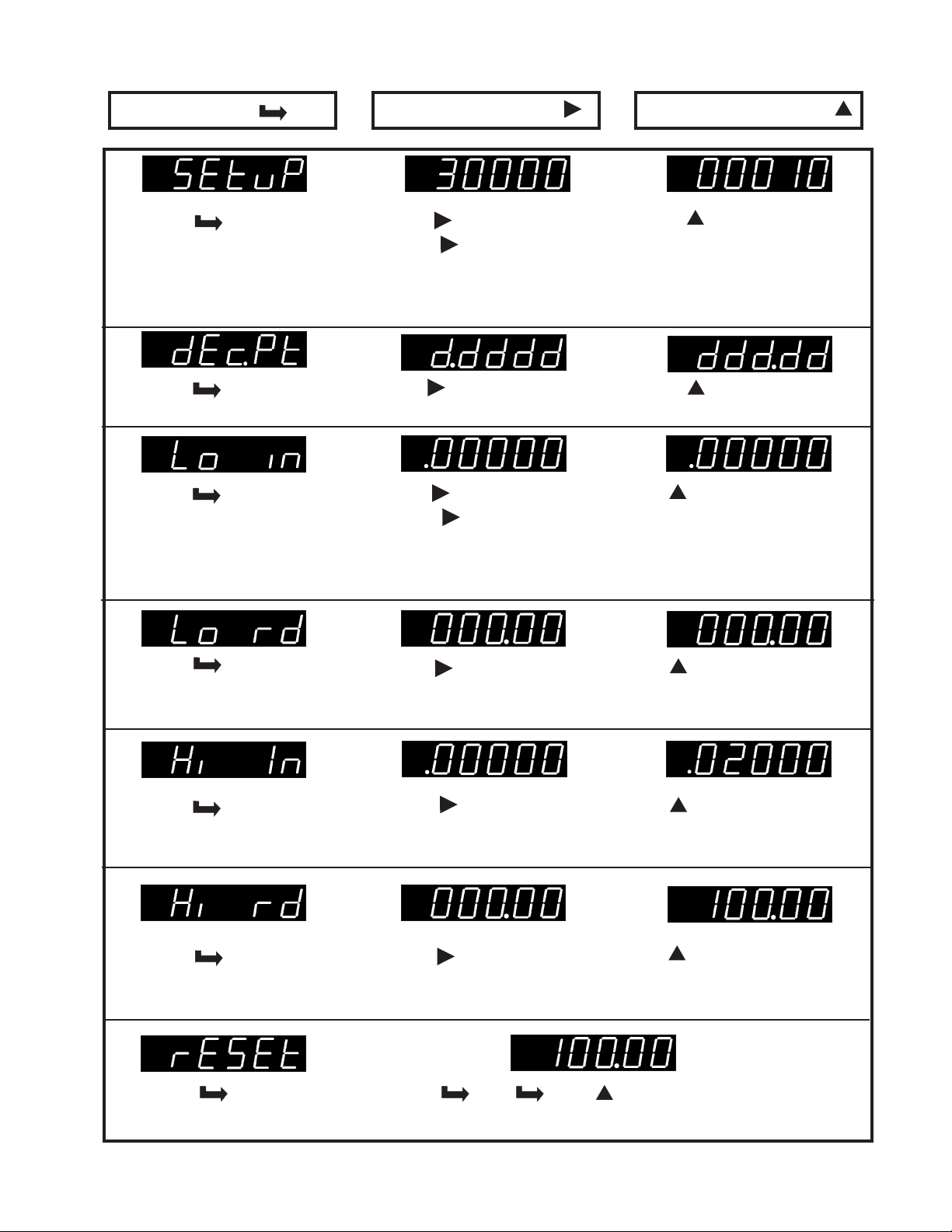

INPUT SIGNAL SCALING METHOD

0.021

Set the input signal to zero or a known low value

20.094

Set the input signal to a known high value

0.0000 0.0000 0.0000

0.0000 0.0000

Select digit. Digit will flash

0.0000 0.0000 0.0000

0.0000 0.0000

Select digit. Digit will flash

Press to select "0" or "1" for flashing digit 2 - View peak value 3 - View alarm setpoints 4 - Reset (peak and latched alarms) 5 - Reset (meter reset)

VALUE SELECT KEY

0.021

Press the key to store the low signal input.

20.094

Press the key to store the high signal input.

0.000

Select 0 through 9 for flashing digit. Decimal point location is fixed by dEC.Pt.

0.000

Select 0 through 9 for flashing digit. Decimal point location is fixed by dEC.Pt.

-10-

MENU KEY

TEMPERATURE SIGNAL CONDITIONER

DIGIT SELECT KEY

VALUE SELECT KEY

InPut

Input signal type

Thermocouple

Note: Display = K

rtd

Pt 100 Ohm RTD

DC SIGNAL CONDITIONER

dC U

DC Volts

J°F J°C K°F K°C t°F t°C E°F E°C S°F S°C r°F r°C n°F n°C Types

J, K, T, E, N, S, R in °C or °F

4d °F 4d °C DIN 4-wire 4A °F 4A °C ANSI 4-wire 3d °F 3d °C DIN 3-wire 3A °F 3A °C ANSI 3-wire

2d °F 2d °C DIN 2-wire 2A °F 2A °C ANSI 2-wire Short Compensation for

2-wire lead resistance

0.2U 2.0U 20.0U

200.0U 660.0U

0.2, 2, 20, 200, 660 V FS

dC A

DC Amperes

rAtio

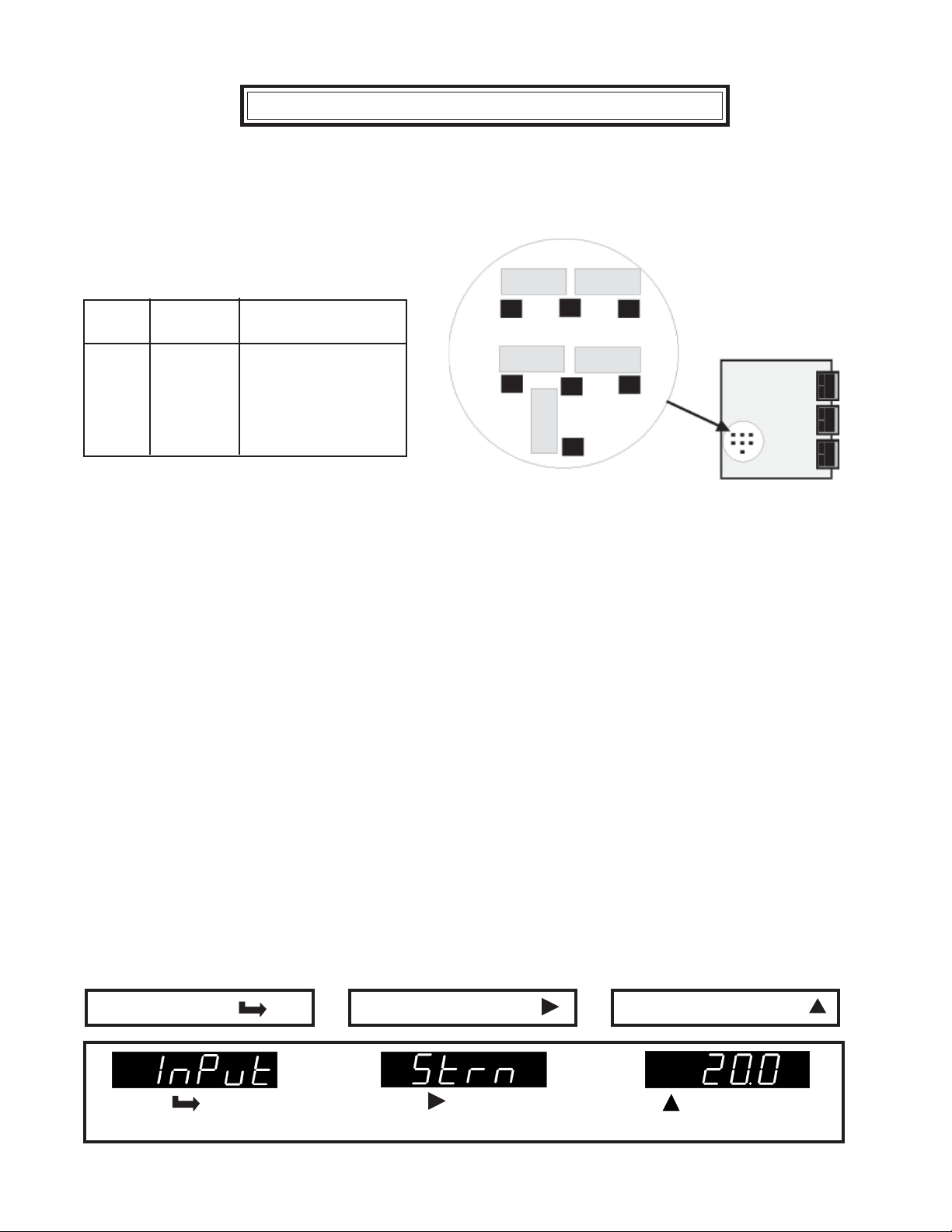

Strain Gauge

TRUE RMS SIGNAL CONDITIONER

AC U

AC Volts

AC A

AC Amperes

2.0a 20.0a 200.0a 5.0A

2 , 20, 200 mA, 5 A FS

0.2U 2.0U 20.0U

0.2, 2, 20 V FS

0.2U 2.0U 20.0U

200.0U 660.0U

0.2, 2, 20, 200, 660 V FS

2.0a 20.0a 200.0a 5.0A

2 , 20, 200 mA, 5 A FS

-11-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

LOAD CELL SIGNAL CONDITIONER

InPut

Input signal type (continued)

SEtuP

Meter Setup

Strn

Load cells

dC u

DC millivolts

00000

Display selection

00000

Line frequency

00000

Serial start & stop characters (Set through serial port).

20.0 50.0 100.0

250.0 500.0

20, 50, 100, 250, 500 mV FS

20.0 50.0 100.0

250.0 500.0

20, 50, 100, 250, 500 mV FS

0 4 1/2 digits (0.1 Degree) 1 Remote display 2 4 1/2 digits [meter counts

by 10] (.01 Degree)

3 3 1/2 digits (1 Degree)

0 60 Hz 1 50 Hz

0 Null start, <cr> stop 1 Special start and stop

characters.

00000

Method of scaling meter

00000

Rear connector inputs A & B (negative true logic, 0V = true, +5V = false)

* A and B both low = function reset

A & B Logic levels for 6 & 7 A B DP1 DP2

1 1 XXXXX XXXX.X 0 1 XXXX.X XXX.XX 1 0 XXX.XX XX.XXX

0 0 XX.XXX X.XXXX

0 Scale factor and offset 1 Coordinates of 2 points

0 A: Reset B:Meter Hold

1 A: Function Reset

B:Peak Display

2 * A: Meter Hold

B: Peak Display

3 * A: Meter Hold

B: Tare

4 * A: Peak Display

B: Tare

5 A: Tare B: Reset 6 External Decimal Pts.1 7 External Decimal Pts.2

-12-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

ConFG

Meter Configuration

00000 Operates as a rate of change meter

Extended version only

00000

Selection of scaling by reading input signal or by Setup selection

00000

Selects between continuous (unlatched) data or single value (latched) of RS232 data when RTS is high or open

00000

RS485 interface operates in the full duplex or half duplex mode

0 Not rate of change 1 Rate x 0.1 2 Rate x 1 3 Rate x 10

4 Rate x 100 5 Rate x 1000 6 Rate x 10000

0 Use setup scaling method 1 Scale by reading input

0 Unlatched 1 Latched

0 Full duplex mode 1 Half duplex mode

FiLtr

Filtering

00000

Scaling for nonlinear input

Extended version only

00000

Alarm filtering

00000

Peak display filtering

00000

Display filtering

-13-

0 Linear input 1 Custom curve

0 Output is unfiltered 1 Output is filtered

0 Peak of unfiltered signal 1 Peak of filtered signal

0 Batch average, 16 rdgs 1 Display filtered signal

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

FiLtr

Filtering (continued)

dEc.Pt

Decimal point selection

(Scale and Offset selected)

SCALE

Scale factor multiplier (not available for tC)

00000 Adaptive filter response

00000

Input signal filtering

d.dddd

0.0000 0.0000 0.0000

0 Low threshold level 1 High threshold level

0 Autofilter 1 Batch avg, 16 rdgs. 2 Moving avg, .08 sec. 3 Moving avg, .15 sec. 4 Moving avg, .3 sec. 5 Moving avg, .6 sec. 6 Moving avg, 1.2 sec. 7 Moving avg, 2.4 sec. 8 Moving avg, 4.8 sec. 9 Moving avg, 9.6 sec.

A Unfiltered

d.dddd dd.ddd ddd.dd dddd.d ddddd. .ddddd

Select 0 through 9 for flashing digit and decimal point location when decimal point is flashing

OFFSt

Offset or Zero Value

(coordinates of 2 pts method)

Lo in

Low signal input value (not available for tC & rtd)

Lo rd

Low Displayed Reading at Low Signal Input

Hi In

High Signal Input Value

0.0000 0.0000 0.0000

0.0000 0.0000

0.0000 0.0000 0.0000

0.0000 0.0000

0.0000 0.0000 0.0000

0.0000 0.0000

0.0000 0.0000 0.0000

0.0000 0.0000

Select 0 through 9 for flashing digit. Decimal point location is fixed by dEC.Pt selection

Select 0 through 9 for flashing digit. Decimal point location is fixed by input range chosen.

Select 0 through 9 for flashing digit. Decimal point location is fixed by dEC.Pt selection

Select 0 through 9 for flashing digit. Decimal point location determined by input range chosen.

-14-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Hi rd

High Displayed Reading at High Signal Input

rd0 In

(custom curve only) Corrects for zero errors

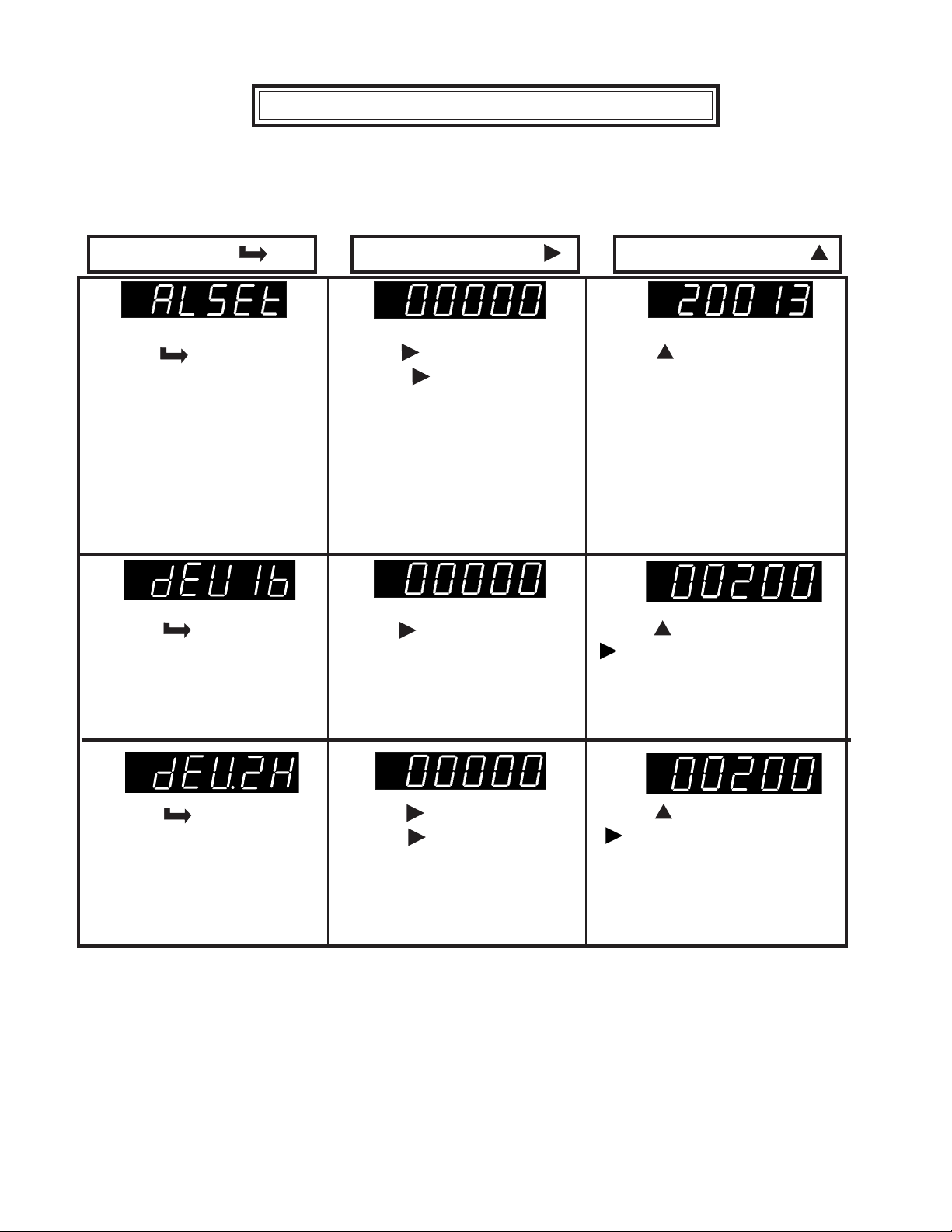

ALSEt

Alarm Operation Setup (Only enabled if relay output is installed).

0.0000 0.0000 0.0000

0.0000 0.0000

04.000

Value set to actual voltage or current input at zero

00000

Relay state when alarm is active

00000

Alarm latching or nonlatching

Select 0 through 9 for flashing digit. Decimal location is fixed by dEC.Pt selection.

Select 0 through 9 for flashing digit.

0 Relay 1 on,

Relay 2 on

1 Relay 1 off

Relay 2 on

2 Relay 1 on,

Relay 2 off

3 Relay 1 off,

Relay 2 off

0 Alarm 1 nonlatching,

Alarm 2 nonlatching

1 Alarm 1 latching,

Alarm 2 nonlatching 2 Alarm 1 nonlatching, Alarm 2 latching

3 Alarm 1 latching,

Alarm 2 latching

00000

Alarm status

0 AL1 active high

AL2 active high 1 AL1 active low AL2 active high

2 AL1 disabled

AL2 active high

3 AL1 active high

AL2 active low

4 AL1 active low

AL2 active low

5 AL1 disabled

AL2 active low

6 AL1 active high

AL2 disabled 7 AL1 active low AL2 disabled

8 AL1 disabled

AL2 disabled

-15-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

ALSEt (continued)

Alarm Operation Setup

00000

Selection of Hysteresis mode or Band Deviation mode of alarms.

00000

Number of readings in the alarm zone to cause an alarm

0 AL1 Band deviation

AL2 Band deviation

1 AL1 Hysteresis

AL2 Band deviation

2 AL1 Band deviation

AL2 Hysteresis

3 AL1 Hysteresis

AL2 Hysteresis

No deviation or hyster-

esis in menu

After 1 reading

1 After 2 readings 2 After 4 readings 3 After 8 readings

4 After 16 readings 5 After 32 readings

6 After 64 readings 7 After 128 readings

dEU1H

Amount of deviation or hysteresis - Alarm 1 (Only enabled if relay output is installed).

dEU2b

Amount of deviation or hysteresis - Alarm 2 (Only enabled if relay output is installed).

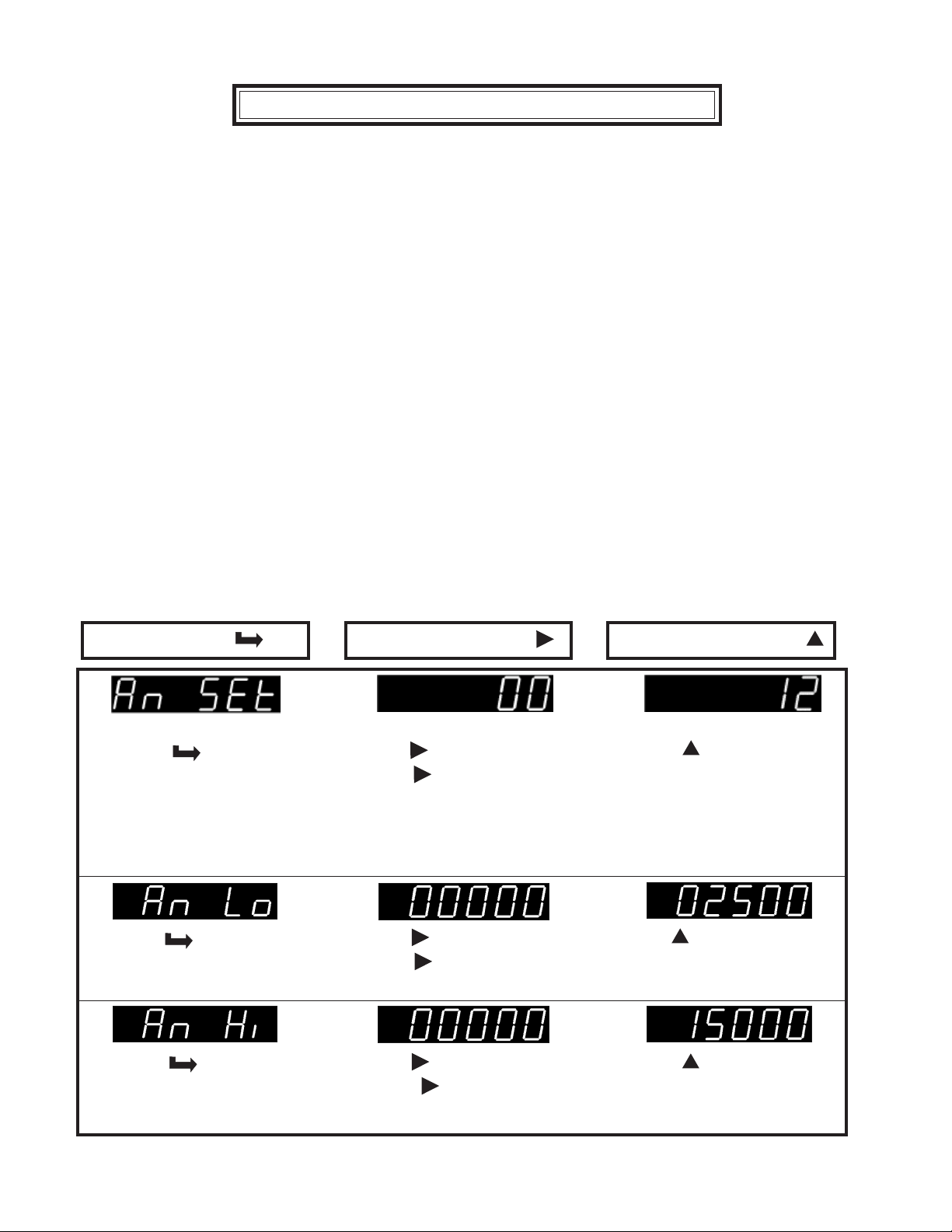

An Set

Setup of analog output. (Only enabled if analog output board is installed).

00000 00000

When the deviation value is >0, the alarms operate above and below setpoint by the value entered.

00000

When the deviation value is >0, the alarms operate above and below setpoint by the value entered.

Calibrated output is current or voltage.

00 0

00000 00000

00000

Select 0 through 9 for flashing digit.

Current output

Voltage output

Analog output unfiltered

Analog output filtering.

-16-

Analog output filtered

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

(if analog output installed)

An Lo

Displayed value for 0 voltage or current output

An Hi

Displayed value for 10 volts or 20 mA output

(if serial interface is installed)

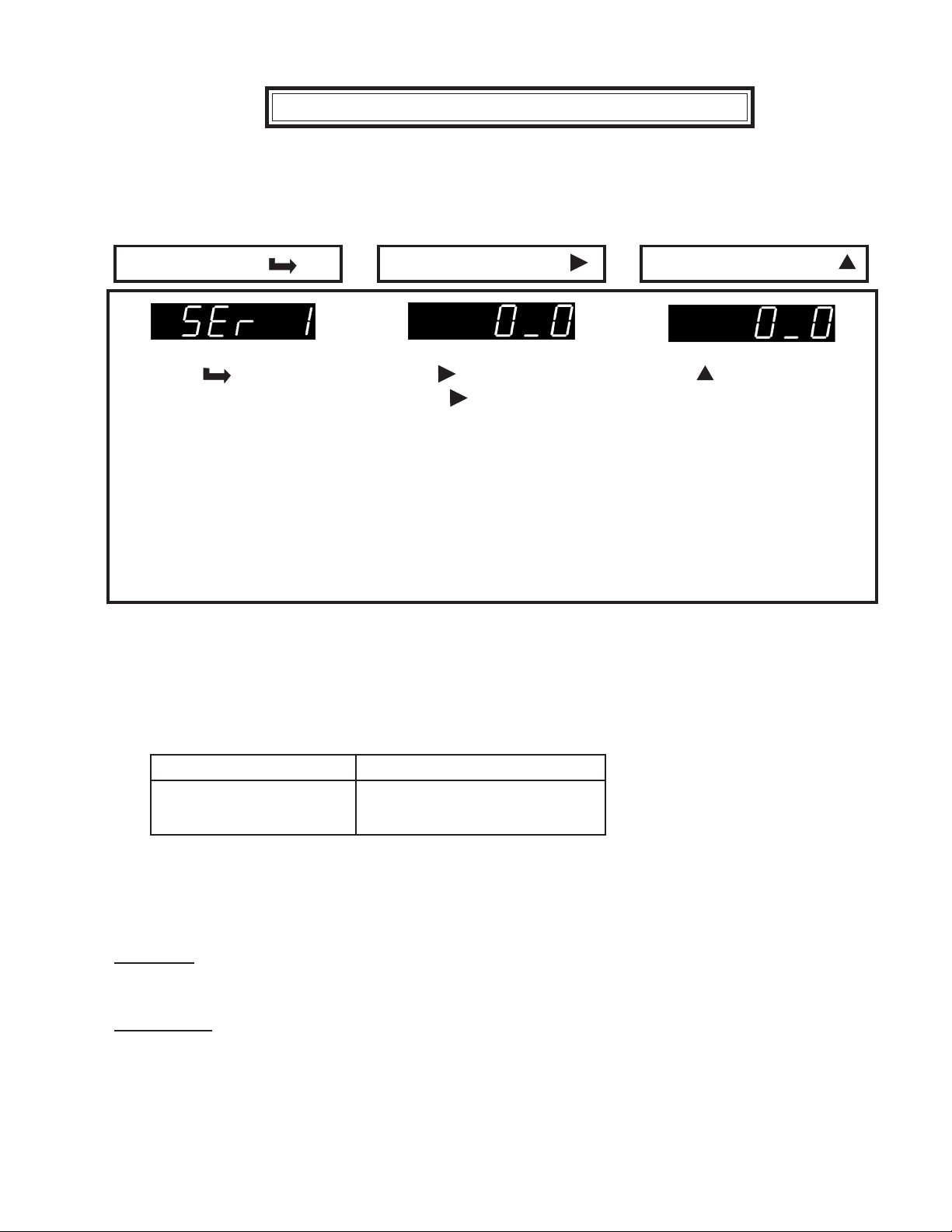

Ser 1

Serial interface setup

Fixed Parameters No parity 8-bit word 1 stop bit

0.0000 0.0000 0.0000

0.0000 0.0000

0.0000 0.0000 0.0000

0.0000 0.0000

000

Output filtering

000

Baud rate

000

Select 0 through 9 for flashing digit. Decimal point location fixed by dEC.Pt selection.

Select 0 through 9 for flashing digit. Decimal fixed by DEC.Pt selection.

0 Send unfiltered signal 1 Send filtered signal

0 300 baud 1 600 baud 2 1200 baud 3 2400 baud 4 4800 baud 5 9600 baud 6 19200 baud

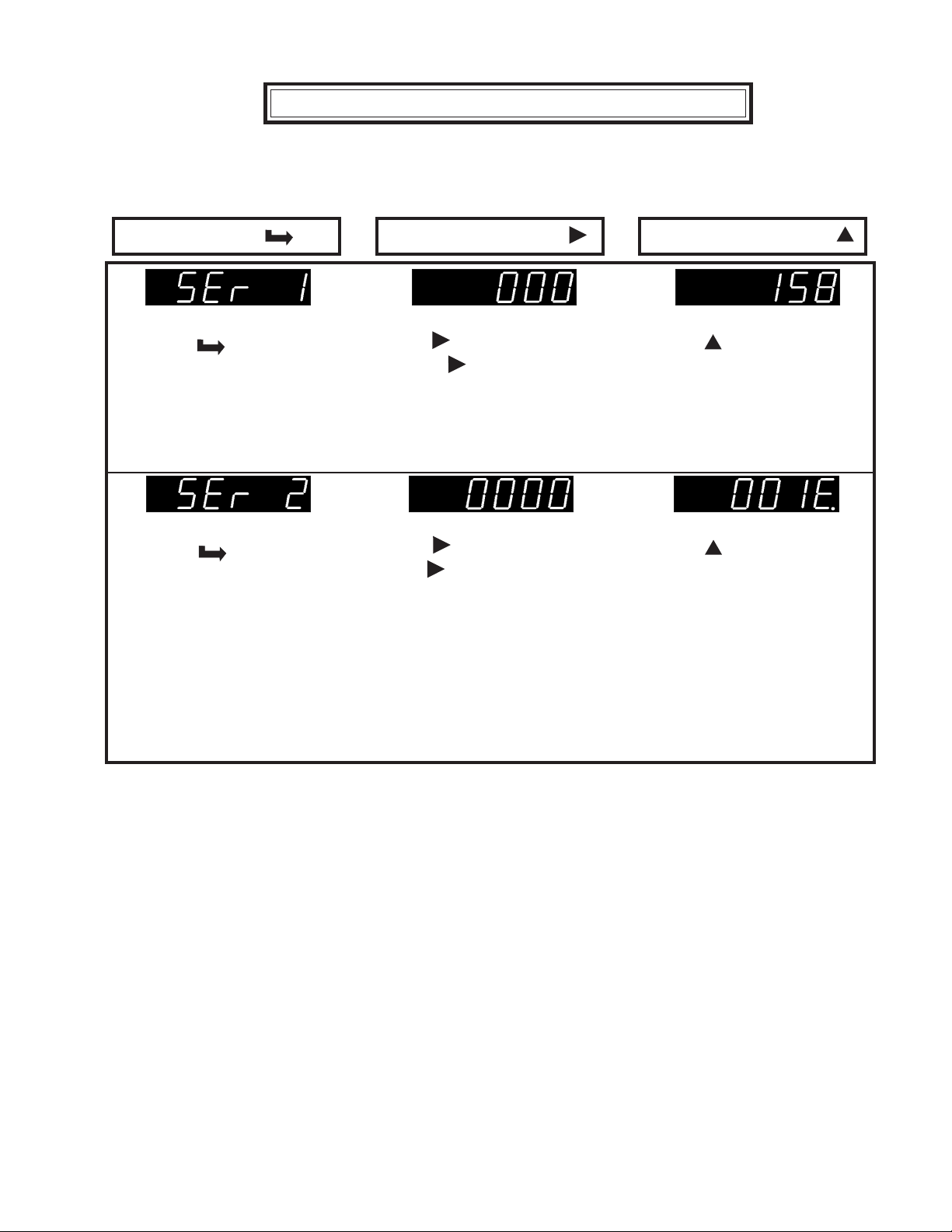

Ser 2

Serial interface setup

000

Digital output rate (in seconds)

0000

Line Feed

0000

Alarm data transmitted with meter readings

0000

Control of digital output

60 Hz 50 Hz

0 Line frequency 1 .28 sec .34 sec 2 .57 sec .68 sec 3 1.1 sec 1.4 sec 4 2.3 sec 2.7 sec 5 4.5 sec 5.4 sec 6 9.1 sec 10.9 sec 7 18.1 sec 21.8 sec 8 36.3 sec 43.5 sec 9 72.5 sec 87 sec

0 None after carriage rtn 1 LF after carriage return

0 No alarm data 1 Alarm data with reading

0 Continuous output 1 Output on RS-232 /

RS-485 command only

-17-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Ser 2 (continued)

Serial interface setup

0000

Meter address for RS-232/RS485 communication ( digit display, address number of meter) Note: Addresses 1 through 15 are denoted by 1 through 9 and A through F. Addresses 16 through 31 use the same character followed by a decimal point.

0000

Meter# Display

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 a 11 b 12 C 13 d 14 E 15 F

16 0. 17 1. 18 2. 19 3. 20 4. 21 5. 22 6. 23 7. 24 8. 25 9. 26 A. 27 b. 28 C. 29 d. 30 E. 31 F.

Loc 1

Lockout of Menu Items (Lockout jumper must be removed to access Loc 1, 2, 3. See Figure 9.1)

00000

Input type selection

00000

Meter setup, configuration and decimal point selection.

00000

Filter

-18-

0 Enabled 1 Disabled

0 Enabled

1 Disabled

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Loc 1 (continued)

Lockout of Menu Items (Lockout jumper must be removed to access Loc 1, 2, 3. See Figure 9.1)

Loc 2

Lockout of Front Panel Keys (Lockout jumper must be removed to access Loc 1, 2, 3. See Figure 9.1)

Loc 3

Lockout of Front Panel Keys (Lockout jumper must be removed to access Loc 1, 2, 3. See Figure 9.1)

00000

Scale or Lo, Hi Input

00000

Offset or Lo, Hi Reading

0000

Alarm Setup

0000

Alarm setpoint programming

0000

Analog output scaling

0000

Serial interface setup

0000

View peak value pushbutton

0000

View alarm setpoints pushbutton

0 Enabled 1 Disabled

0000

Reset pushbutton (peak and latched alarms)

0000

Reset pushbutton (meter reset)

-19-

0 Enabled 1 Disabled

11. DC VOLTS & AMPS

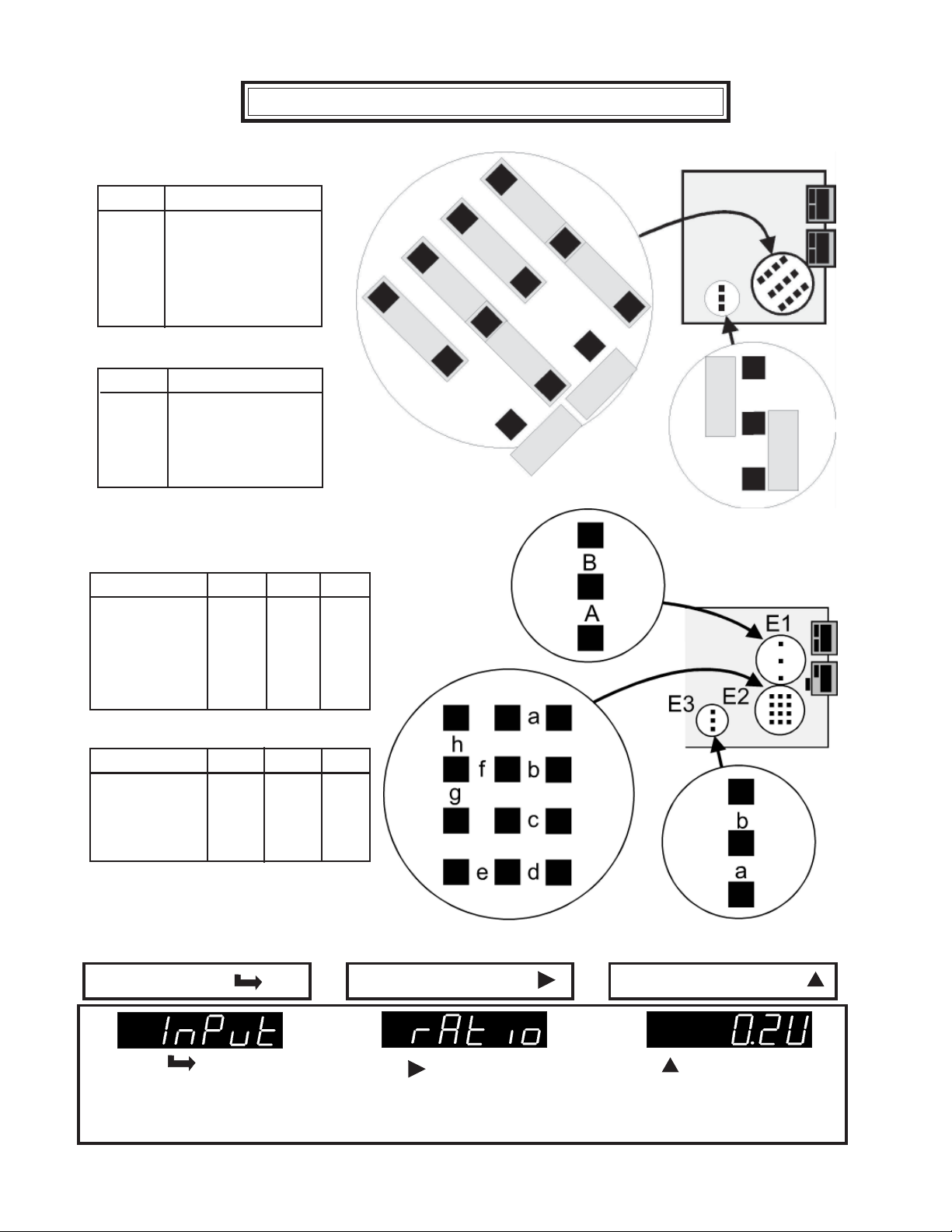

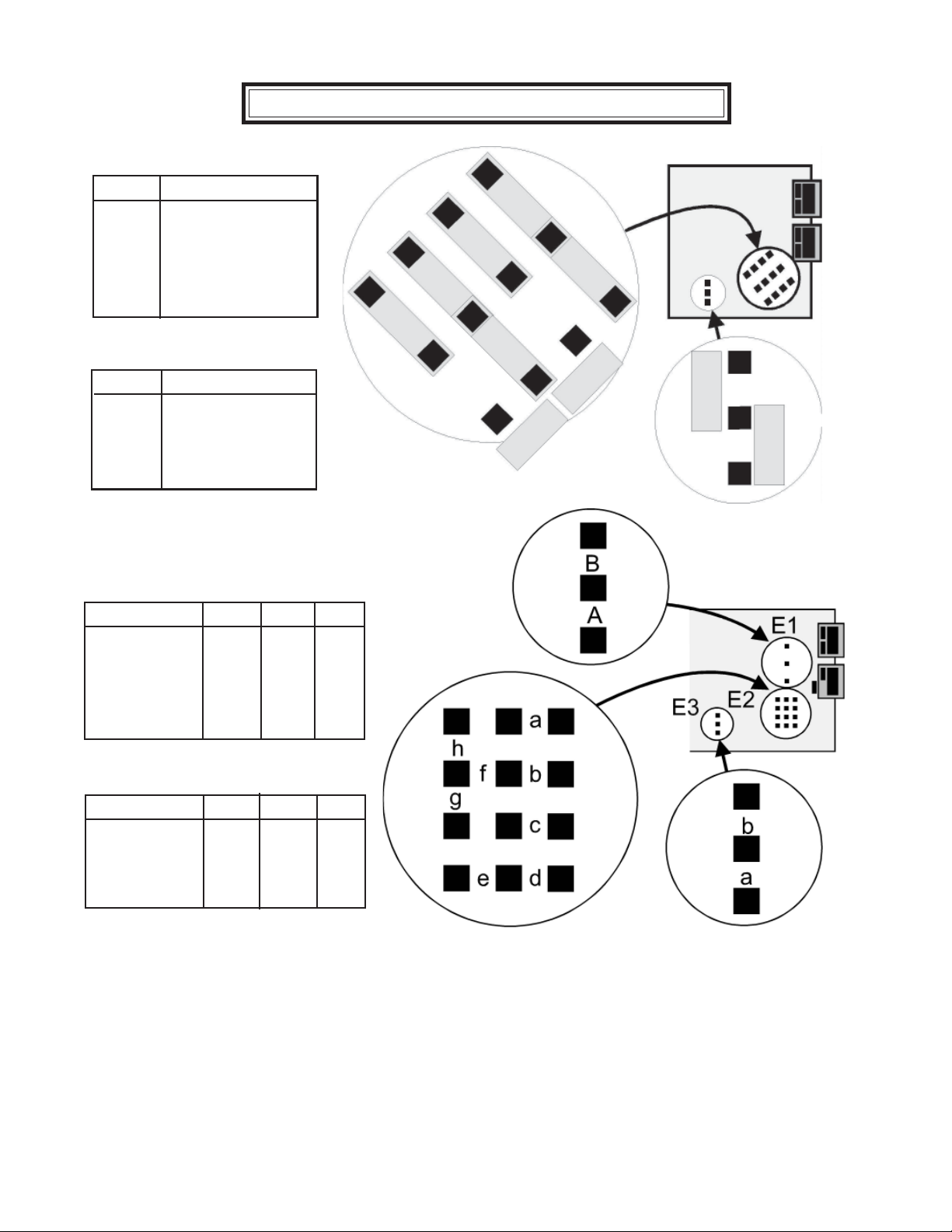

11.1 RANGE JUMPER SELECTIONS Voltage

Input Jumpers Required

200mV E, b 2V E, a 20V F, g, b 200V F, g, a 660V F, h, a

Current Input Jumpers Required

2mA D, h, b 20mA C, h, b 200mA B, h, b 5A A, h, b

Figure 11.1 DC Signal Conditioner

Voltage

Input E1 E2 E3 ±200.00 mV A f b ±2.0000 V A f a ±20.000 V B h b ±200.00 V B h a ±600.00 V B g a

Current

FS Input E1 E2 E3 ±2.0000 mA A e, h b ±20.000 mA A d, h b ±200.00 mA A c, h b ±5.000 A A a,b,h b

11.2 MENU SELECTION

-20-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Press the key to display InPut (Input type selection). Note: Selection of input type & range must match jumper selection in Section 11.1

Press the

key to display SEtuP. (Basic setup) See Section 9, Page 10 for detailed description of selections for digits 1 through 5.

Press the

key to display dEcPt (Decimal point).

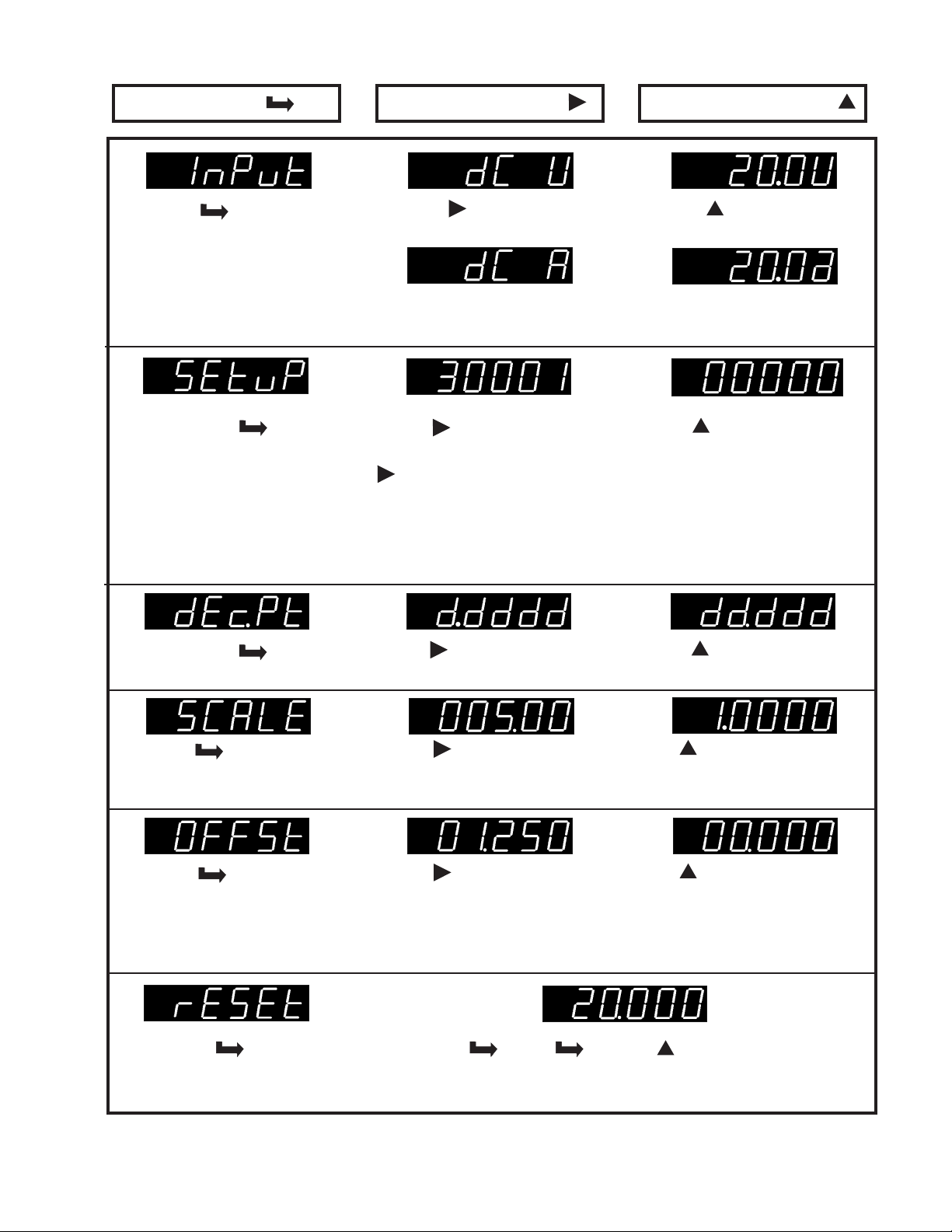

Press until dC U (dc Volts) is displayed

or dC A (DC Amps) is displayed.

1 2 3 4 5 Press to display status and select left digit. Press

again to select another

digit. Selected digit will flash.

Press to display location of decimal point.

Press

to select 0.2V,

2.0V, 20.0V, 200.0V, 660.0V

or 2.0a, 20.0a, 200.0a (milliamps) or 5.0A (Amps)

1 2 3 4 5

Press

to select value for flashing digit. Digit 1: "0"= 20,000 cts. full scale "3"=2,000 cts. full scale Digit 4: "0" = scale and offset method

Press

to change decimal

point location.

Press the

key to display

SCALE (Scale factor).

Press the

key to display

OFFSt (Zero offset).

Press the

key. Continue to press

Press to display value and select left digit. Press again to select another digit.

(or

and

Use

to set digit values. Set value and decimal to 1.0 (1.0000, 01.000, etc)

Use

to set digit values. Set value to 00.000. Decimal point is fixed by Dec.Pt.

simultaneously) until rESEt is displayed. The meter will now go to the operating mode and display the value of the input signal.

-21-

12. PROCESS SIGNAL INPUTS

12.1 RANGE JUMPER SELECTIONS Voltage

Input Jumpers Required

200mV E, b 2V E, a 20V F, g, b 200V F, g, a 660V F, h, a

Current Input Jumpers Required

2mA D, h, b 20mA C, h, b 200mA B, h, b 5A A, h, b

Voltage

Input E1 E2 E3 ±200.00 mV A f b ±2.0000 V A f a ±20.000 V B h b ±200.00 V B h a ±600.00 V B g a

Current

FS Input E1 E2 E3 ±2.0000 mA A e, h b ±20.000 mA A d, h b ±200.00 mA A c, h b ±5.000 A A a,b,h b

12.2 MENU SELECTION

Display in engineering units is most easily programmed using the coordinates of 2 points. There are two methods. The first is to enter the 4 values (low signal input, desired reading at the low signal input, high signal input, and desired reading at the high signal input) directly via the front panel pushbuttons or the RS232 interface. The second method is to have the meter read the signal input at a known low value and store that reading as the low in and read a known high signal value and store that value as high in. The low and high known values are entered as the lo rd and hi rd. An example of using the reading the input method of coordinates of 2 points is shown for the load cell meter, Section 17. Selecting the reading method (menu item "config" digit 2 set to 1) overides either method of scaling selected in "setup". The following example is the 2 coordinate method of directly entering the 4 values.

-22-

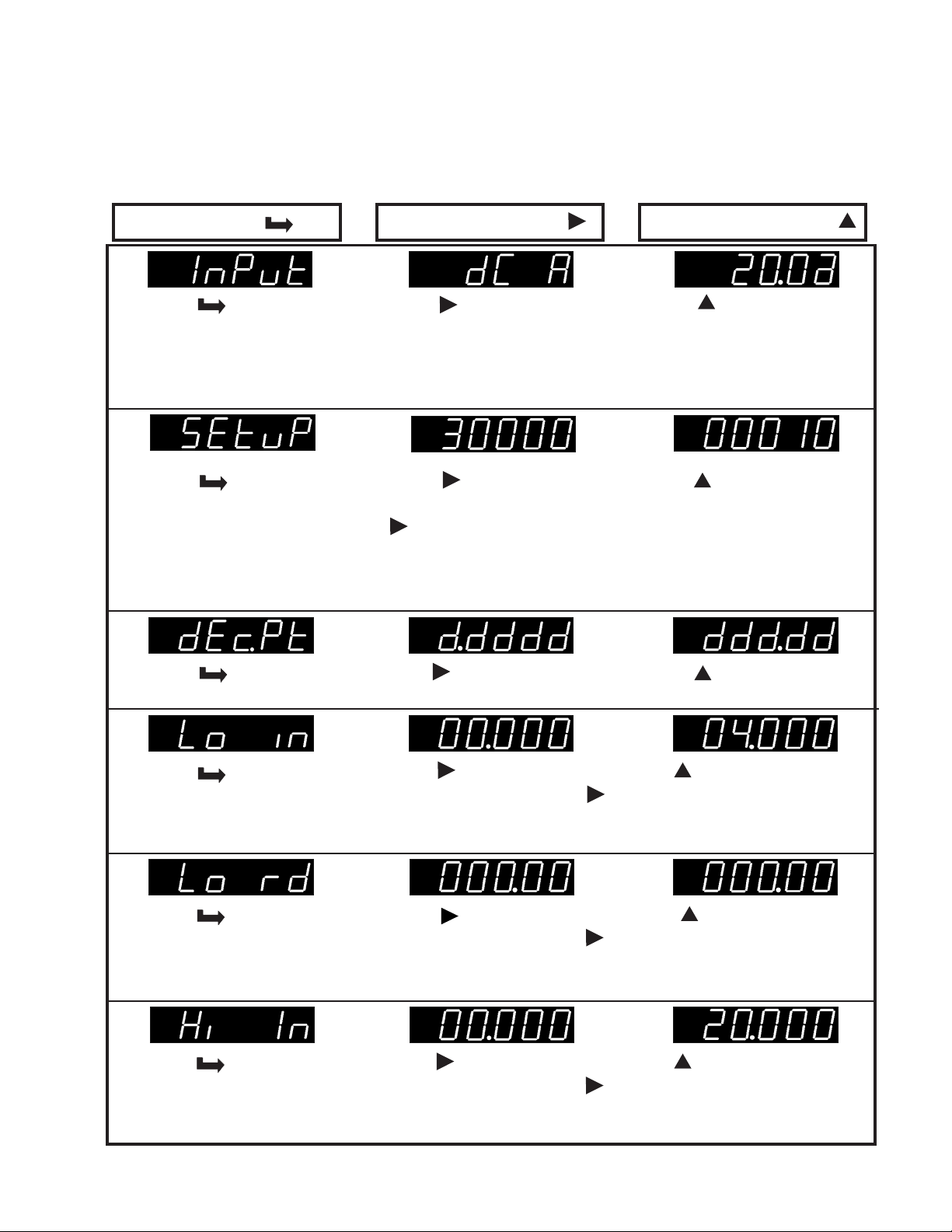

To set up the range using coordinates of 2 points, values for low signal input, low display, high signal input and high display are entered. The following example uses this scaling method. Signal input is 4 to 20mA and displayed value is 000.00 (at 4mA) to 100.00 (at 20mA). When setting up the meter, it may be necessary to enable some menu items. See Section 9 for further information.

MENU KEY

Press the

key to display InPut (Input type selection). Note: Selection of input type & range must match jumper selection in Section 12.1.

Press the

key to display

SEtuP. (Basic setup) See Section 9, Page 10 for detailed description of selections for digits 1 through 5.

Press the

key to display

dEcPt (Decimal point).

DIGIT SELECT KEY VALUE SELECT KEY

Press

until dC A (DC Amperes) is displayed. (dC U if voltage input).

Press

20.0a, 200.0a (milliamps) or

5.0A (Amps).

to select 2.0a,

(.20U, 2.0U, 20.0U, 200.0U or 660.0U if voltage input)

1 2 3 4 5

Press to display status and select left digit. Press again to select another digit. Selected digit will flash.

Press flashing digit. Digit 1: "0"= 20,000 cts

1 2 3 4 5

to select value for

"3"=2,000 cts

Digit 4: "0"=scale & offset

"1"=2- coordinate

Press to display decimal point location

Press point location.

to change decimal

Press the

key to display

Lo in (Low signal input value).

Press the key to display Lo rd (Desired meter reading at low signal input).

Press the

key to display

Hi in (High signal input value).

Press

to display value and select left digit. Press again to select another digit..

Dec pt. fixed by input range

Press to display value and select left digit. Press again to select another digit. Decimal point set by Dec.Pt.

Press

to display value and select left digit. Press again to select another digit.

Dec pt. fixed by input range

-23-

Use

to set digit values and set to 04.000 (4 mA). Most significant digit may be set to 0 thru 9 and -0 thru -9.

Use

to set digit values

and set to 000.00 .

Use

to set digit values and set to 20.000 (20 mA).

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Press the

key to display Hi rd (Desired meter reading at high signal input).

Press

to display value and select left digit. Press again to select another digit.

Use

to set digit values

and set to 000.00 .

Decimal point set by Dec.Pt.

Press the

key. Continue to press

(or

and

simultaneously) until rESEt is displayed. The meter will now go to the operating mode and display the value of the input signal.

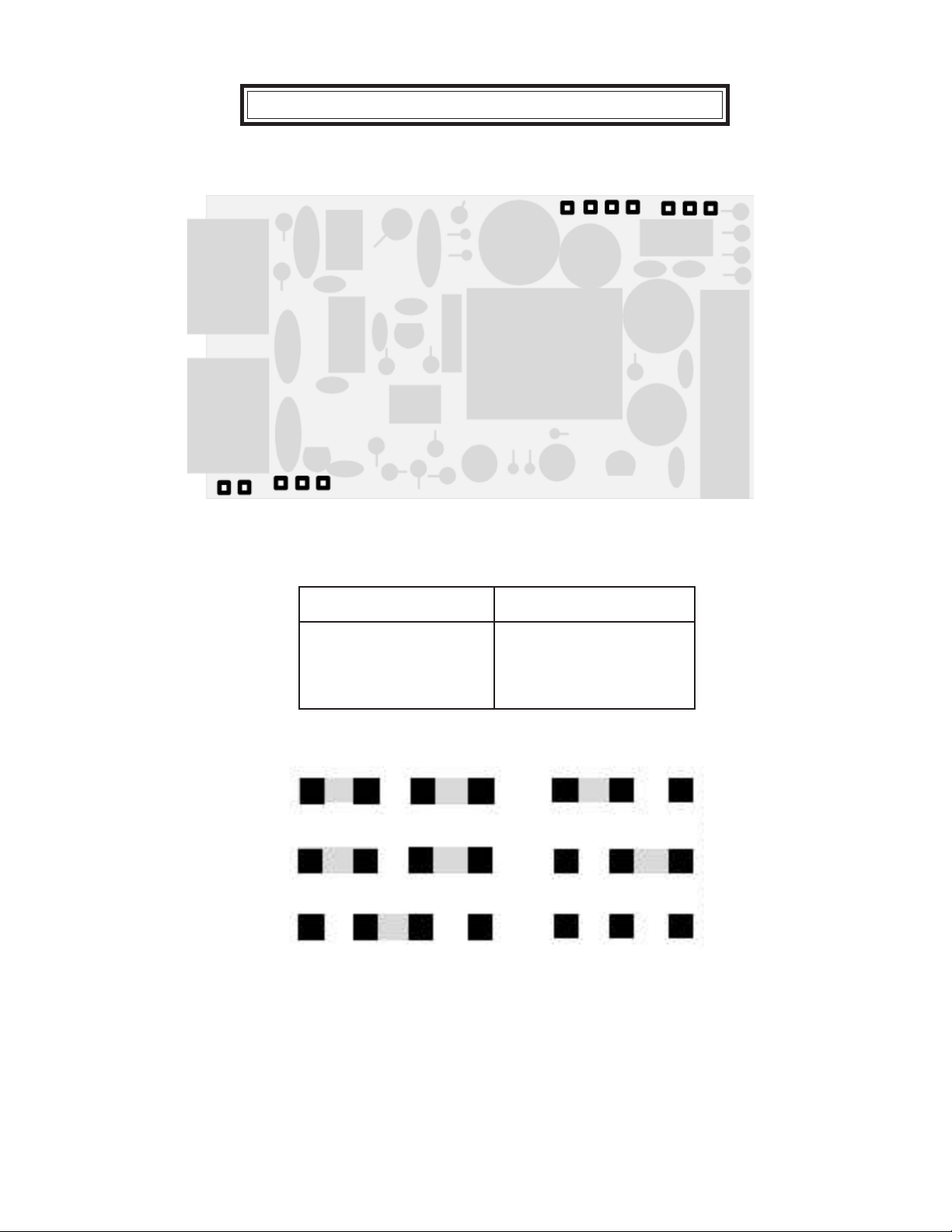

13. THERMOCOUPLES

13.1 RANGE JUMPER SELECTIONS

Thermocouple Type

Type Jumpers Required

J, K, E, N e T, R, S f

Open Thermocouple

Open TC

Indication Jumpers Required

Upscale c Downscale d

Figure 13.1 Temperature Signal Conditioner

13.2 MENU SELECTION

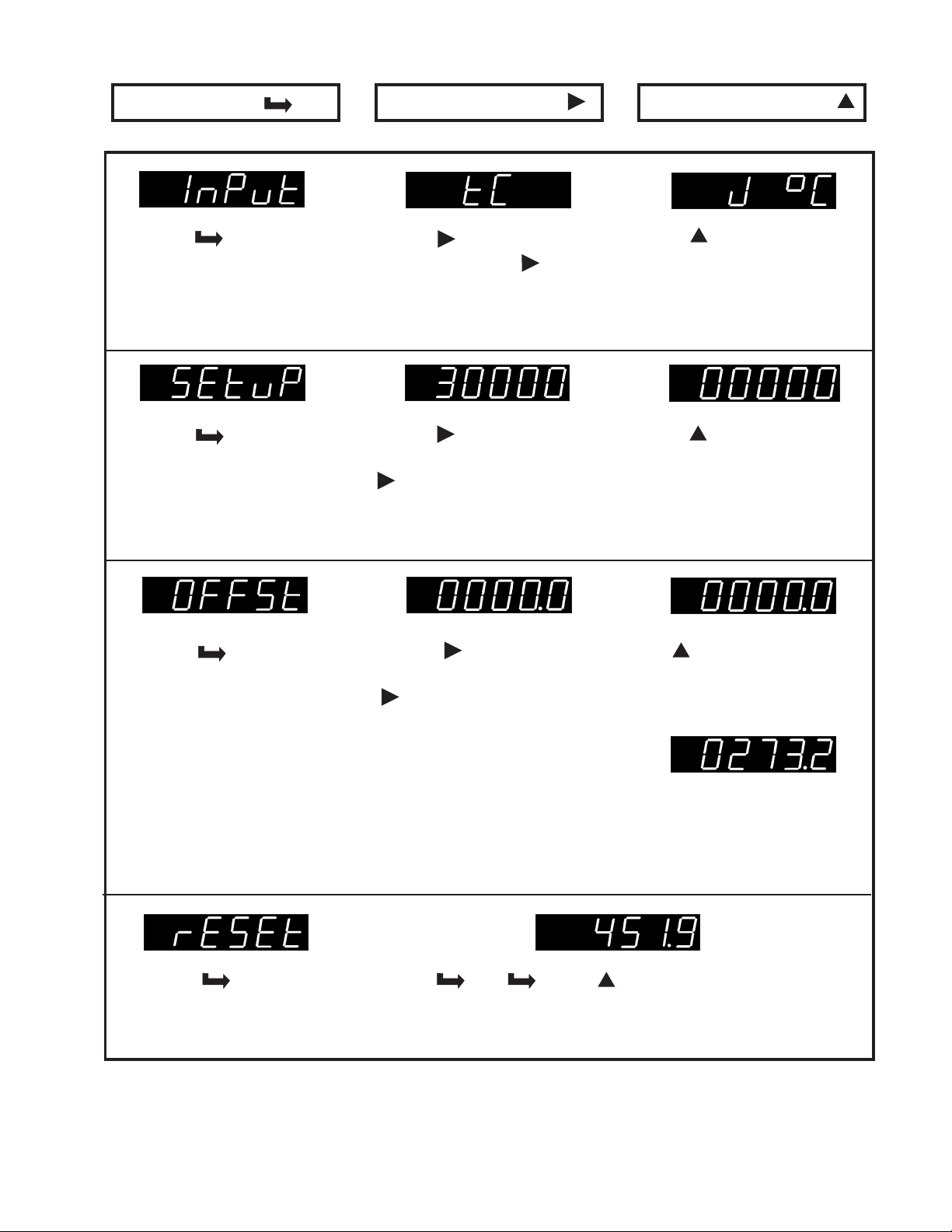

Thermocouple type and Celsius or Fahrenheit scale are selected by input type. However, Kelvin or Rankine may be displayed by entering the appropriate offset to the selected scale. Although 0.01 degree resolution may be selected, it is not recommended for use with thermocouples. When setting up the meter, it may be necessary to enable some of the menu items. See Section 9 for further information.

-24-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Press the key to display InPut (Input type selection). Note: Selection of input type & range must match jumper selection in Section 13.1.

Press the key to display SEtuP. (Basic setup) See Section 9, Page 10 for detailed description of selections for digits 1 through 5.

Press the

key to display

OFFSt (Zero offset).

Press to display input selected. Press

again until tC (thermocouple) is displayed.

Press to display status and select left digit. Press again to select another digit. Selected digit will flash.

Press

to display value and select left digit. Press again to select another digit.

Press

to select thermocouple type J, K, T, E, R, S and °C or °F scale (J°F, J°C, K°F, K°C, t°F, t°C, E°F, E°C, r°F, r°C, S°F, S°C)

1 2 3 4 5

Press

to select value for flashing digit. Digit 1: "0"= 0.1 degree resolution "3"=1 degree resolution

Use

to set digit values and

set to 000.00 for °F and °C or

set value to 273.2 if °C is selected to display in °Kelvin and 459.7 if °F is selected to display in ° Rankine.

Press the

key. Continue to press

(or and

simultaneously) until rESEt

is displayed. The meter will now go to the operating mode and display the value of the input signal.

-25-

14. Pt100 RTD'S

14.1 RANGE JUMPER SELECTION

All RTD Types

Jumpers Required

2-,4-wire

b, e

Jumpers Required

3--wire

a, e

Note: See Section 22 to select 10 Vdc excitation.

Figure 14.1 Temperature Signal Conditioner

14.2 2-WIRE RTD LEAD COMPENSATION

This section describes how to remove the error caused by lead resistance in a 2-wire RTD. Ambient temperature changes will cause some error in the readings; the higher the lead resistance, the greater the error. When performing this procedure, the leads should be shorted together as close as possible to the RTD. This step is not necessary when using 3- or 4-wire RTD's since lead resistance compensation is automatic in the meter. When setting up the meter, it may be necessary to enable some of the menu items. See Section 9 for further information.

MENU KEY

Press the InPut (Input type selection).

Press the the key to store value. Set up for RTD per section 14.3

key to display

key until rESEt is displayed. Short the input leads at the RTD sensor. Press

DIGIT SELECT KEY VALUE SELECT KEY

Press to display input selected. Press again until rtd is displayed.

-26-

Press

to select short.

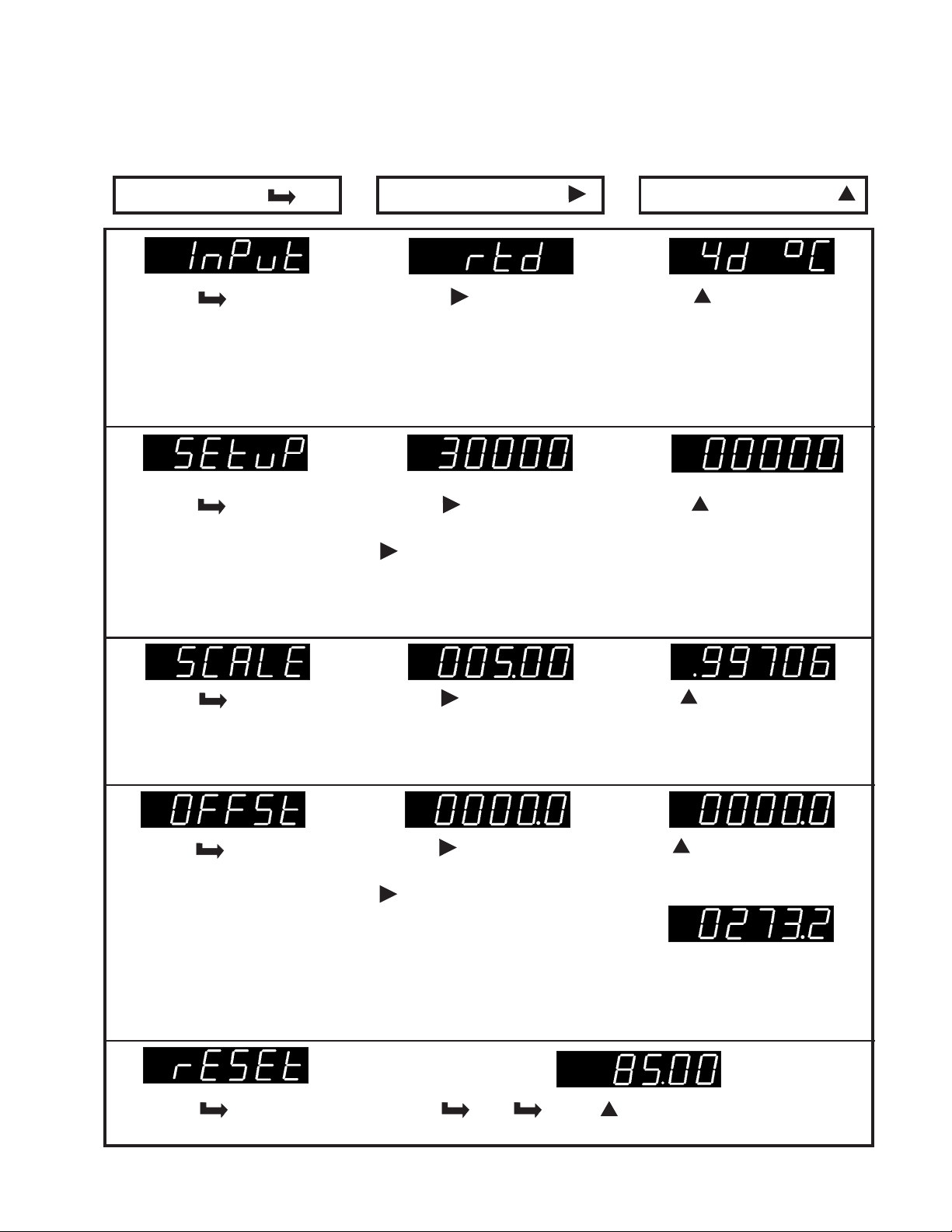

14.3 MENU SELECTIONS

The following example is setup for a 4-wire DIN RTD. When setting up the meter, it may be necessary to enable some of the menu items. See Section 9 for further information.

MENU KEY

Press the

key to display InPut (Input type selection). Note: Selection of input type & range must match jumper selection in Section 14.1.

Press the

key to display

SEtuP. (Basic setup) See Section 9, Page 10 for detailed description of selections for digits 1 through 5.

DIGIT SELECT KEY VALUE SELECT KEY

Press

until rtd (resistance temperature detector) is displayed

Press (4d°F, 4d°C, 4A°F, 4A°C, 3d°F, 3d°C, 3A°F, 3A°C,

to select rtd type

2d°F, 2d°C, 2A°F, 2A°C) Number = # of leads Letter = Din or ANSI RTD

1 2 3 4 5

Press to display status and select left digit. Press again to select another digit. Selected digit will flash.

Press flashing digit. Digit 1: "0"= 0.1 degree resolution

to select value for

"2" = 0.01 degree resolution "3"=1 degree resolution

Press the

key to display SCALE. Divide 100 by resistance of RTD at 0° C to

Press to display value and select left digit. Press again to select another digit.

Use

to set digit values. Set value and decimal to calculated scale factor.

calculate scale factor.

Press the key to display OFFSt (Zero offset).

Press to display value and select left digit. Press

Use set to 0.0 for °F and °C or

to set digit values and

again to select another digit.

set value to 273.2 if °C is selected to display in °Kelvin and 459.7 if °F is selected to display in ° Rankine.

Press the

key. Continue to press

(or

and

simultaneously) until rESEt

is displayed. The meter will go to the operating mode and display the value of the input signal.

-27-

15 STRAIN GAUGES AND POTENTIOMETERS

12.1 RANGE JUMPER SELECTIONS Voltage

Input Jumpers Required

200mV E, b 2V E, a 20V F, g, b 200V F, g, a 660V F, h, a

Current Input Jumpers Required

2mA D, h, b 20mA C, h, b 200mA B, h, b 5A A, h, b

Voltage

Input E1 E2 E3 ±200.00 mV A f b ±2.0000 V A f a ±20.000 V B h b ±200.00 V B h a ±600.00 V B g a

Current

FS Input E1 E2 E3 ±2.0000 mA A e, h b ±20.000 mA A d, h b ±200.00 mA A c, h b ±5.000 A A a,b,h b

15. 2 MENU SELECTION

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Press the InPut. Note: Range selection must match jumper selection in Section 15. 1 .

key to display

Press until rAtio (Ratiometric operation) is displayed.

-28-

Press or 20.0U (200mV, 2V or 20Vdc).

to select 0.2U, 2.0U

MENU KEY

Press the key to display SEtuP. (Basic setup). See Section 9, Page 10 for detailed description of selections for digits 1 through 5.

DIGIT SELECT KEY VALUE SELECT KEY

1 2 3 4 5

Press to display status. Press

again to select another digit. Selected digit will flash.

Press Digit 1:"0"= 20,000 cts. FS

to select value.

"2"=LSD fixed zero "3"=2,000 cts. FS

Digit 4: "1" for 2 point scaling

Press the

key to display

dEcPt (Decimal point).

Press the

key to display

Lo in (Low signal input value).

Press the

key to display Lo rd (Desired meter reading at low signal input).

Press the

key to display

Hi in (High signal input value).

Press to display decimal point location.

Press to display value. Press again to select another digit. Note: Deci-

mal point is fixed by input range selection.

Press to display value. Note: Decimal point is fixed by dEcPt selection.

Press to display value. Note: Decimal point is fixed by input range selection.

Press

to select decimal

point location.

Use

to set digit values and set to .00000 ( 0mV ). Note: Most significant digit may be set to 0 thru 9 and

-0 thru -9.

Use

to set digit values and set to 000.00

Use

to set digit values and set to .02000 ( 20mV )

Press the key to display Hi rd (Desired meter reading at high signal input).

Press the

key. Continue to press

Press to display value. Note: Decimal point is fixed by dEcPt selection.

(or

and simultaneously) until rESEt is

Use set to 100.00

to set digit values and

displayed. The meter will now go to the operating mode and display the value of the input signal.

-29-

16. AC (RMS) VOLTS & AMPS

This section provides basic setup instructions for true RMS voltage or current monitoring. An RMS signal conditioner is required. Some menu items, such as leading zero blanking, display filtering, etc., are not discussed in this section and have been set to the most commonly used values. Should these items require change, refer to section 10 for selection information. For configuration of optional boards, see the appropriate section elsewhere in the manual.

16. 1 RANGE JUMPER SELECTIONS Voltage

Jumpers Required Input AC Coupled 200mV g, k 2V g, j 20V h, k 200V h, j 660V f, j

Current

Jumpers Required Input AC Coupled 2mA e, f, k 20mA d, f, k 200mA c, f, k 5A a, b, f, m

b c

Figure 16. 1 RMS Signal Conditioner

16. 2 MENU SELECTION

Whenever the scale factor is 1.0 and offset is zero, the meter displays a direct readout of the signal input in (milli)volts or (milli)amperes. In the following example, the meter is configured for a full scale display of 0 to 20V or 0 to 20mA equals 20.000. Other ranges follow the same setup format. Note that the decimal point selection does not affect the displayed value. A full scale value of 20000 may be displayed as 20.000 Volts or 20000 millivolts. When an external shunt or current transformer is used to monitor current, the appropriate scale factor must be entered. A 5A CT input to the meter displays 20000 (2000 when 3 1/2 digit is selected). For an 800 Amp CT, divide 8000 (desired full scale display with .1 Amp resolution) by 20000 (full scale when the scale factor is 1.0) for the correct scale factor. Enter .4 as a scale factor. During setup, it may be necessary to enable some menu items that are locked out. See Section 9 for further information.

-30-

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

Press the key to display InPut (Input type selection).

Note: Selection of input type & range must match jumper selection in Section 16. 1.

Press the key to display SEtuP. (Basic setup). See Section 9, Page 10 for detailed description of selections for digits 1 through 5.

Press until AC U (ac Volts) is displayed or

AC A (ac Amperes) is displayed.

Press to display status and select left digit. Press again to select another digit. Selected digit will flash.

Press

to select 0.2V,

2.0V, 20.0V, 200.0V or

660.0V or

2.0a, 20.0a, 200.0a (milliamps) or 5.0A (Amps)

1 2 3 4 5

Press

to select value for flashing digit. Digit 1: "0"= 20,000 cts. full scale "2"=Same as "0" but LSD is fixed zero. "3"=2,000 cts. full scale Digit 4: Set to "0" for scale and offset

Press the key to display dEcPt (Decimal point).

Press the key to display SCALE (Scale factor).

Press to display decimal point location.

Press to display value and select left digit. Press again to select another digit.

Press point location.

to select decimal

Use

to set digit values. Set value and decimal to 1.0 or appropriate multiplier for external shunts or CT's.

Press the key to display OFFSt (Zero offset).

Press the

key. Continue to press

Press to display value and select left digit. Press again to select another digit.

(or

and simultaneously) until rESEt

Use Set value to 00.000. Decimal point is fixed by Dec.Pt.

to set digit values.

is displayed. The meter will now go to the operating mode and display the value of the input signal.

-31-

17. LOAD CELLS AND MICROVOLT INPUTS

This section provides setup instructions for use as a microvoltmeter or with load cells and strain gauges. 10 Volt excitation will power up to 4 350 Ohm load cells. Sense leads may be used to compensate for lead resistance of the excitation supply. For configuration of optional boards, see the appropriate section elsewhere in the manual.

17.1 RANGE JUMPER LOCATIONS

Input Jumper Full Scale Display Locations Scale factor = 1 20mV e 20000 50mV a 50000 100mV b 10000 250mV c 25000 500mV d 50000

Notes 1. See Section 22 to select 10V excitation.

2. Jumpers are 2.5mm (0.1 in).

17.2 MENU SELECTION

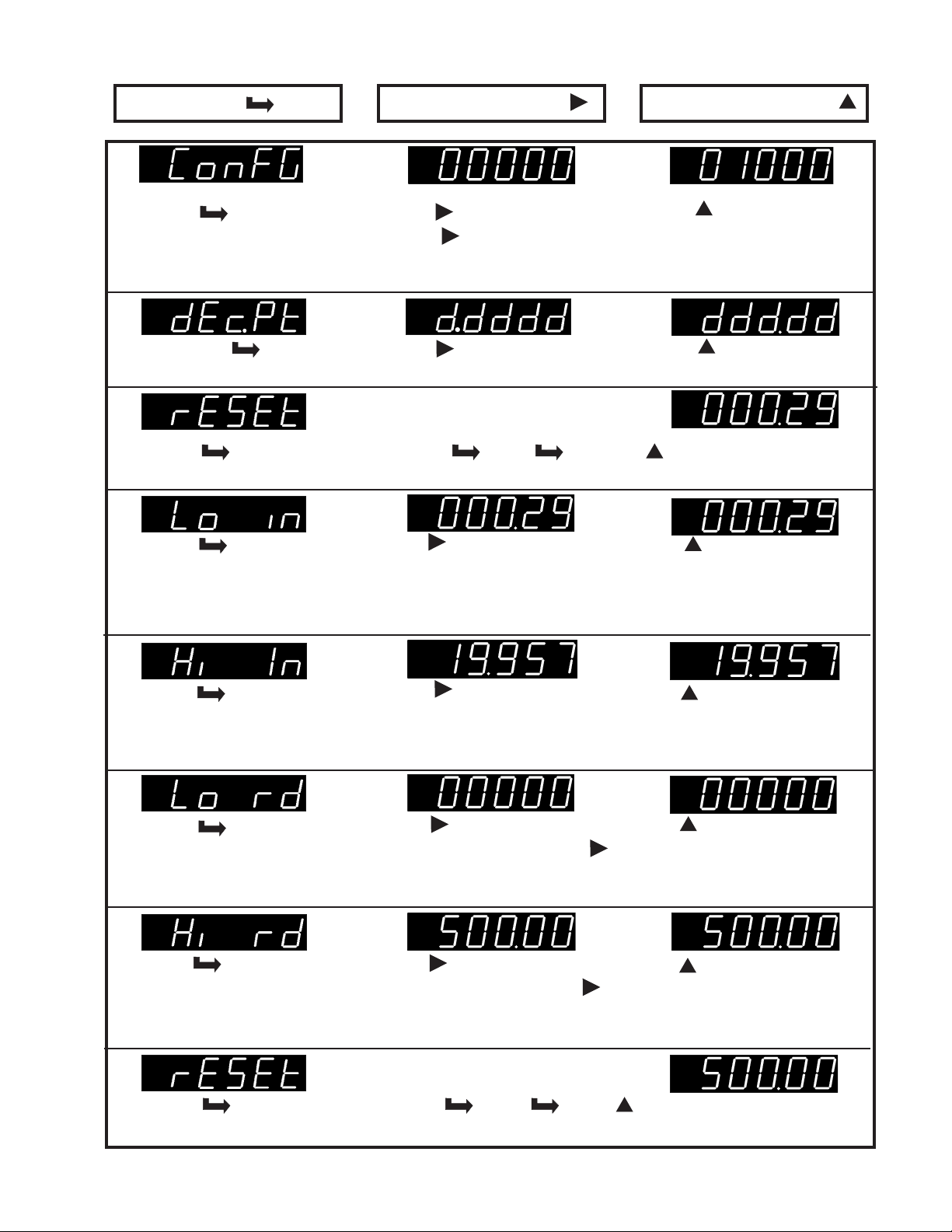

To scale the meter using the reading method of coordinates of 2 points, the low signal input and high signal input are read directly by the meter and are stored as Lo in and Hi in. For example, the full scale range of a load cell is 500 pounds and has an output of 2mV/V. With 10V excitation, the full scale range of 20mV selected. The resolution is .01 pounds. With no weight on the scale, the meter should read 0.00 and with a 500 pound weight on the scale the meter should display

500.00 pounds. With no weight on the scale, press the menu key to select Lo inand press the digit select key. The meter will take readings and display the millivolt value of the input signal. Pressing the value select key will store this reading as Lo in. Press the menu key to select Hi in, place the 500 pound weight on the scale and repeat the procedure the same as for Lo in. Press the menu key to select lo rd (Low reading) and enter 000.00, then press the menu key to select Hi rd (High reading) and enter 500.00. Advantages of this method are accuracy, since reading the value corrects for any error in the transducer, and ease of recalibration. To recalibrate the meter, take readings at 0 and 500 pounds, Lo rd and Hi rd do not need to be reentered. If a 500 lb. weight was not available, the same result can be achieved by using any known weight. During setup, it may be necessary to enable some menu items. See Section 9 for further information. See Section 12, Process Meters, for an example scaling by direct entry of the input values.

MENU KEY

DIGIT SELECT KEY VALUE SELECT KEY

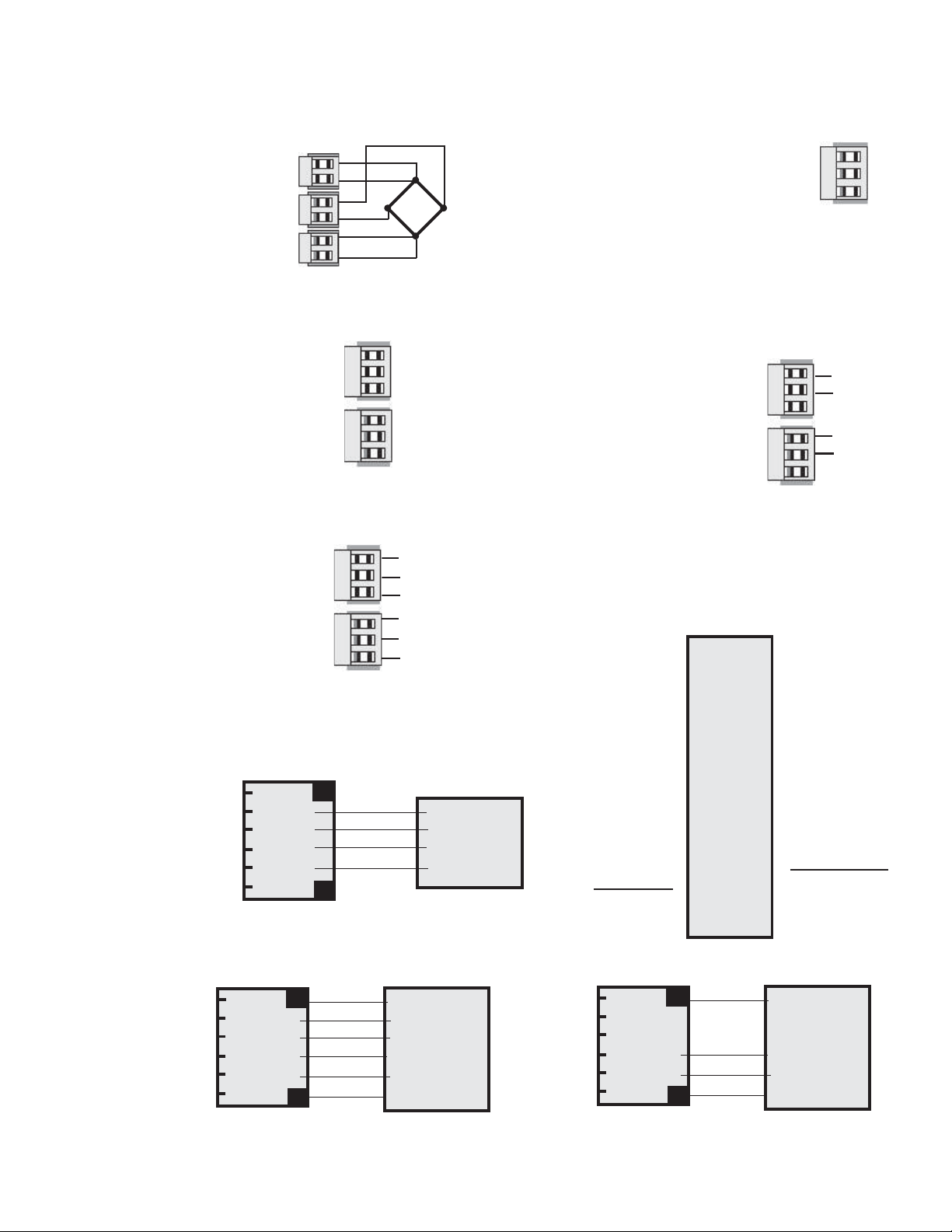

Figure 17.1 Load Cell Signal Conditioner

Press the key to display InPut (Input type selection).

Press until Strn (ratiometric) is displayed.

-32-

Press to select 20.0, 50.0,

100.0, 250.0 or 500.0mV

MENU KEY

Press the key to display ConFG(configuration). See Section 9, Pg 13 for detailed description of digits 1 thru 5.

DIGIT SELECT KEY VALUE SELECT KEY

1 2 3 4 5

Press to display status. Press again to select digit. Selected digit will flash.

Press Digit 2:"1"= Reading input 2 coodinate method of scal-

to select value.

ing.

Press the key to display dEcPt (Decimal

Press to display decimal point location.

Press point location.

to change decimal

point).

Press the key. Continue to press (or and

simultaneously) until rESEt is displayed. The meter will go to the operating mode and display the value of the input signal.

Press the key to display Lo in (Low signal input value). Apply an input for a known low value.

Press the key to display Hi in (High signal input value). Apply an input for a known high value.

Press to display input signal. Meter will momentarily blank and then display a reading.

Press

to display input signal. Meter will momentarily blank and then display a reading.

Use to store reading as low input

Use t o set digit values and set to 20.000mV.

Press the key to display Lo rd (Desired meter reading at low signal input).

Press to display value and select left digit. Press again to select another digit.

Use and set to 0.

to set digit values

Decimal point set by dEc.Pt

Press the key to display Hi rd (Desired meter reading at high signal input).

Press to display value and select left digit. Press again to select another digit.

Use to set digit values and set to 500.00.

Decimal point set by dEc.Pt .

Press the key. Continue to press (or and

simultaneously) until rESEt

is displayed. The meter will go to the operating mode and display the value of the input signal.

-33-

18. DUAL ALARM OUTPUTS

18.1 OPERATING MODE MENU SELECTION

When setting up the meter, it may be necessary to enable some of the menu items. See Section 9 for further information.

MENU KEY

Press the key until ALSEt (Alarm setup) is displayed. See Section 9, ALSEt for detailed selection information for Digits 1 through 5.

Press the key and dEU1b (Alarm 1 band deviation) or dEU1H (Alarm 1 hysteresis) is displayed if ALSEt digit 4 is not set to 4.

DIGIT SELECT KEY VALUE SELECT KEY

1 2 3 4 5 Press to display status. Press again to select digit. Selected digit will flash.

Press to display value. Press again to select digit. Selected digit will flash.

Press to select value for flashing digit

Digit 1:Relay state in alarm Digit 2: Latching or non-latch-

ing output Digit 3: Alarm high, low, or disabled

Digit 4: Hysteresis or deviation Digit 5: Time delay

Using to select digit and to set digit value, enter deviation value for setpoint 1 Relays turn on and off at setpoint if value is zero.

Press the key and dEU2b (Alarm 2 band deviation) or dEU2H (Alarm 2 hysteresis) is displayed if ALSEt digit 4 is not set to 4.

18.2 NORMAL OPERATION

When deviation and hysteresis are not enabled or deviation is set to zero, the alarm energizes at and above the setpoint and deenergizes below the setpoint if high alarm is selected. The alarm energizes at and below the setpoint and deenergizes above the setpoint if low alarm is selected. The setpoint value is not displayed if the alarm is disabled.

Press to display value. Press again to select digit. Selected digit will flash.

-34-

Using to select digit and to set digit value, enter deviation value for setpoint 2 Relays turn on and off at setpoint if value is zero.

18.3 BAND DEVIATION

When deviation is selected from the setup menu, a value is entered for the amount of deviation required. This value represents the number of counts at which the relay will be energized above and below the setpoint. For example, if the setpoint is set to 10,000 and a deviation value of 200 was entered, the relay will activate below 9800 and above 10,200.

18.4 HYSTERESIS

When hysteresis is selected from the setup menu, a value is entered for the amount of hysteresis required. This value represents the number of counts at which the relay will be energized above and deenergized below the setpoint. For example, if the setpoint is set to 10,000 and a hysteresis value of 200 was entered, the relay will activate at 10200 and deactivate at 9800.

18. 3 VIEWING AND CHANGING SETPOINTS

When viewing or changing the setpoint values, it is not necessary to enter the setup menu. This allows the meter to continue conversions and provide outputs when the setpoints are displayed.

ALARM KEY

Press the key to

ALARMS







display Alarm 1 value.

Press key again to

ALARMS

display Alarm 2 value

Press key again. The meter resets and then displays the present reading.

ALARMS

DIGIT SELECT KEY VALUE SELECT KEY

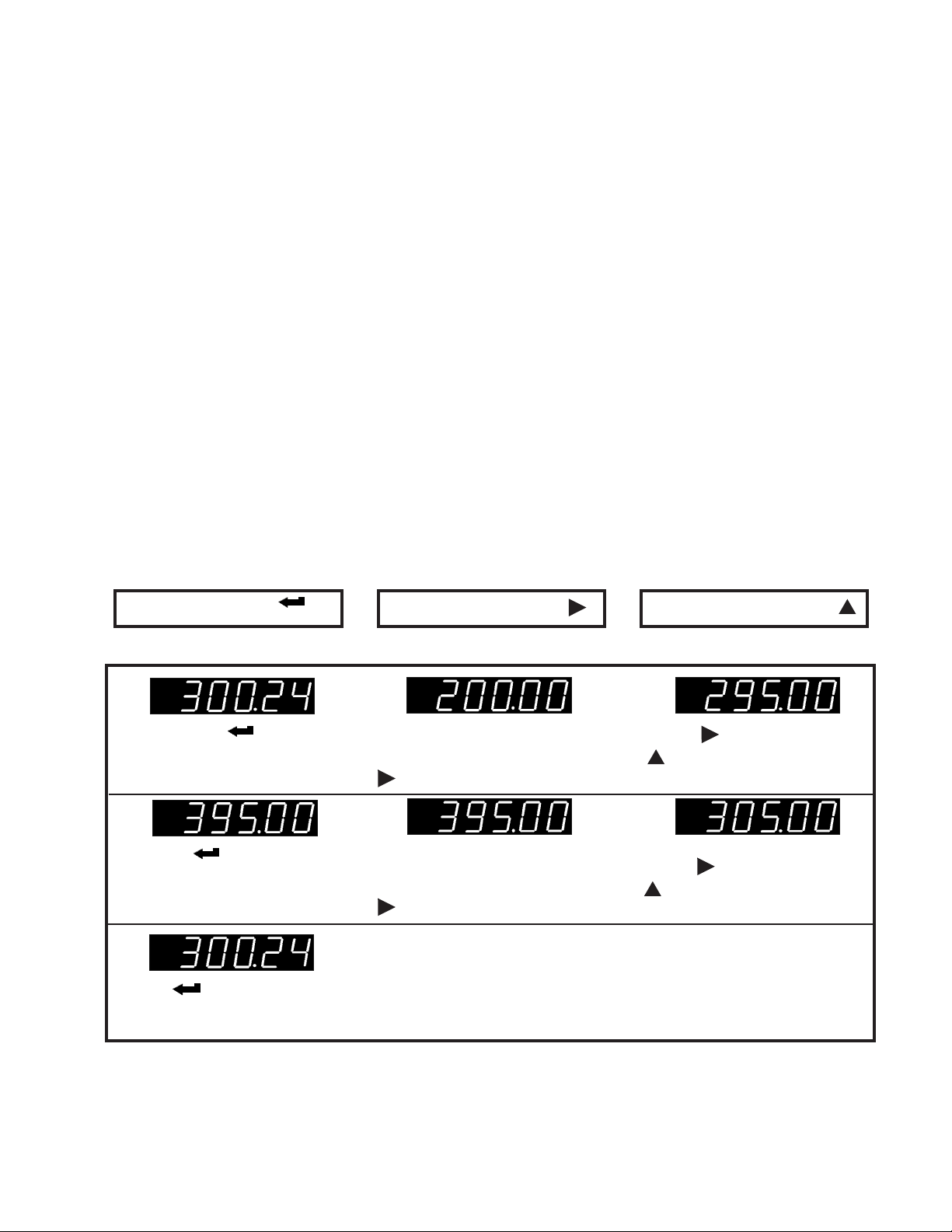

Alarm value blinks and Alarm 1 LED indicator lights. Press

to select digit.

Alarm value blinks and Alarm 2 LED indicator lights. Press

to select digit.

Using to select digit and to set digit value, enter setpoint 1 value.

Using to select digit and to set digit value, enter setpoint 2 value.

-35-

19. ANALOG OUTPUT

The analog output option provides a 0 to 20mA and a 0 to 10Vdc linear signal derived from the displayed reading. The low signal output and high signal output may be set to equal any displayed value. Although both outputs are available, only one is calibrated to specifications. The other output is accurate to +/-1% of the displayed value typical (2%max).

19. 1 4 TO 20MA OUTPUT SCALING

The output is scaled by selecting a displayed value for the low signal output and a displayed value for the high signal output. For a current output, the low value is 0mA and the high output is 20mA. To scale a signal for 4 to 20 mA, the following procedure must be used:

1. Desired display value for 20mA - Desired display value for 4mA = Display span

2. Display span / 4 = Offset value

3. Desired display value for 4mA - Offset value = An Lo

4. An Hi = Desired display value for 20mA

19. 2 ANALOG OUTPUT SETUP SOFTWARE

The following menu items are accessible only with an Analog Output option installed and appropriate lockouts enabled. See Section 9 for further information. Setup Example: 4mA to 20mA out = 5000 counts to 15000 counts (See Section 19.1).

MENU KEY

Press the

key until An Set (Setup of analog output) is displayed. See Section 9, An Set for detailed selection information for Digits 1 through 6.

Press the

key until An Lo (Displayed value at 0mA or 0V) is displayed.

Press the

key until An Hi (Displayed value at 20mA or 10V) is displayed.

DIGIT SELECT KEY VALUE SELECT KEY

1 2 3 4 5 6

Press to display status. Press again to select digit. Selected digit will flash.

Press to select value for flashing digit

Digit 5: Current or Voltage Digit 6: Filtering

Press to display value. Press again to select

Press to select value for flashing digit

digit. Selected digit will flash.

Press to display value. Press again to select

Press to select value for flashing digit

digit. Selected digit will flash.

-36-

20. RS-232 AND RS-485 INTERFACE

20. 1 OPERATING MODE MENU SELECTION

The following menu items are accessible only with an RS-232 or RS-485 option installed and appropriate lockouts enabled. See Section 10 for further information.

MENU KEY

Press the

key until SEr 1 (Serial interface setup 1) is displayed.

Press the

key until SEr 2 (Serial interface setup 2) is displayed.

DIGIT SELECT KEY VALUE SELECT KEY

1 2 3 4 5 Press Press

to display status.

again to select

digit. Selected digit will flash.

Digit 3: Output filtering Digit 4: Baud rate Digit 5: Output update rate

1 2 3 4 5 Press to display status. Press again to select digit. Digit 2: Line feed

Press to select value for flashing digit 3: "0"- Send unfiltered signal "1"- Send filtered signal

4: 5: "0"- "9"-60/sec to 1/15min

Press to select value for flashing digit 2: "0"-no line feed

1 2 3 4 5

"0" - "6" -300 to 19.2K baud

1 2 3 4 5

"1"-<LF> after <CR> Digit 3: Alarm data sent with meter readings

Digit 4: Control of output

3: "0"-no alarm data

"1"-alarm data sent

4: "0"-continuous output

"1"-output on command

Digit 5: Meter address

5: "1" to "F" & "0." to "F." -

Meter #1 to Meter #31

-37-

15. RS-232 AND RS-485 INTERFACE

15. 1 JUMPER SELECTIONS

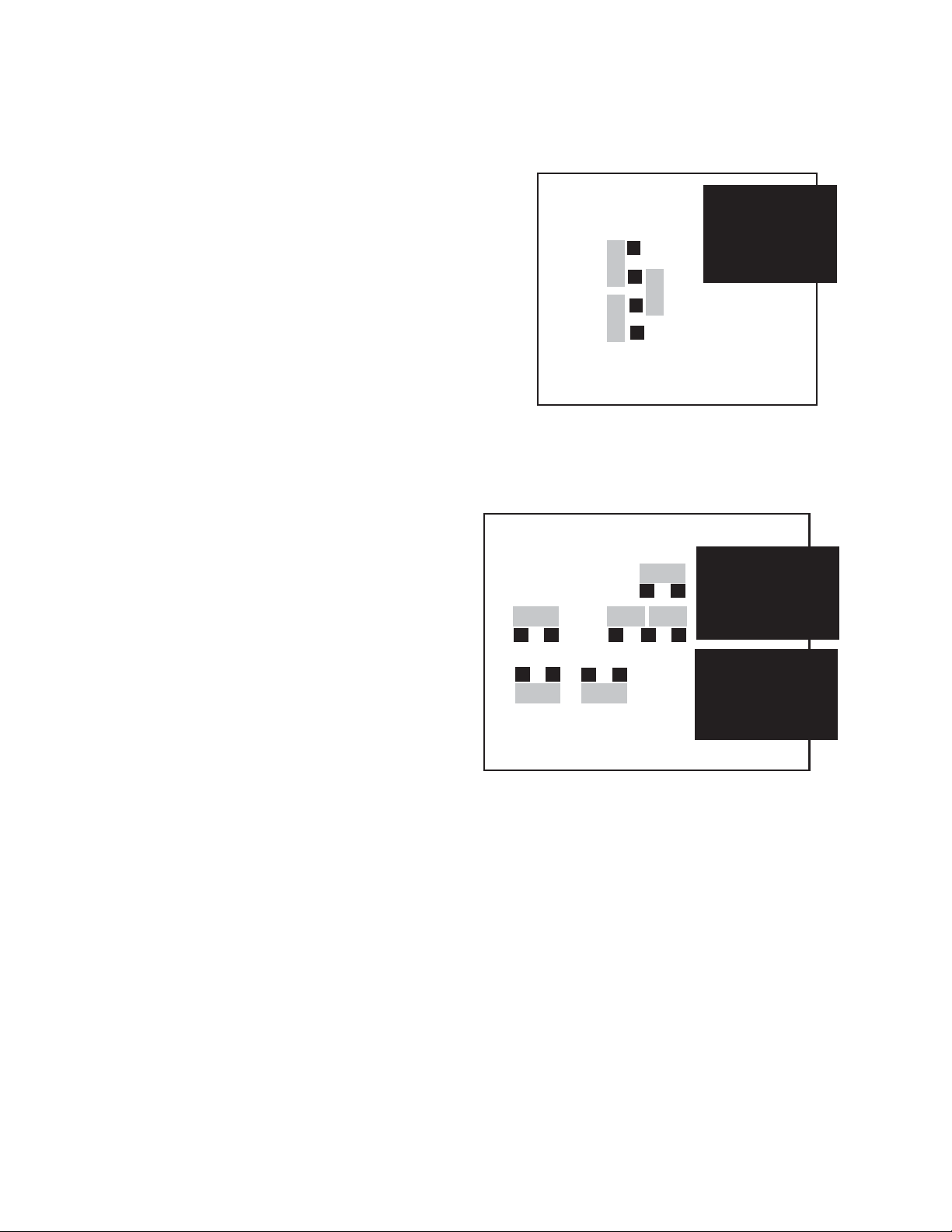

RS232 Interface Jumper g - installed for normal operation

Jumper h - installed when used as a slave display

with the RS232 output of another Laureate meter. Jumper j - provides a pull-up resistor on the RTS line.

Note: The board is shipped standard with jumpers g

and j installed

RS485 Interface Note: Bias jumpers b and e must be

installed on board for proper operation. If the outputs of more than 1 RS485 are connected together, then 1 (AND ONLY 1) RS485 board must have the jumpers installed.

Full Duplex

RS232

Jumpers b and e - bias jumpers installed on

1 board Jumpers a and d - are installed with long cable runs and add 121 ohm load resistors. If multiple meters are on same line, only the last meter in the line should be jumpered.

Half Duplex Jumpers b and e - bias jumpers installed on 1 board

Jumpers c and f - installed for half duplex operation Jumper a - is installed with long cable runs and add a 121 ohm load resistor. If multiple

meters are on same line, only the last meter in the line should be jumpered. Note: The board is shipped standard with no jumpers installed

-38-

RS485

21. PARALLEL BCD OUTPUT

21. 1 OPERATING MODE MENU SELECTION

The following menu items are accessible only with a BCD option installed and appropriate lockouts enabled. See Section 9 for further information.

MENU KEY

Press the

key until SEr 1 (Serial interface setup 1) is displayed.

DIGIT SELECT KEY

1 2 3 4 5

Press

to display status. Press again to select digit. Selected digit will flash.

Digit 3: Output filtering

VALUE SELECT KEY

1 2 3 4 5 Press to select value for flashing digit

3: "0"-Send unfiltered signal "1"-Send filtered signal

Digit 5: Output update rate

5: "0"-Line frequency

"1" to "9"

- Batch display rate (3.5/ sec) to Batch display rate / 256 (1 every 15 min.)

21. 2 BCD OUTPUT LEVELS

The BCD option provides isolated, buffered, stored, 3-state parallel outputs that are selectable for either 0 to 5V logic levels (LSTTL, CMOS compatible) or 0 to 15Vdc. Selection jumpers are located on the BCD board. BCD outputs are positive true. Polarity bit is positive true for +sign.

LOGIC LEVEL JUMPER REQUIRED 0 to 5Vdc b 0 to 15Vdc a

21. 3 BCD CONTROL SIGNALS

Enable Logical 0 - All outputs go to the high impedance state

Logical 1 - BCD information is available at outputs.

BCD Hold Logical 0 - BCD from last update prior to BCD Hold going low is stored

Logical 1- BCD information updates at selected rate.

Data Ready Logical 0 - BCD outputs are valid

Logical 1 - BCD outputs are not valid

-39-

22. 5, 10 AND 24 VDC EXCITATION OUTPUTS

Figure 22. 1 - Power Supply

22. 1 SELECTION OF 5, 10 OR 24VDC OUTPUT

Voltage Output Jumper Locations 5 Vdc b, d and e

10 Vdc b, d and f 24 Vdc c

5 Vdc

10 Vdc

24 Vdc

22. 2 SELECTION OF OTHER JUMPERS

Jumper ' a ' - Front panel menu lockout, locked when installed (see Section 10.1) Jumper ' g ' - Provides +5V power output at P1-4 when installed

Jumper ' h ' - Connects "Digital Input B" to P1-4 when installed

-40-

23. DIGITAL INPUTS

23.1 FUNCTION OF DIGITAL INPUTS

Tare Logical 0 - The present display value is set to zero and stored as an offset value.

Logical 1 - The displayed value is equal to the signal input minus the tare value.

Peak Display Logical 0 - The peak value of the input signal is displayed.

Logical 1 - The present value of the input signal is displayed.

Hold Logical 0 - The meter display and outputs are held at the last reading.

Logical 1 - The display and outputs are updated normally

Reset Logical 0 - The microcomputer reads and resets the meter to nonvolatile memory values

Logical 1 - The meter display and outputs operate normally.

Function Reset Logical 0 - The microC resets peak to present value and resets alarms.

Logical 1 - The meter display and outputs operate normally.

External Decimal Points Input A Input B Decimal Pts 1 Decimal Pts 2

1 1 XXXXX XXXX.X 0 1 XXXX.X XXX.XX 1 0 XXX.XX XX.XXX 00 XX.XXX X.XXXX

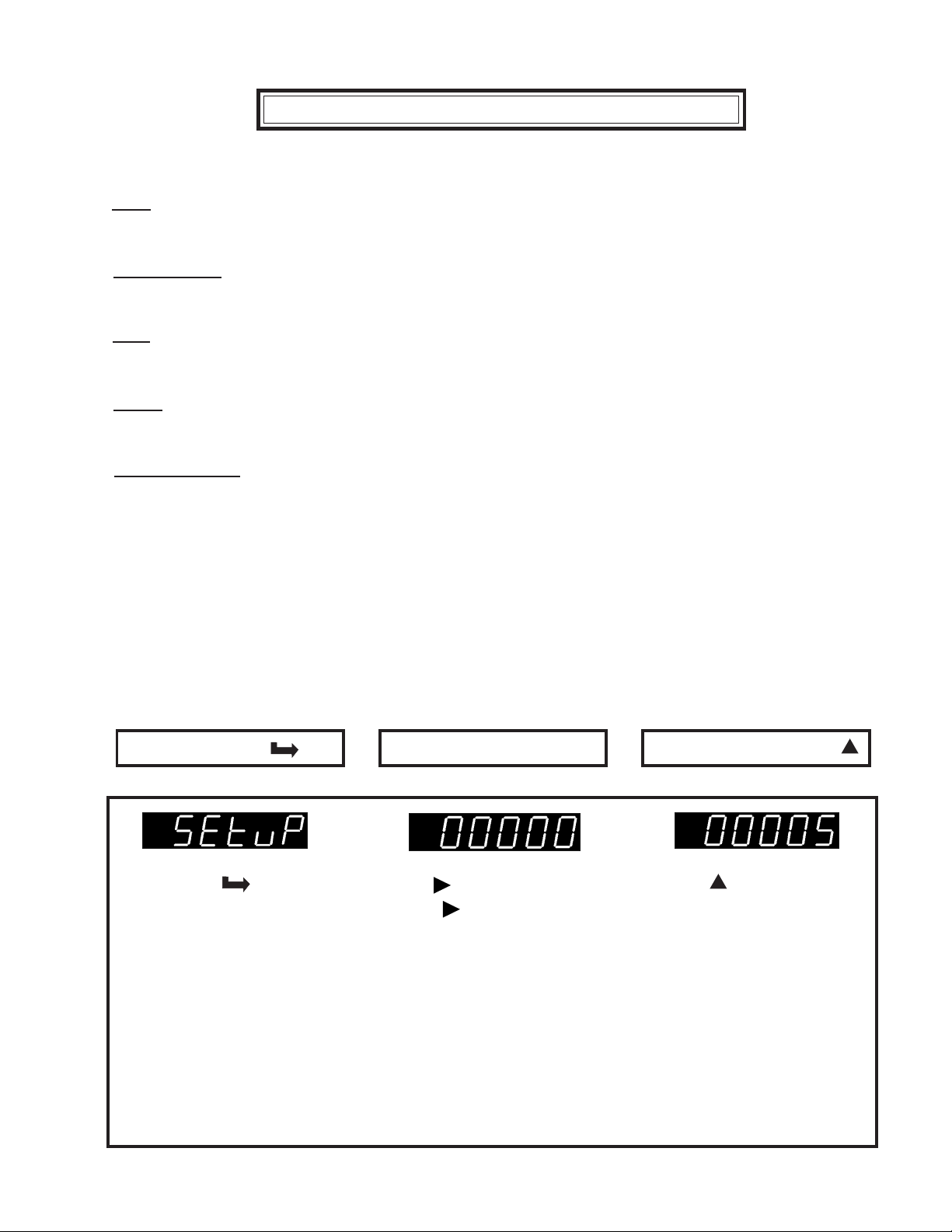

23.3 MENU SELECTIONS

MENU KEY

Press the

key until SEtup (Basic meter setup) is displayed.

DIGIT SELECT KEY

1 2 3 4 5 Press to display status. Press again to select digit. Selected digit will flash. Digit 5: digital inputs A & B at J1, Pins 5 and 4.

VALUE SELECT KEY

1 2 3 4 5 Press to select value for flashing digit 0 A: Reset B: Meter Hold 1 A: Function Reset B: Peak display 2 A: Meter Hold B: Peak 3 A: Meter Hold B: Tare 4 A: Peak B: Tare 5 A: Tare B: Reset 6 External Decimal Pts.1 7 External Decimal Pts.2

-41-

24. CALIBRATION

All ranges of the meter have been digitally calibrated at the factory prior to shipment. The calibration equipment is certified to NIST standards. Calibration constants are stored in nonvolatile memory in EEPROM on the signal conditioner. This eliminates much of the analog circuitry that causes drift and provides superior long term accuracy and stability.

Since the calibration is stored on the signal conditioner and analog output boards, all boards may be mixed and interchanged without requiring recalibration. If recalibration is required, the meter may be returned to the factory or any authorized distributor.

For the customer requiring on site calibration, an RS-232 or RS-485 option must be installed to perform the calibration. The interface card may be temporarily installed and then removed upon completion of calibration. Step-by-step instructions for calibration and the equipment required is available from the factory.

25. SPECIFICATIONS

BASIC METER

Display

Type ..................................5 LED, 7-segment, 14.2mm (.56") high digits & 3 LED indicators

Color.................................................................................................................. Red or green

Range...................................................................-99999 to +99999 and -99990 to +99990

A to D Conversion

Technique (Pat.5,262,780)...................................................................... Concurrent Slope

Rate....................................................................... 60/s for 60 Hz NMR, 50/s for 50 Hz NMR

Output Update Rate ................................................................... 56/s at 60 Hz, 47/s at 50 Hz

Display Update Rate ................................................................... 3.5/s at 60 Hz, 3/s at 50 Hz

Noise Rejection

CMV from DC to 60 Hz......................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

CMR from DC to 60 Hz ............................................................................................... 130 dB

NMR at 50/60 Hz.............................................................90 dB with minimum digital filtering

External Inputs/Outputs (CMOS/TTL Levels)

Hold input ..................................................................................0 - holds display and outputs

Peak input ..........................................................................................0 - displays peak value

Tare input ................................................................................. 0 - offsets input value to zero

Reset input ................................................................................ 0 - resets all meter functions

Function Reset input ........................................................ 0 - resets peak values and alarms

Decimal Point input ...................... overrides internal DP selections and controls DP position

-42-

ACCURACY

DC Volts

VOLTAGE

RANGE

200.00 mV

2.0000 V

20.000 V

200.00 V

660.0 V

RESOLUTION

DC Amperes

CURRENT

RANGE

2.0000 mA

20.000 mA

200.00 mA

5.000 A

RESOLUTION

Ratio

10 uV

100 uV

1 mV

10 mV

100 mV

0.1 uA

1.0 uA 10 uA

1.0 mA

INPUT OHMS

1 G 1 G 1 M 1 M 1 M

INPUT

OHMS

100

.01

ERROR

AT 25°C

.01% Full

Scale

+/-2 Ct.

ERROR

AT 25°C

.01% Full

Scale

+/-2 Ct.

RTD's (.01, .1, 1.0 Degree Resolution)

PT100

TYPE

DIN

.00385

ANSI

.003925

RANGE

-202°C to +850°C

-331°F to +1562°F

-202°C to +631°C

-331°F to +1168°F

ERROR

AT 25°C

.01% FS +/- 0.03°C

.01% FS +/- 0.05°F

.01% FS +/- 0.04°C

.01% FS +/- 0.07°F

Thermocouple

( .1, 1.0 Degree Resolution )

TYPE

RANGE

-210°C to +760°C

-347°F to +1400°F

-244°C to +1372°C

-408°F to +2501°F

ERROR

AT 25°C

.01% FS +/- 0.09°C .01% FS +/- 0.16°F

.01% FS +/- 0.1°C

.01% FS +/- 0.17°F

VOLTAGE

RANGE

200.00 mV

2.0000 V

20.000 V

10 uV

100 uV

1 mV

INPUT OHMS

1 G 1 G 1 M

ERROR

AT 25°CRESOLUTION

.01% Full

Scale

+/-2 Ct.

True RMS Volts (1 to 100% Full Scale)

VOLTAGE

RANGE

200.00 mV

2.0000 V

20.000 V

200.00 V

660.0 V

RESOLUTION

10 uV

100 uV

1 mV

10 mV

100 mV

INPUT OHMS

22 M

22M

1 M 1 M 1 M

ERROR

AT 25°C

.1% FS

+/-10 Ct.

from 10 Hz

to 10kHz

True RMS Amperes (1 to 100% Full Scale)

CURRENT

RANGE

2.0000 mA

20.000 mA

200.00 mA

5.000A

RESOLUTION

0.1 uA

1.0 uA 10 uA

.25 mA

INPUT OHMS

100

.01

ERROR AT 25°C

.1% FS

+/-10 Ct.

from 10 Hz

to 10kHz

0°C to +400°C

-257°C to 0°C

+32°F to 752°F

-430°F to +32°F

-240°C to +1000°C

-400°F to +1830°F

-244°C to +1372°C

-408°F to +2501°F

-46°C to +1768°C

-51°F to +3213°F

-45°C to +1768°C

-49°F to +3214°F

Load Cell Inputs

INPUT

RANGE

20.000 mV

50.000 mV

100.00 mV

250.00 mV

500.00 mV

RESO-

LUTION

1 uV

2.5 uV 5 uV

12.5 uV 25 uV

OUTPUT

ZERO

RANGE

-99,999 to

+99,999

.01% FS +/- 0.03°C

.01% FS +/- 0.2°C .01% FS +/- 0.05°F .01% FS +/- 0.36°F

.01% FS +/- 0.18°C .01% FS +/- 0.32°F

.01% FS +/- 0.1°C .01% FS +/- 0.17°F

.01% FS +/- 0.12°C .01% FS +/- 0.22°F

.01% FS +/- 0.17°C .01% FS +/- 0.31°F

OUTPUT

SPAN

RANGE

+/-99,999

ERROR

25°C

.01%Full

Scale

+/-1Ct.

-43-

Span Tempco....................................................................................... 0.003% of reading/°C

Load Cell Meter only.................................................................. 0.0015% of reading/°C

Zero Tempco...........................................................................................................0.2 uV/°C

Reference Junction ................................................................................. 0.03 degree/degree

POWER SUPPLIES

Input Voltage (std)....................................................................85 to 264 Vac, 90 to 370 Vdc

Input Voltage (opt)............................................................................ 8 to 28 Vac, 9 to 37 Vdc

Frequency .............................................................................................DC and 47 to 440 Hz

Consumption .................................................................................................. 5.3 Watts max.

Excitation Power Supplies

Outputs.............................................................................................5 Vdc, 5%, 100 mA max

10 Vdc, 5%, 120 mA max.

24 Vdc, 5%, 40 mA max.

Ripple .............................................................................................................. 100 mVp max.

Isolation.............................................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

DUAL CONTROLLER OPTION

Basic

Power ............................................................................................... Provided by basic meter

Update Rate ............................................................................... 56/s at 60 Hz, 47/s at 50 Hz

Setup....................................................................... setpoint values may be entered by front

panel pushbuttons or via RS-232 or RS-485

Lockouts...........................................Front panel pushbuttons control display and change of

setpoints, only control display of setpoints, or are disabled.

Output Operation.................................. either output may be set to operate above, below or

around the setpoint, latching or non-latching or output disabled

Filtering ................................................................comparison to the setpoints may be either

from the filtered or unfiltered input signal

Time Delay .................................................................. selectable time delay of output status

change of 1 to 128 readings

Hysteresis................................................................... selectable from 0 to +/- 99,999 counts

Alarm Status Indicators

Type .............................................................................................................2 red LED lamps

Relay Output

Contact Rating......................................................................10 A @ 240 Vac, 8 A @ 24 Vdc

Safety Certification ................................................................................... VDE, UL, and CSA

-44-

Isolation

Coil to Contacts ......................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

Between Open Contacts................................................... withstand 4.2kVp for 1 min

Pickup..........................................................................................................26 ms typ.

Release .......................................................................................................22 ms typ.

Solid State Relay Output

Voltage Rating.................................................................................... 125Vac, 150 Vdc max.

Current Rating ......................................................................................120 mAac, 240mAdc

Safety Certification .................................................................................... VDE, UL and CSA

Isolation.............................................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

Response to input signal........................................................................................17 ms typ.

ANALOG OUTPUT OPTION

Isolation.............................................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

Power ................................................................................................supplied by basic meter

Accuracy.................................................................... basic meter +/-0.1% Analog Full Scale

Response Time ..................17 ms for unfiltered input, same as basic meter for filtered input

Compliance

0 to 20 mA ................................................................................. 12 V (0 to 600 Ohms)

0 to 10 V .............................................................................2 mA (5 kOhms min.) load

Scaling

Reading for Zero Output........................................................................... -99,999 to +99,999

Reading for Full Scale Output ................................................................. -99,999 to +99,999

RS-232 / RS-485 INTERFACE OPTION

Isolation.............................................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

Power ................................................................................................supplied by basic meter

Type .............................................................................................full or half duplex (RS-485)

Baud Rates .......................................................... 300, 600, 1200, 2400, 4800, 9600, 19200

Signal Levels................................................................ Meet RS-232 and RS-485 standards

BCD OUTPUT OPTION

Isolation.............................................Safety-rated to 250Vac, 4.2kVp per High Voltage Test

Power ................................................................................................supplied by basic meter

Type ...................................................................................................3-state, stored, parallel

Signal Levels................................................................................ LSTTL, CMOS compatible

Controls................................................................................ BCD Enable, Hold, Data Ready

ENVIRONMENTAL

Operating Temperature....................................................................................... 0°C to 55°C

Storage Temperature ....................................................................................... -40°C to 85°C

Relative Humidity ................................................................................ 90% from 0°C to 40°C

-45-

WARRANTY

Laurel Electronics Inc. warrants its products against defects in materials or workmanship for a period of one year from the date of purchase.

In the event of a defect during the warranty period, the unit should be returned, freight prepaid (and all duties and taxes) by the Buyer, to the authorized Laurel distributor where the unit was purchased. The distributor, at its option, will repair or replace the defective unit. The unit will be returned to the buyer with freight charges prepaid by the distributor.

LIMITATION OF WARRANTY The foregoing warranty shall not apply to defects resulting from:

1. Improper or inadequate maintenance by Buyer.

2. Unauthorized modification or misuse.

3. Operation outside the environmental specifications of the product.

4. Mishandling or abuse.

The warranty set forth above is exclusive and no other warranty, whether written or oral, is expressed or implied. Laurel specifically disclaims the implied warranties of merchantability and fitness for a particular purpose.

EXCLUSIVE REMEDIES The remedies provided herein are Buyer’s sole and exclusive remedies. In no event shall Laurel be liable for direct, indirect, incidental or consequential damages (including loss of profits) whether based on contract, tort, or any other legal theory.

Rev P 11/06

Laurel Electronics LAUREATE SERIES DPM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
