Laurel Electronics BOX Specifications

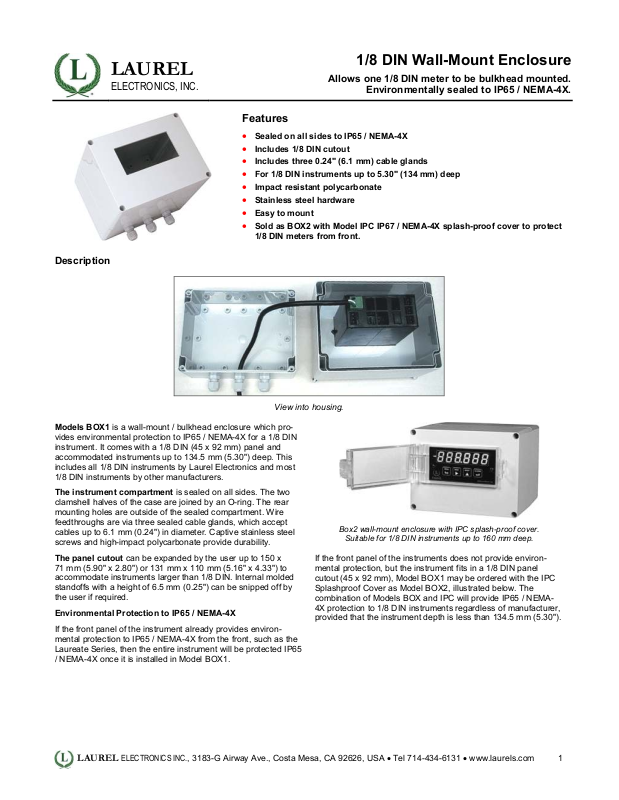

Page 1
Description
LAUREL
Features
Sealed on all sides to IP65 / NEMA-4X
Includes 1/8 DIN cutout
Includes three 0.24" (6.1 mm) cable glands
For 1/8 DIN instruments up to 5.30" (134 mm) deep
Impact resistant polycarbonate
Stainless steel hardware
Easy to mount
Sold as BOX2 with Model IPC IP67 / NEMA-4X splash-proof cover to protect 1/8 DIN meters from front.
Allows one 1/8 DIN meter to be bulkhead mounted.
Environmentally sealed to IP65 / NEMA-4X.
1/8 DIN Wall-Mount Enclosure
View into housing.
Models BOX1 is a wall-mount / bulkhead enclosure which pro­vides environmental protection to IP65 / NEMA-4X for a 1/8 DIN instrument. It comes with a 1/8 DIN (45 x 92 mm) panel and accommodated instruments up to 134.5 mm (5.30") deep. This includes all 1/8 DIN instruments by Laurel Electronics and most 1/8 DIN instruments by other manufacturers.
The instrument compartment is sealed on all sides. The two clamshell halves of the case are joined by an O-ring. The rear mounting holes are outside of the sealed compartment. Wire feedthroughs are via three sealed cable glands, which accept cables up to 6.1 mm (0.24") in diameter. Captive stainless steel screws and high-impact polycarbonate provide durability.
The panel cutout can be expanded by the user up to 150 x 71 mm (5.90" x 2.80") or 131 mm x 110 mm (5.16" x 4.33") to accommodate instruments larger than 1/8 DIN. Internal molded standoffs with a height of 6.5 mm (0.25") can be snipped off by the user if required.
Environmental Protection to IP65 / NEMA-4X
If the front panel of the instrument already provides environ­mental protection to IP65 / NEMA-4X from the front, such as the Laureate Series, then the entire instrument will be protected IP65 / NEMA-4X once it is installed in Model BOX1.
Box2 wall-mount enclosure with IPC splash-proof cover.
Suitable for 1/8 DIN instruments up to 160 mm deep.
If the front panel of the instruments does not provide environ­mental protection, but the instrument fits in a 1/8 DIN panel cutout (45 x 92 mm), Model BOX1 may be ordered with the IPC Splashproof Cover as Model BOX2, illustrated below. The combination of Models BOX and IPC will provide IP65 / NEMA­4X protection to 1/8 DIN instruments regardless of manufacturer, provided that the instrument depth is less than 134.5 mm (5.30").
LAUREL
ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA Tel 714-434-6131 www.laurels.com 1
Page 2
Specifications
Dimensions
Width, external Height, external Depth, external Instrument cutout Maximum depth Mounting holes
Materials
Enclosure Screws
Ordering Guide
BOX1 NEMA-4X wall-mount enclosure with one 1/8 DIN cutout.
BOX2 BOX1 wall-mount enclosure plus IPC splash-proof cover.
158 mm (6.22") 120 mm (4.72") + 20 mm (0.79") for glands 160 mm (6.30") 45 x 92 mm (1.77" x 3.62") for 1/8 DIN instrument
134.5 mm (5.30") for 1/8 DIN instrument 4 ea. spaced 147.5 mm (5.80") horizontal, 88 mm (3.46") vertical,
4.0 mm (3/16") diameter.
Polycarbonate Stainless steel
